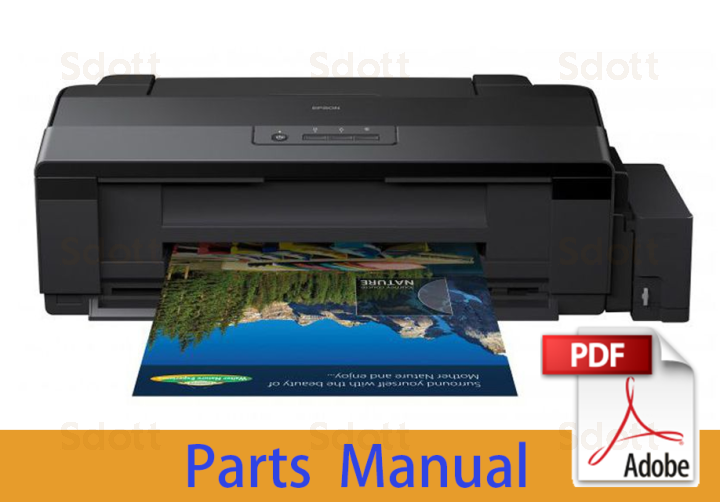

EPSON L1300 ET-14000 Parts Manual
In stock
SKU
EP-L1300-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON L1300 ET-14000 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| 1684685 | MODEL NAME PLATE,EB-l1300U | ||
| l1300 | 1625418 | 100 | HOUSING UPPER ASSY ,CD81,,IEI |
| l1300 | 1625419 | 101 | PANEL UNIT CD81,.IEI |
| l1300 | 1555634 | 102 | DECORATION PLATE,LEFT,B |
| l1300 | 1578224 | 103 | HOUSING,LOWER,C |
| l1300 | 1621948 | 107 | DECORATION PLATE,RIGHT |
| l1300 | 1550331 | 108 | PAPER SUPPORT SUB ASSY.,IEI |
| l1300 | 1465191 | 130 | DECORATION PLATE,FRONT,RIGHT |
| l1300 | 1625454 | 131 | DECORATION PLATE,FRONT,LEFT,E |
| l1300 | 1626401 | 133 | STACKER UNIT,CD81,IEI |
| l1300 | 1521980 | 136 | FOOT,B |
| l1300 | 2172245 | 200 | BOARD ASSY.,MAIN |
| l1300 | 2157293 | 300 | BOARD ASSY.,POWER SUPPLY |
| l1300 | 1685325 | 501 | CARRIAGE SUB ASSY B.,:,IEI |
| l1300 | 1509557 | 502 | HOLDER,CONNECTOR,CSIC |
| l1300 | 1292771 | 503 | HOLDER,DETECTOR,PW |
| l1300 | 2109392 | 504 | BOARD ASSY.,DETECTOR,PW |
| l1300 | 2111932 | 505 | BOARD ASSY.,ENCODER |
| l1300 | 1262695 | 507 | HOLDER,BOARD ASSY.,ENCORDER,PF |
| l1300 | 2111047 | 508 | Ersetzt durch: 2116736 |
| l1300 | 1649433 | 509 | COVER ADAPTER ASSY.,IEI |
| l1300 | 1292785 | 511 | SHAFT,CR,GUIDE |
| l1300 | 1557662 | 512 | SCALE,CR,C |
| l1300 | 1233669 | 513 | TORSION SPRING,24.7 |
| l1300 | 2137379 | 514 | MOTOR,ASSY,CR |
| l1300 | 2125613 | 515 | CABLE,HEAD |
| l1300 | 2125614 | 516 | CABLE,HEAD,B |
| l1300 | 1549000 | 519 | AUTO PG UT,IEI |
| l1300 | 1628003 | 521 | INK SYSTEM ASSY,B.,IEI |
| l1300 | 1562696 | 522 | PAPER GUIDE UPPER SUB ASSY,CB53,IEI |
| l1300 | 2138211 | 524 | MOTOR ASSY.,PF,B |
| l1300 | 1530857 | 529 | HOLDER RELEASE SUB ASSY,IEI |
| l1300 | 1530584 | 532 | PAPER DETECTOR SUB ASSY,IEI |
| l1300 | 2128251 | 541 | HARNESS,ENCORDER,PF |
| l1300 | 1551477 | 545 | CLEANER,HEAD,ASP.,IEI |
| l1300 | 2124972 | 548 | BOARD ASSY.,SUB |
| l1300 | 2128250 | 549 | CABLE,PW,B |
| l1300 | 1292892 | 552 | TIMING BELT,CR |
| l1300 | 1292845 | 567 | PAPER GUIDE,REAR |
| l1300 | 1466344 | 570 | COVER,CABLE,HEAD |
| l1300 | 2125616 | 571 | CABLE,HEAD,RELAY |
| l1300 | 2125617 | 572 | CABLE,HEAD,RELAY,B |
| l1300 | 1509572 | 573 | TIMING BELT,PF |
| l1300 | 2157626 | 574 | FFC , ENCODER |
| l1300 | F185020 | 700 | PRINT HEAD |
| l1300 | 1628470 | 701 | ASF UNIT,CD81,IEI |
| l1300 | 2090539 | 702 | MOTOR,ASSY.,ASF |
| l1300 | 1635690 | 704 | ROLLER,LD |
| l1300 | 1529149 | 705 | RETARD SUB., ASSY |
| l1300 | 1218027 | 720 | POROUS PAD,CABLE,HEAD |
| l1300 | 1436642 | 724 | CLAMP,TUBE |
| l1300 | 1552751 | 730 | TRAY POROUS PAD INK EJECT ASSY,CA58 |
| l1300 | 1492494 | 734 | POROUS PAD,INK EJECT,IS,LEFT,B |
| l1300 | 1492495 | 735 | POROUS PAD,INK EJECT,IS,LOWER,FB,B |
| l1300 | 1492496 | 736 | POROUS PAD,INK EJECT,IS,LOWER,LEFT,B |
| l1300 | 1492498 | 738 | POROUS PAD,INK EJECT,TUBE,FB,B |
| l1300 | 1513389 | 739 | SHEET,STOPPER,POROUS PAD |
| l1300 | 1621951 | 740 | JOINT,TUBE,5 |
| l1300 | 1620879 | 742 | ADAPTER,ASSY,B |
| l1300 | 1564366 | 743 | LEVER VALVE,B |
| l1300 | 1597513 | 744 | CAP,TANK,B |
| l1300 | 1625308 | 746 | VALVE,UNIT,SUB ASSY,CD81.IEI |
| l1300 | 1594328 | 747 | ADAPTER,ASSY.,CC83,SEC |
| l1300 | 1630971 | 757 | TUBE ADAPTER ASSY., ASP |
| l1300 | 1621949 | 758 | COVER,TANK,UPPER |
| l1300 | 1624564 | 759 | LABEL,GENUINE INK,EURO |
| l1300 | 1645823 | 760 | SHEET,GUIDE,TUBE,SUB,B |
| l1300 | 1702734 | 761 | TANK,SUPPLY,INK,ASSY.CD81,.IEI |
| l1300 | 1556135 | NON FIG | CAP,AIR RELEASE HOLE |
| l1300 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| l1300 | 1033657 | NON FIG | GREASE G-45 |
| l1300 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| l1300 | 1409257 | NON FIG | GREASE G-74 |
| l1300 | 1304993 | NON FIG | PF ROLLER POSITION ADJUSTMENT TOOL |
| l1300 | 1276333 | NON FIG | PG ADJUSTMENT PLATE |
| l1300 | 1537450 | NON FIG | POST CARD 40PERCENT,4000,ADJUSTMENT 4000PCS |
| l1300 | 2150400 | NON FIG | POWER CABLE |
| l1300 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| l1300 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| l1300 | 1640645 | NON FIG | SONIC TENSION METER U508 |
| l1300 | 6022802 | NON FIG | Special Repair Liquid,1,1kg |
| l1300 | 1304994 | NON FIG | SURFACE PLATES |
| Manual Name | EPSON L1300 ET-14000 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.2M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L1300 ET-14000Series |
