EPSON L300/L301/L303 Parts Manual
In stock
SKU
EP-L300-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON L300/L301/L303 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| 1021608 | D!#EPl3000 PANEL COV.EXCPT JAP | ||
| 2016274 | EPl3000 PW BOARD-O WITH IC | ||
| 1021748 | EPl3000 TUBE LAMP 100V | ||

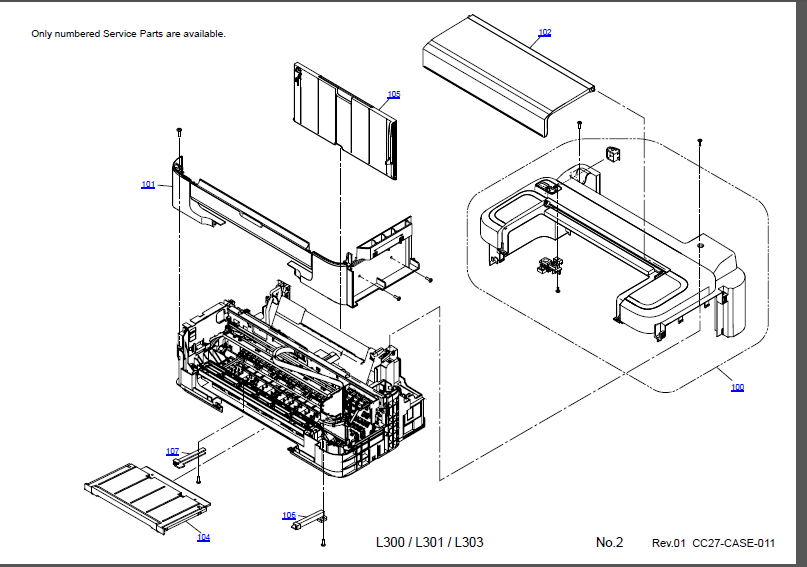

| l300 | 1610768 | 100 | HOUSING UPPER ASSY.,CC27,ASP |
| PHOTO PC l300 | 1253779 | 100 | FRONT COVER ASSY ME91 -6510 -00 |
| l300 | 1572352 | 101 | HOUSING,FRONT |
| PHOTO PC l300 | 1262341 | 101 | STROBE PANEL ME91 16901 -00 |
| l300 | 1584767 | 102 | COVER,PRINTER,B |
| PHOTO PC l300 | 1253781 | 102 | I/O COVER ME91 65070 -00 |
| PHOTO PC l300 | 1262340 | 103 | BATT LID UNIT ME91 -9060 -00 |
| l300 | 1569303 | 104 | STACKER ASSY.,CC11,EPPI |
| PHOTO PC l300 | 1407017 | 104 | Chassis SEV Unit ME91 -9050-01 |
| PHOTO PC l300 | 1272831 | 104 | Ersetzt durch: 1407017 |
| l300 | 1569307 | 105 | PAPER SUPPORT ASSY.,CC11,EPPI |
| PHOTO PC l300 | 1262342 | 105 | GRIP LAG B ME91 10440 -00 |
| l300 | 1568259 | 106 | RAIL,STACKER,RIGHT |
| PHOTO PC l300 | 2083340 | 106 | DIAL UNIT ME91 -6410 -00 |
| l300 | 1568260 | 107 | RAIL,STACKER,LEFT |
| PHOTO PC l300 | 2083341 | 107 | LCD HARNESS ME91 82060 -00 |
| PHOTO PC l300 | 1253780 | 108 | REAR COVER ASSY ME91 -6910 -00 |
| PHOTO PC l300 | 1258837 | 120 | SCREW C1.7X3.5 ME91 16030 -01 |
| PHOTO PC l300 | 1264158 | 121 | SCREWF1.7X5.0 ME91 16060 -00 |
| PHOTO PC l300 | 1258838 | 122 | SCREW E1.4X1.5 ME91 16050 -00 |
| PHOTO PC l300 | 1258835 | 123 | SCREW A1.7X2.5 ME91 16010 -00 |
| PHOTO PC l300 | 1258839 | 124 | SCREW BT1P1.7X3.5NI ZZ01 75454 -00 |
| l300 | 2158980 | 200 | BOARD ASSY.,MAIN |
| l300 | 2140867 | 200 | Ersetzt durch: 2158980 |
| l300 | 2149973 | 300 | Ersetzt durch: 2153843 |
| l300 | 2153843 | 300 | Ersetzt durch: 2155567 |
| l300 | 2155567 | 300 | POWER SUPPLY UNIT |
| l300 | 2121764 | 400 | POWER CABLE |
| PHOTO PC l300 | 2084290 | 400 | AC ADAPTER,A211H:WW ME91 88030 -00 |
| L400 | 2082715 | 401 | AV CABLE,l300 ME91 97430 -00 |
| PHOTO PC l300 | 2082715 | 401 | AV CABLE,l300 ME91 97430 -00 |
| PHOTO PC L400 | 2082715 | 401 | AV CABLE,l300 ME91 97430 -00 |
| PHOTO PC l300 | 2068898 | 402 | POWER CABLE |
| L400 | 2082714 | 403 | USB CABLE:PC,l300 ME91 97420 -00 |
| PHOTO PC l300 | 2082714 | 403 | USB CABLE:PC,l300 ME91 97420 -00 |
| PHOTO PC L400 | 2082714 | 403 | USB CABLE:PC,l300 ME91 97420 -00 |
| L400 | 2082713 | 404 | USB CABLE:PRINT,l300 ME91 97410 -00 |
| PHOTO PC l300 | 2082713 | 404 | USB CABLE:PRINT,l300 ME91 97410 -00 |
| PHOTO PC L400 | 2082713 | 404 | USB CABLE:PRINT,l300 ME91 97410 -00 |
| L400 | 1249436 | 405 | STRAP,l300 ME91 -9950-00 |
| PHOTO PC l300 | 1249436 | 405 | STRAP,l300 ME91 -9950-00 |
| PHOTO PC L400 | 1249436 | 405 | STRAP,l300 ME91 -9950-00 |
| l300 | 1572338 | 501 | LEVER,DETECTOR,PE,HD |
| l300 | 1548500 | 502 | ROLLER,EJ |
| l300 | 1548501 | 503 | SPUR GEAR,31.2 |
| l300 | 1548502 | 504 | MOTOR ASSY.,PF |
| l300 | 1548519 | 505 | BOARD ASSY.,ENCORDER,PF |
| l300 | 1575162 | 507 | HOLDER RETURD ASSY.,CC29,EPPI |
| l300 | 1576550 | 508 | FRAME PUMP ASSY,,CC03,EPPI |
| l300 | 1576982 | 509 | HOLDER STARWHEEL ASSY.,CC26,EPPI |
| l300 | 1569314 | 510 | SHAFT ROLLER LD ASSY.,CC05,EPPI |
| l300 | 1593349 | 511 | SCALE,CR |
| l300 | 1548480 | 512 | EXTENSION SPRING,1.41 |
| l300 | 1610666 | 513 | CAP ASSY.,CC86,EPPI,ASP |
| l300 | 1572339 | 514 | PAPER GUIDE,FRONT,HD |
| l300 | 1548481 | 515 | MOTOR ASSY,CR |
| l300 | 1569341 | 516 | PAPER,GUIDE,UPPER ASSY.,CC05,EPPI |
| l300 | 1588411 | 517 | CR ASSY.,CC60,EPPI,ASP |
| l300 | 2145558 | 518 | CABLE,HEAD,F2 |
| l300 | 1616017 | 519 | CABLE ENCODER F2 CISS ASSY.,CC26,EPPI |
| l300 | 1549887 | 520 | LEVER,PAPER BACK |
| l300 | 1548518 | 521 | SCALE,PF |
| l300 | 1595930 | 522 | ROLLER PF ASSY.,LOCAL,EPPI |
| l300 | 1572337 | 523 | TIMING BELT,CR,3.5 |
| l300 | 1548528 | 527 | CLUTCH |
| l300 | 1548529 | 528 | SPUR GEAR,37.2 |
| l300 | 1548530 | 529 | EXTENSION SPRING,0.137 |
| l300 | FA04010 | 700 | PRINT HEAD,ID1510-1 |
| l300 | 1591209 | 701 | HOLDER,BOARD,CISS |
| l300 | 1575161 | 702 | HOPPER ASSY.,CC29,EPPI |
| l300 | 1577649 | 703 | TRAY POROUSPAD,ASSY.,CC23,EPPI |
| l300 | 1597513 | 704 | CAP,TANK,B |
| l300 | 1615838 | 705 | TANK SUPPLY INK MAGENTA ASSY,B.,CC26 |
| l300 | 1615839 | 706 | TANK SUPPLY INK BLACK ASSY,B.,CC26 |
| l300 | 1615840 | 707 | TANK,SUPPLY,INK,YELLOW ASSY,B.,CC26 |
| l300 | 1615842 | 708 | TANK SUPPLY INK CYAN ASSY,B.,CC26 |
| l300 | 1624320 | 709 | ADAPTER,ASSY,B |
| l300 | 1548351 | 709 | Ersetzt durch: 1624320 |
| l300 | 1538442 | 710 | JOINT,TUBE |
| l300 | 1551074 | 711 | COVER,JOINT,4C |
| l300 | 1563749 | 712 | HOLDER,TUBE,VALVE,REAR,D |
| l300 | 1563755 | 713 | HOLDER,TUBE,VALVE,FRONT,D |
| l300 | 1545377 | 714 | COVER,LEFT |
| l300 | 1582781 | 715 | COVER,RIGHT,SCALE |
| l300 | 1572397 | 716 | COVER,BOTTOM |
| l300 | 1564366 | 717 | LEVER VALVE,B |
| l300 | 1559375 | 718 | LABEL,VALVE POSITION,C |
| l300 | 1556135 | 719 | CAP,AIR RELEASE HOLE |
| l300 | 1563742 | 720 | PRESSING PLATE,TUBE,C |
| l300 | 1590281 | 721 | VALVE ASSY.,CC26,EPPI |
| l300 | 1593372 | 722 | GUIDE,TUBE,SUPPLY,INK,2nd,B |
| l300 | 1572347 | 723 | GUIDE,TUBE |
| l300 | 1543355 | 724 | GUIDE PLATE,TUBE,SUPPORT |
| l300 | 1588413 | 725 | TUBE ADAPTER ASSY.,ASP |
| l300 | 1572396 | 726 | COVER,TOP |
| l300 | 1572356 | 728 | COVER,CR,CISS |
| l300 | 1587281 | 730 | LABEL,GENUINE INK,T664,N/EURO |
| l300 | 1588483 | 731 | LABEL,REFILLING INK,EURO |
| l300 | 1033657 | NON FIG | GREASE G-45 |
| l300 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| l300 | 1409257 | NON FIG | GREASE G-74 |
| l300 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| l300 | 1610434 | NON FIG | INK BOTTLE BOXED,BK,DYE,716C,70,CIS,AS |
| l300 | 1610436 | NON FIG | INK BOTTLE BOXED,C,DYE,716C,70,CIS,AS |
| l300 | 1610437 | NON FIG | INK BOTTLE BOXED,M,DYE,716C,70,CIS,AS |
| l300 | 1610438 | NON FIG | INK BOTTLE BOXED,Y,DYE,716C,70,CIS,AS |
| l300 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| l300 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| l300 | 1294120 | NON FIG | SONIC TENSION METER U507 |
| PHOTO PC l300 | 2083617 | NON FIG | SD CARD 16M-T,JP ME11 97020 -00 |
| PHOTO PC l300 | 3021112 | NON FIG | SOFTWARE CD-ROM,EURO |
| Manual Name | EPSON L300/L301/L303 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.91M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L300/L301/L303 Series |
