EPSON L310/L312/L313 Parts Manual
In stock
SKU
EP-L310-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON L310/L312/L313 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |

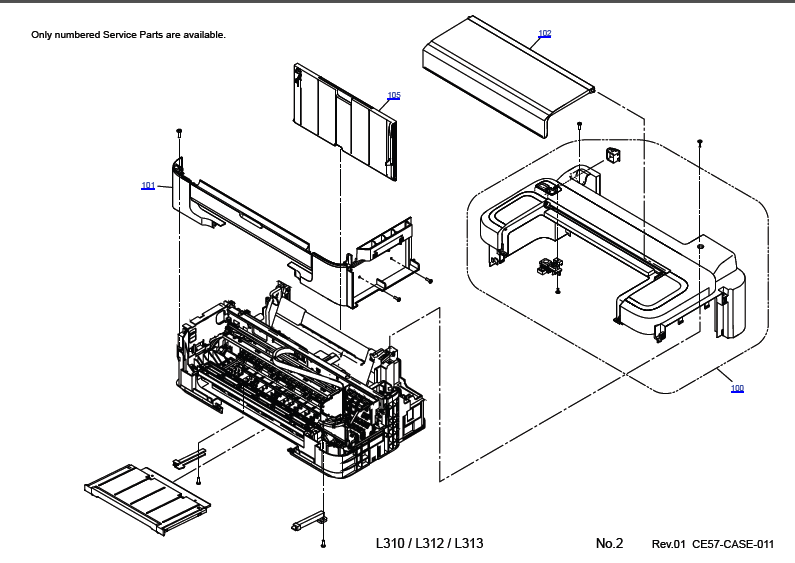

| l310 | 1610768 | 100 | HOUSING UPPER ASSY.,CC27,ASP |
| l310 | 1572352 | 101 | HOUSING,FRONT |
| l310 | 1646106 | 102 | COVER,PRINTER,G |
| l310 | 1569307 | 105 | PAPER SUPPORT ASSY.,CC11,EPPI |
| l310 | 2166063 | 200 | BOARD ASSY.,MAIN |
| l310 | 2179218 | 300 | POWER SUPPLY UNIT |
| l310 | 1572338 | 501 | LEVER,DETECTOR,PE,HD |
| l310 | 1548502 | 504 | MOTOR ASSY.,PF |
| l310 | 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| l310 | 1575162 | 507 | HOLDER RETURD ASSY.,CC29,EPPI |
| l310 | 1576550 | 508 | FRAME PUMP ASSY,,CC03,EPPI |
| l310 | 1569314 | 510 | SHAFT ROLLER LD ASSY.,CC05,EPPI |
| l310 | 1593349 | 511 | SCALE,CR |
| l310 | 1610666 | 513 | CAP ASSY.,CC86,EPPI,ASP |
| l310 | 1572339 | 514 | PAPER GUIDE,FRONT,HD |
| l310 | 1548481 | 515 | MOTOR ASSY,CR |
| l310 | 1708170 | 517 | CR ASSY.,CE54,EPPI,ASP |
| l310 | 2145558 | 518 | CABLE,HEAD,F2 |
| l310 | 1616017 | 519 | CABLE ENCODER F2 CISS ASSY.,CC26,EPPI |
| l310 | 1548518 | 521 | SCALE,PF |
| l310 | 1572337 | 523 | TIMING BELT,CR,3.5 |
| l310 | 1548528 | 527 | CLUTCH |
| l310 | 1548529 | 528 | SPUR GEAR,37.2 |
| l310 | 1548530 | 529 | EXTENSION SPRING,0.137 |
| l310 | 1548494 | 530 | EXTENSION SPRING,0.067 |
| l310 | FA04000 | 700 | PRINT HEAD,ID1510 |
| l310 | 1591209 | 701 | HOLDER,BOARD,CISS |
| l310 | 1627961 | 703 | TRAY POROUS PAD ASSY.,CISS,EPPI |
| l310 | 1597513 | 704 | CAP,TANK,B |
| l310 | 1567193 | 706 | COVER,CABLE,HEAD,F2 |
| l310 | 1653520 | 708 | TANK SUPPLY INK ASSY,B.CE54,EPPI,ASP |
| l310 | 1624320 | 709 | ADAPTER,ASSY,B,CD76,EPPI |
| l310 | 1538442 | 710 | JOINT,TUBE |
| l310 | 1632618 | 712 | HOLDER,TUBE,REAR |
| l310 | 1632617 | 713 | HOLDER,TUBE,FRONT |
| l310 | 1572393 | 721 | TUBE,SUPPLY,INK |
| l310 | 1588413 | 725 | TUBE ADAPTER ASSY.,ASP |
| l310 | 1632234 | 726 | COVER,TANK,TOP |
| l310 | 1556135 | NON FIG | CAP,AIR RELEASE HOLE |
| l310 | 6022795 | NON FIG | Cleaning Liquid,A29,18kg |
| l310 | 6022803 | NON FIG | Cleaning Liquid,A29,1kg |
| l310 | 1033657 | NON FIG | GREASE G-45 |
| l310 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| l310 | 1409257 | NON FIG | GREASE G-74 |
| l310 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| l310 | 1610434 | NON FIG | INK BOTTLE BOXED,BK,DYE,716C,70,CIS,AS |
| l310 | 1610436 | NON FIG | INK BOTTLE BOXED,C,DYE,716C,70,CIS,AS |
| l310 | 1610437 | NON FIG | INK BOTTLE BOXED,M,DYE,716C,70,CIS,AS |
| l310 | 1610438 | NON FIG | INK BOTTLE BOXED,Y,DYE,716C,70,CIS,AS |
| l310 | 2121764 | NON FIG | POWER CABLE |
| l310 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| l310 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| l310 | 1640645 | NON FIG | SONIC TENSION METER U508 |
| Manual Name | EPSON L310/L312/L313 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.06M |
| Pages | 4 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L310/L312/L313 Series |
