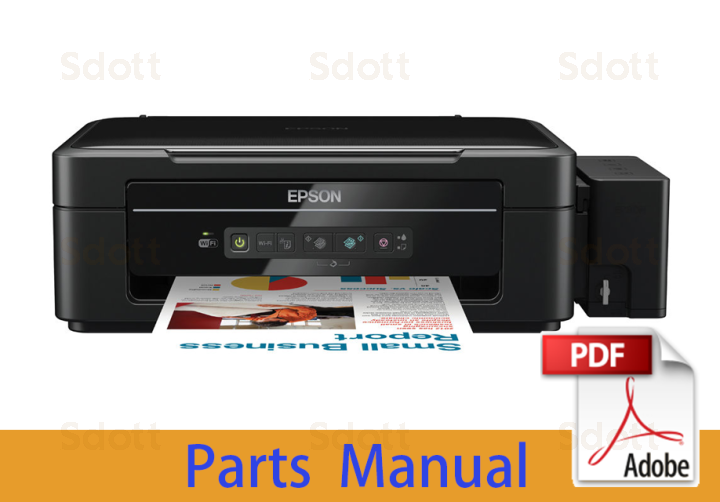

EPSON L355/L358 Parts Manual
In stock
SKU
EP-L355-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON L355/L358 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| L355 | 1572329 | 100 | HOUSING,LEFT |
| L355 | 1572340 | 101 | HOUSING,RIGHT |
| L355 | 1577162 | 102 | COVER,REAR,ICON |
| L355 | 1583758 | 103 | PANEL ASSY.,CC86,EPPI |
| L355 | 1569304 | 104 | STACKER ASSY.,CC05,EPPI |
| L355 | 1569308 | 105 | PAPER SUPPORT ASSY.,CC05,EPPI |
| L355 | 1572341 | 107 | COVER,RIGHT |
| L355 | 1587022 | 109 | HOUSING,PANEL,UPPER,O |
| L355 | 2158970 | 200 | BOARD ASSY.,MAIN |
| L355 | 2171673 | 201 | WIRELESS LAN USB MODULE |
| L355 | 2147874 | 300 | POWER SUPPLY UNIT |
| L355 | 2121764 | 400 | POWER CABLE |
| L355 | 1572338 | 501 | LEVER,DETECTOR,PE,HD |
| L355 | 1548500 | 502 | ROLLER,EJ |
| L355 | 1548501 | 503 | SPUR GEAR,31.2 |
| L355 | 1548502 | 504 | MOTOR ASSY.,PF |
| L355 | 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| L355 | 1575162 | 507 | HOLDER RETURD ASSY.,CC29,EPPI |
| L355 | 1576550 | 508 | FRAME PUMP ASSY,,CC03,EPPI |
| L355 | 1576982 | 509 | HOLDER STARWHEEL ASSY.,CC26,EPPI |
| L355 | 1569314 | 510 | SHAFT ROLLER LD ASSY.,CC05,EPPI |
| L355 | 1593349 | 511 | SCALE,CR |
| L355 | 1548480 | 512 | EXTENSION SPRING,1.41 |
| L355 | 1610666 | 513 | CAP ASSY.,CC86,EPPI,ASP |
| L355 | 1572339 | 514 | PAPER GUIDE,FRONT,HD |
| L355 | 1548481 | 515 | MOTOR ASSY,CR |
| L355 | 1569341 | 516 | PAPER,GUIDE,UPPER ASSY.,CC05,EPPI |
| L355 | 1665572 | 517 | CR ASSY.,CE56,EPPI,ASP |
| L355 | 1708170 | 517 | CR ASSY.,CE56,EPPI,ASP |
| L355 | 2145558 | 518 | CABLE,HEAD,F2 |
| L355 | 1616017 | 519 | CABLE ENCODER F2 CISS ASSY.,CC26,EPPI |
| L355 | 1549887 | 520 | LEVER,PAPER BACK |
| L355 | 1548518 | 521 | SCALE,PF |
| L355 | 1595930 | 522 | ROLLER PF ASSY.,LOCAL,EPPI |
| L355 | 1572337 | 523 | TIMING BELT,CR,3.5 |
| L355 | 1548528 | 527 | CLUTCH |
| L355 | 1548529 | 528 | SPUR GEAR,37.2 |
| L355 | 1548530 | 529 | EXTENSION SPRING,0.137 |
| L355 | 1548494 | 530 | EXTENSION SPRING,0.067 |
| L355 | FA04000 | 700 | PRINT HEAD,ID1510 |
| L355 | 1591209 | 701 | HOLDER,BOARD,CISS |
| L355 | 1598289 | 702 | HOPPER ASSY.,CC87,EPPI |
| L355 | 1577649 | 703 | TRAY POROUSPAD,ASSY.,CC23,EPPI |
| L355 | 1597513 | 704 | CAP,TANK,B |
| L355 | 1615838 | 705 | TANK SUPPLY INK MAGENTA ASSY,B.,CC26 |
| L355 | 1615839 | 706 | TANK SUPPLY INK BLACK ASSY,B.,CC26 |
| L355 | 1615840 | 707 | TANK,SUPPLY,INK,YELLOW ASSY,B.,CC26 |
| L355 | 1615842 | 708 | TANK SUPPLY INK CYAN ASSY,B.,CC26 |
| L355 | 1624320 | 709 | ADAPTER,ASSY,B,CD76,EPPI |
| L355 | 1538442 | 710 | JOINT,TUBE |
| L355 | 1551074 | 711 | COVER,JOINT,4C |
| L355 | 1563749 | 712 | HOLDER,TUBE,VALVE,REAR,D |
| L355 | 1563755 | 713 | HOLDER,TUBE,VALVE,FRONT,D |
| L355 | 1545377 | 714 | COVER,LEFT |
| L355 | 1582781 | 715 | COVER,RIGHT,SCALE |
| L355 | 1572397 | 716 | COVER,BOTTOM |
| L355 | 1564366 | 717 | LEVER VALVE,B |
| L355 | 1559375 | 718 | LABEL,VALVE POSITION,C |
| L355 | 1563742 | 720 | PRESSING PLATE,TUBE,C |
| L355 | 1590281 | 721 | VALVE ASSY.,CC26,EPPI |
| L355 | 1593372 | 722 | GUIDE,TUBE,SUPPLY,INK,2nd,B |
| L355 | 1572347 | 723 | GUIDE,TUBE |
| L355 | 1543355 | 724 | GUIDE PLATE,TUBE,SUPPORT |
| L355 | 1588413 | 725 | TUBE ADAPTER ASSY.,ASP |
| L355 | 1572396 | 726 | COVER,TOP |
| L355 | 1571705 | 727 | COMPRESSION SPRING,4.36 |
| L355 | 1572356 | 728 | COVER,CR,CISS |
| L355 | 1587281 | 730 | LABEL,GENUINE INK,T664,N/EURO |
| L355 | 1588483 | 731 | LABEL,REFILLING INK,EURO |
| L355 | 2146714 | 800 | SCANNER UNIT,CC86,EPPI |
| L355 | 1578562 | 801 | Ersetzt durch: 1589439 |
| L355 | 1556135 | NON FIG | CAP,AIR RELEASE HOLE |
| L355 | 1033657 | NON FIG | GREASE G-45 |
| L355 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| L355 | 1409257 | NON FIG | GREASE G-74 |
| L355 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| L355 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| L355 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| L355 | 1640645 | NON FIG | SONIC TENSION METER U508 |
| L355 | 6022802 | NON FIG | Special Repair Liquid,1,1kg |
| Manual Name | EPSON L355/358 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.38M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L355/358 Series |
