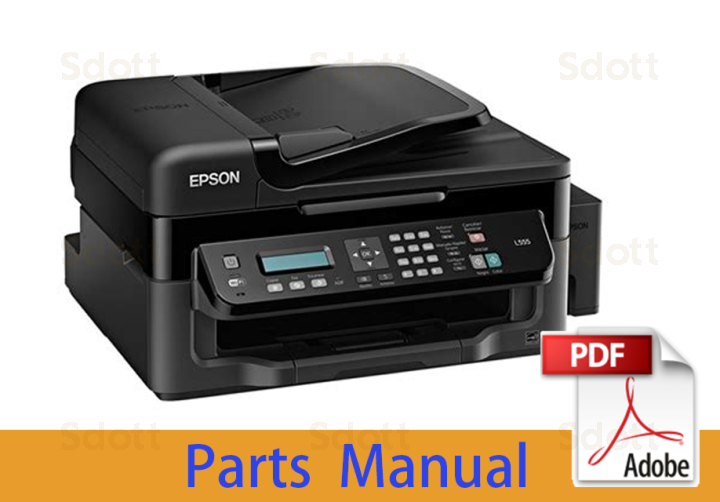

EPSON L555 Parts Manual
In stock
SKU
EP-L555-PM
$1.60
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON L555 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description | ||||
| L555 | 1587061 | 100 | HOUSING,RIGHT | ||||
| L555 | 1572580 | 101 | HOUSING,LEFT | ||||
| L555 | 1572579 | 102 | HOUSING,FRONT | ||||
| L555 | 1548609 | 103 | COVER,REAR | ||||
| L555 | 1624161 | 104 | STACKER ASSY.,B,SEC | ||||
| L555 | 1595368 | 105 | PAPER SUPPORT,C | ||||
| L555 | 1572583 | 106 | PAPER SUPPORT,SUPPORT | ||||
| L555 | 1438860 | 107 | HINGE,ASSY.,B | ||||
| L555 | 1572611 | 108 | COVER,ETHER | ||||
| L555 | 1587062 | 109 | COVER,RIGHT | ||||
| L555 | 1596101 | 110 | PANEL UNIT,CC96,BB,IEI | ||||
| L555 | 1589670 | 111 | HOUSING,PANEL,UPPER,BB | ||||
| L555 | 2172093 | 200 | BOARD ASSY.,MAIN | ||||
| L555 | 2171673 | 202 | WIRELESS LAN USB MODULE | ||||
| L555 | 1584715 | 203 | FAX ASSY.,SEC | ||||
| L555 | 2147874 | 300 | POWER SUPPLY UNIT | ||||
| L555 | 2121764 | 400 | POWER CABLE | ||||
| L555 | 1572338 | 501 | LEVER,DETECTOR,PE,HD | ||||
| L555 | 1548500 | 502 | ROLLER,EJ | ||||
| L555 | 1548501 | 503 | SPUR GEAR,31.2 | ||||
| L555 | 1548502 | 504 | MOTOR ASSY.,PF | ||||
| L555 | 2147998 | 505 | BOARD ASSY.,SUB | ||||
| L555 | 1577657 | 507 | HOLDER RETARD ASSY,IEI | ||||
| L555 | 1597297 | 508 | FRAME PUMP ASSY,B,SEC | ||||
| L555 | 1590464 | 509 | HOLDER STARWHEEL ASSY,IEI | ||||
| L555 | 1573559 | 510 | SHAFT,ROLLER,LD,ASSY,IEI | ||||
| L555 | 1593350 | 511 | SCALE,CR | ||||
| L555 | 1548480 | 512 | EXTENSION SPRING,1.41 | ||||
| L555 | 1577546 | 513 | CAP ASSY.,IEI | ||||
| L555 | 1572339 | 514 | PAPER GUIDE,FRONT,HD | ||||
| L555 | 1548481 | 515 | MOTOR ASSY,CR | ||||
| L555 | 1550812 | 516 | PGU ASSY | ||||
| L555 | 1596204 | 517 | CR ASSY,C,IEI,ASP | ||||
| L555 | 2141060 | 518 | CABLE,HEAD,F2 | ||||
| L555 | 2142475 | 519 | CABLE,ENCORDER,F2,CISS | ||||
| L555 | 1549887 | 520 | LEVER,PAPER BACK | ||||
| L555 | 1548518 | 521 | SCALE,PF | ||||
| L555 | 1590797 | 522 | ROLLER PF,ASSY.,B,IEI | ||||
| L555 | 1572337 | 523 | TIMING BELT,CR,3.5 | ||||
| L555 | 1548528 | 527 | CLUTCH | ||||
| L555 | 1548529 | 528 | SPUR GEAR,37.2 | ||||
| L555 | 1548530 | 529 | EXTENSION SPRING,0.137 | ||||
| L555 | 1548494 | 530 | EXTENSION SPRING,0.067 | ||||
| L555 | 1572561 | 531 | POROUSPAD,IS,LOWER | ||||
| L555 | 1572587 | 541 | COVER,MOTER,PF | ||||
| L555 | FA04000 | 700 | PRINT HEAD,ID1510 | ||||
| L555 | 1591209 | 701 | HOLDER,BOARD,CISS | ||||
| L555 | 1577654 | 702 | HOPPER ASSY,IEI | ||||
| L555 | 1577674 | 703 | TRAY POROUSPAD,ASSY,IEI | ||||
| L555 | 1597513 | 704 | CAP,TANK,B | ||||
| L555 | 1620875 | 705 | TANK SUPPLY INK MAGENTA ASSY,CC95 | ||||
| L555 | 1620876 | 706 | TANK SUPPLY INK BLACK ASSY,CC95 | ||||
| L555 | 1620877 | 707 | TANK,SUPPLY,INK,YELLOW ASSY,CC95 | ||||
| L555 | 1620878 | 708 | TANK SUPPLY INK CYAN ASSY,CC95 | ||||
| L555 | 1620879 | 709 | ADAPTER,ASSY,B | ||||
| L555 | 1538442 | 710 | JOINT,TUBE | ||||
| L555 | 1551074 | 711 | COVER,JOINT,4C | ||||
| L555 | 1563749 | 712 | HOLDER,TUBE,VALVE,REAR,D | ||||
| L555 | 1563755 | 713 | HOLDER,TUBE,VALVE,FRONT,D | ||||
| L555 | 1545377 | 714 | COVER,LEFT | ||||
| L555 | 1582781 | 715 | COVER,RIGHT,SCALE | ||||
| L555 | 1572397 | 716 | COVER,BOTTOM | ||||
| L555 | 1564366 | 717 | LEVER VALVE,B | ||||
| L555 | 1559375 | 718 | LABEL,VALVE POSITION,C | ||||
| L555 | 1563742 | 720 | PRESSING PLATE,TUBE,C | ||||
| L555 | 1679310 | 721 | VALVE ASSY.,CC95,B,ASP | ||||
| L555 | 1572347 | 723 | GUIDE,TUBE | ||||
| L555 | 1543355 | 724 | GUIDE PLATE,TUBE,SUPPORT | ||||
| L555 | 1596174 | 725 | TUBE ADAPTER ASSY.,ASP | ||||
| L555 | 1572396 | 726 | COVER,TOP | ||||
| L555 | 1495647 | 727 | COMPRESSION SPRING,3.43 | ||||
| L555 | 1572356 | 728 | COVER,CR,CISS | ||||
| L555 | 1588535 | 730 | LABEL,GENUINE INK,T664,N/CIS | ||||
| L555 | 1593033 | 731 | LABEL,REFILLING INK,FRONT,CIS | ||||
| L555 | 1593034 | 732 | LABEL,REFILLING INK,REAR,CIS | ||||
| L555 | 2149883 | 800 | SCANNER UNIT,FDX,IEI,ASP | ||||
| L555 | 2176261 | 800 | SCANNER UNIT,FDX,IEI,ASP | ||||
| L555 | 1590188 | 802 | COVER,ASF | ||||
| L555 | 1680571 | 900 | ADF UNIT,CE36,D,ASP | ||||
| L555 | 1585900 | 901 | PAPER SUPPORT ADF ASSY.,SEC | ||||
| L555 | 1646289 | 902 | ADF COVER ASSY.,CE36,SEC | ||||
| L555 | 1585902 | 903 | PAD ADF ASSY.,SEC | ||||
| L555 | 1574388 | 904 | BEVEL GEAR SHAFT,10.4 | ||||
| L555 | 1574387 | 905 | COMBINATION GEAR,24,9.6 | ||||
| L555 | 1556135 | NON FIG | CAP,AIR RELEASE HOLE | ||||
| L555 | 1033657 | NON FIG | GREASE G-45 | ||||
| L555 | 1480655 | NON FIG | GREASE G-71(BLUE) | ||||
| L555 | 1409257 | NON FIG | GREASE G-74 | ||||
| L555 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING | ||||
| L555 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg | ||||
| L555 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg | ||||
| L555 | 1640645 | NON FIG | SONIC TENSION METER U508 | ||||
| Manual Name | EPSON L555 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.92M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L555 Series |
