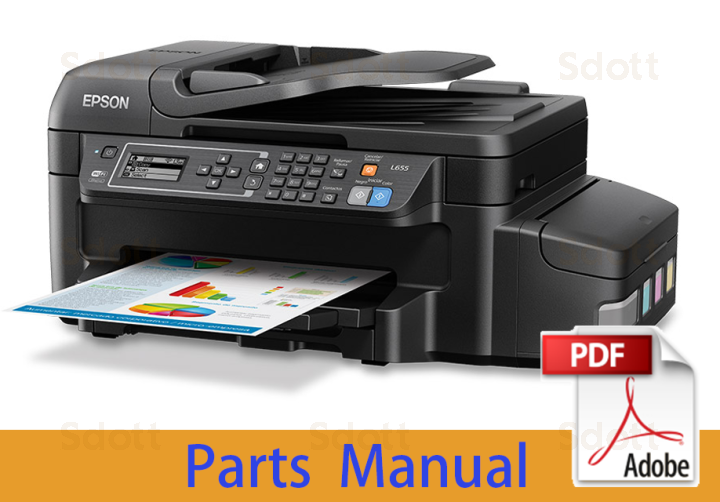

EPSON L655 Parts Manual
In stock
SKU
EP-L655-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON L655 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| l655 | 1654690 | 100 | HOUSING,UPPER |
| l655 | 1661961 | 101 | PANEL,ASSY,IEI |
| l655 | 1438860 | 107 | HINGE,ASSY.,B |
| l655 | 2169275 | 200 | BOARD ASSY.,MAIN |
| l655 | 2189754 | 200 | BOARD ASSY.,MAIN |
| l655 | 2161580 | 300 | POWER SUPPLY UNIT |
| l655 | 2181975 | 352 | WIRELESS LAN USB MODULE |
| l655 | 1661959 | 353 | FAX,ASSY,IEI |
| l655 | 2168787 | 501 | CABLE,HEAD |
| l655 | 2168786 | 502 | CABLE,ENCORDER,CR |
| l655 | 1575277 | 503 | TIMING BELT,CR |
| l655 | 1667623 | 504 | PICK UP ASSY,IEI |
| l655 | 2162307 | 505 | MOTOR ASSY,PF |
| l655 | 2162306 | 506 | MOTOR ASSY,CR |
| l655 | 1633452 | 507 | PAD,LEVER,PE,ASSY.,SEC |
| l655 | 1697789 | 508 | STACKER,ASSY.,B,SEC |
| l655 | 1643392 | 509 | ENCODER PF ASSY,ASP |
| l655 | 2109393 | 510 | BOARD ASSY.,DETECTOR,PW,B |
| l655 | 1600221 | 511 | GROUNDING PLATE,HEAD |
| l655 | 1633453 | 516 | PAPER,GUIDE,UPPER,ASSY.,SEC |
| l655 | FA18021 | 700 | PRINT HEAD,IE248V-2,ASP |
| l655 | 1654671 | 701 | HOLDER,ADAPTER |
| l655 | 1634019 | 703 | DUPLEX,ASSY,SEC |
| l655 | 1643391 | 704 | SCALE,CR ASSY,ASP |
| l655 | 1633505 | 706 | CASSETTE,ASSY.,SEC |
| l655 | 1693709 | 707 | MAINTENANCE BOX,B,IEI |
| l655 | 1633514 | 708 | DETECTOR,PE,ASSY,SEC |
| l655 | 2162360 | 710 | DETECTOR,ASSY,CASSETTE |
| l655 | 1654672 | 711 | COVER,CR |
| l655 | 1594328 | 712 | ADAPTER,ASSY.,CC83,SEC |
| l655 | 1620879 | 713 | ADAPTER,ASSY,B |
| l655 | 1668119 | 715 | INK SYSTEM,ASSY,IEI |
| l655 | 1654688 | 716 | SHEET,GUIDE,TUBE |
| l655 | 1654679 | 717 | JOINT,TUBE |
| l655 | 1654684 | 718 | TUBE,SUPPLY,INK |
| l655 | 1654691 | 719 | HOUSING,TANK,UPPER |
| l655 | 1654676 | 720 | HOLDER,BOARD,INK END |
| l655 | 1654694 | 721 | COVER,TANK |
| l655 | 1691092 | 722 | TANK,BK,ASSY,D,IEI |
| l655 | 1691089 | 723 | TANK,COLOR,ASSY,D,IEI |
| l655 | 1654692 | 726 | HOUSING,TANK,LOWER |
| l655 | 1703732 | 727 | CAP,TANK,C(ITS) |
| l655 | 2168788 | 728 | CABLE,INK END |
| l655 | 1654680 | 729 | CLAMP,TUBE |
| l655 | 1654681 | 730 | LOCK,TUBE |
| l655 | 2175307 | 731 | BOARD ASSY.,SENSOR |
| l655 | 1703733 | 732 | CAP,TANK,D(ITS) |
| l655 | 1659042 | 733 | TUBE,ADAPTER,BK |
| l655 | 1659043 | 734 | TUBE,ADAPTER,CL |
| l655 | 1654699 | 735 | POROUS PAD,TANK,UPPER |
| l655 | 1707423 | 740 | TANK,ASSY,F,IEI(ITS) |
| l655 | 1715347 | 800 | SCANNER UNIT,CD77,D,ASP |
| l655 | 1679599 | 900 | ADF UNIT,CE71,C,ASP |
| l655 | 1633494 | 901 | DOCUMENT,SUPPORT,ADF,ASSY.,SEC |
| l655 | 1633516 | 902 | COVER,PAPER GUIDE,LD,AD,ASSY.,SEC |
| l655 | 1555114 | 903 | PAD,ADF ASSY.,SEC |
| l655 | 1033657 | NON FIG | GREASE G-45 |
| l655 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| l655 | 1409258 | NON FIG | GREASE G-72 |
| l655 | 1590700 | NON FIG | GREASE,G-96 (40g) |
| l655 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| l655 | 1706772 | NON FIG | INK BOTTLE BK PIG'T T7741 140ML(ITS)CDC |
| l655 | 1610436 | NON FIG | INK BOTTLE BOXED,C,DYE,716C,70,CIS,AS |
| l655 | 1610437 | NON FIG | INK BOTTLE BOXED,M,DYE,716C,70,CIS,AS |
| l655 | 1610438 | NON FIG | INK BOTTLE BOXED,Y,DYE,716C,70,CIS,AS |
| l655 | 2150400 | NON FIG | POWER CABLE |
| l655 | 1704364 | NON FIG | SHAFT,HOUSING LOWER,ASP |
| l655 | 1709832 | NON FIG | SHAFT,HOUSING LOWER,ASP,B |
| l655 | 1704365 | NON FIG | SHEET,HOUSING LOWER,ASP |
| l655 | 6022798 | NON FIG | SHIPPING CLEANING LIQUID,CR02,18KG |
| l655 | 6022805 | NON FIG | SHIPPING CLEANING LIQUID,CR02,1KG |
| l655 | 1706715 | NON FIG | Teflon Tape No.903UL |
| Manual Name | EPSON L655 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 5.07M |
| Pages | 4 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L655 Series |
