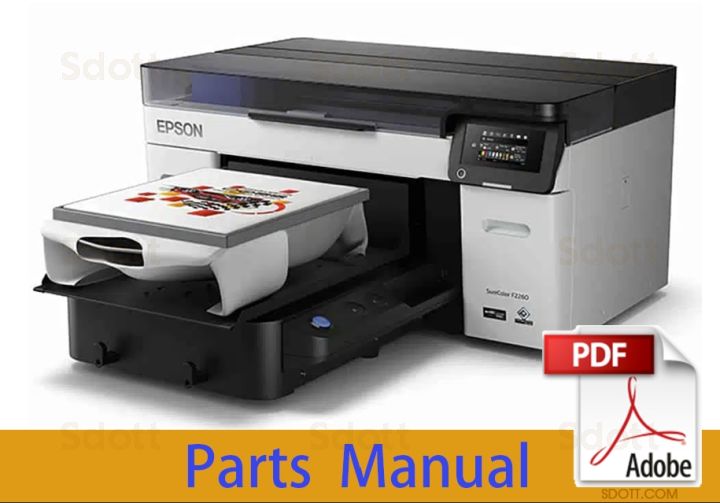

Parts Manual for EPSON SC F2200 F2230 F2240 F2250 F2260 F2270
In stock
SKU
EP-F2200-PM
$1.80
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
SureColor F2200 F2230 F2240 F2250 F2260 F2270 Parts Manual
EPSON SureColor F2200 F2230 F2240 F2250 F2260 F2270
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| SURECOLOR SC-F2200 | 1907128 | 101 | COVER FRONT RIGHT ASSY.,CK80,IEI |
| SURECOLOR SC-F2200 | 1907129 | 102 | COVER FRONT LEFT ASSY.,CK80,IEI |
| SURECOLOR SC-F2200 | 1900345 | 103 | COVER,PRINTER |
| SURECOLOR SC-F2200 | 1908093 | 104 | TRAY INK ASSY.,CK80,IEI |
| SURECOLOR SC-F2200 | 1917141 | 105 | COVER,FRONT, ASP |
| SURECOLOR SC-F2200 | 1907482 | 106 | HOUSING,RIGHT,UPPER,B |
| SURECOLOR SC-F2200 | 1907483 | 107 | HOUSING,LEFT,UPPER,B |
| SURECOLOR SC-F2200 | 1899897 | 108 | HOUSING,RIGHT |
| SURECOLOR SC-F2200 | 1899898 | 109 | HOUSING,LEFT |
| SURECOLOR SC-F2200 | 1919761 | 110 | COVER,TOP,FRONT,B |
| SURECOLOR SC-F2200 | 1919762 | 111 | COVER,TOP,REAR,B |
| SURECOLOR SC-F2200 | 1916765 | 112 | PANEL ASSY.,CK80,IEI, ASP |
| SURECOLOR SC-F2200 | 1917368 | 113 | SLOT ASSY.,L4,CK80,WW ASP |
| SURECOLOR SC-F2200 | 1917370 | 114 | SLOT ASSY.,R3,CK80,WW ASP |
| SURECOLOR SC-F2200 | 1916766 | 115 | COVER REAR ASSY.,CK80,IEI, ASP |
| SURECOLOR SC-F2200 | 2221373 | 116 | MICRO DOOR SWITCH,D3DC-3N |
| SURECOLOR SC-F2200 | 2150699 | 117 | LEAF SENSOR,P599 |
| SURECOLOR SC-F2200 | 1857187 | 118 | LABEL,PRECISIONCORE,H |
| SURECOLOR SC-F2200 | 1898086 | 119 | LABEL,ULTRA CHROME INK,DG2 |
| SURECOLOR SC-F2200 | 1903147 | 120 | LABEL,QR CODE |
| SURECOLOR SC-F2200 | 2226624 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F2200 | 2229886 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F2200 | 2223104 | 201 | BOARD ASSY.,SUB |
| SURECOLOR SC-F2200 | 2176012 | 202 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| SURECOLOR SC-F2200 | 2223101 | 203 | BOARD ASSY.,INTERFACE |
| SURECOLOR SC-F2200 | 2226630 | 204 | BOARD ASSY.,INTERFACE |
| SURECOLOR SC-F2200 | 2224212 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F2200 | 2223999 | 301 | HARNESS AC INLET |
| SURECOLOR SC-F2200 | 1907473 | 501 | COVER,CR,REAR,B |
| SURECOLOR SC-F2200 | 1917142 | 502 | OIL PAD Assy |
| SURECOLOR SC-F2200 | 1900314 | 503 | SCALE,CR |

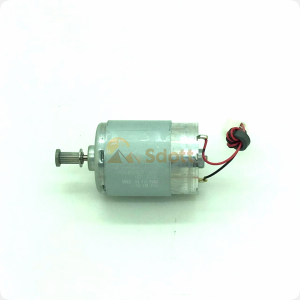

| SURECOLOR SC-F2200 | 1723929 | 504 | MOTOR ASSY.,CR |
| SURECOLOR SC-F2200 | 1918942 | 505 | CR ASSY.,CK80,ASP |
| SURECOLOR SC-F2200 | 2177061 | 506 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F2200 | 1262694 | 507 | SCALE,PF www.sdott-parts.com |
| SURECOLOR SC-F2200 | 1657495 | 508 | TIMING BELT,PF |
| SURECOLOR SC-F2200 | 2224197 | 509 | MOTOR ASSY.,TF |
| SURECOLOR SC-F2200 | 1916767 | 510 | TABLE ASSY.,CK80,IEI, ASP |
| SURECOLOR SC-F2200 | 1899955 | 511 | COVER,CR,FRONT |
| SURECOLOR SC-F2200 | 2182572 | 512 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-F2200 | 2143464 | 513 | PHOTO INTERRUPTER |
| SURECOLOR SC-F2200 | 1723910 | 514 | TIMING BELT,CR,24 |
| SURECOLOR SC-F2200 | 2203663 | 515 | BOARD ASSY.,SUB |
| SURECOLOR SC-F2200 | FB08001 | 516 | PRINT HEAD,OKI (SEC) |

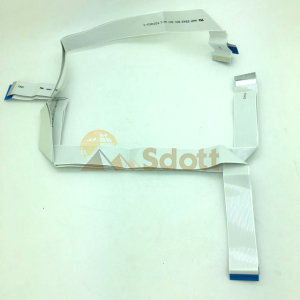

| SURECOLOR SC-F2200 | 1917143 | 517 | Head FFC Assy ASP |
| SURECOLOR SC-F2200 | 2150441 | 519 | MOTOR ASSY.,WIPER |
| SURECOLOR SC-F2200 | 1917372 | 600 | DECOMPRESSION PUMP ASSY.,CK80, ASP |
| SURECOLOR SC-F2200 | 1918943 | 601 | CLOTH WIPER,CARRIAGE ASSY.,CK80 ASP |
| SURECOLOR SC-F2200 | 1916768 | 602 | KEEP CAP ASSY.,CK80, ASP |
| SURECOLOR SC-F2200 | 1917756 | 603 | WASTE ASSY.,CK80 ASP |
| SURECOLOR SC-F2200 | 1916769 | 604 | PUMP CAP,ASSY,CK80, ASP |
| SURECOLOR SC-F2200 | 1931584 | 604 | PUMP CAP,ASSY,CK80, ASP |
| SURECOLOR SC-F2200 | 1917965 | 605 | CIRCULATION PUMP ASSY.,CK80, ASP |
| SURECOLOR SC-F2200 | 1917373 | 606 | ONCR ASSY.,CK80 ASP |
| SURECOLOR SC-F2200 | 1918944 | 607 | SUPPLY TUBE ASSY.,CK80,IEI,ASP |
| SURECOLOR SC-F2200 | 1770593 | 610 | GOA CARTRIDGE ASSY.,B,CF82 ESL,ASP |
| SURECOLOR SC-F2200 | 1917374 | 611 | HOLDER GOA ASSY.,CK80 ASP |
| SURECOLOR SC-F2200 | 1917375 | 612 | CAPSULE FILTER ASSY.,CK80 ASP |
| SURECOLOR SC-F2200 | 1907136 | 613 | HOUSING BUTTON ASSY.,CK80,IEI |
| SURECOLOR SC-F2200 | 2224120 | 614 | HARNESS,INK DETECT,IH,ASSY. |
| SURECOLOR SC-F2200 | 1917144 | 616 | FRAME TF BOTTOM ASSY.,CK80,ASP |
| SURECOLOR SC-F2200 | 1907481 | 617 | HOOK,FRAME,TRAY,B |
| SURECOLOR SC-F2200 | 1818075 | 619 | LEVER CLAMP,LEM-6-20-BK |
| SURECOLOR SC-F2200 | 1900529 | 620 | LEVER,PG,CHANGE |
| SURECOLOR SC-F2200 | 1907113 | 621 | FRAME ADJUST TRAY ASSY.,CK80,IEI |
| SURECOLOR SC-F2200 | 2210270 | 622 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F2200 | 1917145 | 624 | CR FFC Assy ASP |
| SURECOLOR SC-F2200 | 1920431 | 625 | FRANGE,BUSHING,TF,10 Assy, ASP |
| SURECOLOR SC-F2200 | 1920432 | 626 | FRANGE,BUSHING,TF,6,Assy, ASP |
| Manual Name | EPSON SC F2200 F2230 F2240 F2250 F2260 F2270 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.18M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F2200 F2230 F2240 F2250 F2260 F2270 |
