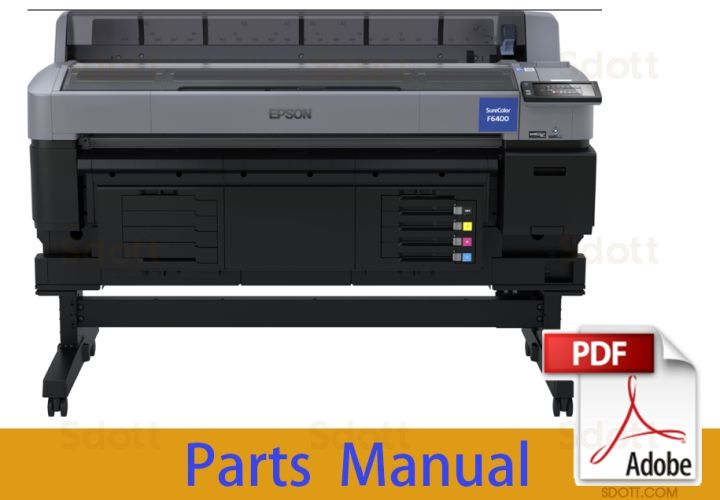

Parts Manual for EPSON SC F6400 F6430 F6440 F6450 F6460 F6470
In stock
SKU
EP-F6400-PM
$1.80
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
SC F6400 F6430 F6440 F6450 F6460 F6470 Parts Manual
EPSON SureColor F6400 F6430 F6440 F6450 F6460 F6470
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| SURECOLOR SC-F6400 | 1899506 | 1 | STAND,RIGHT.ASSY,ESL,ASP |
| SURECOLOR SC-F6400 | 1899507 | 2 | STAND,LEFT.ASSY,ESL,ASP |
| SURECOLOR SC-F6400 | 1799618 | 7 | SCREW ASSY,ASP |
| SURECOLOR SC-F6400 | 1714641 | 10 | CASTER,KIT,P60HG,ASP |
| SURECOLOR SC-F6400 | 1799612 | 101 | COVER,FRONT,C,CH66 ASSY,ASP |
| SURECOLOR SC-F6400 | 1799613 | 102 | COVER,INNER,LEFT,44,C,CH66 ASSY,ASP |
| SURECOLOR SC-F6400 | 1799614 | 103 | COVER,INNER,RIGHT,44,C,CH66 ASSY,ASP |
| SURECOLOR SC-F6400 | 1899527 | 104 | COVER,IR,FRONT,SIDE,ASSY.,4C,ESL,ASP |
| SURECOLOR SC-F6400 | 1770939 | 105 | COVER,FRONT,SUB,LEFT,44,C |
| SURECOLOR SC-F6400 | 1880556 | 106 | COVER,IH,B |
| SURECOLOR SC-F6400 | 1719403 | 107 | HOLDER,IH,E |
| SURECOLOR SC-F6400 | 1770933 | 108 | COVER,SIDE,LEFT,UPPER,D |
| SURECOLOR SC-F6400 | 1770929 | 109 | COVER,SIDE,ROLL,LEFT,C |
| SURECOLOR SC-F6400 | 1714642 | 11 | CASTER,KIT,P60HGS,ASP |
| SURECOLOR SC-F6400 | 1886940 | 110 | COVER,SIDE,RIGHT,LOWER,D |
| SURECOLOR SC-F6400 | 1880285 | 111 | COVER,BASE,IR,RIGHT |
| SURECOLOR SC-F6400 | 1880288 | 112 | COVER,BASE,IR,LEFT |
| SURECOLOR SC-F6400 | 1880283 | 113 | COVER,IR,FRONT,MIDDLE |
| SURECOLOR SC-F6400 | 1880282 | 114 | PAPER GUIDE,LOWER |
| SURECOLOR SC-F6400 | 1919236 | 114 | PAPER GUIDE,LOWER |
| SURECOLOR SC-F6400 | 1606893 | 115 | COVER,TOP,BASE,44 |
| SURECOLOR SC-F6400 | 1620536 | 116 | COVER,PRINTER,SUB,LEFT,44 |
| SURECOLOR SC-F6400 | 1897076 | 117 | COVER,PRINTER,SUB,RIGHT,44,B |
| SURECOLOR SC-F6400 | 1899512 | 118 | COVER,PRINTER Assy.,ASP |
| SURECOLOR SC-F6400 | 1880266 | 119 | HOUSING,SIDE,RIGHT |
| SURECOLOR SC-F6400 | 1880270 | 120 | HOUSING,CORNER,RIGHT |
| SURECOLOR SC-F6400 | 1770938 | 121 | COVER,FRONT,SUB,RIGHT,44,C |
| SURECOLOR SC-F6400 | 1770925 | 122 | COVER,SIDE,ROLL,RIGHT,C |
| SURECOLOR SC-F6400 | 1563164 | 124 | COVER,ROLL,44 |
| SURECOLOR SC-F6400 | 1880279 | 125 | COVER,BASE,RIGHT |
| SURECOLOR SC-F6400 | 1671120 | 126 | COVER,FRONT,LEFT,LOWER,B |
| SURECOLOR SC-F6400 | 1880280 | 127 | COVER,BASE,LEFT |
| SURECOLOR SC-F6400 | 1770931 | 128 | COVER,TOP,LEFT,C |
| SURECOLOR SC-F6400 | 1770927 | 129 | COVER,TOP,SUPPORT,RIGHT,C |
| SURECOLOR SC-F6400 | 1899511 | 130 | COVER,MAINTENANCE ASSY,ASP |
| SURECOLOR SC-F6400 | 1771007 | 132 | COVER,INNER,C |
| SURECOLOR SC-F6400 | 1577203 | 133 | COVER,SIDE,LEFT,LOWER,B |
| SURECOLOR SC-F6400 | 1890702 | 134 | LABEL,MODEL NAME,F6400 |
| SURECOLOR SC-F6400 | 1770937 | 135 | COVER,TOP,LEFT,C |
| SURECOLOR SC-F6400 | 1857187 | 136 | LABEL,PRECISIONCORE,H |
| SURECOLOR SC-F6400 | 1748665 | 137 | LABEL,CAUTION,EMERGENCY MESSAGE,G |
| SURECOLOR SC-F6400 | 1588487 | 138 | LABEL,ULTRA CHROME INK,DS |
| SURECOLOR SC-F6400 | 1770934 | 139 | COVER,FRONT,RIGHT,C |
| SURECOLOR SC-F6400 | 1903640 | 140 | COVER,IR,FRONT,SIDE,ASSY.,HOME,ESL, ASP |
| SURECOLOR SC-F6400 | 2221030 | 201 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F6400 | 2221557 | 202 | HARNESS,MAIN-PNL-IF,FFC |
| SURECOLOR SC-F6400 | 2203867 | 203 | FAN,COOLING,06025SS-24Q-AL-DE |
| SURECOLOR SC-F6400 | 2221547 | 204 | HARNESS,MAIN-PSL,PW,2 |
| SURECOLOR SC-F6400 | 2221545 | 205 | HARNESS,MAIN-PSL,DC,2 |
| SURECOLOR SC-F6400 | 2221544 | 206 | HARNESS,RELAY,FAN,_PW |
| SURECOLOR SC-F6400 | 2221512 | 207 | HARNESS,AC INLET |
| SURECOLOR SC-F6400 | 2203868 | 208 | FAN,COOLING,08025SS-24Q-AL-D5 |
| SURECOLOR SC-F6400 | 2221784 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F6400 | 1847216 | 49 | TUBE,GUIDE,ASSY(1672579) |
| SURECOLOR SC-F6400 | 1666010 | 50 | JOINT,INK EJECT,2 |
| SURECOLOR SC-F6400 | 1588059 | 500 | SCALE,PF,UNIT,ESL,ASP |
| SURECOLOR SC-F6400 | 1899502 | 501 | SLOT ASSY.,PA4W,CK13, ASP |
| SURECOLOR SC-F6400 | 1518317 | 502 | SEAL RUBBER,JOINT,ASP |
| SURECOLOR SC-F6400 | 1899515 | 503 | ONCR ASSY,CK13, ASP |
| SURECOLOR SC-F6400 | 1899517 | 504 | SUPPLY,TUBE,ASSY,CK13,ASP |
| SURECOLOR SC-F6400 | 2221539 | 505 | HARNESS,SENSOR,APG_HP |
| SURECOLOR SC-F6400 | 1899513 | 506 | PUMP,CAP,ASSY,CK13,CB, ASP |
| SURECOLOR SC-F6400 | 1665431 | 507 | FAN ASSY.,ABSORPTION,ST ASSY.,ESL,ASP |
| SURECOLOR SC-F6400 | 1899519 | 508 | CR,44,ASSY.,ESL,ASP |
| SURECOLOR SC-F6400 | 1480133 | 509 | PULLEY,DRIVEN |
| SURECOLOR SC-F6400 | 2221569 | 510 | HARNESS,RELAY,ENC,FFC1 |
| SURECOLOR SC-F6400 | 2143464 | 511 | PHOTO INTERRUPTER |
| SURECOLOR SC-F6400 | 1560744 | 512 | TIMING BELT,CR,44 |
| SURECOLOR SC-F6400 | 2183502 | 513 | BOARD ASSY.,INK MARK,D |
| SURECOLOR SC-F6400 | 2109393 | 514 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F6400 | 2221570 | 515 | HARNESS,RELAY,IMS,FFC1 |
| SURECOLOR SC-F6400 | 2221538 | 516 | HARNESS,SENSOR,PW |
| SURECOLOR SC-F6400 | 2221563 | 517 | HARNESS,HEAD,FFC1 |
| SURECOLOR SC-F6400 | 2221564 | 518 | HARNESS,HEAD,FFC2 |
| SURECOLOR SC-F6400 | 2221047 | 519 | BOARD ASSY.,SUB |
| SURECOLOR SC-F6400 | 1693291 | 520 | MOTOR,APG,ASSY EM.,ESL,ASP |
| SURECOLOR SC-F6400 | 2182572 | 521 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-F6400 | 2221520 | 522 | HARNESS,MOTOR,APG |
| SURECOLOR SC-F6400 | 1899524 | 523 | INTER LOCK,ASSY,ESL, ASP |
| SURECOLOR SC-F6400 | 1899520 | 524 | CUTTER,44,ASSY.,ESL,ASP |
| SURECOLOR SC-F6400 | 1899521 | 525 | Tube Assy 4C.,CK13,ESL,ASP |
| SURECOLOR SC-F6400 | 1899522 | 526 | PANEL,CK13 ASSY.,ESL,ASP |
| SURECOLOR SC-F6400 | 2221566 | 527 | HARNESS,HEAD,FFC4 |
| SURECOLOR SC-F6400 | 1588063 | 528 | OIL PAD ASSY ,ASP |
| SURECOLOR SC-F6400 | 2221567 | 529 | HARNESS,RELAY,SUB,FFC1 |
| SURECOLOR SC-F6400 | 2221568 | 530 | HARNESS,RELAY,SUB,FFC2 |
| SURECOLOR SC-F6400 | 2221899 | 531 | HARNESS,SENSOR,PE |
| SURECOLOR SC-F6400 | 2142796 | 532 | MOTOR ASSY.,CR |
| SURECOLOR SC-F6400 | 2221692 | 533 | HARNESS,SENSOR,RELEASE |
| SURECOLOR SC-F6400 | 2221521 | 534 | HARNESS,MOTOR,RLS |
| SURECOLOR SC-F6400 | 2220463 | 535 | MOTOR ASSY.,PF |
| SURECOLOR SC-F6400 | 2210270 | 536 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F6400 | 2221561 | 537 | HARNESS,ENCODER,PF |
| SURECOLOR SC-F6400 | 2142155 | 538 | HARNESS www.sdott-parts.com |
| SURECOLOR SC-F6400 | 2221524 | 539 | HARNESS,RELAY,SENSOR |
| SURECOLOR SC-F6400 | 2182573 | 540 | MOTOR ASSY.,REWIND |
| SURECOLOR SC-F6400 | 2221516 | 541 | HARNESS,MOTOR,CUTTER |
| SURECOLOR SC-F6400 | 1800110 | 542 | JOINT,TUBE,INK EJECT |
| SURECOLOR SC-F6400 | 1706492 | 543 | TORSION SPRING,32.9,CLAMP |
| SURECOLOR SC-F6400 | 1586836 | 544 | FITTING,VFI226(PP) |
| SURECOLOR SC-F6400 | 1905794 | 545 | DECOMPRESSION PUMP ASSY,A,CK13, ASP |
| SURECOLOR SC-F6400 | 1602550 | 547 | TORSION SPRING,TUBE,FASTEN,B |
| SURECOLOR SC-F6400 | 2221565 | 548 | HARNESS,HEAD,FFC3 |
| SURECOLOR SC-F6400 | 2176012 | 550 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| SURECOLOR SC-F6400 | 2177061 | 551 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F6400 | 1620481 | 552 | SHEET,GUIDE PLATE,TUBU,UPPER,44 |
| SURECOLOR SC-F6400 | 1625053 | 553 | SHEET,GUIDE PLATE,TUBU,MIDDLE,44 |
| SURECOLOR SC-F6400 | 1579797 | 554 | SHEET,GUIDE PLATE,TUBU,LOWER,44 |
| SURECOLOR SC-F6400 | 1880222 | 555 | COVER,CR |
| SURECOLOR SC-F6400 | 1912006 | 555 | COVER,CR |
| SURECOLOR SC-F6400 | 1573729 | 556 | TIMING BELT,PF |
| SURECOLOR SC-F6400 | 1899526 | 557 | SCALE,CR, ASP |
| SURECOLOR SC-F6400 | 2221044 | 558 | BOARD ASSY.,INTERFACE |
| SURECOLOR SC-F6400 | 2221549 | 559 | HARNESS,RELAY,HEAD,FFC1 |
| SURECOLOR SC-F6400 | FA99001 | 560 | PRINT HEAD,PCT2-4C,ASP |
| SURECOLOR SC-F6400 | 1568042 | 561 | GUIDE,ROLL PAPER,SUPPORT |
| SURECOLOR SC-F6400 | 2221550 | 562 | HARNESS,RELAY,HEAD,FFC2 |
| SURECOLOR SC-F6400 | 2221551 | 563 | HARNESS,RELAY,HEAD,FFC3 |
| SURECOLOR SC-F6400 | 2221552 | 564 | HARNESS,RELAY,HEAD,FFC4 |
| SURECOLOR SC-F6400 | 2221553 | 565 | HARNESS,RELAY,HEAD,FFC5 |
| SURECOLOR SC-F6400 | 2221554 | 566 | HARNESS,RELAY,HEAD,FFC6 |
| SURECOLOR SC-F6400 | 2221555 | 567 | HARNESS,RELAY,HEAD,FFC7 |
| SURECOLOR SC-F6400 | 2221556 | 568 | HARNESS,RELAY,HEAD,FFC8 |
| SURECOLOR SC-F6400 | 2142152 | 569 | HARNESS |
| SURECOLOR SC-F6400 | 2186527 | 570 | HARNESS,INK DETECTOR,IH,UPPER,ASSY |
| SURECOLOR SC-F6400 | 2221041 | 571 | BOARD ASSY.,INTERFACE |
| SURECOLOR SC-F6400 | 1568045 | 572 | COVER,LEVER,ATC,ROLL |
| SURECOLOR SC-F6400 | 1869152 | 573 | PAD,MAINTENANCE COVER |
| SURECOLOR SC-F6400 | 1568044 | 574 | LEVER,ATC,ROLL,SUB |
| SURECOLOR SC-F6400 | 1568043 | 575 | LEVER,ATC,ROLL |
| SURECOLOR SC-F6400 | 2221515 | 576 | HARNESS,RELAY,CUT MOT |
| SURECOLOR SC-F6400 | 2221517 | 577 | HARNESS,RELAY,PF MOT |
| SURECOLOR SC-F6400 | 2221518 | 578 | HARNESS,RELAY,ATC MOT |
| SURECOLOR SC-F6400 | 2221519 | 579 | HARNESS,MOTOR,ATC |
| SURECOLOR SC-F6400 | 2221522 | 580 | HARNESS,RELAY,MOTOR |
| SURECOLOR SC-F6400 | 2221523 | 581 | HARNESS,RELAY,ENCODER |
| SURECOLOR SC-F6400 | 2221526 | 582 | HARNESS,RELAY,DECOMP MOT |
| SURECOLOR SC-F6400 | 1842300 | 583 | CENTER,SUPPORT,ROLLER,PF |
| SURECOLOR SC-F6400 | 2221646 | 584 | HARNESS,RELAY,SENSOR,TRYLOCK,4C |
| SURECOLOR SC-F6400 | 1899508 | 585 | SHEET,ASSY,44,ASP |
| SURECOLOR SC-F6400 | 1619992 | 586 | SHEET,FFC,SUPPORT,UNDER,44 |
| SURECOLOR SC-F6400 | 2221647 | 588 | HARNESS,RELAY,SENSOR,INKEND,4C |
| SURECOLOR SC-F6400 | 2221533 | 590 | HARNESS,RELAY,SENSOR,INK LEAK1 |
| SURECOLOR SC-F6400 | 2221535 | 592 | HARNESS,RELAY,SENSOR,R,R,CR |
| SURECOLOR SC-F6400 | 2221540 | 593 | HARNESS,RELAY,SENSOR,CUTTER_HP |
| SURECOLOR SC-F6400 | 2221541 | 594 | HARNESS,RELAY,FAN,ADS_HOME |
| SURECOLOR SC-F6400 | 2221543 | 595 | HARNESS,RELAY,FAN,_CR |
| SURECOLOR SC-F6400 | 1656332 | 596 | RAIL,GUIDE,ROLL PAPER |
| SURECOLOR SC-F6400 | 1614411 | 597 | FFC CLAMP,FC-30 |
| SURECOLOR SC-F6400 | 1799625 | 598 | COVER SIDER,U SENSOR ASSY.CH66,ESL,ASP |
| SURECOLOR SC-F6400 | 1799609 | 600 | ROLL,FLANGE,ASSY.,CH66,ESL,ASP |
| SURECOLOR SC-F6400 | 1899525 | 602 | TRAY,INK PACK,ASSY.,ESL,ASP |
| SURECOLOR SC-F6400 | 2221559 | 603 | HARNESS,CRCM 1,FFC |
| SURECOLOR SC-F6400 | 2221562 | 605 | HARNESS,ENCODER,MNS |
| SURECOLOR SC-F6400 | 2221525 | 606 | HARNESS,RELAY,INTERLOCK,MNS |
| SURECOLOR SC-F6400 | 1568046 | 618 | BASE,LEVER,ATC,ROLL |
| SURECOLOR SC-F6400 | 1573753 | 626 | TORSION SPRING,0.483 |
| SURECOLOR SC-F6400 | 1568039 | 627 | LEVER,DETECTOR,ROLL PAPER |
| SURECOLOR SC-F6400 | 1559985 | 629 | PAPER GUIDE,SUB,B |
| SURECOLOR SC-F6400 | 1559984 | 630 | PAPER GUIDE,SUB |
| SURECOLOR SC-F6400 | 1487528 | 631 | EXTENSION SPRING,3.0,B |
| SURECOLOR SC-F6400 | 1880554 | 632 | SHEET,FFC,SUPPORT,UNDER,B |
| SURECOLOR SC-F6400 | 1899509 | 650 | HOLDER,SENSOR,ASSY.,ASP |
| SURECOLOR SC-F6400 | 1619650 | 658 | HELICAL COMBINATION GEAR,14.494,8.28 |
| SURECOLOR SC-F6400 | 2142795 | 659 | HARNESS,DETECTOR,CUTTER |
| SURECOLOR SC-F6400 | 1568049 | 660 | SHAFT,DRIVE,ATC,ROLL,B |
| SURECOLOR SC-F6400 | 1601087 | 661 | ROLLER ASSY.,DRIVEN,ST ASP |
| SURECOLOR SC-F6400 | 2140023 | 670 | MICRO SWICH ASSY. |
| SURECOLOR SC-F6400 | 1750841 | 671 | PULLEY,DRIVEN ASSY ESL,ASP |
| SURECOLOR SC-F6400 | 1880247 | 680 | PAPER GUIDE,FRONT |
| SURECOLOR SC-F6400 | 1880248 | 681 | PAPER GUIDE,FRONT,B |
| SURECOLOR SC-F6400 | 1880249 | 682 | PAPER GUIDE,FRONT,C |
| SURECOLOR SC-F6400 | 1880250 | 683 | PAPER GUIDE,FRONT,D |
| SURECOLOR SC-F6400 | 1880251 | 685 | PAPER GUIDE,FRONT,E |
| SURECOLOR SC-F6400 | 1807865 | 688 | HOLDER,PE KIT ASSY,ASP |
| Manual Name | EPSON SC F6400 F6430 F6440 F6450 F6460 F6470 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 9.01M |
| Pages | 7 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F6400 F6430 F6440 F6450 F6460 F6470 |
