Parts Manual for EPSON Stylus Pro 4900 4910
In stock
SKU
EP-4900-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
EPSON stylus-pro 4900 4910 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

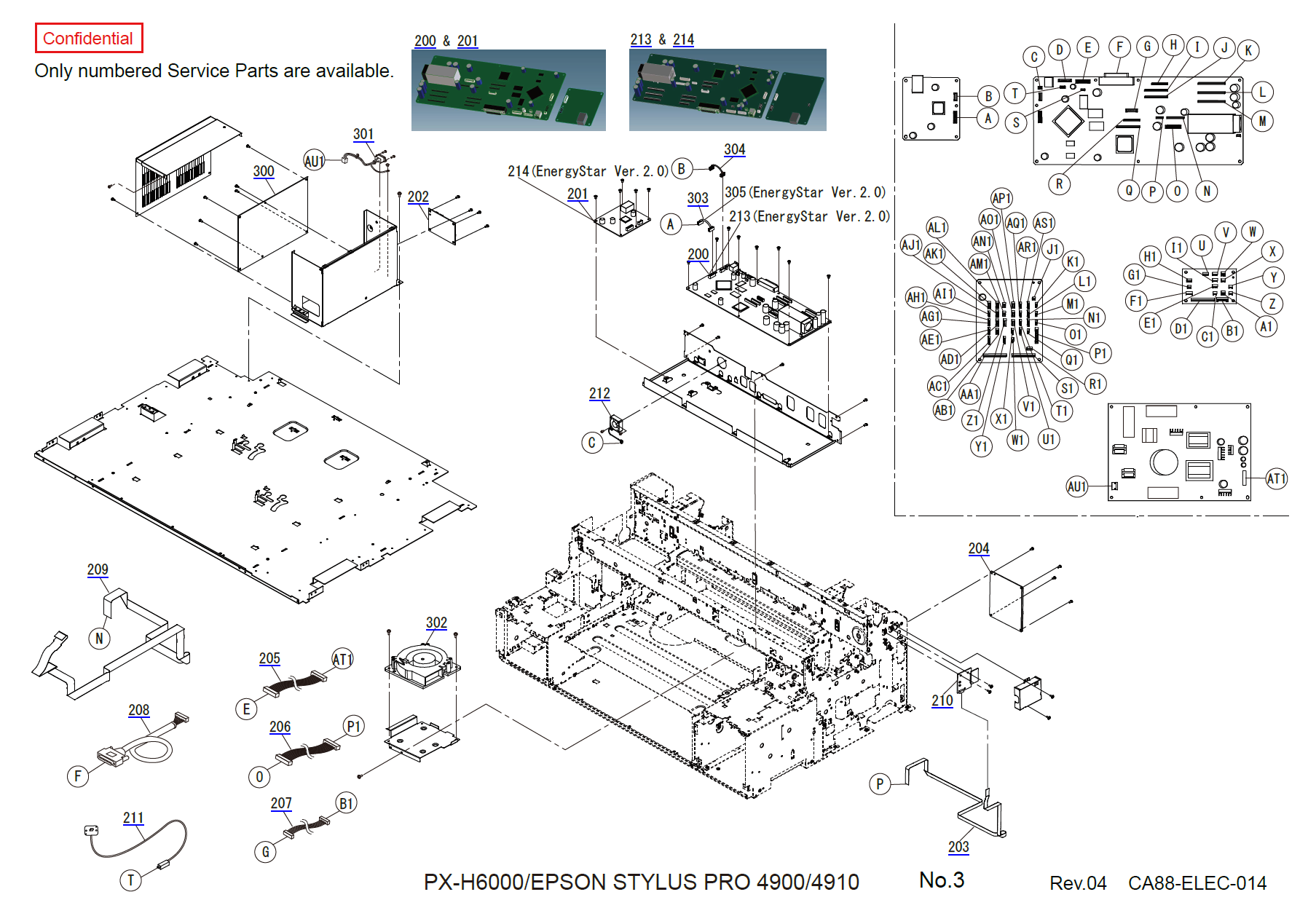

| STYLUS PRO 4900 | 1541305 | 101 | STACKER,UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541307 | 102 | COVER,PRINTER,UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541308 | 103 | HOUSING,SIDE,LEFT UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1724834 | 103 | HOUSING,SIDE,LEFT UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541309 | 104 | HOUSING,SIDE,RIGHT UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541310 | 105 | COVER,IC,RIGHT UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541311 | 106 | COVER,IC,LEFT UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1696205 | 107 | TRAY,CASSETTE UNIT C.,ASP | ||||
| STYLUS PRO 4900 | 1524510 | 108 | COVER,MAINTENANCE | ||||
| STYLUS PRO 4900 | 1524514 | 109 | HOUSING,FRONT,UPPER | ||||
| STYLUS PRO 4900 | 1545205 | 110 | HOUSING,REAR,UPPER,ASSY,ASP | ||||
| STYLUS PRO 4900 | 1524520 | 111 | HOUSING,FRONT,MIDDLE | ||||
| STYLUS PRO 4900 | 1524522 | 112 | HOUSING,REAR,LOWER | ||||
| STYLUS PRO 4900 | 1545206 | 113 | HOUSING,FRONT,LOWER,ASSY,ASP | ||||
| STYLUS PRO 4900 | 1527994 | 114 | SHAFT,SCROLLER | ||||
| STYLUS PRO 4900 | 1527996 | 115 | CAP,SHAFT,SCROLLER,RIGHT | ||||
| STYLUS PRO 4900 | 1220015 | 116 | SHAFT,STOPPER,L | ||||
| STYLUS PRO 4900 | 1717808 | 116 | SHAFT,STOPPER,L | ||||
| STYLUS PRO 4900 | 1104330 | 117 | FLANGE,RIGHT | ||||
| STYLUS PRO 4900 | 1104332 | 118 | ADAPTER | ||||
| STYLUS PRO 4900 | 1264198 | 119 | SPACER,A2 | ||||
| STYLUS PRO 4900 | 1412711 | 120 | FLANGE,LEFT | ||||
| STYLUS PRO 4900 | 1545204 | 121 | COVER,FRONT,ASSY,ASP | ||||
| STYLUS PRO 4900 | 1524502 | 122 | GUIDE,IC,LEFT | ||||
| STYLUS PRO 4900 | 1524508 | 123 | GUIDE,IC,RIGHT | ||||
| STYLUS PRO 4900 | 1713765 | 123 | GUIDE,IC,RIGHT | ||||
| STYLUS PRO 4900 | 1720352 | 123 | GUIDE,IC,RIGHT | ||||
| STYLUS PRO 4900 | 1525382 | 124 | LABEL,SPINDLE | ||||
| STYLUS PRO 4900 | 1527995 | 125 | CAP,SHAFT,SCROLLER | ||||
| STYLUS PRO 4900 | 1527997 | 126 | CAP,SHAFT,SCROLLER,LEFT | ||||
| STYLUS PRO 4900 | 2132732 | 200 | BOARD ASSY.,MAIN | ||||
| STYLUS PRO 4900 | 2135483 | 201 | BOARD ASSY.,MAIN | ||||
| STYLUS PRO 4900 | 2133878 | 202 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 4900 | 2142261 | 203 | FFC,AID | ||||
| STYLUS PRO 4900 | 2133877 | 204 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 4900 | 2130943 | 205 | HARNESS | ||||
| STYLUS PRO 4900 | 2130946 | 206 | HARNESS | ||||
| STYLUS PRO 4900 | 2130947 | 207 | HARNESS | ||||
| STYLUS PRO 4900 | 2130948 | 208 | HARNESS | ||||
| STYLUS PRO 4900 | 2142336 | 209 | HARNESS | ||||
| STYLUS PRO 4900 | 2145683 | 210 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 4900 | 2130999 | 211 | HARNESS | ||||
| STYLUS PRO 4900 | 2131616 | 212 | FAN | ||||
| STYLUS PRO 4900 | 2155820 | 213 | BOARD ASSY.,MAIN | ||||
| STYLUS PRO 4900 | 2155821 | 214 | BOARD ASSY.,MAIN | ||||
| STYLUS PRO 4900 | 2149749 | 300 | BOARD ASSY.,POWER SUPPLY | ||||
| STYLUS PRO 4900 | 2091965 | 301 | HARNESS | ||||
| STYLUS PRO 4900 | 2120026 | 302 | FAN ASSY. | ||||
| STYLUS PRO 4900 | 2130945 | 303 | HARNESS | ||||
| STYLUS PRO 4900 | 2155018 | 303 | HARNESS,NW,POWER SUPPLY | ||||
| STYLUS PRO 4900 | 2130944 | 304 | HARNESS | ||||
| STYLUS PRO 4900 | 1541300 | 501 | FRAME,PAPER GUIDE,UPPER,UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1696304 | 502 | FRAME ASSY.,APG,UNIT .A,ESL,ASP | ||||
| STYLUS PRO 4900 | 1728285 | 502 | FRAME ASSY.,APG,UNIT .A,ESL,ASP | ||||
| STYLUS PRO 4900 | 2130110 | 503 | MOTOR ASSY.,ASF,SUB | ||||
| STYLUS PRO 4900 | 2182572 | 503 | MOTOR ASSY.,ASF,SUB | ||||
| STYLUS PRO 4900 | 1710725 | 504 | CARRIAGE,UNIT.A,ESL,ASP | ||||
| STYLUS PRO 4900 | 1541326 | 505 | Harness Motor CR Assy ASP | ||||
| STYLUS PRO 4900 | 1696134 | 506 | FRAME,GUIDE,CUTTER,UNIT.A, ESL,ASP | ||||
| STYLUS PRO 4900 | 1728286 | 506 | FRAME,GUIDE,CUTTER,UNIT.A, ESL,ASP | ||||
| STYLUS PRO 4900 | 2130109 | 507 | MOTOR ASSY.,ASF | ||||
| STYLUS PRO 4900 | 2184208 | 507 | MOTOR ASSY.,ASF | ||||
| STYLUS PRO 4900 | 2131342 | 508 | HARNESS,MOTOR,CUTTER | ||||
| STYLUS PRO 4900 | 2131343 | 509 | HARNESS,DETECTOR,CUTTER | ||||
| STYLUS PRO 4900 | 1602758 | 510 | DECOMPRESSION,PUMP,UNIT,D.ASP | ||||
| STYLUS PRO 4900 | 1714127 | 510 | DECOMPRESSION,PUMP,UNIT,D.ASP | ||||
| STYLUS PRO 4900 | 1541302 | 511 | HOLDER,IC,LEFT,UNIT,ASP | ||||
| STYLUS PRO 4900 | 1724833 | 511 | HOLDER,IC,LEFT,UNIT,ASP | ||||
| STYLUS PRO 4900 | 1541303 | 512 | HOLDER,IC,RIGHT,UNIT,ASP | ||||
| STYLUS PRO 4900 | 1710724 | 513 | PUMP,UNIT,C.ASP[1582011) | ||||
| STYLUS PRO 4900 | 1713388 | 513 | PUMP,UNIT,C.ASP[1582011) | ||||
| STYLUS PRO 4900 | 1728284 | 513 | PUMP,UNIT,C.ASP[1582011) | ||||
| STYLUS PRO 4900 | 1749904 | 513 | PUMP,UNIT,C.ASP[1582011) | ||||
| STYLUS PRO 4900 | 1790760 | 513 | PUMP,UNIT,C.ASP[1582011) | ||||
| STYLUS PRO 4900 | 1824264 | 513 | PUMP,UNIT,C.ASP[1582011) | ||||
| STYLUS PRO 4900 | 1700000 | 516 | CAP,HEAD,LARGE ASSY.A,ASP | ||||
| STYLUS PRO 4900 | 1710748 | 517 | SELECTOR,UNIT.E,ASP | ||||
| STYLUS PRO 4900 | 1655137 | 518 | TUBE ASSY.A, ASP | ||||
| STYLUS PRO 4900 | 1741903 | 518 | TUBE ASSY.A, ASP | ||||
| STYLUS PRO 4900 | 1637048 | 519 | PANEL UNIT B.ESL.,A ASP | ||||
| STYLUS PRO 4900 | 1696209 | 524 | HOLDER ROLLER,RETARD ASSY.,C ASP | ||||
| STYLUS PRO 4900 | 1541313 | 525 | PAPER GUIDE,MANUAL,UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541314 | 526 | PAPER GUIDE,MIDDLE UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541316 | 527 | PAPER SUPPORT,MANUAL,UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1541335 | 528 | SHAFT,LEVER,PICK UP ASSY ASP | ||||
| STYLUS PRO 4900 | 1696306 | 529 | ROLL UNIT .A,ESL,ASP | ||||
| STYLUS PRO 4900 | 1716706 | 529 | ROLL UNIT .A,ESL,ASP | ||||
| STYLUS PRO 4900 | 1734889 | 529 | ROLL UNIT .A,ESL,ASP | ||||
| STYLUS PRO 4900 | 1541336 | 530 | SCALE,PF,ASP | ||||
| STYLUS PRO 4900 | 2133325 | 531 | BOARD ASSY.,ENCODER,PF | ||||
| STYLUS PRO 4900 | 2208679 | 531 | BOARD ASSY.,ENCODER,PF | ||||
| STYLUS PRO 4900 | 2210270 | 531 | BOARD ASSY.,ENCODER,PF | ||||
| STYLUS PRO 4900 | 2142258 | 532 | HARNESS,ENCODER,PF | ||||
| STYLUS PRO 4900 | 2130383 | 533 | HARNESS,MOTOR,APG | ||||
| STYLUS PRO 4900 | 2130369 | 534 | HARNESS,SCALE | ||||
| STYLUS PRO 4900 | 2142313 | 535 | FFC,MAINTENANCE TANK(2130401) | ||||
| STYLUS PRO 4900 | 1480177 | 536 | BOARD ASSY.,ENCODER | ||||
| STYLUS PRO 4900 | 2208696 | 536 | BOARD ASSY.,ENCODER | ||||
| STYLUS PRO 4900 | 2171913 | 537 | BOARD ASSY.,INK MARK,B | ||||
| STYLUS PRO 4900 | 2183501 | 537 | BOARD ASSY.,INK MARK,B | ||||
| STYLUS PRO 4900 | 2183502 | 537 | BOARD ASSY.,INK MARK,B | ||||
| STYLUS PRO 4900 | 2143464 | 538 | PHOTO INTERRUPTER | ||||
| STYLUS PRO 4900 | 2130023 | 539 | HARNESS,DETECTOR,PAPER GUIDE,MIDDLE | ||||
| STYLUS PRO 4900 | 2130088 | 540 | CABLE,RELAY,FAN | ||||
| STYLUS PRO 4900 | 2130095 | 541 | CABLE,DETECTOR,COVER,FRONT | ||||
| STYLUS PRO 4900 | 2130096 | 542 | HARNESS,RELAY,SUB B | ||||
| STYLUS PRO 4900 | 2130097 | 543 | HARNESS,RELAY,SUB B,B | ||||
| STYLUS PRO 4900 | 2130098 | 544 | HARNESS,RELAY,SUB C | ||||
| STYLUS PRO 4900 | 2130099 | 545 | CABLE,DETECTOR,COVER,PRINTER | ||||
| STYLUS PRO 4900 | 2130100 | 546 | CABLE,RELAY,SPM | ||||
| STYLUS PRO 4900 | 2130113 | 547 | HARNESS,MOTOR,ASF | ||||
| STYLUS PRO 4900 | 2130114 | 548 | HARNESS,MOTOR,ASF,SUB | ||||
| STYLUS PRO 4900 | 2130121 | 549 | MOTOR ASSY.,PF | ||||
| STYLUS PRO 4900 | 2130374 | 550 | MOTOR ASSY.,CR | ||||
| STYLUS PRO 4900 | 2130992 | 551 | FERRITE CORE,28R0756-200 | ||||
| STYLUS PRO 4900 | 2130086 | 552 | COVER,SW | ||||
| STYLUS PRO 4900 | F198060 | 553 | LFP PRINT HEAD,I0J40V-6 | ||||
| STYLUS PRO 4900 | 2130118 | 554 | HARNESS,MOTOR,EDGE GUIDE | ||||
| STYLUS PRO 4900 | 2130106 | 555 | HARNESS,DETECTOR,EDGE GUIDE | ||||
| STYLUS PRO 4900 | 2130127 | 556 | HARNESS,DETECTOR,PAPER THICKNESS | ||||
| STYLUS PRO 4900 | 2130128 | 557 | HARNESS,DETECTOR,PAPER THICKNESS,B | ||||
| STYLUS PRO 4900 | 2130022 | 558 | HARNESS,PE,PAPER GUIDE,REAR | ||||
| STYLUS PRO 4900 | 2121499 | 559 | BOARD ASSY.,ENCODER,SC | ||||
| STYLUS PRO 4900 | 2208699 | 559 | BOARD ASSY.,ENCODER,SC | ||||
| STYLUS PRO 4900 | 2130122 | 560 | MOTOR ASSY.,RELEASE,DRIVEN | ||||
| STYLUS PRO 4900 | 2130124 | 561 | HARNESS,DETECTOR,RELEASE,DRIVEN | ||||
| STYLUS PRO 4900 | 2130130 | 562 | HARNESS,ENCODER,RELEASE,DRIVEN | ||||
| STYLUS PRO 4900 | 1111835 | 563 | DETECTOR,PAPER END | ||||
| STYLUS PRO 4900 | 1296960 | 564 | SHAFT,MOUNT PLATE,CR-3C | ||||
| STYLUS PRO 4900 | 1524421 | 565 | POROUS PAD,PAPER GUIDE,FRONT,RIGHT | ||||
| STYLUS PRO 4900 | 1524422 | 566 | POROUS PAD,PAPER GUIDE,FRONT,RIGHT,C | ||||
| STYLUS PRO 4900 | 1524423 | 567 | POROUS PAD,PAPER GUIDE,FRONT,LEFT | ||||
| STYLUS PRO 4900 | 1524424 | 568 | POROUS PAD,PAPER GUIDE,FRONT,LEFT,B | ||||
| STYLUS PRO 4900 | 1524453 | 569 | POROUS PAD,PAPER GUIDE,FRONT,RIGHT,B | ||||
| STYLUS PRO 4900 | 2090717 | 570 | LEAF SENSOR | ||||
| STYLUS PRO 4900 | 2130115 | 571 | HARNESS,DETECTOR,PICK UP | ||||
| STYLUS PRO 4900 | 2130116 | 572 | HARNESS,DETECTOR,RETARD | ||||
| STYLUS PRO 4900 | 2130117 | 573 | HARNESS,DETECTOR,ROLLER,ASSIST | ||||
| STYLUS PRO 4900 | 2130108 | 574 | HARNESS,DETECTOR,PE,CASSETTE | ||||
| STYLUS PRO 4900 | 2130107 | 575 | HARNESS,DETECTOR,CASSETTE | ||||
| STYLUS PRO 4900 | 2130089 | 576 | CABLE,DETECTOR,ROLL | ||||
| STYLUS PRO 4900 | 2130090 | 577 | CABLE,DETECTOR,INK EJECT | ||||
| STYLUS PRO 4900 | 1524428 | 578 | POROUS PAD,TANK,INK EJECT,SUPPORT | ||||
| STYLUS PRO 4900 | 1043027 | 579 | MIN SIDE LOCK#091Y | ||||
| STYLUS PRO 4900 | 2130091 | 580 | HARNESS,TANK,INK EJECT | ||||
| STYLUS PRO 4900 | 2090566 | 581 | CONNECTOR,CSIC | ||||
| STYLUS PRO 4900 | 1524703 | 582 | TIMING BELT,PF | ||||
| STYLUS PRO 4900 | 1525754 | 583 | SEAL RUBBER,JOINT | ||||
| STYLUS PRO 4900 | 1525755 | 584 | SEAL RUBBER,JOINT,B | ||||
| STYLUS PRO 4900 | 1525877 | 585 | SCALE,CR | ||||
| STYLUS PRO 4900 | 1525855 | 586 | CLAMP,TUBE | ||||
| STYLUS PRO 4900 | 1542715 | 587 | Ersetzt durch: 1697781 | ||||
| STYLUS PRO 4900 | 1697781 | 587 | HOLDER,SCROLLER,RIGHT UNIT ESL,ASP | ||||
| STYLUS PRO 4900 | 1617069 | 588 | HOLDER,WIPER&WIPER CLEANER ASSY,B.ASP | ||||
| STYLUS PRO 4900 | 1555405 | 589 | BUSHING SET.,ASP | ||||
| STYLUS PRO 4900 | 1524658 | 590 | SPUR GEAR,54 | ||||
| STYLUS PRO 4900 | 1525847 | 591 | OIL PAD | ||||
| STYLUS PRO 4900 | 1525843 | 592 | HOLDER,OIL PAD | ||||
| STYLUS PRO 4900 | 2133876 | 593 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 4900 | 1524562 | 595 | LEVER,PICK UP | ||||
| STYLUS PRO 4900 | 2109393 | 596 | BOARD ASSY.,DETECTOR,PW,B | ||||
| STYLUS PRO 4900 | 1524635 | 597 | COVER,DETECTOR,PE,CASSETTE | ||||
| STYLUS PRO 4900 | 2142310 | 598 | HARNESS,RELAY,HEAD,LEFT | ||||
| STYLUS PRO 4900 | 2142311 | 599 | HARNESS,RELAY,HEAD,RIGHT | ||||
| Manual Name | Stylus Pro 4900 4910 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 15.0M |
| Pages | 7 |
| Version | 9 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON stylus-pro 4900 4910 Series |
