Parts Manual for EPSON StylusPhoto 1390 1400 1410
In stock
SKU
EP-1390-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
- How to repair/fix StylusPhoto 1390 1400 1410 Printer?
- product maintenance, operating principles, troubleshooting, disassembly and assembly, error codes, connector summary.
****** The following content is not included in the PDF manual, please use it online ******
| Model | Article | Reference | Description | ||||
| STYLUS P | 1454356 | 100 | Replace: 1536096 | ||||
| STYLUS P | 1536096 | 100 | HOUSING UPPER SUB ASSY,B,ASP | ||||
| STYLUS P | 1454350 | 101 | PANEL SUB ASSY,ASP | ||||
| STYLUS P | 1444029 | 102 | COVER,LEFT | ||||
| STYLUS P | 1454357 | 103 | HOUSING LOWER ASSY,ASP | ||||
| STYLUS P | 1454352 | 104 | HOUSING CD-R,ASSY,B,ASP | ||||
| STYLUS P | 1444047 | 105 | STACKER,B | ||||
| STYLUS P | 1444028 | 107 | COVER,RIGHT | ||||
| STYLUS P | 1454347 | 108 | PAPER SUPPORT SUB ASSY,B,ASP | ||||
| STYLUS P | 1431315 | 109 | HOUSING,REAR | ||||
| STYLUS P | 1454041 | 113 | LABEL,INSTRUCTION,B | ||||
| STYLUS P | 2111191 | 114 | HARNESS | ||||
| MAIN-PNL | |||||||
| STYLUS P | 1043027 | 116 | MIN SIDE LOCK#091Y | ||||
| STYLUS P | 1444048 | 118 | STACKER,SUPPORT,B | ||||
| STYLUS P | 1444036 | 119 | GUIDE,STACKER,LEFT | ||||

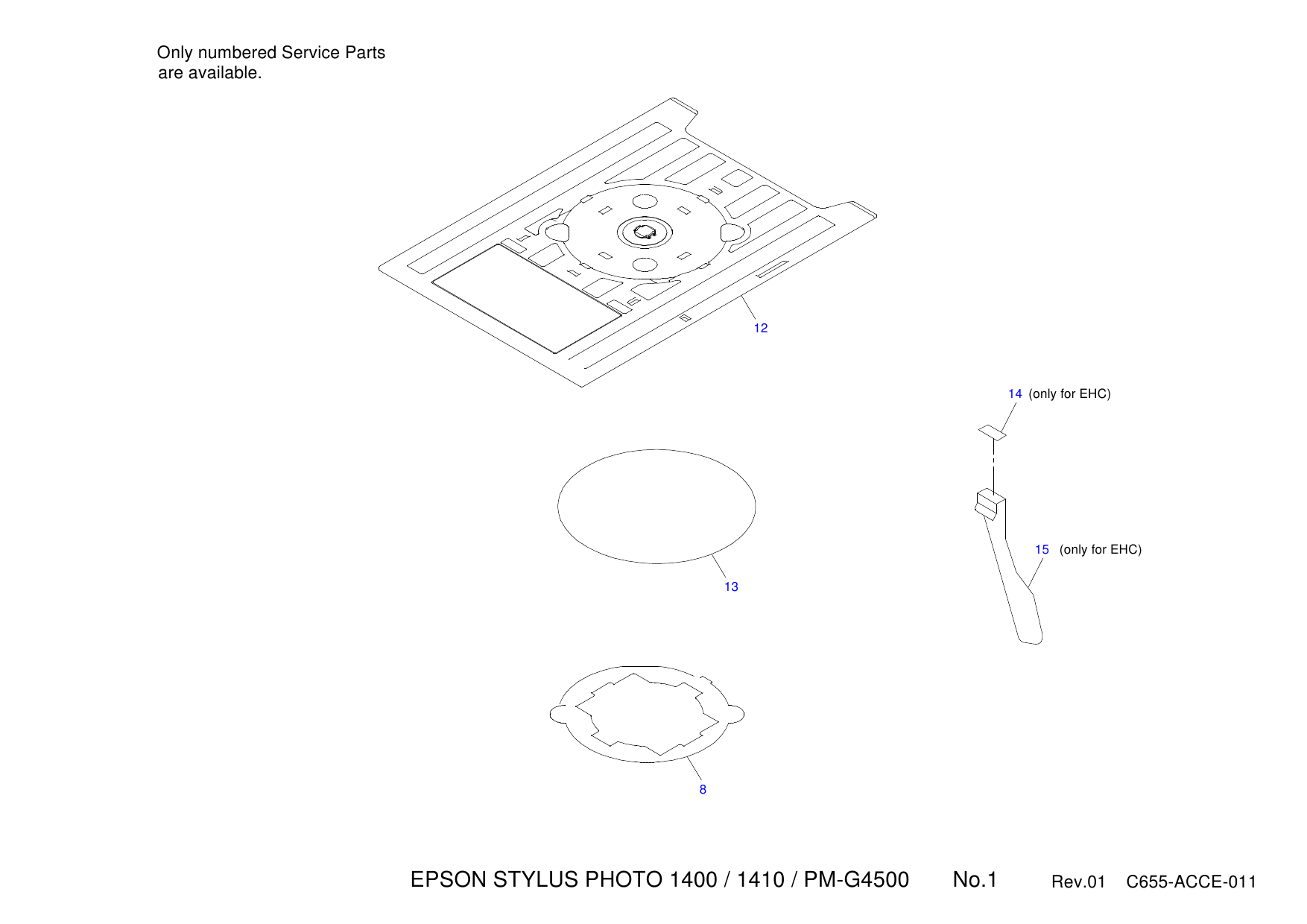

| STYLUS P | 1480201 | 12 | TRAY CD,R ASSY ,ESL | ||||
| STYLUS P | 1444035 | 120 | GUIDE,STACKER,RIGHT | ||||
| STYLUS P | 1454045 | 121 | LABEL,CAUTION,LATCH | ||||
| STYLUS P | 1454359 | 126 | COVER PRINTER ASSY,ASP | ||||
| STYLUS P | 1454044 | 127 | LABEL,CAUTION,CDR,B | ||||
| STYLUS P | 1444032 | 128 | COVER,IEEE | ||||
| STYLUS P | 1108107 | 129 | FOOT | ||||
| STYLUS P | 1236444 | 13 | SHEET,CD,DUMMY | ||||
| STYLUS P | 1294684 | 130 | HOLDER,COVER,PRINTER,R | ||||
| STYLUS P | 1294685 | 131 | HOLDER,COVER,PRINTER,L | ||||
| STYLUS P | 1454342 | 132 | PICT ASSY,ASP | ||||
| STYLUS P | 1454358 | 133 | COVER STACKER ASSY,ASP | ||||
| STYLUS P | 2157151 | 200 | BOARD ASSY.,MAIN | ||||
| 6246C,ASP STANDARD | |||||||
| STYLUS P | 2118513 | 200 | Replace: 2157151 | ||||
| STYLUS P | 2125567 | 300 | BOARD ASSY.,POWER SUPPLY | ||||
| 6096A,STANDARD | |||||||
| STYLUS P | 2091697 | 300 | Replace: 2125567 | ||||
| STYLUS P | 2116400 | 500 | Replace: 2133828 | ||||
| STYLUS P | 2133828 | 500 | PRINTER MECHANISM,ASP | ||||
| STYLUS P | 1454339 | 501 | CARRIAGE SUB ASSY,ASP | ||||
| STYLUS P | 1454340 | 502 | HOLDER CSIC ASSY,ASP | ||||
| STYLUS P | 1262695 | 507 | HOLDER,BOARD ASSY.,ENCORDER,PF | ||||
| STYLUS P | 2111047 | 508 | BOARD ASSY.,ENCODER,PF,B | ||||
| STYLUS P | 1454341 | 509 | COVER IC ASSY,ASP | ||||
| STYLUS P | 1292785 | 511 | SHAFT,CR,GUIDE | ||||
| STYLUS P | 1443407 | 512 | SCALE,CR,B | ||||
| STYLUS P | 1233669 | 513 | TORSION SPRING,24.7 | ||||
| STYLUS P | 2112637 | 514 | MOTOR ASSY.,CR | ||||
| STYLUS P | 2020393 | 517 | DETECTOR,LEAF,B2 | ||||
| STYLUS P | 2090538 | 518 | HARNESS,DETECTOR,CD-R | ||||
| STYLUS P | 1303977 | 519 | AUTO PG ASSY.,ASP | ||||
| STYLUS P | 1306533 | 520 | TRAY CDR BASE SUB ASSY.,ASP | ||||
| STYLUS P | 1454345 | 521 | INK SYSTEM ASSY,ASP | ||||
| STYLUS P | 1454349 | 522 | Replace: 1530580 | ||||
| STYLUS P | 1530580 | 522 | PAPER GUIDE UPPER SUB ASSY,ASP | ||||
| STYLUS P | 1292591 | 523 | TORSION SPRING,PAPER GUIDE,UPPER | ||||
| STYLUS P | 2119427 | 524 | MOTOR ASSY.,PF,B | ||||
| STYLUS P | 1454348 | 525 | FRAME ASSY PAPER EJECT,ASP | ||||
| STYLUS P | 1303962 | 526 | ROLLER,PF ASSY.,ASP | ||||
| STYLUS P | 1303974 | 529 | HOLDER RELEASE SUB ASSY.,ASP | ||||
| STYLUS P | 1530857 | 529 | HOLDER RELEASE SUB ASSY.,ASP | ||||
| STYLUS P | 1455374 | 530 | POROUS PAD,PAPER GUIDE,FRONT,UPPER,B | ||||
| STYLUS P | 1303976 | 532 | Replace: 1530584 | ||||
| STYLUS P | 1454337 | 533 | PF ENCODER SUB ASSY,ASP | ||||
| STYLUS P | 1530576 | 533 | PF ENCODER SUB ASSY,ASP | ||||
| STYLUS P | 1303980 | 534 | RELEASE CD-R,LEFT ASSY.,ASP | ||||
| STYLUS P | 1306294 | 535 | RELEASE CD-R,RIGHT ASSY ASP, ESL | ||||
| STYLUS P | 1454363 | 536 | POROUS PAD PAPER GUIDE FRONT LEFT,ASP | ||||
| STYLUS P | 1454361 | 537 | POROUS PAD PAPER GUIDE FRONT CENTER,ASP | ||||
| STYLUS P | 1454396 | 538 | POROUS PAD,PAPER GUIDE,FRONT,LOWER | ||||
| STYLUS P | 1293933 | 539 | POROUS PAD,GUIDE,INK EJECT,LEFT | ||||
| STYLUS P | 1293934 | 540 | POROUS PAD,GUIDE,INK EJECT,CENTER | ||||
| STYLUS P | 2090534 | 541 | HARNESS,ENCORDER,PF | ||||
| STYLUS P | 2090522 | 542 | HARNESS,BOARD ASSY.,RELAY | ||||
| STYLUS P | 1445602 | 543 | HINGE,COVER,CARTRIDGE | ||||
| STYLUS P | 1293642 | 544 | TUBE,INK EJECT,RIGHT,F | ||||
| STYLUS P | 1300006 | 545 | HOLDER,TUBE,EJECT | ||||
| STYLUS P | 1275980 | 546 | CLEANER,HEAD,ASP | ||||
| STYLUS P | 1572104 | 546 | CLEANER,HEAD,ASP | ||||
| STYLUS P | 1270634 | 547 | POROUS PAD,GUIDE,INK EJECT | ||||
| STYLUS P | 1439190 | 548 | LABEL,INK POSITION | ||||
| STYLUS P | 2111931 | 549 | CABLE,DETECTOR,PW | ||||
| STYLUS P | 1303975 | 550 | FRAG RELEASE ASSY.,ASP | ||||
| STYLUS P | 1401268 | 551 | COVER,ROLLER,LD | ||||
| STYLUS P | 1401922 | 552 | SHEET,SQUARE HOLE | ||||
| STYLUS P | 2119426 | 553 | HARNESS,MOTOR,B | ||||
| STYLUS P | 1262736 | 554 | CAM,RELEASE,LOCK,PAPER EJECT | ||||
| STYLUS P | 2111928 | 555 | CABLE,HEAD | ||||
| STYLUS P | 2111930 | 556 | CABLE,CSIC | ||||
| STYLUS P | F173030 | 700 | PRINT HEAD | ||||
| STYLUS P | 1454338 | 701 | ASF ASSY,ASP | ||||
| STYLUS P | 2090539 | 702 | MOTOR,ASSY.,ASF | ||||
| STYLUS P | 1292847 | 703 | PAPER GUIDE,MANUAL | ||||
| STYLUS P | 1445771 | 708 | Replace: 1511235 | ||||
| STYLUS P | 1511235 | 708 | POROUS PAD,INK EJECT,LEFT,LOWER | ||||
| STYLUS P | 1445772 | 709 | Replace: 1511237 | ||||
| STYLUS P | 1511237 | 709 | POROUS PAD,INK EJECT,LEFT,UPPER | ||||
| STYLUS P | 1445780 | 710 | POROUS PAD,INK EJECT,TUBE,FA | ||||
| STYLUS P | 1445781 | 711 | POROUS PAD,INK EJECT,TUBE,FB | ||||
| STYLUS P | 1445773 | 712 | Replace: 1511238 | ||||
| STYLUS P | 1511238 | 712 | POROUS PAD,INK EJECT,RIGHT,FF | ||||
| STYLUS P | 1445774 | 713 | Replace: 1511239 | ||||
| STYLUS P | 1511239 | 713 | POROUS PAD,INK EJECT,RIGHT,FG | ||||
| STYLUS P | 1445775 | 714 | Replace: 1511240 | ||||
| STYLUS P | 1511240 | 714 | POROUS PAD,INK EJECT,RIGHT,FH | ||||
| STYLUS P | 1445776 | 715 | Replace: 1511241 | ||||
| STYLUS P | 1511241 | 715 | POROUS PAD,INK EJECT,RIGHT,FI | ||||
| STYLUS P | 1445777 | 716 | POROUS PAD,INK EJECT,IS,LEFT | ||||
| STYLUS P | 1445779 | 717 | POROUS PAD,INK EJECT,IS,LOWER,LEFT | ||||
| STYLUS P | 1445778 | 718 | POROUS PAD,INK EJECT,IS,LOWER,FB | ||||
| STYLUS P | 1214680 | 719 | POROUS PAD,INK EJECT,H | ||||
| STYLUS P | 1445605 | 720 | POROUS PAD,HEAD | ||||
| STYLUS P | 1175070 | 724 | CLAMP,TUBE | ||||
| STYLUS P | 1304557 | 8 | ADAPTER,CDR | ||||
| STYLUS P | 1280611 | NON FIG | BOTTLE UNIT | ||||
| STYLUS P | 1416817 | NON FIG | CLEANING SHEET,L | ||||
| 07-002 | |||||||
| STYLUS P | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) | ||||
| M-2728 | |||||||
| STYLUS P | 1033657 | NON FIG | GREASE G-45 | ||||
| CR-510/ES8000/GT12000(ADF | |||||||
| STYLUS P | 1304682 | NON FIG | GREASE G-71 | ||||
| 04-019 #F901 | |||||||
| STYLUS P | 1053480 | NON FIG | I PACK,319LM | ||||
| 06-015 #F984 | |||||||
| STYLUS P | 1448418 | NON FIG | INK CART.UNBOXED,BK-S,DYE,H62C,EC,AS | ||||
| STYLUS P | 1448419 | NON FIG | INK CART.UNBOXED,C-S,DYE,H62C,EC,AS | ||||
| STYLUS P | 1448422 | NON FIG | INK CART.UNBOXED,LC-S,DYE,H62C,EC,AS | ||||
| STYLUS P | 1448423 | NON FIG | INK CART.UNBOXED,LM-S,DYE,H62C,EC,AS | ||||
| STYLUS P | 1448420 | NON FIG | INK CART.UNBOXED,M-S,DYE,H62C,EC,AS | ||||
| STYLUS P | 1448421 | NON FIG | INK CART.UNBOXED,Y-S,DYE,H62C,EC,AS | ||||
| STYLUS P | 1304993 | NON FIG | PF ROLLER POSITION ADJUSTMENT TOOL | ||||
| STYLUS P | 1276333 | NON FIG | PG ADJUSTMENT PLATE | ||||
| STYLUS P | 2107708 | NON FIG | POWER CABLE | ||||
| STYLUS P | 4106775 | NON FIG | SETTING UP MANUAL | ||||
| STYLUS P | 6022798 | NON FIG | SHIPPING CLEANING LIQUID,CR02,18KG | ||||
| STYLUS P | 6022805 | NON FIG | SHIPPING CLEANING LIQUID,CR02,1KG | ||||
| STYLUS P | 3102182 | NON FIG | SOFTWARE CD,E/F/I/G/S/P/D | ||||
| STYLUS P | 1294120 | NON FIG | SONIC TENSION METER U507 | ||||

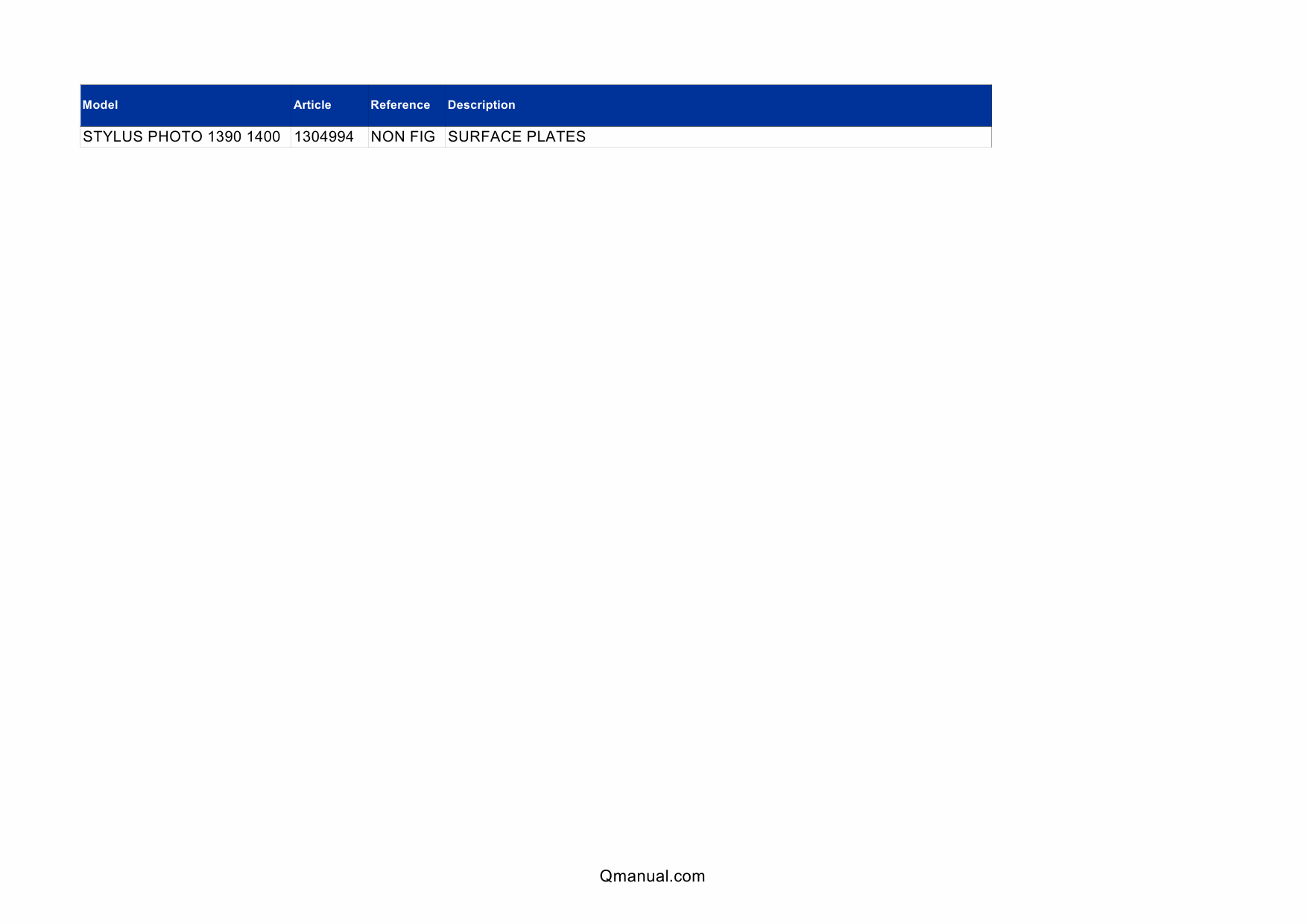

| STYLUS P | 1304994 | NON FIG | SURFACE PLATES | ||||
.
| Parts Name | EPSON StylusPhoto 1390 1400 1410 Parts Manual |
|---|---|
| Type | SERVICE or PARTS MANUAL |
| Condition | Genuine, Original ,100% Brand-new, Unused, Undamaged |
| Compatible Model | Epson Stylus Photo 1390/1400 |
