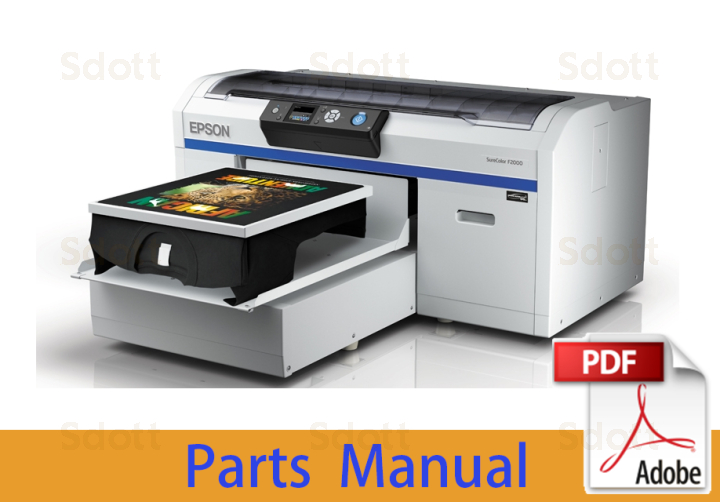

EPSON SureColor F2000 Parts Manual

In stock
SKU
EP-F2000-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON SureColor F2000 Parts Manual
Format PDF
PDF Archive 4.64M
Pages 8
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor F2000 Series




****** The following content is not included in the PDF manual, please use it online ******

Model Article Reference Description
SURECOLOR F2000 1617503 1 TWEEZERS,BOS
SURECOLOR F2000 1619797 5 WASTE ASSY ESL,ASP
SURECOLOR F2000 1639524 6 HOLDER BOTTLE ASSY ASP
SURECOLOR F2000 1610846 7 CAP,INK EJECT,B
SURECOLOR F2000 1517825 8 LOCKING CLAMP SDOTT
SURECOLOR F2000 1617900 9 LABEL,CAUTION,EMERGENCY MESSAGE,F
SURECOLOR F2000 1619798 100 HOUSING,RIGHT,ASSY,ASP
SURECOLOR F2000 1619799 101 HOUSING,LEFT,ASSY,ASP
SURECOLOR F2000 1619782 102 COVER TOP ASSY ESL,ASP
SURECOLOR F2000 1619800 103 COVER,IC,LEFT,ASSY,ASP
SURECOLOR F2000 1619802 104 COVER,IC,RIGHT,ASSY,ASP
SURECOLOR F2000 1592667 105 COVER,PRINTER
SURECOLOR F2000 1592683 106 DECORATION PLATE,HOUSING
SURECOLOR F2000 1592685 107 CAP,HOUSING
SURECOLOR F2000 1592672 108 HOLDER,IC,LEFT
SURECOLOR F2000 1592670 109 HOLDER,IC,RIGHT
SURECOLOR F2000 1592666 111 COVER,FRONT  SDOTT.COM
SURECOLOR F2000 1595283 112 LABEL,MODEL,NAME
SURECOLOR F2000 2149747 200 BOARD ASSY.,MAIN
6548D,CC62 ASP STANDARD
SURECOLOR F2000 2148311 201 HARNESS
MAIN-PSH,2148311-01
SURECOLOR F2000 2091965 203 HARNESS
AC INRET(3PIN)
SURECOLOR F2000 2135483 204 BOARD ASSY.,MAIN
SURECOLOR F2000 2149751 205 BOARD ASSY.,SUB
6726B,ASP STANDARD
SURECOLOR F2000 2148289 206 HARNESS
PRINT START POSITION SENSOR-21
SURECOLOR F2000 2148298 207 HARNESS
MEDIA POSSION SENSOR-2148290,2
SURECOLOR F2000 2148295 208 HARNESS
SUBB-CRCM,2148295-01
SURECOLOR F2000 2148293 209 HARNESS
2148285-SUBE,2148293-01
SURECOLOR F2000 2148294 210 HARNESS
SUBB-CRDM,2148294-01
SURECOLOR F2000 2148297 211 HARNESS
IC COVER SENSOR(FULL SIDE)-214
SURECOLOR F2000 2148299 212 HARNESS
IC COVER SENSOR(HOME SIDE)-214
SURECOLOR F2000 2148310 213 HARNESS
MAIN-PNL,2148310-01
SURECOLOR F2000 2148296 214 HARNESS
PRINTER COVER SENSOR(FULL SIDE
SURECOLOR F2000 2130944 215 HARNESS
SURECOLOR F2000 2130945 216 HARNESS
SURECOLOR F2000 2148285 217 HARNESS
SENCOR(FULL SIDE)-SUBB,2148285
SURECOLOR F2000 2148286 218 HARNESS
MOTOR(FULL SIDE)-SUBB,2148286-
SURECOLOR F2000 2148287 219 HARNESS
ENCODER,CIR-SUBB,2148287-01
SURECOLOR F2000 2148290 220 HARNESS
SENSOR(HOME SIDE)-SUBB,2148290
SURECOLOR F2000 2148291 221 HARNESS
MOTOR(HOME SIDE)-SUBB,2148291-
SURECOLOR F2000 2148292 222 HARNESS
ENCODER(HOME SIDE)-SUBB,214829
SURECOLOR F2000 2148303 223 HARNESS
MAIN-SUBB,2148303-01
SURECOLOR F2000 2148304 224 HARNESS
MAIN-SUBB,2148304-01
SURECOLOR F2000 2148305 225 HARNESS
MAIN-SUBB,2148305-01
SURECOLOR F2000 2148306 226 HARNESS
MAIN-SUBB,2148306-01
SURECOLOR F2000 2148307 227 HARNESS
MIAN-SUBB,2148307-01
SURECOLOR F2000 2148308 228 HARNESS
MAIN-SUBB,2148308-01
SURECOLOR F2000 2148309 229 HARNESS
MAIN-SUBB,2148309-01
SURECOLOR F2000 2148313 230 HARNESS
MAIN-SUBB,2148313-01
SURECOLOR F2000 2148312 231 HARNESS SDOTT.COM
USB MEMORY-MAIN,2148312-01
SURECOLOR F2000 2149749 300 BOARD ASSY.,POWER SUPPLY
6724B,ASP STANDARD
SURECOLOR F2000 1619783 500 MAINTENANCE ASSY ESL,ASP
SURECOLOR F2000 1541330 501 CAP,HEAD,LARGE ASSY ASP
SURECOLOR F2000 1619784 502 CLOTH WIPER CASSETTE ASSY ESL,ASP
SURECOLOR F2000 1574116 503 POROUS PAD,FLASH BOX,ASSY ESL,ASP
SURECOLOR F2000 1637798 504 CLOTH WIPER CARRIAGE ASSY.,A,ESL,ASP
SURECOLOR F2000 1619786 505 PULLY DRIVEN CR ASSY ESL,ASP
SURECOLOR F2000 1635264 506 CR ASSY.,A ASP.
SURECOLOR F2000 1480177 507 BOARD ASSY.,ENCODER
SURECOLOR F2000 1525876 508 HOLDER,GUIDE,TUBE
SURECOLOR F2000 1592542 509 BELT,CR
SURECOLOR F2000 2155541 510 BOARD ASSY.,SUB
6824B,ASP STANDARD
SURECOLOR F2000 2142259 511 HARNESS,ENCODER,CR
SURECOLOR F2000 1619803 512 HARNESS ASSY,ASP
SURECOLOR F2000 1619787 513 OIL PAD ASSY ESL,ASP
SURECOLOR F2000 1619804 514 TUBE,SUPPLY,ASSY,ASP
SURECOLOR F2000 1525755 515 SEAL RUBBER,JOINT,B
SURECOLOR F2000 1518317 516 SEAL RUBBER,JOINT,ASP
SURECOLOR F2000 1619805 518 DUCT,CR,ASSY,ASP
SURECOLOR F2000 1619806 520 TUBE,INK EJ,HOME,ASP
SURECOLOR F2000 1634082 521 TUBE,INK EJ,FULL,I ASP
SURECOLOR F2000 1619807 522 SCALE,PF,ASSY,ASP
SURECOLOR F2000 2133325 523 BOARD ASSY.,ENCODER,PF
SURECOLOR F2000 2148288 524 HARNESS
TF ENCODER-SUBB,2148288-01
SURECOLOR F2000 1619788 525 FRAME ADJUST TRAY Assy,ASP
SURECOLOR F2000 1619789 526 FRANGE PG ASSY ESL ASP
SURECOLOR F2000 1592593 527 FRAME ASSY.,TRAY,LOWER
SURECOLOR F2000 1619790 528 BELLOWS ASSY ESL,ASP
SURECOLOR F2000 1636980 529 PANEL ASSY.,A ESL,ASP
SURECOLOR F2000 1619792 530 BUFFER ASSY HOME ESL,ASP
SURECOLOR F2000 1575095 532 SEAL RUBBER,JOINT.,ASP
SURECOLOR F2000 1634184 533 BUFFER ASSY FULL,A ESL,ASP
SURECOLOR F2000 1652850 533 BUFFER ASSY FULL,A ESL,ASP
SURECOLOR F2000 1619794 536 FRAME SENSOR MEDIA ASSY ESL ASP
SURECOLOR F2000 1619795 537 INK HOLDER ASSY ESL,ASP
SURECOLOR F2000 1619796 538 TABLE ASSY ESL,ASP
SURECOLOR F2000 1480490 539 BEARING,FLW686ZZ
SURECOLOR F2000 1480492 540 POLY SLIDER,STW-FT60,T=0.25
SURECOLOR F2000 1592561 541 PULLY,DRIVEN,TF
SURECOLOR F2000 2162555 543 FAN SET. DC (PROPELLER TYPE)
SURECOLOR F2000 2148994 544 MOTOR ASSY.,CR
SURECOLOR F2000 1593910 545 FRAME,STOPPER,TF
SURECOLOR F2000 2090717 546 LEAF SENSOR
SURECOLOR F2000 1525855 547 CLAMP,TUBE
SURECOLOR F2000 2151708 548 FAN SET. DC (PROPELLER TYPE)
SURECOLOR F2000 2149609 549 MOTOR ASSY.,TF
SURECOLOR F2000 1480212 550 TIMING BELT,PF
SURECOLOR F2000 2143464 551 PHOTO INTERRUPTER
SURECOLOR F2000 1646112 552 HEAVY DUTY CLAMPING HANDLE,490928
SURECOLOR F2000 FA12030 553 PRINT HEAD,ID7560-3
SURECOLOR F2000 1592543 554 SCALE,CR
SURECOLOR F2000 1592589 555 LEVER,PG,CHANGE
SURECOLOR F2000 2139320 556 FAN SET. DC (PROPELLER TYPE)
SURECOLOR F2000 1635263 600 PAD AND SHEET KIT ASP.
SURECOLOR F2000 1080614 NON FIG GREASE G-26 (40GR)(B702600001)
SURECOLOR F2000 1480655 NON FIG GREASE G-71(BLUE)
SURECOLOR F2000 1516265 NON FIG GREASE,G-84
SURECOLOR F2000 1621893 NON FIG INK CART.BOXED,BK,PIG'T,14604,T730,250AS
SURECOLOR F2000 1621894 NON FIG INK CART.BOXED,C,PIG'T,14604,T730,250AS
SURECOLOR F2000 1621895 NON FIG INK CART.BOXED,M,PIG'T,14604,T730,250AS
SURECOLOR F2000 1621897 NON FIG INK CART.BOXED,WH,PIG'T,14604,T730,250AS
SURECOLOR F2000 1621896 NON FIG INK CART.BOXED,Y,PIG'T,14604,T730,250AS
SURECOLOR F2000 1615089 NON FIG JIG unit for parallelism
LCAS13-001
SURECOLOR F2000 1521154 NON FIG OIL,O-17
09-001 #F1043
SURECOLOR F2000 1640645 NON FIG SONIC TENSION METER U508
