Parts Manual for EPSON SureColor F500 F501 F550 F570 T3100x T3100d T3170x T3170d
In stock
SKU
EP-F500-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing

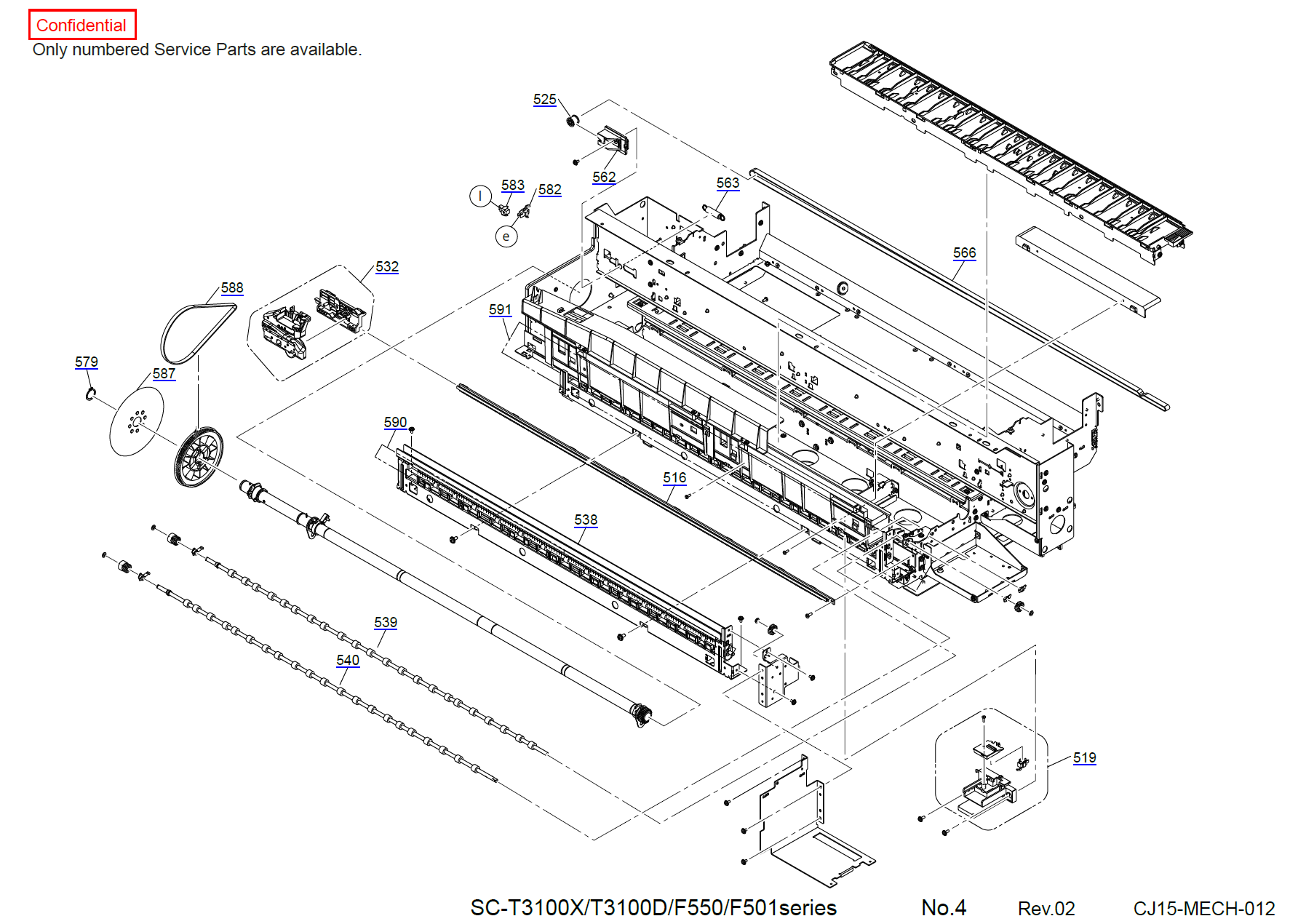

EPSON SureColor T3100x T3100d Series F500 F501 F550 F570 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| SURECOLOR SC-F500 | 1797187 | 103 | HOUSING,LOWER,RIGHT,SUB,CISS |
| SURECOLOR SC-F500 | 1759444 | 106 | COVER ROLL PAPER,B,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1845668 | 106 | COVER ROLL PAPER,B,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1726366 | 107 | COVER,ASF,24 |
| SURECOLOR SC-F500 | 1731175 | 108 | COVER PRINTER,B,IEI,,ASSY |
| SURECOLOR SC-F500 | 1846726 | 108 | COVER PRINTER,B,IEI,,ASSY |
| SURECOLOR SC-F500 | 1802428 | 109 | HOUSING FRONT,CISS,IEI,,ASSY |
| SURECOLOR SC-F500 | 1731162 | 110 | COVER ENCLOSURE,B,IEI,,ASSY |
| SURECOLOR SC-F500 | 1818624 | 111 | PANEL UNIT,,IEI ASP |
| SURECOLOR SC-F500 | 1797186 | 112 | COVER,CUTTER,CISS |
| SURECOLOR SC-F500 | 1726352 | 113 | HOUSING,REAR,24 |
| SURECOLOR SC-F500 | 1726377 | 114 | HOUSING,UPPER,SUPPORT |
| SURECOLOR SC-F500 | 1726381 | 115 | DECORATION PLATE,HOUSING,UPPER |
| SURECOLOR SC-F500 | 1818626 | 116 | HOUSING,LOWER,RIGHT,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1877024 | 116 | HOUSING,LOWER,RIGHT,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1818817 | 117 | HOUSING,LOWER,LEFT,CISS, Unit |
| SURECOLOR SC-F500 | 1805499 | 117 | HOUSING,LOWER,LEFT,CISS, UNIT |
| SURECOLOR SC-F500 | 1749876 | 119 | STACKER,SUPPORT,B |
| SURECOLOR SC-F500 | 1809740 | 120 | FLANGE,ROLL,LEFT,B |
| SURECOLOR SC-F500 | 1710162 | 122 | CAP,TANK |
| SURECOLOR SC-F500 | 1800471 | 123 | JOINT,TUBE,4 LINE |
| SURECOLOR SC-F500 | 1800468 | 123 | JOINT,TUBE,4 LINE |
| SURECOLOR SC-F500 | 1818628 | 124 | COVER, CISS, Unit |
| SURECOLOR SC-F500 | 2202497 | 125 | HARNESS,DETECTOR,TANK COVER |
| SURECOLOR SC-F500 | 1809968 | 126 | LABEL,INK POSITION,TX,EURO |
| SURECOLOR SC-F500 | 1797189 | 127 | COVER,CISS,FRONT |
| SURECOLOR SC-F500 | 1809962 | 128 | LABEL,CAUTION,TX,EURO |
| SURECOLOR SC-F500 | 1854065 | 128 | LABEL,CAUTION,TX,EURO |
| SURECOLOR SC-F500 | 2206677 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F500 | 2184909 | 201 | HARNESS,MOTOR,IS,L,24 |
| SURECOLOR SC-F500 | 2194158 | 202 | WIRELESS LAN USB MODULE |
| SURECOLOR SC-F500 | 2184330 | 203 | HARNESS,COVER,MENTENANCE,24 |
| SURECOLOR SC-F500 | 2184329 | 204 | HARNESS,COVER,ROLL |
| SURECOLOR SC-F500 | 2202019 | 205 | HARNESS,COVER,CUTTER |
| SURECOLOR SC-F500 | 2202018 | 206 | HARNESS,COVER,PRINTER |
| SURECOLOR SC-F500 | 2184168 | 207 | HARNESS,GROUNDING,150 |
| SURECOLOR SC-F500 | 2183863 | 208 | HARNESS,DETECTOR,ATC |
| SURECOLOR SC-F500 | 2183859 | 209 | HARNESS,DETECTOR,PE |
| SURECOLOR SC-F500 | 2183857 | 210 | HARNESS,CUTTER |
| SURECOLOR SC-F500 | 2183854 | 211 | HARNESS,RELAY,CR,24 |
| SURECOLOR SC-F500 | 2183853 | 212 | HARNESS,GROUND |
| SURECOLOR SC-F500 | 2183852 | 213 | HARNESS,PW |
| SURECOLOR SC-F500 | 2183826 | 214 | HARNESS,DETECTOR,ASF,PE,24 |
| SURECOLOR SC-F500 | 2183825 | 215 | HARNESS,PHASE DETECT,ASF,24 |
| SURECOLOR SC-F500 | 2183742 | 217 | HARNESS,PF_ENC |
| SURECOLOR SC-F500 | 2187897 | 218 | HARNESS |
| SURECOLOR SC-F500 | 2183740 | 219 | HARNESS,DC_OUT |
| SURECOLOR SC-F500 | 2183739 | 220 | HARNESS,P/S,INLET |
| SURECOLOR SC-F500 | 2183114 | 221 | CR CONTACT MODULE |
| SURECOLOR SC-F500 | 2150454 | 222 | BOARD ASSY.,SUB |
| SURECOLOR SC-F500 | 2183762 | 225 | HARNESS,HEAD1,24 |
| SURECOLOR SC-F500 | 2183764 | 226 | HARNESS,HEAD2,24 |
| SURECOLOR SC-F500 | 2183765 | 227 | HARNESS,HEAD3,24 |
| SURECOLOR SC-F500 | 2183766 | 228 | HARNESS,HEAD4,24 |
| SURECOLOR SC-F500 | 2183767 | 229 | HARNESS,CR_SIG,24 |
| SURECOLOR SC-F500 | 2183768 | 230 | HARNESS,CRCM,24 |
| SURECOLOR SC-F500 | 2202584 | 231 | HARNESS,PANEL,FFC |
| SURECOLOR SC-F500 | 2184911 | 232 | HARNESS,INK,DETECTOR,24 |
| SURECOLOR SC-F500 | 2184910 | 232 | HARNESS,INK,DETECTOR,24 |
| SURECOLOR SC-F500 | 2202150 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F500 | 1725533 | 351 | HOLDER,AC,INLET |
| SURECOLOR SC-F500 | 2184908 | 501 | CABLE,ENCODER,IS,24 |
| SURECOLOR SC-F500 | 1818630 | 502 | CARRIAGE,B,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 2184028 | 503 | COOLING,FAN |
| SURECOLOR SC-F500 | 2090717 | 504 | LEAF SENSOR |
| SURECOLOR SC-F500 | 1759332 | 508 | COVER,MENTENANCE BOX ASP |
| SURECOLOR SC-F500 | 2133325 | 509 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F500 | 2208679 | 509 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F500 | 2210270 | 509 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F500 | 1801303 | 510 | DRIVE ROLL PAPER,B,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1723911 | 512 | SCALE,CR,24 |
| SURECOLOR SC-F500 | 1723929 | 514 | MOTOR ASSY.,CR |
| SURECOLOR SC-F500 | 1279312 | 515 | ROLLER,DRIVEN |
| SURECOLOR SC-F500 | 1731168 | 516 | CUTTER RAIL,B,IEI,,ASSY |
| SURECOLOR SC-F500 | 1723969 | 516 | CUTTER RAIL,B,IEI,,ASSY |
| SURECOLOR SC-F500 | 1731164 | 519 | STACKER DETECTOR,B,IEI,,ASSY |
| SURECOLOR SC-F500 | 1818632 | 521 | INK SYSTEM,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1838794 | 521 | INK SYSTEM,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1829036 | 522 | ADAPTER, TANK, ASSY, CJ15,ASP |
| SURECOLOR SC-F500 | 1800467 | 523 | POROUS PAD,TANK,UPPER |
| SURECOLOR SC-F500 | 1837064 | 523 | POROUS PAD,TANK,UPPER |
| SURECOLOR SC-F500 | 1730843 | 524 | MOTOR ASSY.,PF,UNIT,IEI |
| SURECOLOR SC-F500 | 1730847 | 525 | CR PULLEY,IEI,,ASSY |
| SURECOLOR SC-F500 | 1767475 | 526 | PF ENCODER,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1767476 | 528 | HOLDER ROLL LEFT,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1767477 | 529 | HOLDER ROLL RIGHT,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1759325 | 532 | CARRIAGE CUTTER ASSEMBLY,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1759324 | 533 | APG LEVER,IEI,,ASSY ASP |
| SURECOLOR SC-F500 | 1724242 | 534 | MOTOR ASSY.,ATC |
| SURECOLOR SC-F500 | 1731185 | 535 | HEAD FFC,B,IEI,,ASSY |
| SURECOLOR SC-F500 | 1723920 | 536 | OIL PAD,CR |
| SURECOLOR SC-F500 | 1723978 | 537 | STOPPER,CUTTER |
| SURECOLOR SC-F500 | 1824108 | 538 | 3rd EJ,CISS,IEI,ASSY, ASP |
| SURECOLOR SC-F500 | 1767481 | 539 | EJ ROLLER ASSY REAR, 24 ASP |
| SURECOLOR SC-F500 | 1767482 | 540 | EJ ROLLER C, 24 ASP |
| SURECOLOR SC-F500 | 1771501 | 541 | HOLDER,STAR WHEEL UNIT ASP |
| SURECOLOR SC-F500 | 1771502 | 542 | HOLDER,STAR WHEEL,B UNIT ASP |
| SURECOLOR SC-F500 | 2196565 | 544 | BOARD ASSY.,ENC |
| SURECOLOR SC-F500 | 1730846 | 547 | ASF CLUTCH,IEI,ASSY |
| SURECOLOR SC-F500 | 1730794 | 548 | ASF GEAR,IEI,,ASSY |
| SURECOLOR SC-F500 | 1724057 | 553 | PAPER GUIDE,ROLL,UPPER,24 |
| SURECOLOR SC-F500 | 1723996 | 556 | PAPER GUIDE,REAR,24 |
| SURECOLOR SC-F500 | 1723946 | 558 | COVER,HARNESS,CR |
| SURECOLOR SC-F500 | 1723942 | 559 | HOLDER,HARNESS,CR |
| SURECOLOR SC-F500 | 1818819 | 560 | HOLDER,BOARD,CR, ASSY CISS ASP |
| SURECOLOR SC-F500 | 1723927 | 562 | HOLDER,PULLEY,DRIVEN |
| SURECOLOR SC-F500 | 1740591 | 563 | EXTENSION SPRING,41.6 |
| SURECOLOR SC-F500 | 1724015 | 564 | SLIDER,TRANSMISSION,ASF |
| SURECOLOR SC-F500 | 2109393 | 565 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F500 | 1723910 | 566 | TIMING BELT,CR,24 |
| SURECOLOR SC-F500 | 2143464 | 569 | PHOTO INTERRUPTER |
| SURECOLOR SC-F500 | 1725657 | 579 | C-RING,STW-16 |
| SURECOLOR SC-F500 | 1818811 | 580 | ASF UNIT, 24(CJ17) ASP |
| SURECOLOR SC-F500 | 1723982 | 587 | SCALE,PF |
| SURECOLOR SC-F500 | 1723988 | 588 | TIMING BELT,60S2M376G |
| SURECOLOR SC-F500 | 1730796 | 589 | PE DETECTOR FLAG,IEI,,ASSY |
| SURECOLOR SC-F500 | FA36021 | 700 | PRINT HEAD,IF649V-2,ASP |
| SURECOLOR SC-F500 | FA36031 | 700 | PRINT HEAD,IF649V-2,ASP |
| SURECOLOR SC-F500 | 1751368 | 701 | POROUS PAD,CR |
| SURECOLOR SC-F500 | 1797160 | 702 | COVER,CR,CISS |
| SURECOLOR SC-F500 | 1786630 | NON FIG | ASF Spacer Jig |
| SURECOLOR SC-F500 | 1635441 | NON FIG | GREASE, G-97 |
| SURECOLOR SC-F500 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-F500 | 1590700 | NON FIG | GREASE,G-96 (40g) |
| SURECOLOR SC-F500 | 1728255 | NON FIG | HOLDER,FRAME,PAPER EJECT |
| SURECOLOR SC-F500 | 1521154 | NON FIG | OIL,O-17 |
| SURECOLOR SC-F500 | 5147058 | NON FIG | PAD,CUTTER |
| SURECOLOR SC-F500 | 1810726 | NON FIG. | SHEET,PAPER GUIDE,FRONT,SUB |
| SURECOLOR SC-F500 | 1810727 | NON FIG. | SHEET,PAPER GUIDE,FRONT,SUB,B |
| Manual Name | SureColor F500 F501 F550 F570 T3100x T3100d T3170x T3170d Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.11M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F500 F501 F550 F570 Series EPSON SureColor T3100x T3100d Series |
