EPSON SureColor F7000 F7070 Parts Manual
In stock
SKU
EP-F7000-PM
$1.20
EPSON SureColor F7000 F7070 Parts Manual
| Manual Name | EPSON SureColor F7000 F7070 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 6.53M |
| Pages | 8 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F7000 F7070 Series |

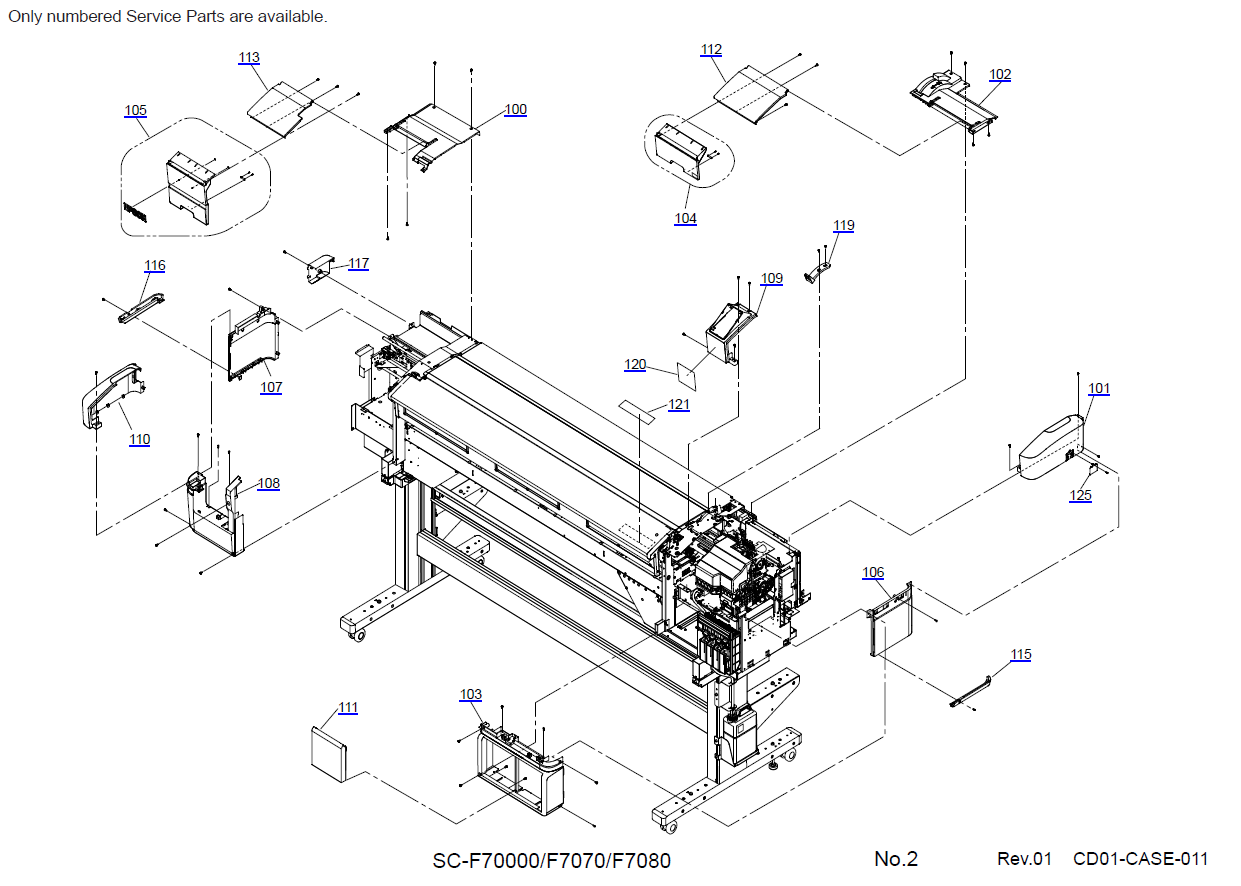

****** The following content is not included in the PDF manual, please use it online ******
| Model | Article | Reference | Description |
| SURECOLOR SC-F7000 | 1574108 | 1 | SCREW ASSY,ASP |
| SURECOLOR SC-F7000 | 1559573 | 2 | ADJUSTER ASSY. |
| SURECOLOR SC-F7000 | 1560663 | 3 | CASTER,P60HG |
| SURECOLOR SC-F7000 | 1560664 | 4 | CASTER,P60HGS |
| SURECOLOR SC-F7000 | 1559796 | 5 | STAND,TOP,RIGHT |
| SURECOLOR SC-F7000 | 1623340 | 5 | STAND,TOP,RIGHT |
| SURECOLOR SC-F7000 | 1559800 | 6 | STAND,TOP,LEFT |
| SURECOLOR SC-F7000 | 1623342 | 6 | STAND,TOP,LEFT |
| SURECOLOR SC-F7000 | 1583757 | 8 | STAND,LEFT ASSY ESL ASP |
| SURECOLOR SC-F7000 | 1601086 | 9 | STAND,RIGHT ASSY.B,ST ASP |
| SURECOLOR SC-F7000 | 1560661 | 10 | ADJUSTER,KC-280-4-EP-UL |
| SURECOLOR SC-F7000 | 1574096 | 100 | COVER,TOP,LEFT,ASSY,ASP |
| SURECOLOR SC-F7000 | 1552189 | 101 | COVER,SIDE,RIGHT,UPPER |
| SURECOLOR SC-F7000 | 1574097 | 102 | COVER,TOP,RIGHT,ASSY,ASP |
| SURECOLOR SC-F7000 | 1599152 | 103 | COVER,FRONT,RIGHT,64, ASSY,ST ASP |
| SURECOLOR SC-F7000 | 1599153 | 104 | COVER,MAINTENANCE,RIGHT,ASSY,ST ASP |
| SURECOLOR SC-F7000 | 1599154 | 105 | COVER,MAINTENANCE,LEFT, ASSY.,ST ASP |
| SURECOLOR SC-F7000 | 1552190 | 106 | COVER,SIDE,RIGHT,LOWER |
| SURECOLOR SC-F7000 | 1552193 | 107 | COVER,SIDE,LEFT,LOWER |
| SURECOLOR SC-F7000 | 1599145 | 108 | COVER FRONT LEFT ASSY.,ST ASP |
| SURECOLOR SC-F7000 | 1552188 | 109 | COVER,TOP,PANEL |
| SURECOLOR SC-F7000 | 1559802 | 11 | STAY,STAND,SUB,64 |
| SURECOLOR SC-F7000 | 1552192 | 110 | COVER,SIDE,LEFT,UPPER |
| SURECOLOR SC-F7000 | 1552909 | 111 | COVER,IH SDOTT |
| SURECOLOR SC-F7000 | 1552912 | 112 | COVER,MAINTENANCE |
| SURECOLOR SC-F7000 | 1552914 | 113 | COVER,MAINTENANCE,HEAD |
| SURECOLOR SC-F7000 | 1583597 | 114 | COVER,PRINTER,SUPPORT,64 |
| SURECOLOR SC-F7000 | 1552191 | 115 | HOUSING,BASE,SUPPORT,RIGHT |
| SURECOLOR SC-F7000 | 1552194 | 116 | HOUSING,BASE,SUPPORT,LEFT |
| SURECOLOR SC-F7000 | 1552916 | 117 | CAP,COVER,TUBE |
| SURECOLOR SC-F7000 | 1552177 | 119 | KNOB,LEVER |
| SURECOLOR SC-F7000 | 1589757 | 12 | STAY,STAND,64,ASP |
| SURECOLOR SC-F7000 | 1591681 | 120 | LABEL,MODEL NAME |
| SURECOLOR SC-F7000 | 1591688 | 121 | LABEL,PERIODIC MAINTENANCE |
| SURECOLOR SC-F7000 | 1560601 | 125 | CAP,CR,ADJUST |
| SURECOLOR SC-F7000 | 1606878 | 13 | STOPPER |
| SURECOLOR SC-F7000 | 2150649 | 200 | BOARD ASSY.,MAIN |
| 6638H,CD01 ASP STANDARD | |||
| SURECOLOR SC-F7000 | 2138619 | 201 | HARNESS |
| SURECOLOR SC-F7000 | 2130945 | 202 | HARNESS |
| SURECOLOR SC-F7000 | 2130944 | 203 | HARNESS |
| SURECOLOR SC-F7000 | 2142891 | 204 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F7000 | 2142883 | 205 | BOARD ASSY.,SUB |
| SURECOLOR SC-F7000 | 2138603 | 206 | HARNESS |
| SURECOLOR SC-F7000 | 2138605 | 208 | HARNESS |
| SURECOLOR SC-F7000 | 2142888 | 210 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F7000 | 2138596 | 211 | HARNESS |
| SURECOLOR SC-F7000 | 2138598 | 212 | HARNESS |
| SURECOLOR SC-F7000 | 2138614 | 213 | HARNESS |
| SURECOLOR SC-F7000 | 2138618 | 214 | HARNESS |
| SURECOLOR SC-F7000 | 2142879 | 218 | BOARD ASSY.,SUB |
| SURECOLOR SC-F7000 | 2142892 | 220 | BOARD ASSY.,PANEL |
| SURECOLOR SC-F7000 | 1601087 | 500 | ROLLER ASSY.,DRIVEN,ST ASP |
| SURECOLOR SC-F7000 | 1574089 | 501 | SCALE,PF ASSY,ASP |
| SURECOLOR SC-F7000 | 1574090 | 502 | PRINTER,COVER,OPEN ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1574111 | 503 | FULL,MAINTENANCE OPEN ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1574091 | 504 | INK LOCK,P COVER, HOME,ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1574112 | 505 | INK LOCK,MAINTENANCE, HOME,ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1599147 | 506 | CARRIAGE ASSY.,ST ESL,ASP |
| SURECOLOR SC-F7000 | 1480133 | 507 | PULLEY,DRIVEN |
| SURECOLOR SC-F7000 | 1480177 | 508 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F7000 | 1559657 | 509 | BELT,CR |
| SURECOLOR SC-F7000 | 2143464 | 510 | PHOTO INTERRUPTER |
| SURECOLOR SC-F7000 | FA12000 | 511 | PRINT HEAD,ID7560 |
| SURECOLOR SC-F7000 | FA12020 | 511 | PRINT HEAD,ID7560 |
| SURECOLOR SC-F7000 | 2084550 | 512 | BOARD ASSY.,INK MARK |
| SURECOLOR SC-F7000 | 2109393 | 513 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F7000 | 2142288 | 514 | HARNESS,CR,ENCODER |
| SURECOLOR SC-F7000 | 2142289 | 515 | HARNESS,IMS |
| SURECOLOR SC-F7000 | 2142290 | 516 | HARNESS,PW |
| SURECOLOR SC-F7000 | 2158134 | 516 | HARNESS,PW |
| SURECOLOR SC-F7000 | 2139290 | 517 | CABLE,SENSOR,PG |
| SURECOLOR SC-F7000 | 2142881 | 518 | BOARD ASSY.,SUB |
| SURECOLOR SC-F7000 | 1574110 | 519 | OIL PAD,ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1574092 | 520 | APG,ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1562879 | 522 | LABEL,SET,PRE HEATER |
| SURECOLOR SC-F7000 | 1562881 | 524 | LABEL,SET,AFTER HEATER |
| SURECOLOR SC-F7000 | 1574095 | 525 | PANEL ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1599148 | 528 | HOLDER IC ASSY.,ST,ASP |
| SURECOLOR SC-F7000 | 1648910 | 528 | HOLDER IC ASSY.,ST,ASP |
| SURECOLOR SC-F7000 | 1650907 | 528 | HOLDER IC ASSY.,ST,ASP |
| SURECOLOR SC-F7000 | 1575095 | 529 | SEAL RUBBER,JOINT.,ASP |
| SURECOLOR SC-F7000 | 1574117 | 530 | WIPER.,ASSY ESL,ASP |
| SURECOLOR SC-F7000 | 1598963 | 531 | Replace: 1613445 |
| SURECOLOR SC-F7000 | 1613445 | 531 | POROUS PAD,WIPER,CLEANER,ASP |
| SURECOLOR SC-F7000 | 1599149 | 532 | PUMP,CAP,ASSY.,ST ESL,ASP |
| SURECOLOR SC-F7000 | 1603576 | 533 | TUBE,INK SUPPLY.,ASSY.,B,ST,ASP |
| SURECOLOR SC-F7000 | 1599151 | 534 | DUCT,CR.,ASSY ST,ASP |
| SURECOLOR SC-F7000 | 1574106 | 535 | HARNESS,HEAD ASSY,ASP |
| SURECOLOR SC-F7000 | 1574107 | 536 | HARNESS,HEAD ASSY,C,ASP |
| SURECOLOR SC-F7000 | 1574120 | 537 | SCALE,CR,ASP |
| SURECOLOR SC-F7000 | 2139052 | 538 | FAN ASSY.,ABSORPTION |
| SURECOLOR SC-F7000 | 1559726 | 540 | SEAL,IMS |
| SURECOLOR SC-F7000 | 1574125 | 542 | MOTOR ASSY.,PF,ASP |
| SURECOLOR SC-F7000 | 2133325 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F7000 | 2142296 | 544 | HARNESS,PF,ENCORDER |
| SURECOLOR SC-F7000 | 1589601 | 545 | PUSH RIVET,P6060W ASSY.B,ASP |
| SURECOLOR SC-F7000 | 2142297 | 546 | HARNESS,SENSOR,PE |
| SURECOLOR SC-F7000 | 2139095 | 547 | MOTOR ASSY.,CR |
| SURECOLOR SC-F7000 | 2130110 | 548 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-F7000 | 2139286 | 549 | CABLE,MOTOR,APG |
| SURECOLOR SC-F7000 | 1574109 | 550 | FAN SET.DC,ASP |
| SURECOLOR SC-F7000 | 1559635 | 552 | COVER,CR |
| SURECOLOR SC-F7000 | 1559650 | 553 | SPACER,CR,B |
| SURECOLOR SC-F7000 | 1559681 | 554 | SHEET,GUIDE RAIL,TUBE,LOWER |
| SURECOLOR SC-F7000 | 1559690 | 555 | TIMING BELT,PF |
| SURECOLOR SC-F7000 | 1562843 | 557 | LABEL,CAUTION,P-COVER,RIGHT |
| SURECOLOR SC-F7000 | 1562845 | 558 | LABEL,CAUTION,P-COVER,LEFT |
| SURECOLOR SC-F7000 | 2139279 | 559 | CABLE,RELAY,FRONT,COVER,LEFT |
| SURECOLOR SC-F7000 | 2139282 | 560 | CABLE,RELAY,MAINTENANCE COVER,LEFT |
| SURECOLOR SC-F7000 | 2142276 | 561 | HARNESS,PANEL |
| SURECOLOR SC-F7000 | 2142331 | 562 | HARNESS |
| SURECOLOR SC-F7000 | 2142278 | 563 | HARNESS,CRCM1 |
| SURECOLOR SC-F7000 | 2139289 | 564 | CABLE,SENSOR,CR |
| SURECOLOR SC-F7000 | 2142295 | 565 | HARNESS,CR |
| SURECOLOR SC-F7000 | 2139297 | 566 | CABLE,RELAY,MOTOR,PF |
| SURECOLOR SC-F7000 | 2139302 | 567 | CABLE,SENSOR,MANUAL RELEASE |
| SURECOLOR SC-F7000 | 2139303 | 568 | CABLE,RELAY,FAN |
| SURECOLOR SC-F7000 | 2139304 | 569 | CABLE,RELAY,FAN,B |
| SURECOLOR SC-F7000 | 2138606 | 576 | HARNESS |
| SURECOLOR SC-F7000 | 2138607 | 577 | HARNESS |
| SURECOLOR SC-F7000 | 2138609 | 578 | HARNESS |
| SURECOLOR SC-F7000 | 2138610 | 579 | HARNESS |
| SURECOLOR SC-F7000 | 2138611 | 580 | HARNESS |
| SURECOLOR SC-F7000 | 2138612 | 581 | HARNESS |
| SURECOLOR SC-F7000 | 2138613 | 582 | HARNESS |
| SURECOLOR SC-F7000 | 1603583 | 597 | FASTEN PLATE,TUBE ASSY ASP |
| SURECOLOR SC-F7000 | 1612934 | 597 | FASTEN PLATE,TUBE ASSY ASP |
| SURECOLOR SC-F7000 | 1602678 | 598 | SHEET,PROTECT,INK,B |
| SURECOLOR SC-F7000 | 1603191 | 599 | STRENGTHEN,HEAD,CR |
| SURECOLOR SC-F7000 | 1582821 | NON FIG | CLEANING CARTRIDGE |
| SURECOLOR SC-F7000 | 1575096 | NON FIG | CLEANING STICK,(B)ASP |
| SURECOLOR SC-F7000 | 1575099 | NON FIG | CLEANING STICK.,ASP |
| SURECOLOR SC-F7000 | 1598657 | NON FIG | Replace: 1630421 |
| SURECOLOR SC-F7000 | 1598658 | NON FIG | Replace: 1630422 |
| SURECOLOR SC-F7000 | 1598659 | NON FIG | Replace: 1630423 |
| SURECOLOR SC-F7000 | 1574337 | NON FIG | GREASE,G-81 |
| SURECOLOR SC-F7000 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-F7000 | 1630421 | NON FIG | INK CART.BOXED,BK,DYE,642C1,T811,700AS |
| SURECOLOR SC-F7000 | 1630422 | NON FIG | INK CART.BOXED,C,DYE,642C1,T811,700AS |
| SURECOLOR SC-F7000 | 1630423 | NON FIG | INK CART.BOXED,M,DYE,642C1,T811,700AS |
| SURECOLOR SC-F7000 | 1598660 | NON FIG | INK CART.BOXED,Y,DYE,642C1,T811,700AS |
| SURECOLOR SC-F7000 | 1630424 | NON FIG | INK CART.BOXED,Y,DYE,642C1,T811,700AS |
| SURECOLOR SC-F7000 | 1521154 | NON FIG | OIL,O-17 SDOTT.COM |
