EPSON SureColor P20000 P20050 P20070 Parts Manual

In stock
SKU
EP-P20000-PM
$1.10
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.10
More Information
Manual Name EPSON SureColor P20000 P20050 P20070 Parts Manual
Format PDF
PDF Archive 10.0M
Pages 7
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor P20000 P20050 P20070 Series

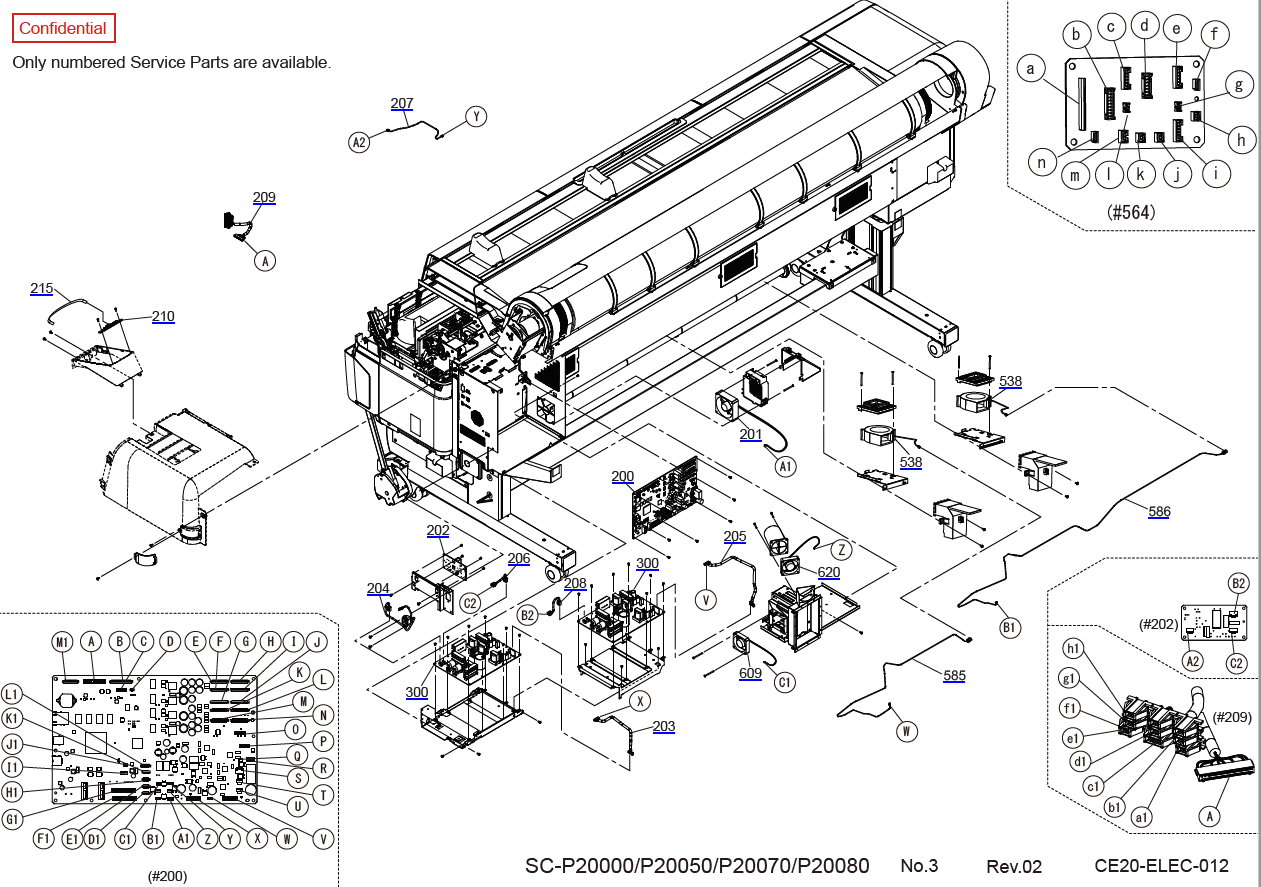

Model Article Reference Description
SURECOLOR SC-P20000 1686222 1 STAND,RIGHT,ASSY.,ASP
SURECOLOR SC-P20000 1686223 2 STAND,LEFT,ASSY.,ASP
SURECOLOR SC-P20000 1686206 3 STAND,STAY,ASSY.,ASP
SURECOLOR SC-P20000 1686221 5 SCREW ASSY.,ASP
SURECOLOR SC-P20000 1695796 100 COVER,PANEL,LOWER
SURECOLOR SC-P20000 1695320 101 COVER FRONT CE20 ASSY.,ESL,ASP
SURECOLOR SC-P20000 1656430 102 COVER,FRONT,LOWER,B
SURECOLOR SC-P20000 1656431 103 COVER,FRONT,LOWER,C
SURECOLOR SC-P20000 1656429 104 COVER,FRONT,LOWER
SURECOLOR SC-P20000 1686229 105 PAPER GUIDE BOARD FRONT R ASSY.,ESL,ASP
SURECOLOR SC-P20000 1713898 105 PAPER GUIDE BOARD FRONT R ASSY.,ESL,ASP
SURECOLOR SC-P20000 1686232 106 COVER,IH,RIGHT ASSY.,ASP
SURECOLOR SC-P20000 1686233 107 HOLDER,IH,RIGHT ASSY.,ASP
SURECOLOR SC-P20000 1656395 108 COVER,TOP,LEFT
SURECOLOR SC-P20000 1552193 109 COVER,SIDE,LEFT,LOWER
SURECOLOR SC-P20000 1703173 117 COVER PRINTER CE20 ASSY.,ESL,ASP
SURECOLOR SC-P20000 1695797 119 COVER,TOP,RIGHT
SURECOLOR SC-P20000 1656399 120 CAP,CR,ADJUST
SURECOLOR SC-P20000 1656408 121 COVER,ROLL,WINDOW
SURECOLOR SC-P20000 1672536 122 COVER,SIDE,RIGHT,LOWER ASP
SURECOLOR SC-P20000 1656455 124 COVER ROLL ASSY.,64
SURECOLOR SC-P20000 1656444 125 HOUSING,BASE,RIGHT
SURECOLOR SC-P20000 1656445 127 HOUSING,BASE,LEFT
SURECOLOR SC-P20000 1699540 128 COVER,TOP,SUPPORT,LEFT
SURECOLOR SC-P20000 1656398 129 COVER,TOP,SUPPORT,RIGHT
SURECOLOR SC-P20000 1656446 130 COVER,TANK,INK EJECT
SURECOLOR SC-P20000 1656390 132 COVER,REAR,RIGHT
SURECOLOR SC-P20000 1656389 133 COVER,REAR,LEFT
SURECOLOR SC-P20000 1668257 134 LABEL,MODEL NAME
SURECOLOR SC-P20000 1686234 136 COVER,IH,LEFT ASSY.,ASP
SURECOLOR SC-P20000 1699842 137 HOLDER,IH,LEFT ASSY A.,ASP
SURECOLOR SC-P20000 1656406 138 COVER,ROLL,SUPPORT,RIGHT
SURECOLOR SC-P20000 1686230 139 PAPER GUIDE BOARD FRONT L 64ASSY,ESL,ASP
SURECOLOR SC-P20000 1682129 141 LABEL,PRECISIONCORE,B
SURECOLOR SC-P20000 1666178 143 LABEL,ULTRA CHROME INK,PRO
SURECOLOR SC-P20000 1695321 147 COVER,FRONT,RIGHT,ASSY,ASP
SURECOLOR SC-P20000 1701668 148 COVER,FRONT,LEFT,ASSY B,ASP
SURECOLOR SC-P20000 1656407 150 COVER,ROLL,SUPPORT,LEFT
SURECOLOR SC-P20000 1656403 151 COVER,SIDE,ROLL,LEFT
SURECOLOR SC-P20000 1703163 152 COVER,SIDE,ROLL,RIGHT,ASSY,ASP
SURECOLOR SC-P20000 2171570 200 BOARD ASSY.,MAIN
SURECOLOR SC-P20000 2164720 201 DC FAN MOTOR
SURECOLOR SC-P20000 2171574 202 BOARD ASSY.,SUB
SURECOLOR SC-P20000 2164663 203 HARNESS,P/S,CB78 LOWER
SURECOLOR SC-P20000 2164681 204 HARNESS,P/S,INLET
SURECOLOR SC-P20000 2164713 205 HARNESS,P/S,CB78 UPPER
SURECOLOR SC-P20000 2164714 206 HARNESS,SUB-C,CB78 LOWER
SURECOLOR SC-P20000 2164716 207 HARNESS,SUB-C,CONTROL
SURECOLOR SC-P20000 2164715 208 HARNESS,SUB-C,CB78 UPPER
SURECOLOR SC-P20000 2164669 209 HARNESS,RELAY,SENSOR
SURECOLOR SC-P20000 2174036 210 BOARD ASSY.,PANEL
SURECOLOR SC-P20000 2142331 215 HARNESS
SURECOLOR SC-P20000 1656348 28 STAND,TOP,LEFT
SURECOLOR SC-P20000 1560663 29 CASTER,P60HG
SURECOLOR SC-P20000 1714641 29 CASTER,P60HG
SURECOLOR SC-P20000 1714642 29 CASTER,P60HG
SURECOLOR SC-P20000 1560664 30 CASTER,P60HGS

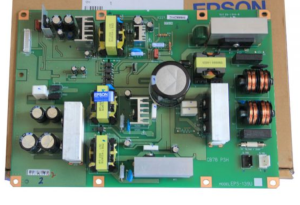

SURECOLOR SC-P20000 2168583 300 BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-P20000 1656347 36 STAND,TOP,RIGHT
SURECOLOR SC-P20000 1656084 500 SCALE,PF
SURECOLOR SC-P20000 1686216 501 IH L ASSY.,ASP
SURECOLOR SC-P20000 1701551 501 IH L ASSY.,ASP
SURECOLOR SC-P20000 1518317 502 SEAL RUBBER,JOINT,ASP
SURECOLOR SC-P20000 1686215 503 ONCR ASSY.,ASP
SURECOLOR SC-P20000 1686220 504 WIPER ASSY.,ASP
SURECOLOR SC-P20000 1686219 505 CLEANER WIPER ASSY.,ASP
SURECOLOR SC-P20000 1686241 506 PUMP CAP ASSY.,ASP
SURECOLOR SC-P20000 1708728 506 PUMP CAP ASSY.,ASP
SURECOLOR SC-P20000 1701550 507 IH R ASSY A.,ASP
SURECOLOR SC-P20000 1704299 507 IH R ASSY A.,ASP
SURECOLOR SC-P20000 1686239 508 CR ASSY.,ASP
SURECOLOR SC-P20000 1710355 508 CR ASSY.,ASP
SURECOLOR SC-P20000 1480133 509 PULLEY,DRIVEN
SURECOLOR SC-P20000 1702080 510 BOARD ASSY.,ENCODER,CR,ASP
SURECOLOR SC-P20000 2143464 511 PHOTO INTERRUPTER
SURECOLOR SC-P20000 1656029 512 TIMING BELT,CR,64
SURECOLOR SC-P20000 1686240 513 BOARD ASSY,INK MARK ASSY.,ASP
SURECOLOR SC-P20000 2109393 514 BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-P20000 1559675 515 OIL PAD
SURECOLOR SC-P20000 2164659 516 HARNESS,ENCODER,CR
SURECOLOR SC-P20000 1579784 517 OIL PAD
SURECOLOR SC-P20000 1686218 518 KEEP CAP ASSY.,ASP
SURECOLOR SC-P20000 2171572 519 BOARD ASSY.,SUB
SURECOLOR SC-P20000 1686237 520 FRAME APG ASSY.,ESL,ASP
SURECOLOR SC-P20000 2130110 521 MOTOR ASSY.,ASF,SUB
SURECOLOR SC-P20000 1686211 523 LEVER SENSOR CE20 ASSY.,ESL,ASP
SURECOLOR SC-P20000 1686208 524 CUTTER CE20 ASSY.,ESL,ASP
SURECOLOR SC-P20000 1686238 525 TUBE CE20 ASSY.,ESL,ASP
SURECOLOR SC-P20000 1686210 526 PANEL ASSY.,ESL,ASP
SURECOLOR SC-P20000 1686236 527 HOLDER,SENSOR ASSY.,ASP
SURECOLOR SC-P20000 2139742 529 CONNECTOR,CSIC
SURECOLOR SC-P20000 2169825 530 BOARD ASSY.,SUB
SURECOLOR SC-P20000 2170576 532 MOTOR,ASSY.,CR
SURECOLOR SC-P20000 2142800 535 MOTOR ASSY.,PF
SURECOLOR SC-P20000 2133325 536 BOARD ASSY.,ENCODER,PF
SURECOLOR SC-P20000 2139052 538 FAN ASSY.,ABSORPTION
SURECOLOR SC-P20000 2120015 540 MOTOR ASSY.,REWIND
SURECOLOR SC-P20000 2169346 542 SENSOR ASSY.,COVER,IH,LEFT
SURECOLOR SC-P20000 2169345 543 SENSOR ASSY.,COVER,IH,RIGHT
SURECOLOR SC-P20000 2164690 546 HARNESS,HEAD A,FFC64
SURECOLOR SC-P20000 2164692 547 HARNESS,HEAD B,FFC64
SURECOLOR SC-P20000 2164693 548 HARNESS,HEAD C,FFC64
SURECOLOR SC-P20000 2164694 549 HARNESS,HEAD D,FFC64
SURECOLOR SC-P20000 2164704 550 HARNESS,SUB,FFC64
SURECOLOR SC-P20000 1656059 552 SHEET,GUIDE PLATE,TUBE,UPPER,64
SURECOLOR SC-P20000 1656060 553 SHEET,GUIDE,PLATE,TUBE,MIDDLE,64
SURECOLOR SC-P20000 1656061 554 SHEET,GUIDE PLATE,TUBE,LOWER,64
SURECOLOR SC-P20000 1559690 555 TIMING BELT,PF
SURECOLOR SC-P20000 1656083 556 TIMING BELT,PF
SURECOLOR SC-P20000 1656065 557 SCALE,CR,64
SURECOLOR SC-P20000 1686209 558 MAINTENANCE FFC CE20 ASSY.,ESL,ASP
SURECOLOR SC-P20000 FA23001 560 PRINT HEAD,ID807V,ASP
SURECOLOR SC-P20000 1688512 561 COVER,ROLL,SUPPORT,B
SURECOLOR SC-P20000 1656076 562 CENTER SUPPORT,ROLLER,PF
SURECOLOR SC-P20000 2169294 563 MOTOR ASSY.,PF
SURECOLOR SC-P20000 2171573 564 BOARD ASSY.,SUB
SURECOLOR SC-P20000 1686242 565 BASE,ROLLER,EJ,ASSY.,ASP
SURECOLOR SC-P20000 1686243 566 BASE,ROLLER,EJ,B,ASSY.,ASP
SURECOLOR SC-P20000 2164677 567 HARNESS,SENSOR,PG
SURECOLOR SC-P20000 2164670 568 HARNESS,SENSOR,CARRIAGE
SURECOLOR SC-P20000 2169344 569 SENSOR ASSY.,MAINTENANCE TANK
SURECOLOR SC-P20000 2164673 570 HARNESS,SENSOR,ATC LOCK
SURECOLOR SC-P20000 2164672 571 HARNESS,SENSOR,PAPER ROLL
SURECOLOR SC-P20000 2164658 572 HARNESS,RELAY,PANEL
SURECOLOR SC-P20000 2164660 574 HARNESS,ENCODER,PF
SURECOLOR SC-P20000 1568043 575 LEVER,ATC,ROLL
SURECOLOR SC-P20000 2164664 576 HARNESS,RELAY,CRCM HOME
SURECOLOR SC-P20000 2164665 577 HARNESS,RELAY,INK SYSTEM1
SURECOLOR SC-P20000 2164666 578 HARNESS,RELAY,INK SYSTEM2
SURECOLOR SC-P20000 1692505 579 POROUS PAD,PAPER GUIDE,FRONT,ASP
SURECOLOR SC-P20000 2164667 580 HARNESS,RELAY,MOTOR
SURECOLOR SC-P20000 2164671 581 HARNESS,SENSOR,PAPER THICKNESS
SURECOLOR SC-P20000 2164674 582 HARNESS,SENSOR,IMS
SURECOLOR SC-P20000 2164675 583 HARNESS,SENSOR,PW
SURECOLOR SC-P20000 2164678 585 HARNESS,RELAY,ADSORPTION FAN HOME
SURECOLOR SC-P20000 2164679 586 HARNESS,RELAY,ADSORPTION FAN FULL
SURECOLOR SC-P20000 2164684 587 HARNESS,SUB-B RELAY,FFC64
SURECOLOR SC-P20000 2164685 588 HARNESS,SUB-B RELAY,MOTOR64
SURECOLOR SC-P20000 2164696 589 HARNESS,SENSOR,CENTER NIP
SURECOLOR SC-P20000 2164697 590 HARNESS,MOTOR,CENTER ROLLER NIP
SURECOLOR SC-P20000 2164700 591 HARNESS,RELAY,MAIN-B
SURECOLOR SC-P20000 2164708 592 HARNESS,RELAY,CRCM FULL64
SURECOLOR SC-P20000 2164711 593 HARNESS,ENCODER,CEN ROLL DRV
SURECOLOR SC-P20000 2164712 594 HARNESS,SENSOR,BOARD PAPER GUIDE
SURECOLOR SC-P20000 2164717 595 HARNESS,SENSOR,SLACK DETECTION HOME
SURECOLOR SC-P20000 2164718 596 HARNESS,SENSOR,SLACK DETECTION24
SURECOLOR SC-P20000 2164719 597 HARNESS,SENSOR,SLACK DETECTION44
SURECOLOR SC-P20000 2167695 598 HARNESS,RELAY,CR MOTOR
SURECOLOR SC-P20000 2167696 599 HARNESS,RELAY,WASTE COVER FULL
SURECOLOR SC-P20000 2170010 600 HARNESS,MOTOR,EJECT ROLLER
SURECOLOR SC-P20000 2141277 601 CONNECTOR,2P
SURECOLOR SC-P20000 2169842 602 CABLE,RELAY,DP
SURECOLOR SC-P20000 2169843 603 CABLE,RELAY,DP,B SDOTT.COM
SURECOLOR SC-P20000 2170517 604 HERNESS,DETECTOR,RELEASE
SURECOLOR SC-P20000 1679865 605 SHEET,GUIDE PLATE,TUBE,UPPER,64,B
SURECOLOR SC-P20000 1688511 606 BRUSH,CUTTER
SURECOLOR SC-P20000 1705327 606 BRUSH,CUTTER
SURECOLOR SC-P20000 1692506 607 POROUS PAD,PAPER GUIDE,FRONT,B,ASP
SURECOLOR SC-P20000 1692507 608 POROUS PAD,PAPER GUIDE,FRONT,C,ASP
SURECOLOR SC-P20000 2155242 609 COOLING FAN,HDD
SURECOLOR SC-P20000 1656454 610 SPACER
SURECOLOR SC-P20000 1686214 611 COMPAS ASSY.,ASP
SURECOLOR SC-P20000 2164699 614 HARNESS,MOTOR,RELEASE
SURECOLOR SC-P20000 2164662 615 HARNESS,SENSOR,DRIVEN RELEASE
SURECOLOR SC-P20000 1686213 616 PAPER GUIDE ROLL UPPER A ASSY.,ESL,ASP
SURECOLOR SC-P20000 1686212 617 PAPER GUIDE ROLL UPPER B ASSY.,ESL,ASP
SURECOLOR SC-P20000 2164668 618 HARNESS,MOTOR,APG/ATC
SURECOLOR SC-P20000 2164676 619 HARNESS,SENSOR,PE
SURECOLOR SC-P20000 2155241 620 COOLING FAN,BOX
SURECOLOR SC-P20000 1690943 621 ROLL PAPER HOLDER ASSY.,ESL,ASP
SURECOLOR SC-P20000 1690944 622 COVER,IH,HOOK,ASSY.,ASP
SURECOLOR SC-P20000 1690945 623 PAPER GUIDE,UPPER,MIDDLE.,ASSY,ASP
SURECOLOR SC-P20000 1601087 624 ROLLER ASSY.,DRIVEN,ST ASP
SURECOLOR SC-P20000 1656435 625 COVER,IH,BEARING
SURECOLOR SC-P20000 1655997 626 COVER,CR
SURECOLOR SC-P20000 1656371 628 HELICAL COMBINATION GEAR,19.153,12.1
SURECOLOR SC-P20000 2142795 629 HARNESS,DETECTOR,CUTTER
SURECOLOR SC-P20000 1568049 660 SHAFT,DRIVE,ATC,ROLL,B
SURECOLOR SC-P20000 1703888 NON FIG ACCESSARY KIT,STAND LEFT,ASP
SURECOLOR SC-P20000 1703886 NON FIG ACCESSARY KIT,STAND RIGHT,ASP
SURECOLOR SC-P20000 1582821 NON FIG CLEANING CARTRIDGE
SURECOLOR SC-P20000 1705413 NON FIG COVER,PAPER GUIDE,REAR
SURECOLOR SC-P20000 1080614 NON FIG GREASE G-26 (40GR)(B702600001)
SURECOLOR SC-P20000 1033657 NON FIG GREASE G-45
SURECOLOR SC-P20000 1480655 NON FIG GREASE G-71(BLUE)
SURECOLOR SC-P20000 1574337 NON FIG GREASE,G-81
SURECOLOR SC-P20000 1516265 NON FIG GREASE,G-84
SURECOLOR SC-P20000 1694254 NON FIG INK CART.BOXED,C,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694261 NON FIG INK CART.BOXED,DGY,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694264 NON FIG INK CART.BOXED,GY,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694258 NON FIG INK CART.BOXED,LC,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694265 NON FIG INK CART.BOXED,LGY,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694262 NON FIG INK CART.BOXED,MK,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694252 NON FIG INK CART.BOXED,PK,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694259 NON FIG INK CART.BOXED,VLM,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694255 NON FIG INK CART.BOXED,VM,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1694256 NON FIG INK CART.BOXED,Y,PIG'T,4910,T900,350AS
SURECOLOR SC-P20000 1476228 NON FIG JETRAS JP-D300S
SURECOLOR SC-P20000 1697861 NON FIG LABEL,COVER,ROLL
SURECOLOR SC-P20000 1540751 NON FIG LABEL,PANTONE
SURECOLOR SC-P20000 1521154 NON FIG OIL,O-17
SURECOLOR SC-P20000 1424364 NON FIG P-THICK SENSOR POSITION JIG
SURECOLOR SC-P20000 1282355 NON FIG PAPER THICKNESS POSITION TOOL
SURECOLOR SC-P20000 1640645 NON FIG SONIC TENSION METER U508
EPSON SureColor P20000 P20050 P20070 Parts Manual
