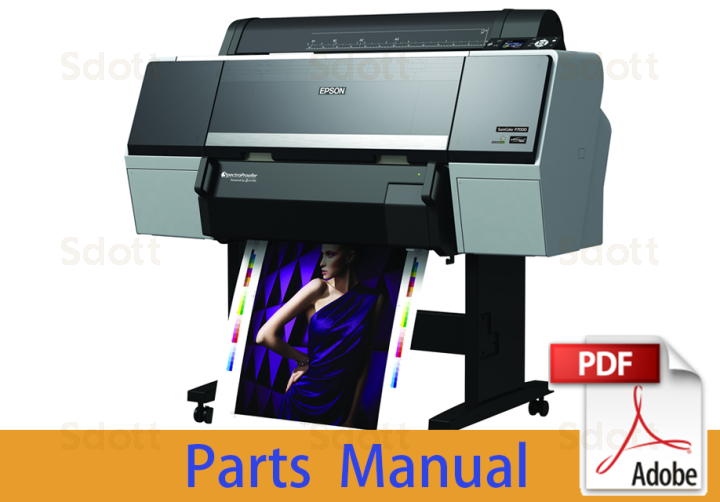

EPSON SureColor P7000 P7050 P7070 Parts Manual

In stock
SKU
EP-P7000-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON SureColor P7000 P7050 P7070 Parts Manual
Format PDF
PDF Archive 5.7M
Pages 8
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor P7000 P7050 P7070 Series




****** The following content is not included in the PDF manual, please use it online ******

Model Article Reference Description
SURECOLOR SC-P7000 1507323 1 PIPE,BASKET,CENTER,24,ASP
SURECOLOR SC-P7000 1507324 2 ARM,BASKET,24,ASP
SURECOLOR SC-P7000 1507321 3 BASKET ASSY.,24,ASP
SURECOLOR SC-P7000 1507815 5 PAPER GUIDE BOTTOM,ASP
SURECOLOR SC-P7000 1507307 6 BOX,MANUAL,ASP
SURECOLOR SC-P7000 1520204 7 STAND RIGHT UNIT,B,ASP
SURECOLOR SC-P7000 1695473 7 STAND RIGHT UNIT,B,ASP
SURECOLOR SC-P7000 1520205 8 STAND LEFT UNIT,B,ASP
SURECOLOR SC-P7000 1695474 8 STAND LEFT UNIT,B,ASP
SURECOLOR SC-P7000 1686967 9 STAY STAND ASSY.,24,ASP
SURECOLOR SC-P7000 1504195 10 SHAFT,BASKET,ASSY,ASP
SURECOLOR SC-P7000 1504176 100 SHAFT,COVER,IC,LEFT,UNIT,ESL,ASP
SURECOLOR SC-P7000 1504177 101 SHAFT,COVER,IC,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P7000 1479991 102 STOPPER,COVER,FRONT
SURECOLOR SC-P7000 1479983 103 GROUNDING PLATE,ROLL
SURECOLOR SC-P7000 1504186 104 COVER,FRONT,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P7000 1504187 105 COVER,FRONT,LEFT,UNIT,ESL,ASP
SURECOLOR SC-P7000 1674419 107 COVER ROLL ASSY.,24,B,ASP
SURECOLOR SC-P7000 1674396 108 COVER,IC,RIGHT,UNIT,LF,ESL,ASP
SURECOLOR SC-P7000 1674398 109 COVER,IC,LEFT,UNIT,LF,ESL,ASP
SURECOLOR SC-P7000 1499705 11 CASTER,P-60-HT
SURECOLOR SC-P7000 1496118 110 LABEL,ROLL PAPER SET,PAPER GUIDE LOWER
SURECOLOR SC-P7000 1507319 111 COVER,FRONT,24,ASP
SURECOLOR SC-P7000 1476652 112 LOGO PLATE,86.5X21.6
SURECOLOR SC-P7000 1480012 113 CATCH,STRIKER
SURECOLOR SC-P7000 1480009 114 STRIKER,SENSOR
SURECOLOR SC-P7000 1507312 115 COVER,FRONT,RIGHT,ASP
SURECOLOR SC-P7000 1507313 116 COVER,FRONT,LEFT,ASP
SURECOLOR SC-P7000 1507311 117 COVER,REAR,LEFT,ASP
SURECOLOR SC-P7000 1479986 118 COVER,SIDE,ROLL,LEFT
SURECOLOR SC-P7000 1479985 119 COVER,SIDE,ROLL,RIGHT
SURECOLOR SC-P7000 1499706 12 CASTER,P-60-HTS
SURECOLOR SC-P7000 1479988 120 COVER,TOP,BASE,SUPPORT,RIGHT
SURECOLOR SC-P7000 1507305 121 COVER,ROLL,SUPPORT,RIGHT,ASP
SURECOLOR SC-P7000 1479982 122 COVER,ROLL,SUPPORT,LEFT
SURECOLOR SC-P7000 1507308 13 JOINT,PIPE,BASKET,FRONT,ASP
SURECOLOR SC-P7000 1480035 135 COVER,MAINTENANCE,BOX
SURECOLOR SC-P7000 1660329 137 LABEL,ULTRA CHROME INK,HDX
SURECOLOR SC-P7000 1656204 138 LABEL,MODEL NAME,D
SURECOLOR SC-P7000 1480107 139 HANDLE
SURECOLOR SC-P7000 1507309 14 PIPE,BASKET,FRONT,SIDE,ASP
SURECOLOR SC-P7000 1516909 140 COVER,TOP,BASE,24,ASP
SURECOLOR SC-P7000 1682129 141 LABEL,PRECISIONCORE,B
SURECOLOR SC-P7000 1656736 142 COVER,LAN
SURECOLOR SC-P7000 1656733 143 SHEET,DECORATION PLATE,24
SURECOLOR SC-P7000 1507322 15 PIPE,BASKET,UPPER,24,ASP
SURECOLOR SC-P7000 1481598 18 HOLDER,PIPE,BASKET,FRONT
SURECOLOR SC-P7000 1481599 19 HOLDER,PIPE,BASKET,REAR
SURECOLOR SC-P7000 5120516 20 PAD,CR,B
SURECOLOR SC-P7000 2173638 200 BOARD ASSY.,MAIN
SURECOLOR SC-P7000 2168575 201 BOARD ASSY.,SUB
SURECOLOR SC-P7000 2168576 202 BOARD ASSY.,SUB
SURECOLOR SC-P7000 1589427 203 AID ASSY.,B,ASP
SURECOLOR SC-P7000 2168574 204 BOARD ASSY.,SUB
SURECOLOR SC-P7000 1480306 21 MOUNTING PLATE,PAPER GUIDE,BOTTOM
SURECOLOR SC-P7000 1514763 22 SCREW ASSY.,ASP
SURECOLOR SC-P7000 1686968 24 STAND,UNIT,24,ESL,ASP
SURECOLOR SC-P7000 1695469 24 STAND,UNIT,24,ESL,ASP
SURECOLOR SC-P7000 1481615 26 HOLDER,ARM,BASKET,LEFT
SURECOLOR SC-P7000 1481597 27 HOLDER,ARM,BASKET,RIGHT
SURECOLOR SC-P7000 2168583 300 BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-P7000 2119916 301 HARNESS
SURECOLOR SC-P7000 2120026 302 FAN ASSY.
SURECOLOR SC-P7000 2155242 303 COOLING FAN,HDD
SURECOLOR SC-P7000 1513123 501 GUIDE ROLL PAPER,L,UNIT,B,ESL,ASP
SURECOLOR SC-P7000 1695024 501 GUIDE ROLL PAPER,L,UNIT,B,ESL,ASP
SURECOLOR SC-P7000 1507818 502 MOUNTING PLATE COVER ROLL PAPER LEFT,ASP
SURECOLOR SC-P7000 1504202 503 REWIND,UNIT,ESL,ASP
SURECOLOR SC-P7000 1695028 503 REWIND,UNIT,ESL,ASP
SURECOLOR SC-P7000 1480327 504 RAIL,GUIDE,ROLL PAPER
SURECOLOR SC-P7000 1674405 505 SENSOR,PE.,UNIT,LL,24,ESL,ASP
SURECOLOR SC-P7000 2143464 506 PHOTO INTERRUPTER
SURECOLOR SC-P7000 1541863 507 CABLE,DETECTOR,HP,CR,ASP
SURECOLOR SC-P7000 1504175 508 DETECTOR,PAPER THICKNESS,UNIT,ESL,ASP
SURECOLOR SC-P7000 1674400 509 PANEL,UNIT,LL,ESL,ASP
SURECOLOR SC-P7000 2142271 510 HARNESS,PANEL
SURECOLOR SC-P7000 1504198 511 GUIDE,ROLL,PAPER,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P7000 1587842 512 PULLEY,DRIVEN,UNIT,24,B,ESL,ASP
SURECOLOR SC-P7000 1550669 513 SCALE,CR,24,C,ASP
SURECOLOR SC-P7000 1518708 514 MOTOR ASSY.,CR.,ASP
SURECOLOR SC-P7000 1701841 515 HOLDER,ASSY.,IC,RIGHT,LF,ESL.A,ASP
SURECOLOR SC-P7000 1708857 515 HOLDER,ASSY.,IC,RIGHT,LF,ESL.A,ASP
SURECOLOR SC-P7000 1701840 516 HOLDER,ASSY.,IC,LEFT,LF,ESL.A,ASP
SURECOLOR SC-P7000 1708856 516 HOLDER,ASSY.,IC,LEFT,LF,ESL.A,ASP
SURECOLOR SC-P7000 1504180 517 PLUNGER,ASSY,ASP
SURECOLOR SC-P7000 2169170 518 FFC,SUB-D,HOME
SURECOLOR SC-P7000 2169175 519 FFC,SUB-D,FULL,24
SURECOLOR SC-P7000 1674412 520 CR,UNIT,LF,ESL,ASP
SURECOLOR SC-P7000 1695319 520 CR,UNIT,LF,ESL,ASP
SURECOLOR SC-P7000 2171913 521 BOARD ASSY.,INK MARK,B
SURECOLOR SC-P7000 1480170 522 COVER,CR,MAIN
SURECOLOR SC-P7000 F191140 523 PRINT HEAD,IA0220-11
SURECOLOR SC-P7000 2142248 524 HARNESS,HEAD,A
SURECOLOR SC-P7000 1521061 525 HARNESS,HEAD,B,B,ASSY.,ASP
SURECOLOR SC-P7000 1674406 526 SELECTOR,UNIT,LL,ESL,ASP
SURECOLOR SC-P7000 1504184 528 SENSOR,COVER,FRONT,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P7000 1504251 529 SENSOR,COVER,FRONT,LEFT,UNIT,24,ESL,ASP
SURECOLOR SC-P7000 1531123 530 CLAMP,TUBE
SURECOLOR SC-P7000 1507820 531 HOLDER TUBE,ASP
SURECOLOR SC-P7000 2142267 532 HARNESS,DRV,RIGHT,UPPER
SURECOLOR SC-P7000 2142275 533 HARNESS,CR
SURECOLOR SC-P7000 2142269 534 HARNESS,DRV,RIGHT,LOWER
SURECOLOR SC-P7000 1504182 535 TUBE ASSY.,SUPPLY,INK,B,ASP
SURECOLOR SC-P7000 1504250 536 TUBE ASSY.,SPPLY,INK,A,24,ASP
SURECOLOR SC-P7000 1504191 537 HOLDER,WHEEL,EJ,LOWER,UNIT,ESL,ASP
SURECOLOR SC-P7000 1504192 538 COVER,CUTTER,UNIT,ESL,ASP
SURECOLOR SC-P7000 1520272 539 CATCH,B
SURECOLOR SC-P7000 1504188 540 PAPER,EJECTION,ROLLER,PE,UNIT,ESL,ASP
SURECOLOR SC-P7000 1546627 541 FRAME,RAIL,CUTTER,UNIT,B,24,ESL,ASP
SURECOLOR SC-P7000 1498876 543 GUIDE,COVER,ROLL PAPER,SUPPORT
SURECOLOR SC-P7000 1485681 544 CLUMP,TUBE,DUCT
SURECOLOR SC-P7000 1480298 545 CLIP,DUCT,INK EJECT,LARGE
SURECOLOR SC-P7000 1480299 546 CLIP,DUCT,INK EJECT,SMALL
SURECOLOR SC-P7000 1467289 547 POROUS PAD,PLATEN
SURECOLOR SC-P7000 1546294 548 CABLE,FAN,RIGHT.S,ASP
SURECOLOR SC-P7000 1546296 549 CABLE,FAN,MIDDLE.S,ASP
SURECOLOR SC-P7000 1541864 550 HARNESS,MAINTENCANCE TANK,RIGHT,ASP
SURECOLOR SC-P7000 1504215 551 PUMP ASSY.,PRESSURIZING,UNIT,ESL,ASP
SURECOLOR SC-P7000 1507310 552 TUBE,PRESSURIZING,RIGHT,ASP
SURECOLOR SC-P7000 1507518 553 TUBE,PRESSURIZING,LEFT,44,ASP
SURECOLOR SC-P7000 1220013 554 LEAF SPRING,LOCK
SURECOLOR SC-P7000 1674403 555 EJECT,GUIDE,UNIT,LL,ASP,ESL
SURECOLOR SC-P7000 1674407 556 POROUS PAD ASSY.,INK EJECT,SC9MB,ASP
SURECOLOR SC-P7000 1505036 557 MOTOR ASSY., RELEASE, ASP
SURECOLOR SC-P7000 1546299 558 CABLE,MOTOR,RELEASE,24.S,ASP
SURECOLOR SC-P7000 2135422 559 HARNESS
SURECOLOR SC-P7000 1504210 560 APG,UNIT,ESL,ASP
SURECOLOR SC-P7000 1695036 560 APG,UNIT,ESL,ASP
SURECOLOR SC-P7000 1541862 561 CABLE,MOTOR,APG,ASP
SURECOLOR SC-P7000 2169167 562 HARNESS,RELAY,SUB,B,UPPER
SURECOLOR SC-P7000 2169168 563 HARNESS,RELAY,SUB,B,LOWER
SURECOLOR SC-P7000 2135418 564 HARNESS
SURECOLOR SC-P7000 2169174 565 HARNESS,RELAY,SUB,C,24
SURECOLOR SC-P7000 2142249 566 HARNESS,RELAY,AID
SURECOLOR SC-P7000 1674402 567 PUMP,CAP,ASSY.,LF,ESL,ASP
SURECOLOR SC-P7000 1701325 567 PUMP,CAP,ASSY.,LF,ESL,ASP
SURECOLOR SC-P7000 1715919 567 PUMP,CAP,ASSY.,LF,ESL,ASP
SURECOLOR SC-P7000 1616679 568 WIPER,ASSY A,ASP
SURECOLOR SC-P7000 2135419 569 HARNESS
SURECOLOR SC-P7000 1546303 570 CABLE,SENSOR,RELEASE.S,ASP
SURECOLOR SC-P7000 1507317 574 COMBINATION GEAR,26,12.8,ASP
SURECOLOR SC-P7000 1507819 576 PROTECTION PLATE FFC,ASP
SURECOLOR SC-P7000 1507817 578 PULLEY PF,ASP
SURECOLOR SC-P7000 1518709 579 MOTOR ASSY.,PF.,ASP
SURECOLOR SC-P7000 2133325 581 BOARD ASSY.,ENCODER,PF
SURECOLOR SC-P7000 1521070 582 HARNESS,ENCODER,PF,C.,ASP
SURECOLOR SC-P7000 1504181 583 SCALE,PF,UNIT,ESL,ASP
SURECOLOR SC-P7000 1657495 584 TIMING BELT,PF
SURECOLOR SC-P7000 1414002 585 FLAT CLAMP,FCR-35
SURECOLOR SC-P7000 1234048 586 FLAT CLAMP,FCR-15 V0
SURECOLOR SC-P7000 1234050 587 FLAT CLAMP,FCR-45 V0
SURECOLOR SC-P7000 1455139 589 EDGE SADDLE,EDS-1208U
SURECOLOR SC-P7000 1283663 590 E-RING,3,F/UC-3C
SURECOLOR SC-P7000 1081715 591 PALALLEL PIN,1.5
SURECOLOR SC-P7000 1480173 592 HOLDER,SPRING,APG
SURECOLOR SC-P7000 2109393 593 BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-P7000 1480177 595 BOARD ASSY.,ENCODER
SURECOLOR SC-P7000 1518317 596 SEAL RUBBER,JOINT,ASP
SURECOLOR SC-P7000 1520273 597 CATCH,SUPPORT
SURECOLOR SC-P7000 1480203 598 MIDDLE FULCRUM,ROLLER,PF,UPPER
SURECOLOR SC-P7000 1581672 599 HINGE ASSY.,SIDE
SURECOLOR SC-P7000 1504252 601 HOLDER,WHEEL,EJ,LOWER,24,ASSY,ASP
SURECOLOR SC-P7000 1611382 603 OIL PAD,MAIN SHAFT,CR,ASSY A.,ASP
SURECOLOR SC-P7000 1528412 605 FRAME,PAPER GUIDE,UPPER,24,ASP
SURECOLOR SC-P7000 1481479 606 COVER,CSIC,RIGHT
SURECOLOR SC-P7000 1674413 608 HOLDER,CSIC,LEFT,ASSY.,ASP
SURECOLOR SC-P7000 1674415 609 HOLDER,CSIC,RIGHT,ASSY.,ASP
SURECOLOR SC-P7000 1480340 610 ATTACHMENT,GUIDE,ROLL PAPER,LEFT
SURECOLOR SC-P7000 1551039 620 SPACER,LEVER,ADJUST,PG
SURECOLOR SC-P7000 2128017 621 HARNESS,ENCODER,CR,C
SURECOLOR SC-P7000 1480135 630 SUPPORT,HOLDER,PULLEY
SURECOLOR SC-P7000 1537878 705 GUIDE PLATE ASSY.,TUBE
SURECOLOR SC-P7000 1480217 706 DETECTION PLATE,PAPER THICKNESS
SURECOLOR SC-P7000 1674417 711 OIL PAD ASSY.,ASP
SURECOLOR SC-P7000 2169172 712 FFC,SENSOR,PW
SURECOLOR SC-P7000 2169173 713 FFC,SENSOR,PE
SURECOLOR SC-P7000 2128016 714 HARNESS,IMS,C
SURECOLOR SC-P7000 1662469 NON FIG CLEANING CARTRIDGE,200
SURECOLOR SC-P7000 1507278 NON FIG CLEANING PG ADJUSTMENT JIG
SURECOLOR SC-P7000 1662470 NON FIG DRAIN CARTRIDGE
SURECOLOR SC-P7000 1080614 NON FIG GREASE G-26 (40GR)(B702600001)
SURECOLOR SC-P7000 1033657 NON FIG GREASE G-45
SURECOLOR SC-P7000 1480655 NON FIG GREASE G-71(BLUE)
SURECOLOR SC-P7000 1409257 NON FIG GREASE G-74
SURECOLOR SC-P7000 1516265 NON FIG GREASE,G-84
SURECOLOR SC-P7000 1678302 NON FIG INK CART.BOXED,C,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678311 NON FIG INK CART.BOXED,GR,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678305 NON FIG INK CART.BOXED,LC,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678307 NON FIG INK CART.BOXED,LK,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678309 NON FIG INK CART.BOXED,LLK,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678308 NON FIG INK CART.BOXED,MK,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678310 NON FIG INK CART.BOXED,OR,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678301 NON FIG INK CART.BOXED,PK,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678312 NON FIG INK CART.BOXED,V,PIG'T,775C1,150,AS SDOTT
SURECOLOR SC-P7000 1678306 NON FIG INK CART.BOXED,VLM,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678303 NON FIG INK CART.BOXED,VM,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1678304 NON FIG INK CART.BOXED,Y,PIG'T,775C1,150,AS
SURECOLOR SC-P7000 1476228 NON FIG JETRAS JP-D300S
SURECOLOR SC-P7000 1521154 NON FIG OIL,O-17
SURECOLOR SC-P7000 1424364 NON FIG P-THICK SENSOR POSITION JIG
SURECOLOR SC-P7000 1282355 NON FIG PAPER THICKNESS POSITION TOOL
SURECOLOR SC-P7000 1507506 NON FIG PG HEIGHT ADJUSTMENT JIG 1.65
SURECOLOR SC-P7000 1507277 NON FIG PG HEIGHT ADJUSTMENT JIG 1.75
SURECOLOR SC-P7000 1640645 NON FIG SONIC TENSION METER U508
EPSON SureColor P7000 P7050 P7070 Parts Manual
