Parts Manual for EPSON SureColor P8000 P8050 P8070

In stock
SKU
EP-P8000-PM
$1.50
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.50



EPSON SureColor P8000 P8050 P8070 Series

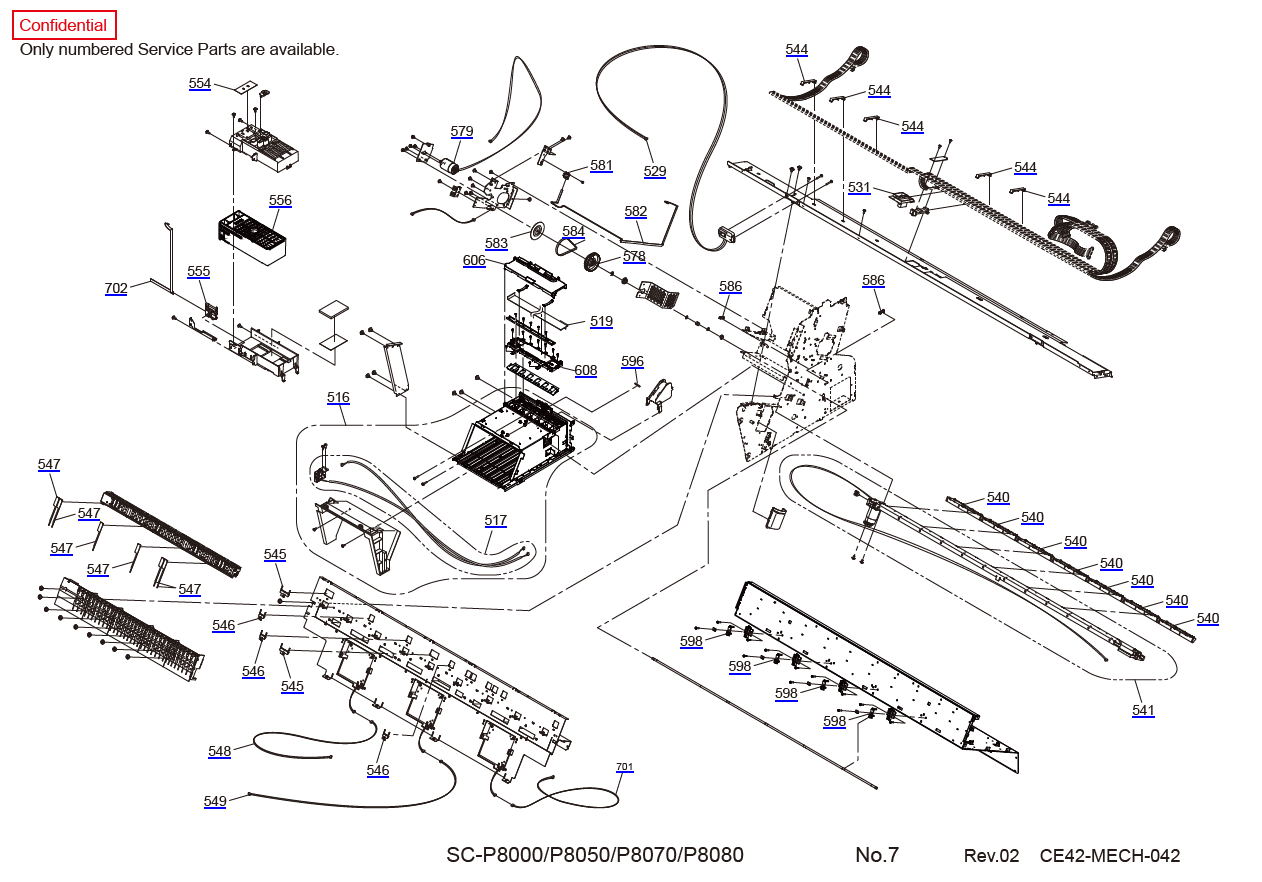

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

ModelArticleReferenceDescription
SURECOLOR SC-P800015073291PIPE,BASKET,CENTER,ASP
SURECOLOR SC-P800015073302ARM,BASKET,ASP
SURECOLOR SC-P800015073273BASKET ASSY,ASP
SURECOLOR SC-P800015078155PAPER GUIDE BOTTOM,ASP
SURECOLOR SC-P800015073076BOX,MANUAL,ASP SDOTT
SURECOLOR SC-P800015202047STAND RIGHT UNIT,B,ASP
SURECOLOR SC-P800016954737STAND RIGHT UNIT,B,ASP
SURECOLOR SC-P800015202058STAND LEFT UNIT,B,ASP
SURECOLOR SC-P800016954748STAND LEFT UNIT,B,ASP
SURECOLOR SC-P800016869669STAY STAND ASSY.,44,ASP
SURECOLOR SC-P8000150419510SHAFT,BASKET,ASSY,ASP
SURECOLOR SC-P80001504176100SHAFT,COVER,IC,LEFT,UNIT,ESL,ASP
SURECOLOR SC-P80001504177101SHAFT,COVER,IC,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P80001479991102STOPPER,COVER,FRONT
SURECOLOR SC-P80001479983103GROUNDING PLATE,ROLL
SURECOLOR SC-P80001504186104COVER,FRONT,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P80001504187105COVER,FRONT,LEFT,UNIT,ESL,ASP
SURECOLOR SC-P80001674421107COVER ROLL ASSY,C,ASP
SURECOLOR SC-P80001674397108COVER,IC,RIGHT,UNIT,LD,ESL,ASP
SURECOLOR SC-P80001674399109COVER,IC,LEFT,UNIT,LD,ESL,ASP
SURECOLOR SC-P8000149970511CASTER,P-60-HT
SURECOLOR SC-P80001496118110LABEL,ROLL PAPER SET,PAPER GUIDE LOWER
SURECOLOR SC-P80001507326111COVER FRONT,ASP
SURECOLOR SC-P80001476652112LOGO PLATE,86.5X21.6
SURECOLOR SC-P80001480012113CATCH,STRIKER
SURECOLOR SC-P80001480009114STRIKER,SENSOR
SURECOLOR SC-P80001507312115COVER,FRONT,RIGHT,ASP
SURECOLOR SC-P80001507313116COVER,FRONT,LEFT,ASP
SURECOLOR SC-P80001507311117COVER,REAR,LEFT,ASP
SURECOLOR SC-P80001479986118COVER,SIDE,ROLL,LEFT
SURECOLOR SC-P80001479985119COVER,SIDE,ROLL,RIGHT
SURECOLOR SC-P8000149970612CASTER,P-60-HTS
SURECOLOR SC-P80001479988120COVER,TOP,BASE,SUPPORT,RIGHT
SURECOLOR SC-P80001507305121COVER,ROLL,SUPPORT,RIGHT,ASP
SURECOLOR SC-P80001479982122COVER,ROLL,SUPPORT,LEFT
SURECOLOR SC-P8000150730813JOINT,PIPE,BASKET,FRONT,ASP
SURECOLOR SC-P80001633779137LABEL,ULTRA CHROME INK,HD
SURECOLOR SC-P80001656208138LABEL,MODEL NAME,G
SURECOLOR SC-P80001480107139HANDLE
SURECOLOR SC-P8000150730914PIPE,BASKET,FRONT,SIDE,ASP
SURECOLOR SC-P80001479987140COVER,TOP,BASE
SURECOLOR SC-P80001682129141LABEL,PRECISIONCORE,B
SURECOLOR SC-P80001656736142COVER,LAN
SURECOLOR SC-P80001656732143SHEET,DECORATION PLATE,44
SURECOLOR SC-P8000150732815PIPE,BASKET,UPPER,ASP
SURECOLOR SC-P8000150733316JOINT,PIPE,BASKET,REAR,LEFT,ASP
SURECOLOR SC-P8000150733217JOINT,PIPE,BASKET,REAR,RIGHT,ASP
SURECOLOR SC-P8000148159818HOLDER,PIPE,BASKET,FRONT
SURECOLOR SC-P8000148159919HOLDER,PIPE,BASKET,REAR
SURECOLOR SC-P8000512051620PAD,CR,B
SURECOLOR SC-P80002173644200BOARD ASSY.,MAIN
SURECOLOR SC-P80002168575201BOARD ASSY.,SUB
SURECOLOR SC-P80002168576202BOARD ASSY.,SUB
SURECOLOR SC-P80001589427203AID ASSY.,B,ASP
SURECOLOR SC-P80002168574204BOARD ASSY.,SUB
SURECOLOR SC-P8000148030621MOUNTING PLATE,PAPER GUIDE,BOTTOM
SURECOLOR SC-P8000151476322SCREW ASSY.,ASP
SURECOLOR SC-P8000168696924STAND,UNIT,A,44,K,ESL,ASP
SURECOLOR SC-P8000169546824STAND,UNIT,A,44,K,ESL,ASP
SURECOLOR SC-P8000148161526HOLDER,ARM,BASKET,LEFT
SURECOLOR SC-P8000148159727HOLDER,ARM,BASKET,RIGHT
SURECOLOR SC-P80002168583300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-P80002119916301HARNESS
SURECOLOR SC-P80002120026302FAN ASSY.
SURECOLOR SC-P80002155242303COOLING FAN,HDD
SURECOLOR SC-P80001513123501GUIDE ROLL PAPER,L,UNIT,B,ESL,ASP
SURECOLOR SC-P80001695024501GUIDE ROLL PAPER,L,UNIT,B,ESL,ASP
SURECOLOR SC-P80001507818502MOUNTING PLATE COVER ROLL PAPER LEFT,ASP
SURECOLOR SC-P80001504202503REWIND,UNIT,ESL,ASP
SURECOLOR SC-P80001695028503REWIND,UNIT,ESL,ASP
SURECOLOR SC-P80001480327504RAIL,GUIDE,ROLL PAPER
SURECOLOR SC-P80001674404505SENSOR,PE.,UNIT,LL,44,ESL,ASP
SURECOLOR SC-P80002143464506PHOTO INTERRUPTER
SURECOLOR SC-P80001541863507CABLE,DETECTOR,HP,CR,ASP
SURECOLOR SC-P80001504175508DETECTOR,PAPER THICKNESS,UNIT,ESL,ASP
SURECOLOR SC-P80001674400509PANEL,UNIT,LL,ESL,ASP
SURECOLOR SC-P80002142271510HARNESS,PANEL
SURECOLOR SC-P80001504198511GUIDE,ROLL,PAPER,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P80001587841512PULLEY,DRIVEN,UNIT,44,B,ESL,ASP
SURECOLOR SC-P80001695177512PULLEY,DRIVEN,UNIT,44,B,ESL,ASP
SURECOLOR SC-P80001550667513SCALE,CR,C,ASP
SURECOLOR SC-P80001518708514MOTOR ASSY.,CR.,ASP
SURECOLOR SC-P80001701871515Ersetzt durch: 1708858
SURECOLOR SC-P80001708858515HOLDER,ASSY.,IC,RIGHT,LD,ESL.A,ASP
SURECOLOR SC-P80001701872516HOLDER,ASSY.,IC,LEFT,LD,ESL.A,ASP
SURECOLOR SC-P80001708859516HOLDER,ASSY.,IC,LEFT,LD,ESL.A,ASP
SURECOLOR SC-P80001504180517PLUNGER,ASSY,ASP
SURECOLOR SC-P80002169170518FFC,SUB-D,HOME
SURECOLOR SC-P80002169171519FFC,SUB-D,FULL,44
SURECOLOR SC-P80001674412520CR,UNIT,LF,ESL,ASP
SURECOLOR SC-P80001695319520CR,UNIT,LF,ESL,ASP
SURECOLOR SC-P80002171913521BOARD ASSY.,INK MARK,B
SURECOLOR SC-P80001480170522COVER,CR,MAIN
SURECOLOR SC-P8000F191151523PRINT HEAD,IA0220-15,ASP
SURECOLOR SC-P80002142248524HARNESS,HEAD,A
SURECOLOR SC-P80001521061525HARNESS,HEAD,B,B,ASSY.,ASP
SURECOLOR SC-P80001674406526SELECTOR,UNIT,LL,ESL,ASP
SURECOLOR SC-P80001504184528SENSOR,COVER,FRONT,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P80001504185529SENSOR,COVER,FRONT,LEFT,UNIT,ESL,ASP
SURECOLOR SC-P80001531123530CLAMP,TUBE
SURECOLOR SC-P80001507820531HOLDER TUBE,ASP
SURECOLOR SC-P80002142267532HARNESS,DRV,RIGHT,UPPER
SURECOLOR SC-P80002142275533HARNESS,CR
SURECOLOR SC-P80002142269534HARNESS,DRV,RIGHT,LOWER
SURECOLOR SC-P80001504182535TUBE ASSY.,SUPPLY,INK,B,ASP
SURECOLOR SC-P80001504183536TUBE ASSY.,SPPLY,INK,A,ASP
SURECOLOR SC-P80001504191537HOLDER,WHEEL,EJ,LOWER,UNIT,ESL,ASP
SURECOLOR SC-P80001504192538COVER,CUTTER,UNIT,ESL,ASP
SURECOLOR SC-P80001520272539CATCH,B
SURECOLOR SC-P80001504188540PAPER,EJECTION,ROLLER,PE,UNIT,ESL,ASP
SURECOLOR SC-P80001546628541FRAME,RAIL,CUTTER,UNIT,B,44,ESL,ASP
SURECOLOR SC-P80001695033541FRAME,RAIL,CUTTER,UNIT,B,44,ESL,ASP
SURECOLOR SC-P80001498876543GUIDE,COVER,ROLL PAPER,SUPPORT
SURECOLOR SC-P80001485681544CLUMP,TUBE,DUCT
SURECOLOR SC-P80001480298545CLIP,DUCT,INK EJECT,LARGE
SURECOLOR SC-P80001480299546CLIP,DUCT,INK EJECT,SMALL
SURECOLOR SC-P80001467289547POROUS PAD,PLATEN
SURECOLOR SC-P80001546294548CABLE,FAN,RIGHT.S,ASP
SURECOLOR SC-P80001546296549CABLE,FAN,MIDDLE.S,ASP
SURECOLOR SC-P80001541864550HARNESS,MAINTENCANCE TANK,RIGHT,ASP
SURECOLOR SC-P80001504215551PUMP ASSY.,PRESSURIZING,UNIT,ESL,ASP
SURECOLOR SC-P80001507310552TUBE,PRESSURIZING,RIGHT,ASP
SURECOLOR SC-P80001507518553TUBE,PRESSURIZING,LEFT,44,ASP
SURECOLOR SC-P80001220013554LEAF SPRING,LOCK
SURECOLOR SC-P80001674403555EJECT,GUIDE,UNIT,LL,ASP,ESL
SURECOLOR SC-P80001674407556POROUS PAD ASSY.,INK EJECT,SC9MB,ASP
SURECOLOR SC-P80001505036557MOTOR ASSY., RELEASE, ASP
SURECOLOR SC-P80001546302558CABLE,MOTOR,RELEASE.S,ASP
SURECOLOR SC-P80002135422559HARNESS
SURECOLOR SC-P80001504210560APG,UNIT,ESL,ASP
SURECOLOR SC-P80001695036560APG,UNIT,ESL,ASP
SURECOLOR SC-P80001541862561CABLE,MOTOR,APG,ASP
SURECOLOR SC-P80002169167562HARNESS,RELAY,SUB,B,UPPER
SURECOLOR SC-P80002169168563HARNESS,RELAY,SUB,B,LOWER
SURECOLOR SC-P80002135418564HARNESS
SURECOLOR SC-P80002169169565HARNESS,RELAY,SUB,C,44
SURECOLOR SC-P80002142249566HARNESS,RELAY,AID
SURECOLOR SC-P80001674402567PUMP,CAP,ASSY.,LF,ESL,ASP
SURECOLOR SC-P80001701325567PUMP,CAP,ASSY.,LF,ESL,ASP
SURECOLOR SC-P80001715919567PUMP,CAP,ASSY.,LF,ESL,ASP
SURECOLOR SC-P80001616679568WIPER,ASSY A,ASP
SURECOLOR SC-P80002135420569HARNESS
SURECOLOR SC-P80001546303570CABLE,SENSOR,RELEASE.S,ASP
SURECOLOR SC-P80001507317574COMBINATION GEAR,26,12.8,ASP
SURECOLOR SC-P80001507819576PROTECTION PLATE FFC,ASP
SURECOLOR SC-P80001507817578PULLEY PF,ASP
SURECOLOR SC-P80001518709579MOTOR ASSY.,PF.,ASP
SURECOLOR SC-P80002133325581BOARD ASSY.,ENCODER,PF
SURECOLOR SC-P80001521070582HARNESS,ENCODER,PF,C.,ASP
SURECOLOR SC-P80001504181583SCALE,PF,UNIT,ESL,ASP
SURECOLOR SC-P80001657495584TIMING BELT,PF
SURECOLOR SC-P80001414002585FLAT CLAMP,FCR-35
SURECOLOR SC-P80001234048586FLAT CLAMP,FCR-15 V0
SURECOLOR SC-P80001234050587FLAT CLAMP,FCR-45 V0
SURECOLOR SC-P80001455139589EDGE SADDLE,EDS-1208U
SURECOLOR SC-P80001283663590E-RING,3,F/UC-3C
SURECOLOR SC-P80001081715591PALALLEL PIN,1.5
SURECOLOR SC-P80001480173592HOLDER,SPRING,APG
SURECOLOR SC-P80002109393593BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-P80001480177595BOARD ASSY.,ENCODER
SURECOLOR SC-P80001518317596SEAL RUBBER,JOINT,ASP
SURECOLOR SC-P80001520273597CATCH,SUPPORT
SURECOLOR SC-P80001480203598MIDDLE FULCRUM,ROLLER,PF,UPPER
SURECOLOR SC-P80001581672599HINGE ASSY.,SIDE
SURECOLOR SC-P80001581671600HINGE ASSY.,MIDDLE
SURECOLOR SC-P80001611382603OIL PAD,MAIN SHAFT,CR,ASSY A.,ASP
SURECOLOR SC-P80001528411605FRAME,PAPER GUIDE,UPPER,ASP
SURECOLOR SC-P80001481479606COVER,CSIC,RIGHT
SURECOLOR SC-P80001674414608HOLDER,CSIC,LEFT,ASSY.,ASP
SURECOLOR SC-P80001674416609HOLDER,CSIC,RIGHT,ASSY.,ASP
SURECOLOR SC-P80001480340610ATTACHMENT,GUIDE,ROLL PAPER,LEFT
SURECOLOR SC-P80001551039620SPACER,LEVER,ADJUST,PG
SURECOLOR SC-P80002128017621HARNESS,ENCODER,CR,C
SURECOLOR SC-P80001480135630SUPPORT,HOLDER,PULLEY
SURECOLOR SC-P80001546298701CABLE,FAN,LEFT.S,ASP
SURECOLOR SC-P80001521071702HARNESS,MAINTENANCE TANK,LEFT,C.,ASP
SURECOLOR SC-P80001660787702HARNESS,MAINTENANCE TANK,LEFT,C.,ASP
SURECOLOR SC-P80001284733703P.W.,4.3X0.8X8,F/ZN-3C
SURECOLOR SC-P80001537878705GUIDE PLATE ASSY.,TUBE
SURECOLOR SC-P80001480217706DETECTION PLATE,PAPER THICKNESS
SURECOLOR SC-P80001674417711OIL PAD ASSY.,ASP SDOTT.COM
SURECOLOR SC-P80002169172712FFC,SENSOR,PW
SURECOLOR SC-P80002169173713FFC,SENSOR,PE
SURECOLOR SC-P80002128016714HARNESS,IMS,C
SURECOLOR SC-P80001662469NON FIGCLEANING CARTRIDGE,200
SURECOLOR SC-P80001507278NON FIGCLEANING PG ADJUSTMENT JIG
SURECOLOR SC-P80001662470NON FIGDRAIN CARTRIDGE
SURECOLOR SC-P80001080614NON FIGGREASE G-26 (40GR)(B702600001)
SURECOLOR SC-P80001033657NON FIGGREASE G-45
SURECOLOR SC-P80001480655NON FIGGREASE G-71(BLUE)
SURECOLOR SC-P80001409257NON FIGGREASE G-74
SURECOLOR SC-P80001516265NON FIGGREASE,G-84
SURECOLOR SC-P80001678302NON FIGINK CART.BOXED,C,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678311NON FIGINK CART.BOXED,GR,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678305NON FIGINK CART.BOXED,LC,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678307NON FIGINK CART.BOXED,LK,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678309NON FIGINK CART.BOXED,LLK,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678308NON FIGINK CART.BOXED,MK,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678310NON FIGINK CART.BOXED,OR,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678301NON FIGINK CART.BOXED,PK,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678312NON FIGINK CART.BOXED,V,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678306NON FIGINK CART.BOXED,VLM,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678303NON FIGINK CART.BOXED,VM,PIG'T,775C1,150,AS
SURECOLOR SC-P80001678304NON FIGINK CART.BOXED,Y,PIG'T,775C1,150,AS
SURECOLOR SC-P80001476228NON FIGJETRAS JP-D300S
SURECOLOR SC-P80001521154NON FIGOIL,O-17 SDOTT.COM
SURECOLOR SC-P80001424364NON FIGP-THICK SENSOR POSITION JIG
SURECOLOR SC-P80001282355NON FIGPAPER THICKNESS POSITION TOOL
SURECOLOR SC-P80001507506NON FIGPG HEIGHT ADJUSTMENT JIG 1.65
SURECOLOR SC-P80001507277NON FIGPG HEIGHT ADJUSTMENT JIG 1.75
SURECOLOR SC-P80001640645NON FIGSONIC TENSION METER U508




www.sdott-parts.com



More Information
Manual Name EPSON SureColor P8000 P8050 P8070 Parts Manual
Format PDF
PDF Archive 6.7M
Pages 8
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor P8000 P8050 P8070 Series
Related Products
Check items to add to the cart or

  1. Service Manual for EPSON SureColor P6000 P6070 P7000 P7070 P8000 P8070 P9000 P9070

    Service Manual for EPSON SureColor P6000 P6070 P7000 P7070 P8000 P8070 P9000 P9070
    $9.95
    Compare
Upsell Products

  1. Genuine Print Head for EPSON P6000 P6050 P6070 / P8000 P8050 P8070 / 7890 9890 - F191151 191151

    Genuine Print Head for EPSON P6000 P6050 P6070 / P8000 P8050 P8070 / 7890 9890 - F191151 191151 Genuine Print Head for EPSON P6000 P6050 P6070 / P8000 P8050 P8070 / 7890 9890 - F191151 191151
    $1,235.00
    Compare

  2. Genuine CR Belt Unit /PULLEY,DRIVEN,UNIT,44,ESL,ASP for EPSON Pro 9700/9710/9890/9900/9910 /SureColor SC-P8000 P9000 P8050 P8070 P9050 P9070 - 1715360/1696177

    Genuine CR Belt Unit /PULLEY,DRIVEN,UNIT,44,ESL,ASP for EPSON Pro 9700/9710/9890/9900/9910 /SureColor SC-P8000 P9000 P8050 P8070 P9050 P9070 - 1715360/1696177 Genuine CR Belt Unit /PULLEY,DRIVEN,UNIT,44,ESL,ASP for EPSON Pro 9700/9710/9890/9900/9910 /SureColor SC-P8000 P9000 P8050 P8070 P9050 P9070 - 1715360/1696177
    $74.00
    Compare

  3. Genuine Pump Assembly / Cleaning Unit for EPSON P6000 P7000 P8000 P9000 / P6050 P7050 P8050 P9050 / P6070 P7070 P8070 P9070 - 1735803 / 1720173

    Genuine Pump Assembly / Cleaning Unit for EPSON P6000 P7000 P8000 P9000 / P6050 P7050 P8050 P9050 / P6070 P7070 P8070 P9070 - 1735803 / 1720173 Genuine Pump Assembly / Cleaning Unit for EPSON P6000 P7000 P8000 P9000 / P6050 P7050 P8050 P9050 / P6070 P7070 P8070 P9070 - 1735803 / 1720173
    $243.00
    Compare

  4. Genuine Main Board for EPSON SureColor P8000 P8050 P8070 - 2220516 / 2173644

    Genuine Main Board for EPSON SureColor P8000 P8050 P8070 - 2220516 / 2173644
    $438.00
    Compare

Default Category

    All CategoriesClose
    Parts Manual for EPSON SureColor P8000 P8050 P8070
