EPSON SureColor T3200 T3250 T3270 Parts Manual

In stock
SKU
EP-T3200-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON SureColor T3200 T3250 T3270 Parts Manual
Format PDF
PDF Archive 12.2M
Pages 5
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor T3200 T3250 T3270 Series




****** The following content is not included in the PDF manual, please use it online ******

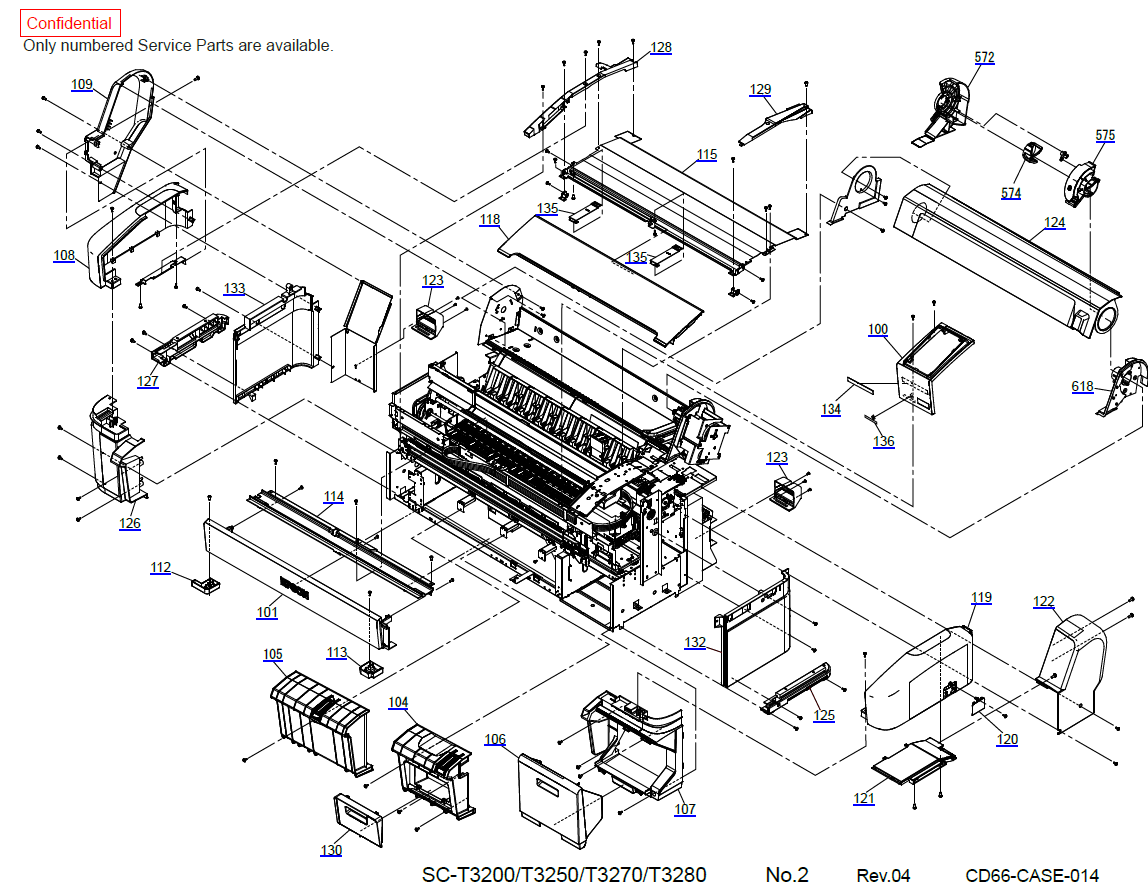

Model Article Reference Description
SURECOLOR SC-T3200 1624279 100 HOUSING,PANEL,LOWER,ASSY A,ASP
SURECOLOR SC-T3200 1588066 101 COVER,FRONT,ASSY,ASP
SURECOLOR SC-T3200 1636932 104 PAPER GUIDE LOWER ASSY.,ESL,ASP
SURECOLOR SC-T3200 1636933 105 PAPER GUIDE LOWER,B,ASSY MR4.,ESL,ASP
SURECOLOR SC-T3200 1645816 106 COVER,IH,ASSY,ASP
SURECOLOR SC-T3200 1637687 107 HOLDER,IH,ASSY,B,ASP
SURECOLOR SC-T3200 1552192 108 COVER,SIDE,LEFT,UPPER
SURECOLOR SC-T3200 1563166 109 COVER,SIDE,ROLL,LEFT
SURECOLOR SC-T3200 1563158 112 COVER,FRONT,LEFT
SURECOLOR SC-T3200 1563159 113 COVER,FRONT,RIGHT
SURECOLOR SC-T3200 1563173 114 COVER,INNER
SURECOLOR SC-T3200 1606895 115 COVER,TOP,BASE,24
SURECOLOR SC-T3200 1620534 118 COVER,PRINTER
SURECOLOR SC-T3200 1706384 118 COVER,PRINTER
SURECOLOR SC-T3200 1552189 119 COVER,SIDE,RIGHT,UPPER
SURECOLOR SC-T3200 1560601 120 CAP,CR,ADJUST
SURECOLOR SC-T3200 1620526 121 COVER,TOP,RIGHT
SURECOLOR SC-T3200 1620529 122 COVER,SIDE,ROLL,RIGHT
SURECOLOR SC-T3200 1620027 123 COVER,NOB
SURECOLOR SC-T3200 1563141 124 COVER,ROLL,24
SURECOLOR SC-T3200 1563152 125 COVER,BASE,RIGHT
SURECOLOR SC-T3200 1563153 126 COVER,FRONT,LEFT,LOWER
SURECOLOR SC-T3200 1563154 127 COVER,BASE,LEFT
SURECOLOR SC-T3200 1620528 128 COVER,TOP,LEFT
SURECOLOR SC-T3200 1620533 129 COVER,TOP,SUPPORT,RIGHT
SURECOLOR SC-T3200 1573784 130 COVER,TANK,INK EJECT
SURECOLOR SC-T3200 1573791 132 COVER,SIDE,RIGHT,LOWER
SURECOLOR SC-T3200 1573792 133 COVER,SIDE,LEFT,LOWER
SURECOLOR SC-T3200 1622945 134 LABEL,MODEL NAME
SURECOLOR SC-T3200 1606896 135 PLATE,COVER,TOP,BASE
SURECOLOR SC-T3200 1682129 136 LABEL,PRECISIONCORE,B
SURECOLOR SC-T3200 2167209 200 BOARD ASSY.,MAIN
SURECOLOR SC-T3200 2142118 204 HARNESS
SURECOLOR SC-T3200 2142119 205 HARNESS
SURECOLOR SC-T3200 2142157 211 HARNESS
SURECOLOR SC-T3200 2142158 212 HARNESS
SURECOLOR SC-T3200 2153095 220 HARNESS
SURECOLOR SC-T3200 2154132 300 BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-T3200 1588059 500 SCALE,PF,UNIT,ESL,ASP
SURECOLOR SC-T3200 1607148 501 HOLDER ASSY.,IC,B.,ASP
SURECOLOR SC-T3200 1518317 502 SEAL RUBBER,JOINT,ASP
SURECOLOR SC-T3200 1588043 503 DUCT ASSY.,CR,ASP
SURECOLOR SC-T3200 1574117 504 WIPER.,ASSY ESL,ASP
SURECOLOR SC-T3200 1613445 505 POROUS PAD,WIPER,CLEANER B,ASP
SURECOLOR SC-T3200 1685736 506 PUMP CAP ASSY F,ASP
SURECOLOR SC-T3200 1710080 506 PUMP CAP ASSY F,ASP
SURECOLOR SC-T3200 1588039 507 FAN ASSY.,ABSORPTION,ASSY.,ESL,ASP
SURECOLOR SC-T3200 1656850 508 CR,24,ASSY D.,ESL,ASP
SURECOLOR SC-T3200 1705988 508 CR,24,ASSY D.,ESL,ASP
SURECOLOR SC-T3200 1710102 508 CR,24,ASSY D.,ESL,ASP
SURECOLOR SC-T3200 1533056 509 PULLEY,DRIVEN,B
SURECOLOR SC-T3200 1480177 510 BOARD ASSY.,ENCODER
SURECOLOR SC-T3200 2143464 511 PHOTO INTERRUPTER
SURECOLOR SC-T3200 1560756 512 TIMING BELT,CR,24
SURECOLOR SC-T3200 2171913 513 BOARD ASSY.,INK MARK,B
SURECOLOR SC-T3200 2109393 514 BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-T3200 2142139 515 HARNESS
SURECOLOR SC-T3200 2142140 516 HARNESS
SURECOLOR SC-T3200 2154215 517 HARNESS
SURECOLOR SC-T3200 2142142 518 HARNESS
SURECOLOR SC-T3200 2144073 519 BOARD ASSY.,SUB
SURECOLOR SC-T3200 1631415 520 MOTOR,APG,ASSY 24.,ESL,ASP
SURECOLOR SC-T3200 1693337 520 MOTOR,APG,ASSY 24.,ESL,ASP
SURECOLOR SC-T3200 2130110 521 MOTOR ASSY.,ASF,SUB
SURECOLOR SC-T3200 2153104 522 HARNESS
SURECOLOR SC-T3200 1675605 523 INTER LOCK,ASSY E.,ESL,ASP
SURECOLOR SC-T3200 1628408 524 CUTTER,24,ASSY B.,ESL,ASP
SURECOLOR SC-T3200 1588069 525 TUBE,CR,24,ASSY.,ESL ASP
SURECOLOR SC-T3200 1636935 526 PANEL,ASSY AD.,ESL,ASP
SURECOLOR SC-T3200 1588063 528 OIL PAD ASSY ,ASP
SURECOLOR SC-T3200 2139742 529 CONNECTOR,CSIC
SURECOLOR SC-T3200 2150679 530 BOARD ASSY.,SUB
SURECOLOR SC-T3200 2142156 531 HARNESS
SURECOLOR SC-T3200 2142804 532 MOTOR ASSY.,CR
SURECOLOR SC-T3200 2142147 533 HARNESS
SURECOLOR SC-T3200 2142146 534 HARNESS
SURECOLOR SC-T3200 2142800 535 MOTOR ASSY.,PF
SURECOLOR SC-T3200 2133325 536 BOARD ASSY.,ENCODER,PF
SURECOLOR SC-T3200 2142144 537 HARNESS
SURECOLOR SC-T3200 2142155 538 HARNESS
SURECOLOR SC-T3200 2142153 539 HARNESS
SURECOLOR SC-T3200 2120015 540 MOTOR ASSY.,REWIND
SURECOLOR SC-T3200 2140022 543 SENSOR ASSY.
SURECOLOR SC-T3200 2138601 545 HARNESS
SURECOLOR SC-T3200 1620485 547 SHEET,GUIDE,FFC,LOWER,24
SURECOLOR SC-T3200 1619995 548 SHIELD PLATE,FFC,24
SURECOLOR SC-T3200 2170115 549 HARNESS
SURECOLOR SC-T3200 2170116 550 HARNESS
SURECOLOR SC-T3200 2170117 551 HARNESS
SURECOLOR SC-T3200 1579809 552 SHEET,GUIDE PLATE,TUBU,LOWER,24
SURECOLOR SC-T3200 1620486 553 SHEET,GUIDE PLATE,TUBU,UPPER,24
SURECOLOR SC-T3200 1625055 554 SHEET,GUIDE PLATE,TUBU,MIDDLE,24
SURECOLOR SC-T3200 1560762 555 COVER,CR
SURECOLOR SC-T3200 1573729 556 TIMING BELT,PF
SURECOLOR SC-T3200 1588585 557 SCALE,CR,24,ASP
SURECOLOR SC-T3200 1564338 559 TUBE,INK EJECT
SURECOLOR SC-T3200 FA10030 560 PRINT HEAD,IC856V-3
SURECOLOR SC-T3200 1568042 561 GUIDE,ROLL PAPER,SUPPORT
SURECOLOR SC-T3200 2142803 562 SENSOR ASSY.,C
SURECOLOR SC-T3200 2142120 563 HARNESS
SURECOLOR SC-T3200 2142126 565 HARNESS
SURECOLOR SC-T3200 2142130 566 HARNESS
SURECOLOR SC-T3200 2142143 567 HARNESS
SURECOLOR SC-T3200 2142151 568 HARNESS
SURECOLOR SC-T3200 2142152 569 HARNESS
SURECOLOR SC-T3200 2144083 571 BOARD ASSY.,SUB SDOTT.COM
SURECOLOR SC-T3200 1568045 572 COVER,LEVER,ATC,ROLL
SURECOLOR SC-T3200 1564787 573 PAD,MAINTENANCE COVER
SURECOLOR SC-T3200 1568044 574 LEVER,ATC,ROLL,SUB
SURECOLOR SC-T3200 1568043 575 LEVER,ATC,ROLL
SURECOLOR SC-T3200 1690387 579 POROUS PAD PAPER GUIDE,FRONT,C,ASP
SURECOLOR SC-T3200 2155243 608 COOLING FAN,PS
SURECOLOR SC-T3200 2155242 609 COOLING FAN,HDD
SURECOLOR SC-T3200 1559877 610 MIDDLE FULCRUM,ROLLER,PF
SURECOLOR SC-T3200 2153105 611 HARNESS
SURECOLOR SC-T3200 1619996 615 SHIELD PLATE,FFC,B,24
SURECOLOR SC-T3200 1568046 618 BASE,LEVER,ATC,ROLL
SURECOLOR SC-T3200 2155241 620 COOLING FAN,BOX
SURECOLOR SC-T3200 1656122 621 SHEET,FFC,CARRIAGE,SUB,B
SURECOLOR SC-T3200 1573753 626 TORSION SPRING,0.483
SURECOLOR SC-T3200 1568039 627 LEVER,DETECTOR,ROLL PAPER
SURECOLOR SC-T3200 1619650 628 HELICAL COMBINATION GEAR,14.494,8.28
SURECOLOR SC-T3200 2142795 629 HARNESS,DETECTOR,CUTTER
SURECOLOR SC-T3200 1653522 630 HOLDER,WHEEL,EJ,UPPER,ASSY,ASP
SURECOLOR SC-T3200 1663525 633 HARNESS HEAD ASSY.,ASP
SURECOLOR SC-T3200 1682153 635 BLADE,ASSY A.,ESL,ASP
SURECOLOR SC-T3200 1668342 638 FERRITE CORE ASSY.,ESL,ASP
SURECOLOR SC-T3200 1482181 639 CUT WASHER,10X0.5X13,L/NA
SURECOLOR SC-T3200 1568051 640 GUIDE,SHAFT,TRANSMISSION,ATC
SURECOLOR SC-T3200 1283977 641 C.B.SCREW,2.5X16,F/ZN-3C
SURECOLOR SC-T3200 1679569 650 HOLDER,SENSOR,ASSY.,ASP
SURECOLOR SC-T3200 1568049 660 SHAFT,DRIVE,ATC,ROLL,B
SURECOLOR SC-T3200 1582821 NON FIG CLEANING CARTRIDGE
SURECOLOR SC-T3200 1080614 NON FIG GREASE G-26 (40GR)(B702600001)
SURECOLOR SC-T3200 1480655 NON FIG GREASE G-71(BLUE)
SURECOLOR SC-T3200 1574337 NON FIG GREASE,G-81
SURECOLOR SC-T3200 1516265 NON FIG GREASE,G-84
SURECOLOR SC-T3200 1589112 NON FIG INK CART.BOXED,C,PIG'T,14601T692,110AS
SURECOLOR SC-T3200 1589113 NON FIG INK CART.BOXED,M,PIG'T,14601T692,110AS
SURECOLOR SC-T3200 1589115 NON FIG INK CART.BOXED,MBK,PIG'T,14601T692,110AS
SURECOLOR SC-T3200 1589111 NON FIG INK CART.BOXED,PBK,PIG'T,14601T692,110AS
SURECOLOR SC-T3200 1589114 NON FIG INK CART.BOXED,Y,PIG'T,14601T692,110AS
SURECOLOR SC-T3200 1476228 NON FIG JETRAS JP-D300S
SURECOLOR SC-T3200 1521154 NON FIG OIL,O-17
SURECOLOR SC-T3200 1424364 NON FIG P-THICK SENSOR POSITION JIG
SURECOLOR SC-T3200 1282355 NON FIG PAPER THICKNESS POSITION TOOL
SURECOLOR SC-T3200 1640645 NON FIG SONIC TENSION METER U508
