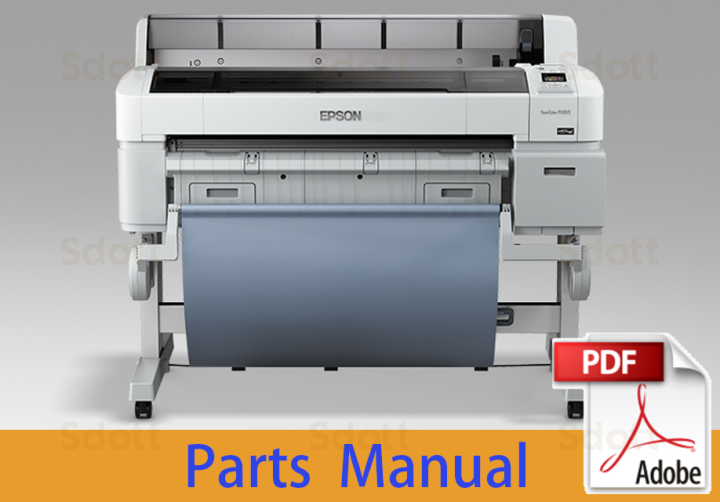

EPSON SureColor T5000 T5050 T5070 Parts Manual

In stock
SKU
EP-T5000-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON SureColor T5000 T5050 T5070 Parts Manual
Format PDF
PDF Archive 7.25M
Pages 6
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor T5000 T5050 T5070 Series

Model Article Reference Description
SURECOLOR SC-T5000 1588075 1 STAND,RIGHT,FULL.ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588076 2 STAND,LEFT,FULL.ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588055 3 HOLDER ,BASKET,R,ASSY.,ASP
SURECOLOR SC-T5000 1588058 5 GUIDE,BASKET,LOWER,ASSY.,ASP
SURECOLOR SC-T5000 1588054 6 JOINT,BASKET,RIGHT,ASSY,ASP
SURECOLOR SC-T5000 1588077 7 SCREW ASSY,ASP SDOTT.com
SURECOLOR SC-T5000 1560763 8 STAND,TOP,RIGHT
SURECOLOR SC-T5000 1560765 9 STAND,TOP,LEFT
SURECOLOR SC-T5000 1573820 10 CASTER,P-50G
SURECOLOR SC-T5000 1588062 100 HOUSING,PANEL,LOWER,ASSY,ASP
SURECOLOR SC-T5000 1588066 101 COVER,FRONT,ASSY,ASP
SURECOLOR SC-T5000 1588072 102 COVER,INNER,LEFT,36 ASSY,ASP
SURECOLOR SC-T5000 1588074 103 COVER,INNER,RIGHT,36 ASSY,ASP
SURECOLOR SC-T5000 1588045 104 PAPER GUIDE LOWER ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588047 105 PAPER GUIDE LOWER,B,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588064 106 COVER,IH,ASSY,ASP
SURECOLOR SC-T5000 1588065 107 HOLDER,IH,ASSY,ASP
SURECOLOR SC-T5000 1552192 108 COVER,SIDE,LEFT,UPPER
SURECOLOR SC-T5000 1563166 109 COVER,SIDE,ROLL,LEFT
SURECOLOR SC-T5000 1573821 11 CASTER,P-50GS
SURECOLOR SC-T5000 1563146 110 COVER,FRONT,SUB,LEFT,36
SURECOLOR SC-T5000 1563147 111 COVER,FRONT,SUB,RIGHT,36
SURECOLOR SC-T5000 1563158 112 COVER,FRONT,LEFT
SURECOLOR SC-T5000 1563159 113 COVER,FRONT,RIGHT
SURECOLOR SC-T5000 1563173 114 COVER,INNER
SURECOLOR SC-T5000 1563142 115 COVER,TOP,BASE,36
SURECOLOR SC-T5000 1563144 116 COVER,PRINTER,SUB,LEFT,36
SURECOLOR SC-T5000 1563145 117 COVER,PRINTER,SUB,RIGHT,36
SURECOLOR SC-T5000 1595275 118 COVER,PRINTER
SURECOLOR SC-T5000 1552189 119 COVER,SIDE,RIGHT,UPPER
SURECOLOR SC-T5000 1573848 12 PIPE,BASKET,36
SURECOLOR SC-T5000 1560601 120 CAP,CR,ADJUST
SURECOLOR SC-T5000 1563161 121 COVER,TOP,RIGHT
SURECOLOR SC-T5000 1563165 122 COVER,SIDE,ROLL,RIGHT
SURECOLOR SC-T5000 1573788 123 CAP,COVER,REAR
SURECOLOR SC-T5000 1563143 124 COVER,ROLL,36
SURECOLOR SC-T5000 1563152 125 COVER,BASE,RIGHT
SURECOLOR SC-T5000 1563153 126 COVER,FRONT,LEFT,LOWER
SURECOLOR SC-T5000 1563154 127 COVER,BASE,LEFT
SURECOLOR SC-T5000 1563162 128 COVER,TOP,LEFT
SURECOLOR SC-T5000 1563163 129 COVER,TOP,SUPPORT,RIGHT
SURECOLOR SC-T5000 1573850 13 BASKET,36
SURECOLOR SC-T5000 1573784 130 COVER,TANK,INK EJECT
SURECOLOR SC-T5000 1573785 131 PAPER GUIDE,LOWER,C
SURECOLOR SC-T5000 1573791 132 COVER,SIDE,RIGHT,LOWER
SURECOLOR SC-T5000 1573792 133 COVER,SIDE,LEFT,LOWER
SURECOLOR SC-T5000 1582214 134 LABEL,MODEL NAME
SURECOLOR SC-T5000 1573852 14 PIPE,STOPPER,PAPER GUIDE,BASKET,36
SURECOLOR SC-T5000 1573773 15 JOINT,BASKET,LEFT
SURECOLOR SC-T5000 1573780 16 HANDLE,STOPPER,PAPER GUIDE,BASKET
SURECOLOR SC-T5000 1588057 17 HOLDER ,BASKET,L,ASSY.,ASP
SURECOLOR SC-T5000 2144075 200 BOARD ASSY.,MAIN
SURECOLOR SC-T5000 2158443 200 BOARD ASSY.,MAIN
SURECOLOR SC-T5000 2158460 201 BOARD ASSY.,MAIN
SURECOLOR SC-T5000 2144080 201 Replace: 2158460
SURECOLOR SC-T5000 2144078 202 BOARD ASSY.,MAIN
SURECOLOR SC-T5000 2158452 202 BOARD ASSY.,MAIN
SURECOLOR SC-T5000 2130944 203 HARNESS
SURECOLOR SC-T5000 2142118 204 HARNESS
SURECOLOR SC-T5000 2142119 205 HARNESS
SURECOLOR SC-T5000 2142121 206 HARNESS
SURECOLOR SC-T5000 2142123 207 HARNESS
SURECOLOR SC-T5000 2142124 208 HARNESS
SURECOLOR SC-T5000 2142148 209 HARNESS
SURECOLOR SC-T5000 2142161 210 DC FAN SET
SURECOLOR SC-T5000 2142157 211 HARNESS
SURECOLOR SC-T5000 2142158 212 HARNESS
SURECOLOR SC-T5000 2142125 213 HARNESS
SURECOLOR SC-T5000 2145945 300 BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-T5000 1588059 500 SCALE,PF,UNIT,ESL,ASP
SURECOLOR SC-T5000 1588037 501 Replace: 1598978 SDOTT
SURECOLOR SC-T5000 1598978 501 HOLDER ASSY.,IC,ASP
SURECOLOR SC-T5000 1607148 501 HOLDER ASSY.,IC,ASP
SURECOLOR SC-T5000 1518317 502 SEAL RUBBER,JOINT,ASP
SURECOLOR SC-T5000 1588043 503 DUCT ASSY.,CR,ASP
SURECOLOR SC-T5000 1574117 504 WIPER.,ASSY ESL,ASP
SURECOLOR SC-T5000 1598963 505 Replace: 1613445
SURECOLOR SC-T5000 1574118 505 POROUS PAD, CLEANER,WIPER.,ASSY ESL,ASP
SURECOLOR SC-T5000 1613445 505 POROUS PAD, CLEANER,WIPER.,ASSY ESL,ASP
SURECOLOR SC-T5000 1588038 506 PUMP CAP ASSY,ASP
SURECOLOR SC-T5000 1588039 507 FAN ASSY.,ABSORPTION,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588049 508 CR,36,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1613055 508 CR,36,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1633015 508 CR,36,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1480133 509 PULLEY,DRIVEN
SURECOLOR SC-T5000 1480177 510 BOARD ASSY.,ENCODER
SURECOLOR SC-T5000 2143464 511 PHOTO INTERRUPTER
SURECOLOR SC-T5000 1560752 512 TIMING BELT,CR,36
SURECOLOR SC-T5000 2084550 513 BOARD ASSY.,INK MARK
SURECOLOR SC-T5000 2109393 514 BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-T5000 2142139 515 HARNESS
SURECOLOR SC-T5000 2142140 516 HARNESS
SURECOLOR SC-T5000 2142141 517 HARNESS
SURECOLOR SC-T5000 2142142 518 HARNESS
SURECOLOR SC-T5000 2144073 519 BOARD ASSY.,SUB
SURECOLOR SC-T5000 1588061 520 MOTOR,APG,ASSY.,ESL,ASP
SURECOLOR SC-T5000 2130110 521 MOTOR ASSY.,ASF,SUB
SURECOLOR SC-T5000 2142149 522 HARNESS
SURECOLOR SC-T5000 1588044 523 INTER KOCK,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588052 524 CUTTER,36,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1628399 524 CUTTER,36,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588068 525 TUBE,CR,36,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588040 526 PANEL,ASSY.,ESL,ASP
SURECOLOR SC-T5000 1588063 528 OIL PAD ASSY ,ASP
SURECOLOR SC-T5000 2139742 529 CONNECTOR,CSIC
SURECOLOR SC-T5000 2139168 530 BOARD ASSY.,SUB
SURECOLOR SC-T5000 2150679 530 BOARD ASSY.,SUB
SURECOLOR SC-T5000 2142156 531 HARNESS
SURECOLOR SC-T5000 2142796 532 MOTOR ASSY.,CR
SURECOLOR SC-T5000 2142147 533 HARNESS
SURECOLOR SC-T5000 2142146 534 HARNESS
SURECOLOR SC-T5000 2142800 535 MOTOR ASSY.,PF
SURECOLOR SC-T5000 2133325 536 BOARD ASSY.,ENCODER,PF
SURECOLOR SC-T5000 2142144 537 HARNESS
SURECOLOR SC-T5000 2142155 538 HARNESS
SURECOLOR SC-T5000 2142153 539 HARNESS
SURECOLOR SC-T5000 2120015 540 MOTOR ASSY.,REWIND
SURECOLOR SC-T5000 2140024 542 SENSOR ASSY.,B
SURECOLOR SC-T5000 2140022 543 SENSOR ASSY.
SURECOLOR SC-T5000 2142892 544 BOARD ASSY.,PANEL
SURECOLOR SC-T5000 2142331 545 HARNESS
SURECOLOR SC-T5000 1573836 546 SHEET,GUIDE,FFC,UPPER,36
SURECOLOR SC-T5000 1573837 547 SHEET,GUIDE,FFC,LOWER,36
SURECOLOR SC-T5000 1579800 548 SHIELD PLATE,FFC,36
SURECOLOR SC-T5000 2142134 549 HARNESS
SURECOLOR SC-T5000 2142136 550 HARNESS
SURECOLOR SC-T5000 2148220 551 HARNESS
SURECOLOR SC-T5000 1579801 552 SHEET,GUIDE PLATE,TUBU,UPPER,36
SURECOLOR SC-T5000 1579802 553 SHEET,GUIDE PLATE,TUBU,MIDDLE,36
SURECOLOR SC-T5000 1579797 554 SHEET,GUIDE PLATE,TUBU,LOWER,44
SURECOLOR SC-T5000 1560762 555 COVER,CR
SURECOLOR SC-T5000 1573729 556 TIMING BELT,PF
SURECOLOR SC-T5000 1588583 557 SCALE,CR,36,ASP
SURECOLOR SC-T5000 2143866 558 FFC,CSIC,CN5-FULL
SURECOLOR SC-T5000 1564338 559 TUBE,INK EJECT
SURECOLOR SC-T5000 FA10000 560 PRINT HEAD,IC856V
SURECOLOR SC-T5000 1568042 561 GUIDE,ROLL PAPER,SUPPORT
SURECOLOR SC-T5000 2142803 562 SENSOR ASSY.,C
SURECOLOR SC-T5000 2142120 563 HARNESS
SURECOLOR SC-T5000 2142122 564 HARNESS
SURECOLOR SC-T5000 2142127 565 HARNESS
SURECOLOR SC-T5000 2142131 566 HARNESS
SURECOLOR SC-T5000 2142143 567 HARNESS
SURECOLOR SC-T5000 2142151 568 HARNESS
SURECOLOR SC-T5000 2142152 569 HARNESS
SURECOLOR SC-T5000 2142154 570 HARNESS
SURECOLOR SC-T5000 2144083 571 BOARD ASSY.,SUB
SURECOLOR SC-T5000 1568045 572 COVER,LEVER,ATC,ROLL
SURECOLOR SC-T5000 1564787 573 PAD,MAINTENANCE COVER
SURECOLOR SC-T5000 1568044 574 LEVER,ATC,ROLL,SUB
SURECOLOR SC-T5000 1568043 575 LEVER,ATC,ROLL
SURECOLOR SC-T5000 1582821 NON FIG CLEANING CARTRIDGE
SURECOLOR SC-T5000 1080614 NON FIG GREASE G-26 (40GR)(B702600001)
SURECOLOR SC-T5000 1480655 NON FIG GREASE G-71(BLUE)
SURECOLOR SC-T5000 1574337 NON FIG GREASE,G-81
SURECOLOR SC-T5000 1516265 NON FIG GREASE,G-84
SURECOLOR SC-T5000 1589112 NON FIG INK CART.BOXED,C,PIG'T,14601T692,110AS
SURECOLOR SC-T5000 1589113 NON FIG INK CART.BOXED,M,PIG'T,14601T692,110AS
SURECOLOR SC-T5000 1589115 NON FIG INK CART.BOXED,MBK,PIG'T,14601T692,110AS
SURECOLOR SC-T5000 1589111 NON FIG INK CART.BOXED,PBK,PIG'T,14601T692,110AS
SURECOLOR SC-T5000 1589114 NON FIG INK CART.BOXED,Y,PIG'T,14601T692,110AS
SURECOLOR SC-T5000 1521154 NON FIG OIL,O-17
09-001 #F1043
SURECOLOR SC-T5000 1424364 NON FIG P-THICK SENSOR POSITION JIG
SURECOLOR SC-T5000 1282355 NON FIG PAPER THICKNESS POSITION TOOL
SURECOLOR SC-T5000 1294120 NON FIG SONIC TENSION METER U507
