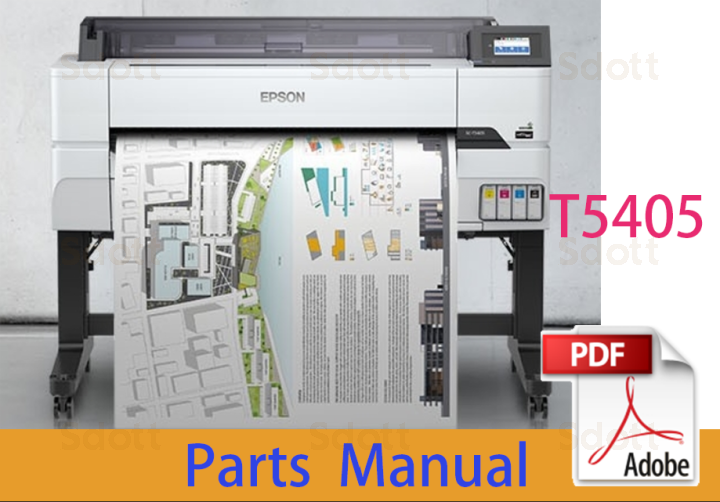

Parts Manual for EPSON SureColor T5405 T5435 T5445 T5455 T5465 T5475 T5485

In stock
SKU
EP-T5405-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20

EPSON SureColor T5405 T5435 T5445 T5455 T5465 T5475 T5485 Series

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

18423291STAND ASSY,CJ78,ASP
1739014101COVER,SIDE,LEFT
1861811102COVER,FRONT,RIGHT,ASSY,B,ASP
1737866103COVER,FRONT,LEFT
1737851104COVER,TOP,LEFT
1737852105COVER,TOP,RIGHT
1739146106COVER,TOP,MIDDLE,36
1737854107DECORATION PLATE,UPPER,LEFT
1739163108HOLDER,MAINTENANCE,RIGHT
1739164109HOLDER,MAINTENANCE,LEFT
1856534110COVER,FRONT,ASSY,B,CF86,IEI
1759667111COVER FRONT MIDDLE UPPER,ASSY,CF86,ASP
1747774112COVER MAINTENANCE,ASSY,CF86,IEI
1835458113COVER,SIDE,RIGHT,ASSY,CJ56,WW,ASP
1736802114CAP,CR
1830856115COVER,IH,BEARING
1852621116COVER,IH,ASSY,B,CJ56,ASP
1815591117COVER TOP ASSY,CH65,ASP
1760023118HOLDER MAINTENANCE MIDDLE ASSY,CF86,ASP
1739023119HINGE,COVER,ROLL
1760024120COVER,ROLL,FRONT,36,ASSY,IEI,ASP
1853356121COVER,ROLL,36,B,ASP
1739070122COVER,IF
1760040123COVER,REAR,ASSY,ASP
1760029124COVER,SIDE,LEFT,BASE,ASP
1786099125COVER,SIDE,LEFT,UPPER,B
1737855126DECORATION PLATE,RIGHT
1855483129LABEL,LOGO,EPSON,36
17653012PIPE,BASKET,SIDE ASSY,IEI
2209156200BOARD ASSY.,MAIN 7118I,CJ56 STANDARD
2220490200BOARD ASSY.,MAIN
2230166200BOARD ASSY.,MAIN
2185994201BOARD ASSY.,SUB
2192160202WIRELESS LAN USB MODULE
2226311202WIRELESS LAN USB MODULE
2185567203HARNESS,WiFi
2185581204HARNESS,RELAY,SUB-B
2185582205HARNESS,SUB-B,FFC_40
17351573PIPE,BASKET,36
2202150300BOARD ASSY.,POWER SUPPLY
2185563301HARNESS,P/S,INLET
2185566302HARNESS,P/S,DC_OUT_2
2185564303HARNESS,AC,RELAY
2185565304HARNESS,P/S,DC_OUT_1
17351584BASKET,36
2185575501HARNESS,CRCM
1759656502SCALE,CR36,ASP
1735293503HOLDER,TUBE
1487528504EXTENSION SPRING,3.0,B
2189129505MOTOR ASSY.,CR
1760037506LEVER,APG,ASSY,ASP
2186293508CABLE,ENCODER,PF,36
1480133509PULLEY,DRIVEN
1760017510SCALE,PF,KIT,ASP
1524703511TIMING BELT,PF
1560752512TIMING BELT,CR,36
1735151513PAPER GUIDE,REAR,SUB
2186931515HARNESS,COVER,TOP
2235258515HARNESS,COVER,TOP
2186933516HARNESS,COVER,PRINTER,36
2186934517HARNESS,COVER,INK
2186935518HARNESS,COVER,MAINTENANCE
1739188519COVER,ROLL,REAR
1860810520IH ASSY.,CF86,EPW,B,ASP
1909545520IH ASSY.,CF86,EPW,B,ASP
1945190520IH ASSY.,CF86,EPW,B,ASP
1759657521SEAL RUBBER,JOINT,DUCT,ASP
1836200522INK SYSTEM, IEI, ASSY,CF86,CB,ASP
1893209522INK SYSTEM, IEI, ASSY,CF86,CB,ASP
2186496523CABLE,ENCODER,IS,CF86
1725717524COVER,ENCODER
2186510525HARNESS,INK EJECT,CF85
1220013526LEAF SPRING,LOCK
1759658527BOARD UNIT,CF86,ASP
2186497528HARNESS,MOTOR,IS,L,CF86
2184028529COOLING,FAN
1735923530CENTER SUPPORT,ROLLER,PF
2186292531MOTOR ASSY,PF
2210270532BOARD ASSY.,ENCODER
1736646533PAPER GUIDE,FRONT
1736647534PAPER GUIDE,FRONT,B
1736648535PAPER GUIDE,FRONT,C
1736649536PAPER GUIDE,FRONT,D
1794053537CR ASSY,B,CF86,IEI,ASP
2186289538CABLE,PW
2109393539BOARD ASSY.,DETECTOR,PW,B
2186290540CABLE,IMS
2183502541BOARD ASSY.,INK MARK,D
1759660542SPINDLE HOLDER LEFT ASSY,CF86,IEI,ASP
1760020544GUIDE PLATE TUBE ASSY,CF86,ASP
1747692545SENSOR HOLDER PAPER ASSY IEI
1760021546ROLLER ASSY.,DRIVEN,ASP
1747750547COVER,CR ASSY
1735147548SPUR GEAR,51
1759661549PANEL,ASSY,CF86,IEI,ASP
1947521549PANEL,ASSY,CF86,IEI,ASP
2186932550SENSOR,ASSY,COVER
2133208551MICRO DOOR SWITCH,D3DC-3
2221373551MICRO DOOR SWITCH,D3DC-3
1737870552HOLDER,SENSOR,INNER
1787899554HARNESS FFC ASSY,B,CF86,IEI,ASP
1760019555SHEET,GUIDE,TUBE,36,KIT,ASP
FA41021560PRINT HEAD,I03569-2,ASP
2186088561FAN ASSY.,EJ
2200974562HARNESS,FAN,EJ,B
2186498563HARNESS,INK EJECT,CF86
1852622566SPINDLE HOLDER RIGHT ASSY,B,CF86,IEI,ASP
2186928567HARNESS,REWIND
2185569568HARNESS,PANEL
1739012569EXTENSION SPRING,0.63
2186929570HARNESS,ROLL,COVER
2090717571LEAF SENSOR
2186930572HARNESS,MANUAL INSERTION,COVER
1743928573COVER,LED
2188194574HARNESS,RELAY,PNL-B
2185996575BOARD ASSY.,PANEL
2150781576HARNESS
1739016577EXTENSION SPRING,19.08
1760026578FRAME DRIVE ROLL,ASSY,ASP
2186575584MOTOR ASSY,ATC
1747762585DUMPER,ASSY,CF86,IEI
1751368586POROUS PAD,CR
1759663587COVER,INK,SHIELD,CF86,ASP
1747751588FLAG APG,IEI,,ASSY
2186297589HARNESS,RELAY,MOTOR,PF,36
1725657590C-RING,STW-16
1760018591OIL PAD,ASSY,ASP
2186291592CABLE,ENCODER,CR
2185992593BOARD ASSY.,SUB
2232336593BOARD ASSY.,SUB
1759659594CUTTER ASSY CF86,IEI,ASP
1577038595COVER,MOTOR,CUTTER
2186299597HARNESS,SENSOR,CUTTER
2196565598BOARD ASSY.,ENC
2186524599HARNESS,DECOMPRESSION PUMP,RELAY,CN103
17600276CASTER,P60HG,ASP
2186522600HARNESS,DECOMPRESSION PUMP,RELAY,CN102
2186523601HARNESS,SENSOR,ILS,4,EP,RELAY
2186525602HARNESS,INK DETECTOR,RELAY,CN104
2186526603HARNESS,INK DETECTOR,RELAY,CN105
1607033609SEAL,JOINT,HEAD
17600287CASTER,P60HGA,ASP
18423868STAND FIXING SCREW,ASP
18455409PIPE,BASKET,SIDE,B, ASSY,IEI

*****   Please refer to the details ONLINE   ******

More Information
Manual Name SureColor T5405 T5435 T5445 T5455 T5465 T5475 T5485 Parts Manual
Format PDF
PDF Archive 5.21
Pages 8
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor T5405 T5435 T5445 T5455 T5465 T5475 T5485 Series
