Parts Manual for EPSON SureColor T7200 T7250 T7270 T7280
In stock
SKU
EP-T7200-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
EPSON SureColor T7200 T7250 T7270 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| SURECOLOR SC-T7200 | 1636940 | 1 | STAND, RIGHT ASSY AD. ,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1636941 | 2 | STAND, LEFT ASSY AD. ,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1695840 | 3 | HOLDER,BASKET,R,ASSY B.,ASP | ||||
| SURECOLOR SC-T7200 | 1588058 | 5 | GUIDE,BASKET,LOWER,ASSY.,ASP | ||||
| SURECOLOR SC-T7200 | 1624284 | 6 | JOINT,BASKET,RIGHT,ASSY A,ASP | ||||
| SURECOLOR SC-T7200 | 1636952 | 7 | SCREW ASSY,ASP | ||||
| SURECOLOR SC-T7200 | 1560763 | 8 | STAND,TOP,RIGHT | ||||
| SURECOLOR SC-T7200 | 1620511 | 9 | STAND,TOP,LEFT | ||||
| SURECOLOR SC-T7200 | 1714641 | 10 | CASTER,KIT,P60HG,ASP | ||||
| SURECOLOR SC-T7200 | 1624279 | 100 | HOUSING,PANEL,LOWER,ASSY A,ASP | ||||
| SURECOLOR SC-T7200 | 1588066 | 101 | COVER,FRONT,ASSY,ASP | ||||
| SURECOLOR SC-T7200 | 1603856 | 102 | COVER,INNER,LEFT,44,ASSY,B,.ASP | ||||
| SURECOLOR SC-T7200 | 1603857 | 103 | COVER,INNER,RIGHT,44,ASSY,B.,ASP | ||||
| SURECOLOR SC-T7200 | 1695679 | 104 | PAPER GUIDE LOWER ASSY MR4.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1695680 | 105 | PAPER GUIDE LOWER,B,ASSY MR4 A.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1645816 | 106 | COVER,IH,ASSY,ASP | ||||
| SURECOLOR SC-T7200 | 1722063 | 107 | HOLDER,IH,ASSY,C,ASP | ||||
| SURECOLOR SC-T7200 | 1552192 | 108 | COVER,SIDE,LEFT,UPPER | ||||
| SURECOLOR SC-T7200 | 1563166 | 109 | COVER,SIDE,ROLL,LEFT | ||||
| SURECOLOR SC-T7200 | 1714642 | 11 | CASTER,KIT,P60HGS,ASP | ||||
| SURECOLOR SC-T7200 | 1563170 | 110 | COVER,FRONT,SUB,LEFT,44 | ||||
| SURECOLOR SC-T7200 | 1563172 | 111 | COVER,FRONT,SUB,RIGHT,44 | ||||
| SURECOLOR SC-T7200 | 1563158 | 112 | COVER,FRONT,LEFT | ||||
| SURECOLOR SC-T7200 | 1563159 | 113 | COVER,FRONT,RIGHT | ||||
| SURECOLOR SC-T7200 | 1563173 | 114 | COVER,INNER | ||||
| SURECOLOR SC-T7200 | 1606893 | 115 | COVER,TOP,BASE,44 | ||||
| SURECOLOR SC-T7200 | 1620536 | 116 | COVER,PRINTER,SUB,LEFT,44 | ||||
| SURECOLOR SC-T7200 | 1563169 | 117 | COVER,PRINTER,SUB,RIGHT,44 | ||||
| SURECOLOR SC-T7200 | 1706384 | 118 | COVER,PRINTER,B | ||||
| SURECOLOR SC-T7200 | 1552189 | 119 | COVER,SIDE,RIGHT,UPPER | ||||
| SURECOLOR SC-T7200 | 1573766 | 12 | PIPE,BASKET,44 | ||||
| SURECOLOR SC-T7200 | 1560601 | 120 | CAP,CR,ADJUST | ||||
| SURECOLOR SC-T7200 | 1620526 | 121 | COVER,TOP,RIGHT | ||||
| SURECOLOR SC-T7200 | 1620529 | 122 | COVER,SIDE,ROLL,RIGHT | ||||
| SURECOLOR SC-T7200 | 1620027 | 123 | COVER,NOB | ||||
| SURECOLOR SC-T7200 | 1563164 | 124 | COVER,ROLL,44 | ||||
| SURECOLOR SC-T7200 | 1563152 | 125 | COVER,BASE,RIGHT | ||||
| SURECOLOR SC-T7200 | 1563153 | 126 | COVER,FRONT,LEFT,LOWER | ||||
| SURECOLOR SC-T7200 | 1563154 | 127 | COVER,BASE,LEFT | ||||
| SURECOLOR SC-T7200 | 1620528 | 128 | COVER,TOP,LEFT | ||||
| SURECOLOR SC-T7200 | 1620533 | 129 | COVER,TOP,SUPPORT,RIGHT | ||||
| SURECOLOR SC-T7200 | 1620006 | 13 | BASKET,44 | ||||
| SURECOLOR SC-T7200 | 1573784 | 130 | COVER,TANK,INK EJECT | ||||
| SURECOLOR SC-T7200 | 1573791 | 132 | COVER,SIDE,RIGHT,LOWER | ||||
| SURECOLOR SC-T7200 | 1573792 | 133 | COVER,SIDE,LEFT,LOWER | ||||
| SURECOLOR SC-T7200 | 1622927 | 134 | LABEL,MODEL NAME | ||||
| SURECOLOR SC-T7200 | 1606896 | 135 | PLATE,COVER,TOP,BASE | ||||
| SURECOLOR SC-T7200 | 1682129 | 136 | LABEL,PRECISIONCORE,B | ||||
| SURECOLOR SC-T7200 | 1620522 | 14 | PIPE,STOPPER,PAPER GUIDE,BASKET,44 | ||||
| SURECOLOR SC-T7200 | 1620524 | 15 | JOINT,BASKET,LEFT | ||||
| SURECOLOR SC-T7200 | 1573780 | 16 | HANDLE,STOPPER,PAPER GUIDE,BASKET | ||||
| SURECOLOR SC-T7200 | 1695841 | 17 | HOLDER,BASKET,L,ASSY B.,ASP | ||||
| SURECOLOR SC-T7200 | 1636927 | 18 | JOINT,BASKET,RIGHT,B,ASSY,ASP | ||||
| SURECOLOR SC-T7200 | 1636928 | 19 | STOPPER,PAPER GUIDE,BASKET,B,ASSY,ASP | ||||
| SURECOLOR SC-T7200 | 2167211 | 200 | BOARD ASSY.,MAIN 6798H,CD68 ASP STANDARD | ||||
| SURECOLOR SC-T7200 | 2190524 | 200 | BOARD ASSY.,MAIN | ||||
| SURECOLOR SC-T7200 | 2182014 | 204 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142119 | 205 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142157 | 211 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142158 | 212 | HARNESS | ||||
| SURECOLOR SC-T7200 | 1696809 | 22 | PIPE,BASKET,44,D | ||||
| SURECOLOR SC-T7200 | 2153095 | 220 | HARNESS | ||||
| SURECOLOR SC-T7200 | 1620013 | 23 | PIPE,STOPPER,44,B | ||||
| SURECOLOR SC-T7200 | 1620008 | 30 | JOINT,BASKET,LEFT,B | ||||
| SURECOLOR SC-T7200 | 2188983 | 300 | BOARD ASSY.,POWER SUPPLY | ||||
| SURECOLOR SC-T7200 | 1691425 | 31 | STAY,STAND,44,ASSY B.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1618653 | 32 | GROUNDING PLATE,STAND,MR | ||||
| SURECOLOR SC-T7200 | 1620009 | 33 | SHAFT,BASKET,B | ||||
| SURECOLOR SC-T7200 | 1738942 | 37 | PAPER GUIDE,BASE ASSY KIT 44,ASP | ||||
| SURECOLOR SC-T7200 | 1588059 | 500 | SCALE,PF,UNIT,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1607148 | 501 | HOLDER ASSY.,IC,B.,ASP | ||||
| SURECOLOR SC-T7200 | 1518317 | 502 | SEAL RUBBER,JOINT,ASP | ||||
| SURECOLOR SC-T7200 | 1588043 | 503 | DUCT ASSY.,CR,ASP | ||||
| SURECOLOR SC-T7200 | 1574117 | 504 | WIPER.,ASSY ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1613445 | 505 | POROUS PAD,WIPER,CLEANER B,ASP | ||||
| SURECOLOR SC-T7200 | 1720009 | 506 | PUMP CAP ASSY A MR4,ASP | ||||
| SURECOLOR SC-T7200 | 1588039 | 507 | FAN ASSY.,ABSORPTION,ASSY.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1710079 | 508 | CR,44,ASSY MR4.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1480133 | 509 | PULLEY,DRIVEN | ||||
| SURECOLOR SC-T7200 | 1480177 | 510 | BOARD ASSY.,ENCODER | ||||
| SURECOLOR SC-T7200 | 2143464 | 511 | PHOTO INTERRUPTER | ||||
| SURECOLOR SC-T7200 | 1560744 | 512 | TIMING BELT,CR,44 | ||||
| SURECOLOR SC-T7200 | 2183501 | 513 | BOARD ASSY.,INK MARK,C | ||||
| SURECOLOR SC-T7200 | 2109393 | 514 | BOARD ASSY.,DETECTOR,PW,B | ||||
| SURECOLOR SC-T7200 | 2142139 | 515 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142140 | 516 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2154215 | 517 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142142 | 518 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2144073 | 519 | BOARD ASSY.,SUB | ||||
| SURECOLOR SC-T7200 | 1693291 | 520 | MOTOR,APG,ASSY EM.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 2182572 | 521 | MOTOR ASSY.,ASF,SUB | ||||
| SURECOLOR SC-T7200 | 2153104 | 522 | HARNESS | ||||
| SURECOLOR SC-T7200 | 1675605 | 523 | INTER LOCK,ASSY E.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1720008 | 524 | CUTTER,44,ASSY A MR.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1588067 | 525 | TUBE,CR,44,ASSY.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1717392 | 526 | PANEL,ASSY B AD.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1588063 | 528 | OIL PAD ASSY ,ASP | ||||
| SURECOLOR SC-T7200 | 2139742 | 529 | CONNECTOR,CSIC | ||||
| SURECOLOR SC-T7200 | 2150679 | 530 | BOARD ASSY.,SUB | ||||
| SURECOLOR SC-T7200 | 2142156 | 531 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142796 | 532 | MOTOR ASSY.,CR | ||||
| SURECOLOR SC-T7200 | 2142147 | 533 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142146 | 534 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142800 | 535 | MOTOR ASSY.,PF | ||||
| SURECOLOR SC-T7200 | 2133325 | 536 | BOARD ASSY.,ENCODER,PF | ||||
| SURECOLOR SC-T7200 | 2142144 | 537 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142155 | 538 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142153 | 539 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2182573 | 540 | MOTOR ASSY.,REWIND | ||||
| SURECOLOR SC-T7200 | 2193385 | 540 | MOTOR ASSY.,REWIND | ||||
| SURECOLOR SC-T7200 | 2140024 | 542 | SENSOR ASSY.,B | ||||
| SURECOLOR SC-T7200 | 2140022 | 543 | SENSOR ASSY. | ||||
| SURECOLOR SC-T7200 | 2138601 | 545 | Ersetzt durch: 2142331 | ||||

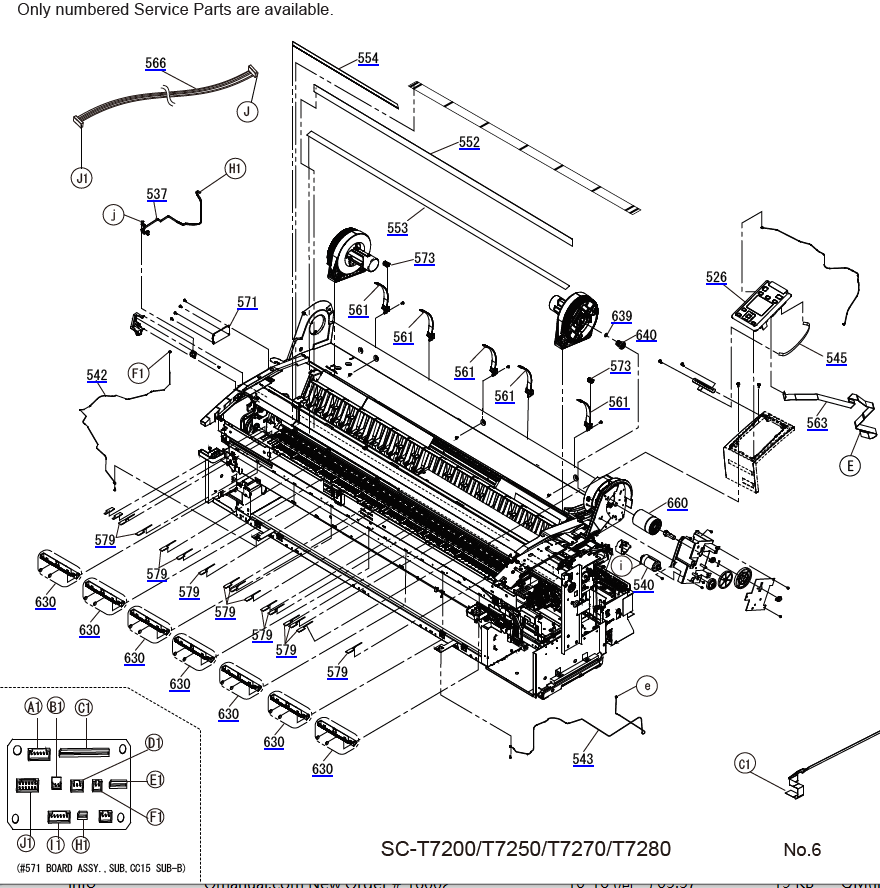

| SURECOLOR SC-T7200 | 1620479 | 546 | SHEET,GUIDE,FFC,UPPER,44 | ||||
| SURECOLOR SC-T7200 | 1620480 | 547 | SHEET,GUIDE,FFC,LOWER,44 | ||||
| SURECOLOR SC-T7200 | 1619991 | 548 | SHIELD PLATE,FFC,44 | ||||
| SURECOLOR SC-T7200 | 2142134 | 549 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142136 | 550 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2148220 | 551 | HARNESS | ||||
| SURECOLOR SC-T7200 | 1620481 | 552 | SHEET,GUIDE PLATE,TUBU,UPPER,44 | ||||
| SURECOLOR SC-T7200 | 1625053 | 553 | SHEET,GUIDE PLATE,TUBU,MIDDLE,44 | ||||
| SURECOLOR SC-T7200 | 1579797 | 554 | SHEET,GUIDE PLATE,TUBU,LOWER,44 | ||||
| SURECOLOR SC-T7200 | 1560762 | 555 | COVER,CR | ||||
| SURECOLOR SC-T7200 | 1573729 | 556 | TIMING BELT,PF | ||||
| SURECOLOR SC-T7200 | 1588584 | 557 | SCALE,CR,44,ASP | ||||
| SURECOLOR SC-T7200 | 2143866 | 558 | FFC,CSIC,CN5-FULL | ||||
| SURECOLOR SC-T7200 | 1564338 | 559 | TUBE,INK EJECT | ||||
| SURECOLOR SC-T7200 | FA10030 | 560 | PRINT HEAD,IC856V-3 | ||||
| SURECOLOR SC-T7200 | 1568042 | 561 | GUIDE,ROLL PAPER,SUPPORT | ||||
| SURECOLOR SC-T7200 | 2142803 | 562 | SENSOR ASSY.,C | ||||
| SURECOLOR SC-T7200 | 2142120 | 563 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142129 | 565 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2193750 | 565 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142132 | 566 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142143 | 567 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142151 | 568 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2142152 | 569 | HARNESS | ||||
| SURECOLOR SC-T7200 | 2144083 | 571 | BOARD ASSY.,SUB | ||||
| SURECOLOR SC-T7200 | 1568045 | 572 | COVER,LEVER,ATC,ROLL | ||||
| SURECOLOR SC-T7200 | 1564787 | 573 | PAD,MAINTENANCE COVER | ||||
| SURECOLOR SC-T7200 | 1568044 | 574 | LEVER,ATC,ROLL,SUB | ||||
| SURECOLOR SC-T7200 | 1568043 | 575 | LEVER,ATC,ROLL | ||||
| SURECOLOR SC-T7200 | 1718503 | 579 | POROUS PAD PAPER GUIDE,FRONT,D,ASP | ||||
| SURECOLOR SC-T7200 | 2155243 | 608 | COOLING FAN,PS | ||||
| SURECOLOR SC-T7200 | 2155242 | 609 | COOLING FAN,HDD | ||||
| SURECOLOR SC-T7200 | 1559877 | 610 | MIDDLE FULCRUM,ROLLER,PF | ||||
| SURECOLOR SC-T7200 | 2153105 | 611 | HARNESS | ||||
| SURECOLOR SC-T7200 | 1568046 | 618 | BASE,LEVER,ATC,ROLL | ||||
| SURECOLOR SC-T7200 | 2155241 | 620 | COOLING FAN,BOX | ||||
| SURECOLOR SC-T7200 | 1656122 | 621 | SHEET,FFC,CARRIAGE,SUB,B | ||||
| SURECOLOR SC-T7200 | 1573753 | 626 | TORSION SPRING,0.483 | ||||
| SURECOLOR SC-T7200 | 1568039 | 627 | LEVER,DETECTOR,ROLL PAPER | ||||
| SURECOLOR SC-T7200 | 1619650 | 628 | HELICAL COMBINATION GEAR,14.494,8.28 | ||||
| SURECOLOR SC-T7200 | 2142795 | 629 | HARNESS,DETECTOR,CUTTER | ||||
| SURECOLOR SC-T7200 | 1653522 | 630 | HOLDER,WHEEL,EJ,UPPER,ASSY,ASP | ||||
| SURECOLOR SC-T7200 | 2125016 | 631 | FERRITE CORE,3A5-JPN-100K | ||||
| SURECOLOR SC-T7200 | 1731589 | 635 | BLADE,ASSY D.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1668342 | 638 | FERRITE CORE ASSY.,ESL,ASP | ||||
| SURECOLOR SC-T7200 | 1482181 | 639 | CUT WASHER,10X0.5X13,L/NA | ||||
| SURECOLOR SC-T7200 | 1568051 | 640 | GUIDE,SHAFT,TRANSMISSION,ATC | ||||
| SURECOLOR SC-T7200 | 1283977 | 641 | C.B.SCREW,2.5X16,F/ZN-3C | ||||
| SURECOLOR SC-T7200 | 1679569 | 650 | HOLDER,SENSOR,ASSY.,ASP | ||||
| SURECOLOR SC-T7200 | 1568049 | 660 | SHAFT,DRIVE,ATC,ROLL,B | ||||
| SURECOLOR SC-T7200 | 1601087 | 661 | ROLLER ASSY.,DRIVEN,ST ASP | ||||
| Manual Name | SureColor T7200 T7250 T7270 T7280 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 13.7M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor T7200 T7250 T7270 Series |
