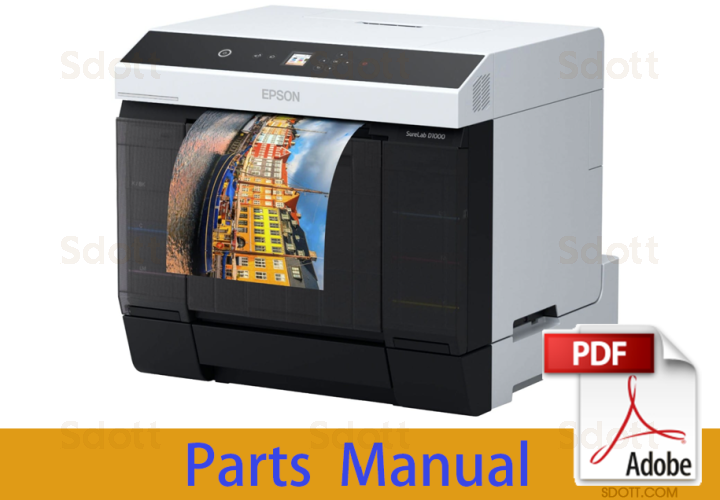

Parts Manual for EPSON SureLab SL-D1000 D1050 D1070

In stock
SKU
EP-D1000-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20

SureLab SL-D1000 D1050 D1070 Parts Manual

www.sdott.com



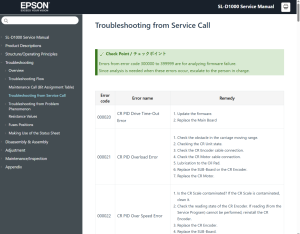

SureLab SL-D1000 D1050 D1070

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

1856819100DUPLEX ASSY.,CJ33,EPPI
1861109101PAPER WASTE BOX ASSY.,CJ33,EPPI
1880468102PANEL ASSY.,CJ33, ASP,EPPI
1846977103COVER,TOP
1875423104HOUSING TOP ASSY.,ASP,CJ33,EPPI
1856547105COVER,TRAY,LEFT
1846981106COVER,TRAY,RIGHT
1846983107HOUSING,REAR
1846314108TRAY,INK PACK
1847006109COVER,USB
1846987110HOUSING,RIGHT
1846985111HOUSING,LEFT
2020393112DETECTOR,LEAF,B2
1875425113HOLDER ROLLER ASSY.,ASP,CJ33,EPPI
1847007114HOUSING,FRONT,RIGHT
1847008115HOUSING,FRONT,LEFT
1847009116HOUSING,PANEL,SUPPORT
1746179117BUTTON,PS
1849129118LABEL,PAPER SIZE,PAPER SUPPORT
1847015119STACKER,SUPPORT
2184028120COOLING,FAN
1880467121DUCT FAN RIGHT ASSY.,CJ33, ASP,EPPI
1913880122DUCT FAN LEFT ASSY.,CJ33, ASP,EPPI
1858677123FILTER,ENCLOSURE,B
2210754124HEATER,265V
2153297125FAN,HEATER,W40S24BUA5-08J33
2210759126THERMOSTAT,B-2A(95)
1609814127SEAL,FAN
1846978128COVER,PAPER SUPPORT
1846958129GROUNDING PLATE,POWER SUPPLY
2214441200BOARD ASSY.,MAIN
2207228201WIRELESS LAN USB MODULE
2202150202BOARD ASSY.,POWER SUPPLY
2210078203BOARD ASSY.,DRV
2210082204BOARD ASSY.,SUB
2203360205FUSE
2185996206BOARD ASSY.,PANEL
2210080207BOARD ASSY.,PANEL
2214842208FAN, COOLING, HEAD_DRV, CJ33
2208474209LCD MODULE
1846982210COVER,INLET
2210141211HARNESS,INLET
1846991212LENS,LED
1846923213SHIELD PLATE,BOARD,AID
2153747214BOARD ASSY.,SUB
1846779215CAP,AID SUB ASSY
1846921216BASE,CAP,AID
1846922217SHIELD PLATE,AID
1847039218GROUNDING SPRING,ROLLER,PF
1845873219FRAME,GUIDE,TUBE,SUB
2210134220HARNESS,DRV
1846949221GROUNDING PLATE,ASF
2210780231HARNESS,GROUNDING,MOTOR,ROLL
2210775232HARNESS,DETECTOR,RS
2210773233HARNESS,DETECTOR,ROLL,B
1846010234SHEET,GUIDE,HARNESS,ROLL
2210776235HARNESS,DETECTOR,RE
2210779237HARNESS,GROUNDING,MOUTING PLATE,ROLL
2210995238HARNESS,DETECTOR,RELEASE,PF
2210774239HARNESS,DETECTOR,DECURL
2210755240HARNESS,RELAY,HEATER
2210756241HARNESS,RELAY,HEATER,B
2210989242HARNESS,DETECTOR,PAPER WASTE,BOX
2210979243HARNESS ASSY.,DETECTOR,DUPLEX
2210974244HARNESS,DETECTOR,DUPLEX
2210741246HARNESS,DETECTOR,CUTTER
2211068247HARNESS,AID
2211000249HARNESS,DETECTOR,PE
2211001250HARNESS,DETECTOR,PE,PF
2211069251HARNESS,GROUND,CR
2210751252HARNESS,RELAY,MOTOR,CR
2210757254HARNESS,RELAY,HEATER,C
2210988255HARNESS,DETECTOR,COVER,TOP
1847389256GUIDE,HARNESS,FRAME
2210975257HARNESS,ELECTRICAL CLUTCH,DUPLEX
2210135261HARNESS,WiFi
2210136262HARNESS,PANEL
2210992263HARNESS,DETECTOR,COVER,TRAY,RIGHT
2210991264HARNESS,DETECTOR,COVER,TRAY,LEFT
2210987265HARNESS,DETECTOR,THERMO-HYGRO
2210139266HARNESS,DC
2210140267HARNESS,AC
2210986268HARNESS,DRAWER CONNECTOR
2210138269HARNESS,SUB
2213295271HARNESS,RELAY,MOTOR,DUPLEX
2213293272HARNESS,RELAY,MOTOR,PF
2213294273HARNESS,RELAY,MOTOR,RELEASE,PF
2213298274HARNESS,RELAY,MOTOR,CUTTER
2213297275HARNESS,RELAY,MOTOR,ROLL
2213296276HARNESS,RELAY,MOTOR,DECURL
2210990277HARNESS,DETECTOR,COVER,PAPER SUPPORT
2211350278HARNESS,GROUND,CIS,UPPER
2210778279CABLE,ENCODER,DECURL
2210740280CABLE,ENCODER,CUTTER
2210999281CABLE,ENCODER,PF
1846851282HOLDER,CABLE,HEAD
1847397283SHEET,GUIDE,CABLE
2210976284CABLE,ENCODER,DUPLEX
2207412285GROUNDING CABLE,MAINTENANCE
1846957286SHEET,PROTECTION,CABLE
2210744287CABLE,ENCODER,CR
2210743288CABLE,DETECTOR,PW
2210745289CABLE,HEAD
2210746290CABLE,HEAD,B
2210747291CABLE,HEAD,C
2210748292CABLE,HEAD,D
2210131296FFC,AID
2210881297FFC,CSIC,A
2210882298FFC,CSIC,B
2210883299FFC,CSIC,C
2210885300FFC,CRCM,B
2210884304FFC,CRCM,A
2210887305FFC,MB,CSIC
2210132306FFC,PANEL
2210133307FFC,DRV
2210137308FFC,SUB
2210129309FFC,CISM1
2210130310FFC,CISM2
1864849501TUBE,DUCT ASSY.,CJ33,EPPI
1846945502FRAME,SIDE,RIGHT,REAR
1846324503HOLD,DECOMPRESSION PUMP
1846503504POROUS PAD,INK RECEIVE,A
1864850505DECOMPRESSION PUMP ASSY.,CJ33,EPPI
2176802506BOARD ASSY.,SNS
1846543507FRAME,EARTH,IS
1876479508MAINTENANCE UNIT .,CJ33,EPPI, ASP
1846509510POROUS,INK LEAK,MENTE
1847395511GROUNDING PLATE,FRAME
1896324512IH UNIT,H,W.,CJ33,EPPI, ASP
1915452512IH UNIT,H,W.,CJ33,EPPI, ASP
1896325513IH UNIT,F,W.,CJ33,EPPI, ASP
2176012514SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F
1848605515NEEDLE,HOLDER,INK EJECT
1860791516TORSION SPRING,CLAMP,4.4
1880462517COVER DETECTOR PW ASSY.,CJ33, ASP,EPPI
2154774518BOARD ASSY.,SENSOR
1851881519SCALE,CR
1577238520TORSION SPRING,13.13
1845846521COVER,CR
2210742522MOTOR ASSY.,CR
1875424523CR SUB B ASSY(HEAD SL-D1000)
1893908523CR SUB B ASSY.,ASP,CJ33,EPPI-N
1292709524TIMING BELT,CR
1845849525COVER,ENCODER,CR
1880463526CARRIAGE MAIN ASSY.,CJ33, ASP,EPPI
1859908527FFC CR ASSY.,CJ33,EPPI
1845862528STOPPER,CR    sdott.com
1845860529HOLDER,SCALE,CR
2216916530BOARD ASSY.,ENCODER
1891802531PAPER GUIDE FRONT ASSY.,CJ33, ASP EPPI
2187890533BOARD ASSY.,ENCODER
2124332535BOARD ASSY.,ENCODER,PF,C
1847024536SCALE,PF
1548518538SCALE,PF
1846858540SPUR GEAR,16.8,DUPLEX
1880464541DRIVE GEAR ASSY.,CJ33, ASP,EPPI
1846868542GROUNDING PLATE,MOTOR,DUPLEX
2210978543MOTOR ASSY.,DUPLEX
1846860544COMBINATION GEAR,16.8,30.4
2176061545ELECTROMAGNETIC CLUTCH,MCA-35TL,HOPPER
1880465546RELEASE GEAR ASSY.,CJ33, ASP,EPPI
1292727547COMBINATION GEAR,30,35.2,39.6
2210994548MOTOR ASSY.,RELEASE,PF
2143464549PHOTO INTERRUPTER
1891303551SHAFT RELEASE PF ASSY.,CJ33,ASP,EPPI
1846862552COVER,SENSOR,DUPLEX
1846927553FRAME,MAIN
1847019554HOLDER,SHAFT,RELEASE,PF
1571779555PAPER GUIDE,UPPER,INNER
1571780556PAPER GUIDE,UPPER,OUTER
2121502557DETECTOR,CASSETTE,SUB
1571778558ROLLER,DRIVEN,PF
1571776559SHAFT,ROLLER,DRIVEN,20
1668135560SHAFT,ROLLER,DRIVEN,38.4,C
1891304561FRAME ROLLER RELEASE ASSY.,CJ33,EPPI
1858492562CIS MODULE ASSY.,CJ33,EPPI
2169368563CIS MODULE
1891306564PAPERGUIDE REAR LOWER.CJ33EPPI(1891802)
2181575565PHOTO INTERRUPTER
1845874566GROUNDING PLATE,CUTTER
1845864567CUTTER ASSY.
2210738568MOTOR ASSY.,CUTTER
1853003570EXTENSION SPRING,21.07
2210996571MOTOR ASSY.,PF
1848269572TIMING BELT,60S2M234GB
1606487573STOPPER,ROLL,B
1860909574PAPER GUIDE ROLL LOWER ASSY.,CJ33,EPPI
1858530575GATHER FELT ASSY.,CJ33,EPPI
1898078577ROLL EDGE GUIDE ASSY.,CJ33,EPPI
1906984578PAPER ROLLER ASSY.,CJ33,EPPI, ASP
2158910579BOARD ASSY.,ENCORDER,PF,B
1845994581COMBINATION GEAR,12,23.838
1845995582COMBINATION GEAR,18,24
2210769584MOTOR ASSY.,DECURL
2210768585MOTOR ASSY.,ROLL
1449280587IDLE ROLLER,10
1437536589SCALE,SC  www.sdott.com
1845962590ROLLER ROLL 1ST ASSY.,CJ33,EPPI
1845992591SHAFT,DECURL,CAM
1610832592STOPPER,CASSETTE,OPT
2154529593DRAWER CONECTOR 1-1612257-4
1571819594COMBINATION GEAR,13.6,20.8
1551454595COMBINATION GEAR,28.8,13.6,ASF,2ND
1292726596COMBINATION GEAR,10.8,26
1262674597COMBINATION GEAR,11,22
1262675598COMBINATION GEAR,8,22.986
1654656599BUSHING,6,B
1846886600POROUS PAD,PAPER GUIDE,FRONT
1845872601SHEET,GUIDE,TUBE
