Parts Manual for EPSON SureLab SL-D700
In stock
SKU
EP-D700-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| 1633213 | 101 | WASTEPAPER,BOX ASSY,CD62 ESL ASP |
| 1633217 | 102 | HOUSING FRONT ASSY,CD62 ESL ASP |
| 1620853 | 103 | HOUSING,COVER,TOP,B |
| 1606119 | 104 | HOUSING,TOP |
| 1606128 | 105 | COVER,IC,LEFT |
| 1606129 | 106 | COVER,IC,RIGHT |

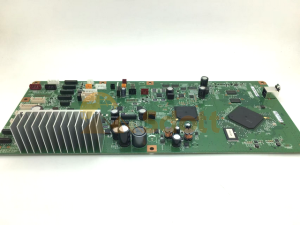

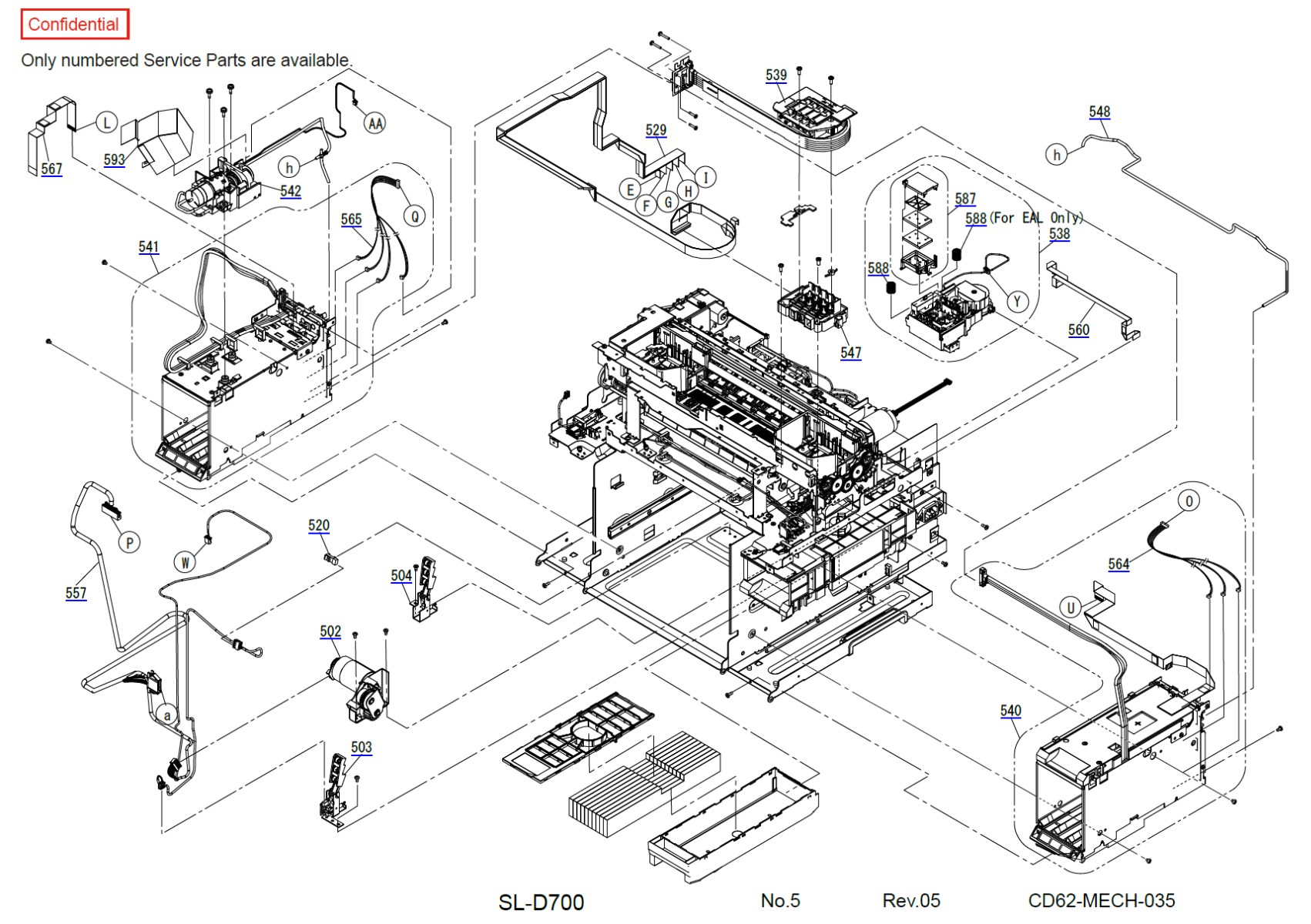

| 2163353 | 200 | BOARD ASSY.,MAIN |
| 2186769 | 200 | BOARD ASSY.,MAIN |
| 2157121 | 201 | BOARD ASSY.,MCU |
| 2154132 | 202 | BOARD ASSY.,POWER SUPPLY 684F,CD27 ASP STANDARD |
| 2188983 | 202 | BOARD ASSY.,POWER SUPPLY |
| 2149057 | 203 | BOARD ASSY.,SUB |
| 1619741 | 204 | AID,BOARD ASSY ESL,ASP |
| 2152542 | 205 | HARNESS,HEATER |
| 2153382 | 206 | HARNESS,SET |
| 2152881 | 207 | HARNESS |
| 2152880 | 208 | HARNESS |
| 2152877 | 209 | HARNESS |
| 2152882 | 210 | HARNESS |
| 2181208 | 210 | HARNESS |
| 1619770 | 501 | COVER,TUBE ASSY ASP |
| 1619740 | 502 | MOTOR ROLL ASSY,ASP |
| 1697839 | 502 | MOTOR ROLL ASSY,ASP |
| 1745453 | 502 | MOTOR ROLL ASSY,ASP |
| 1619771 | 503 | FLAGG,SENSOR,ROLLED PAPER ASSY ESL R ASP |
| 1619772 | 504 | FLAGG,SENSOR,ROLLED PAPER ASSY ESL L ASP |
| 1706069 | 505 | DUCT,FAN_Assy LEFT A,UNIT,ASP |
| 1619744 | 505 | DUCT,FAN_Assy LEFT UNIT,ASP |
| 1697860 | 506 | DUCT,FAN_Assy RIGHT UNIT,A,ASP |
| 1619745 | 506 | DUCT,FAN_Assy RIGHT UNIT,ASP |
| 1708796 | 507 | PAPER GUIDE,MIDDLE ASSY A ESL,ASP |
| 1639346 | 507 | PAPER GUIDE,U SHAPE,MIDDLE ASSY ESL,ASP |
| 1619747 | 508 | APG ASSY ESL,ASP |
| 1619773 | 509 | SHAFT,RELEASE,PAPER GUIDE,UPPER ASP |
| 1697842 | 509 | SHAFT,RELEASE,PAPER GUIDE,UPPER ASP |
| 1299818 | 510 | HOLDER,SHAFT,RELEASE |
| 1619748 | 511 | DETECTOR PE ASSY ESL,ASP |
| 1619749 | 512 | FRAME EJ ASSY ESL,ASP |
| 1619750 | 513 | PAPER GUIDE,UPPER ASSY ESL,ASP |
| 1697841 | 513 | PAPER GUIDE,UPPER ASSY ESL,ASP |
| 1619751 | 514 | ROLLER IDLE ASSY ESL ASP |
| 1668161 | 515 | ROLL MAIN ASSY.,A CD62 ESL,ASP |
| 1698049 | 515 | ROLL MAIN ASSY.,A CD62 ESL,ASP |
| 1606153 | 516 | ROLLER ASSY.,ROLL,LOWER |
| 1695898 | 516 | ROLLER ASSY.,ROLL,LOWER,C |
| 1606161 | 517 | ROLLER ASSY.,ROLL,UPPER |
| 1606199 | 518 | PAPER GUIDE,ROLL,UPPER |
| 2167430 | 519 | HARNESS,ROLL,FRONT,B |
| 2152625 | 520 | SENSOR,KUA0100B |
| 1619774 | 521 | EDGE GUIDE,FRONT_Assy,ASP |
| 1619775 | 522 | SHAFT,DRIVEN,ROLL ASSY,ASP |
| 1706070 | 522 | SHAFT,DRIVEN,ROLL ASSY,ASP |
| 1706071 | 523 | ROLL,MIDDLE A Assy,ASP |
| 1619776 | 523 | ROLL,MIDDLE_Assy,ASP |
| 1619753 | 524 | HOLDER,EDGE GUIDE,REAR_Assy,ASP |
| 1619754 | 525 | SHAFT,CAM,ROLLER,DECURL_Assy,ASP |
| 1697840 | 525 | SHAFT,CAM,ROLLER,DECURL_ASSY,ASP |
| 1619755 | 526 | PAPER GUIDE,ROLL,LOWER_Assy,ASP |
| 1633214 | 527 | CUTTER U ASSY,CD62 ESL ASP |
| 1793983 | 527 | CUTTER U ASSY,CD62 ESL ASP |
| 1640393 | 528 | FRAME,HEATER ASSY.,B,ESL,ASP |
| 1697858 | 528 | FRAME,HEATER ASSY.,B,ESL,ASP |
| 1619758 | 529 | CABLE,HEAD ASSY ASP |
| 1619777 | 530 | CR CAM,PG KIT ASP |
| 1633219 | 531 | CARRIAGE ASSY ESL ASP |
| 1292709 | 532 | TIMING BELT,CR |
| 1619760 | 533 | PULLEY,DRIVEN ASSY ESL ASP |
| 1619761 | 534 | U-UNDER ASSY ESL,ASP |
| 1619762 | 535 | ROLLER PF ASSY ESL,ASP |
| 1712349 | 535 | ROLLER PF ASSY,A,ESL,ASP |
| 1846613 | 535 | ROLLER PF ASSY,A,ESL,ASP |
| 1651185 | 536 | D!#PAPER GUIDE,FRONT ASSY ESL[1651185] |
| 1619764 | 537 | PAPER GUIDE,LOWER ASSY ESL,ASP |
| 1819593 | 537 | PAPER GUIDE,LOWER ASSY ESL,ASP |

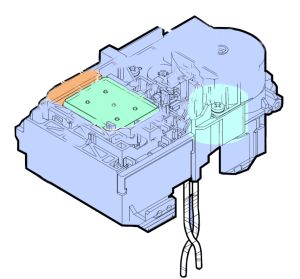

| 1671471 | 538 | PUMP CAP ASSY,A ESL,ASP |
| 1766396 | 538 | PUMP CAP ASSY,A ESL,ASP |
| 1619767 | 539 | TUBE,JOINT ASSY ESL,ASP |
| 1873806 | 539 | TUBE,JOINT ASSY ESL,ASP |
| 1886594 | 539 | TUBE,JOINT ASSY ESL,ASP |
| 1633215 | 540 | I/H RIGHT MAIN ASSY,CD62 ESL ASP |
| 1730180 | 540 | I/H RIGHT MAIN ASSY,CD62,A,ESL ASP |
| 1887866 | 540 | I/H RIGHT MAIN ASSY,CD62,A,ESL ASP |
| 1633216 | 541 | I/H LEFT MAIN ASSY,CD62 ESL ASP |
| 1730182 | 541 | I/H LEFT MAIN ASSY,CD62,A, ESL ASP |
| 1887867 | 541 | I/H LEFT MAIN ASSY,CD62,A, ESL ASP |
| 1619769 | 542 | DECOMPRESSION PUMP,ASSY ESL,ASP |
| 1712351 | 542 | DECOMPRESSION PUMP,ASSY,A,ESL,ASP |
| 1826721 | 542 | DECOMPRESSION PUMP,ASSY,A,ESL,ASP |
| 2133325 | 543 | BOARD ASSY.,ENCODER,PF |
| 2208679 | 543 | BOARD ASSY.,ENCODER,PF |
| 2210270 | 543 | BOARD ASSY.,ENCODER,PF |
| 2152538 | 544 | CABLE,ENCORDER,PF |
| 2152548 | 545 | FAN,MAIN,BOARD |
| 1606071 | 546 | HOLDER,TUBE |
| FA17000 | 547 | PRINT HEAD,ID852V |
| FA17020 | 547 | PRINT HEAD,ID852V |
| 1608061 | 548 | TUBE,DECOMPRESSION,RIGHT |
| 1403928 | 549 | SHEET,CLAMP |
| 2020393 | 550 | DETECTOR,LEAF,B2 |
| 1299874 | 551 | PAPER GUIDE,REAR |
| 1292717 | 552 | EXTENSION SPRING,HOLDER,PULLEY,DRIVEN |
| 1514904 | 553 | SCALE,CR |
| 2117492 | 554 | MOTOR ASSY.,CR |
| 1292600 | 555 | TIMING BELT,PF |
| 2091940 | 556 | MOTOR ASSY.,PF |
| 2152561 | 557 | HARNESS,RELAY,ROLL |
| 2153299 | 558 | HARNESS ASSY,RELAY,LED,RIGHT |
| 2153298 | 559 | HARNESS ASSY,RELAY,LED,LEFT |
| 2152913 | 560 | FFC,MAINTENANCE TANK |
| 1606057 | 561 | GUIDE,INK,EJECT |
| 2152549 | 562 | FAN,POWER SUPPLY,BOARD |
| 2152551 | 563 | HARNESS,RELAY,MOTOR |
| 2152909 | 564 | HARNESS,SENSOR,IE,RIGHT |
| 2152910 | 565 | HARNESS,SENSOR,IE,LEFT |
| 2152558 | 566 | CABLE,AID,BOARD |
| 2152908 | 567 | FFC,CSIC,LEFT |
| 1621732 | 568 | ROLLER ASSY.,ROLL,LOWER,B |
| 1695899 | 568 | ROLLER ASSY.,ROLL,LOWER,B |
| 1627983 | 569 | GUIDE ASSY.,UPPER ASSY ESL,ASP |
| 1619629 | 570 | SCREW,HEATER,DUCT |
| 1606468 | 572 | SLIDE RAIL,20-D200-023 |
| 1643794 | 574 | IDLE,ROLLER |
| 1679985 | 582 | CAP,AID ASSY ESL,ASP |
| 1654656 | 584 | BUSHING,6,B |
| 1306477 | 586 | SPUR GEAR,PLANET |
| 1684805 | 587 | CAP HEAD ASSY ASP |
| 1766395 | 587 | CAP HEAD ASSY ASP |
| 1711298 | 589 | FRAME LEFT REAR ASSY,A,ESL,ASP |
| 1606151 | 590 | SPUR GEAR,31 |
| 1606257 | 592 | TENSION SPRING,0.21 |
| 1703734 | 593 | COVER,MOTOR,DP |
| Manual Name | EPSON SureLab SL-D700 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 8.27M |
| Pages | 7 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureLab D700 |
