EPSON WF-2010 PX-105 Parts Manual

In stock
SKU
EP-WF2010-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON WF-2010 PX-105 Parts Manual
Format PDF
PDF Archive 2.80M
Pages 4
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-2010 Series




****** The following content is not included in the PDF manual, please use it online ******

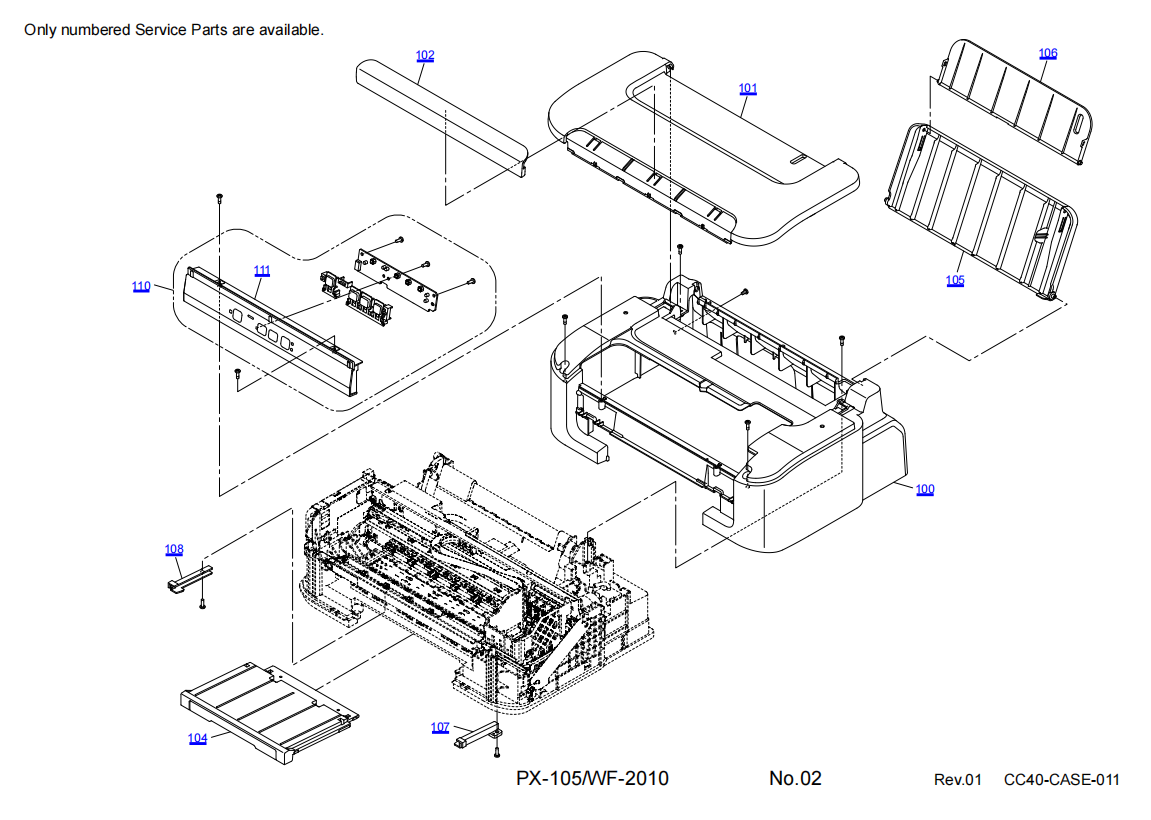

Article Reference Description
1579318 100 HOUSING,UPPER
1579330 101 COVER,PRINTER
1579332 102 COVER,PRINTER,SUPPORT
1587362 104 STACKER ASSY.CC40,,SEC
1579320 105 PAPER SUPPORT
1579322 106 PAPER SUPPORT,SUB
1581134 107 RAIL,STACKER,RIGHT
1581141 108 RAIL,STACKER,LEFT
1587360 110 PANEL ASSY,CC40.,SEC
1684380 110 PANEL ASSY,CC40.,SEC
1579334 111 HOUSING,PANEL
2152386 201 BOARD ASSY.,MAIN 6663L,CC40 STANDARD
2158967 201 BOARD ASSY.,MAIN 6663L,CC40 STANDARD
2155276 201 Ersetzt durch: 2158967
2152527 202 WIRELESS LAN USB MODULE
2167573 202 WIRELESS LAN USB MODULE
1587389 204 ETHER ASSY.CC40,SEC
1799810 204 ETHER ASSY.CC40,SEC
2149974 300 Ersetzt durch: 2153844
2153844 300 Ersetzt durch: 2153883
2153883 300 POWER SUPPLY UNIT
2107708 400 POWER CABLE
1572338 501 LEVER,DETECTOR,PE,HD
1548500 502 ROLLER,EJ
1548501 503 SPUR GEAR,31.2
1548502 504 MOTOR ASSY.,PF
1548519 505 BOARD ASSY.,ENCORDER,PF
1584704 507 HOLDER RETARD ASSY.,SEC
1799734 507 HOLDER RETARD ASSY.,SEC
1597297 508 FRAME PUMP ASSY,B,SEC
1799731 508 FRAME PUMP ASSY,B,SEC
1569342 509 HOLDER STARWHEEL ASSY
1573559 510 SHAFT,ROLLER,LD,ASSY,IEI
1577712 511 SCALE,CR
1548480 512 EXTENSION SPRING,1.41
1577546 513 CAP ASSY.,IEI
1589549 514 PGF ASSY,B,SEC,ASP
2142590 515 MOTOR ASSY,CR
1550812 516 PGU ASSY
1598001 517 CR ASSY,C,SEC
1615020 518 FFC CR ASSY.,B,SEC
1556085 519 POROUS PAD,PAPER GUIDE,FRONT,LOWER,B
1593845 519 POROUS PAD,PAPER GUIDE,FRONT,LOWER,B
1549887 520 LEVER,PAPER BACK
1548518 521 SCALE,PF
1584705 522 ROLLER PF ASSY.,SEC
1799735 522 ROLLER PF ASSY.,SEC
1572545 523 TIMING BELT, CR
2141062 525 CABLE,PIS
2150454 526 BOARD ASSY.,SUB
1548528 527 CLUTCH
1548529 528 SPUR GEAR,37.2
1548530 529 EXTENSION SPRING,0.137
1548494 530 EXTENSION SPRING,0.067
1572561 531 POROUSPAD,IS,LOWER
1572544 532 SHEET,SCALE,PF
1548561 533 LEVER,LOCK,SLIDER
1612779 535 SHEET,GUIDE,FFC
1579317 541 COVER,MOTER,PF
FA04000 700 Ersetzt durch: FA04040
1584718 701 HOLDER BOARD ASSY.,SEC
1799718 701 HOLDER BOARD ASSY.,SEC
1587395 702 HOPPER ASSY.CC40,SEC
1799808 702 HOPPER ASSY.CC40,SEC
1584721 703 TRAY POROUSPAD,ASSY.,SEC
1495647 704 COMPRESSION SPRING,3.43
