EPSON WF-2660 WF-2661 PX-M650F Parts Manual

In stock
SKU
EP-WF2660-PM
$1.10
  • Email with download link immediately
  • Files without viruses
  • PDF format service manual
  • Allow high-definition printing
Links
$1.10
More Information
Manual Name EPSON WF-2660 WF-2661 PX-M650F Parts Manual
Format PDF
PDF Archive 2.68M
Pages 5
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-2600 Series




****** The following content is not included in the PDF manual, please use it online ******

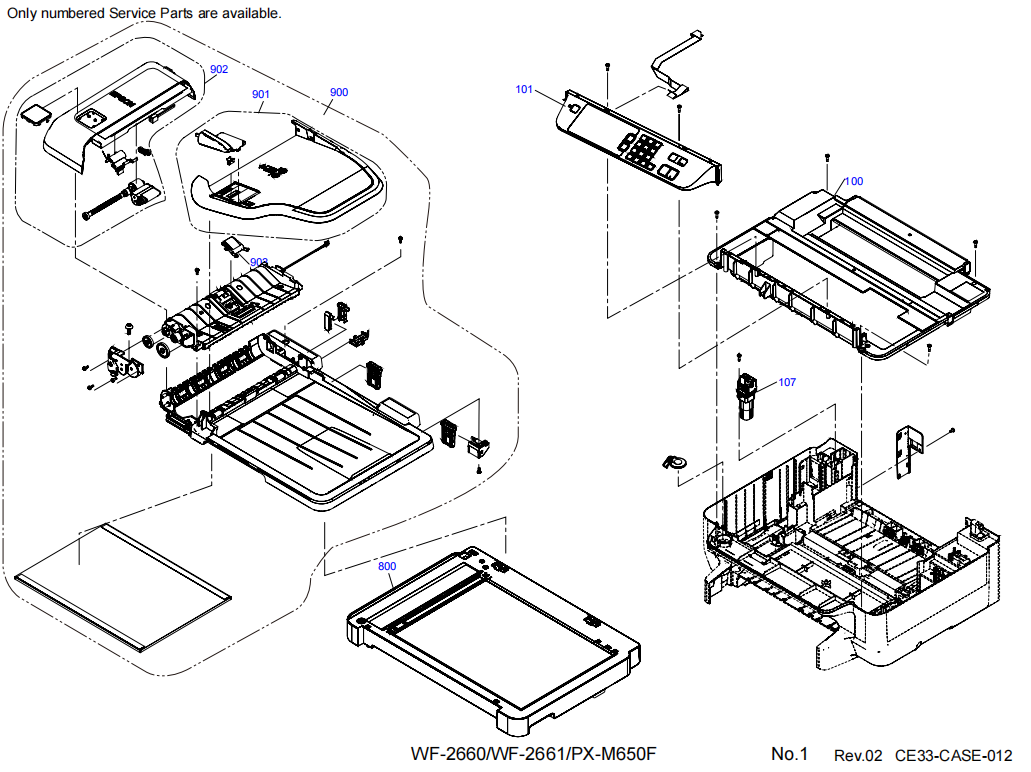

Article Reference Description
1631129 100 HOUSING,UPPER
1633511 101 PANEL,ASSY,IEI
1438860 107 HINGE,ASSY.,B
2168672 200 BOARD ASSY.,MAIN 6816B,CE33 STANDARD
2166821 200 Ersetzt durch: 2166081
2155184 200 Ersetzt durch: 2166821
2166081 200 Ersetzt durch: 2168672
2164588 202 Ersetzt durch: 2169342
2169342 202 Ersetzt durch: 2171396
2171396 202 WIRELESS LAN USB MODULE
2172191 202 WIRELESS LAN USB MODULE
1634830 203 FAX,ASSY.,CE33,SEC
1797878 203 FAX,ASSY.,CE33,SEC
1646168 205 INTERFACE BOARD ASSY.,ASP
1822509 205 INTERFACE BOARD ASSY.,ASP
2161580 300 POWER SUPPLY UNIT
2193662 300 POWER SUPPLY UNIT
2165526 500 PRINTER MECHANISM,CD77,ASP
2167253 500 PRINTER MECHANISM,CD77,ASP
2187535 500 PRINTER MECHANISM,CD77,ASP
1823318 500 PRINTER MECHANISM,CD77,ASP
1631076 503 POROUS PAD,PAPER GUIDE,LOWER
1528839 504 PICK UP ASSY.,IEI
1633452 507 PAD,LEVER,PE,ASSY.,IEI
1633500 508 STACKER,ASSY,IEI
1697789 508 STACKER,ASSY,IEI
1797870 508 STACKER,ASSY,IEI
1643392 509 ENCODER PF ASSY,ASP
2109393 510 BOARD ASSY.,DETECTOR,PW,B
1651388 511 POROUS PAD,PAPER GUIDE,FRONT,ASP
1633453 516 PAPER,GUIDE,UPPER,ASSY.,IEI
1643393 525 PIS SENSOR ASSY,ASP
1823325 525 PIS SENSOR ASSY,ASP
1633520 701 HOLDER,BOARD,ASSY,IEI
1755329 701 HOLDER,BOARD,ASSY,IEI
1634019 703 DUPLEX,ASSY,IEI
1797868 703 DUPLEX,ASSY,IEI
1851860 703 DUPLEX,ASSY,IEI
1643391 704 SCALE,CR ASSY,ASP
1823323 704 SCALE,CR ASSY,ASP
1633505 706 CASSETTE,UNIT,IEI
1797863 706 CASSETTE,UNIT,IEI
1633523 707 MAINTENANCE BOX,IEI
1797867 707 MAINTENANCE BOX,IEI
1633514 708 DETECTOR,PE,ASSY,IEI
1797864 708 DETECTOR,PE,ASSY,IEI
2162360 710 DETECTOR,ASSY,CASSETTE
1633515 715 INK SYSTEM,UNIT,IEI
1643395 800 Ersetzt durch: 1673186
1673186 800 SCANNER UNIT,CD77,ASP
1643397 900 ADF UNIT,CE33,ASP
1633494 901 DOCUMENT,SUPPORT,ADF,ASSY,IEI
1633496 902 COVER,PAPER GUIDE,LD,ADF,NFC,ASSY,IEI
1555114 903 PAD,ADF ASSY.,SEC
