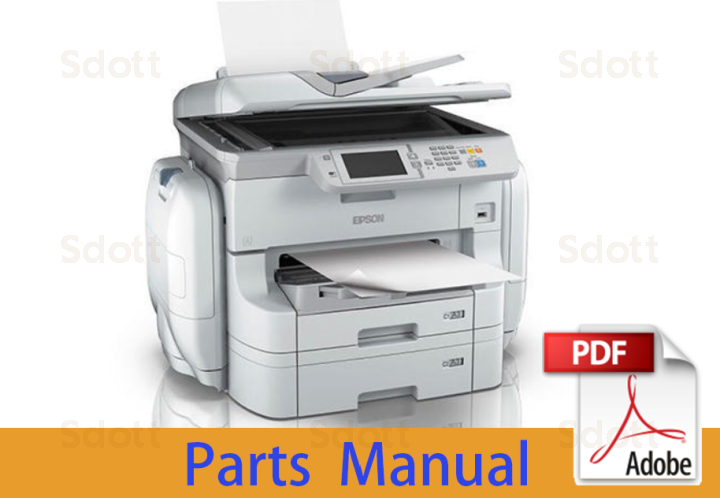

Parts Manual for EPSON WF-R8590

In stock
SKU
EP-WFR8590-PM
$1.30
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.30

Parts Manual for EPSON WF-R8590

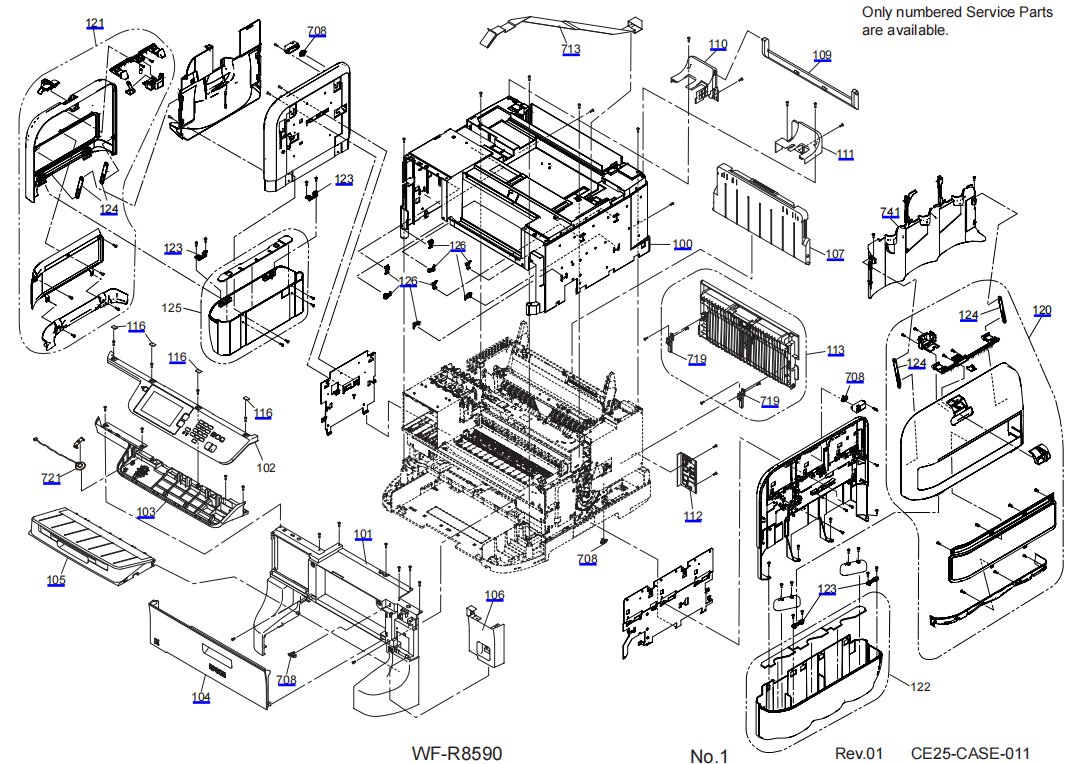

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

ArticleReferenceDescription

1649530100HOUSING,MIDDLE ASSY.,B,ASP
1709777100HOUSING,MIDDLE ASSY.,B,ASP
2162558101HOUSING,FRONT,ASSY.,ASP
1643819102PANEL UNIT CE25,SEC
1609496103HOUSING,PANEL,LOWER
1641930104COVER,FRONT,ASSY.CE68,IEI
1617464105STACKER,ASSY.,SEC
1609418106COVER,FRONT.RIGHT
1617743107PAPER SUPPORT,MIDDLE,ASSY.,SEC
1609494109GUIDE,PAPER SUPPORT
1609437110HOUSING,REAR,LEFT
1609416111HOUSING,REAR,RIGHT
2162570112COVER,CONNECTOR,ASSY,,B,ASP
1654020113COVER,REAR,ASF,ASSY.,B,SEC
1605189115LABEL,SPEED DAIAL
1626348116LABEL,BLIND,PANEL
1655138120COVER,OPENABLE,IS,CL,ASSY.,B,SEC
1655142121COVER,OPENABLE,IS,BK,ASSY.,D,SEC
1646766122HOUSING.IS,CL,ASSY.,ASP
1702913122HOUSING.IS,CL,ASSY.,ASP
1636357123GUIDE,HINGE,B
1701984123GUIDE,HINGE,B
1633399124LINK,COVER,IS
1646767125HOUSING.IS,BK,ASSY.,ASP
1702914125HOUSING.IS,BK,ASSY.,ASP
1633386126BRACKET,IS
2172787200BOARD ASSY.,MAIN 6753N,CE25 STANDARD
2170092200Ersetzt durch: 2172787
2150773201BOARD ASSY.,INTERFACE
2150783202HARNESS
2193681202HARNESS
2163374203CR CONTACT MODULE
2167573204WIRELESS LAN USB MODULE
2121674205HARNESS
2163687206BOARD ASSY.,SUB
2163375207CR CONTACT MODULE
2164602208FLASH MEMORY
2197796208FLASH MEMORY OTHERS,4 GBIT,
2150763300BOARD ASSY.,POWER SUPPLY
2177527300BOARD ASSY.,POWER SUPPLY
2180263300BOARD ASSY.,POWER SUPPLY
2180265300BOARD ASSY.,POWER SUPPLY
2187937300BOARD ASSY.,POWER SUPPLY
2191176300BOARD ASSY.,POWER SUPPLY
2168885500Ersetzt durch: 2169883
2169883500PRINTER MECHA UNIT,C,ASP
1617403501PW SHUTTER,ASSY.,SEC
1617400502MOTOR,APG,ASSY.,SEC
1617406503DRIVE APG,ASSY.,SEC
1617335504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1767608504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1608786505TIMING BELT,PF
1617333506DRIVE,PF ASSY.,SEC
2166074507DRIVE ASF,ASSY.,B,ASP
1617416507DRIVE ASF,ASSY.,SEC
1617185508IS DECOMP PUMP.,ASSY.,SEC
2155090509MOTOR ASSY.,CR
1617380510MTB JOINT,ASSY.,SEC
1840441510MTB JOINT,ASSY.,SEC
1617340511Ersetzt durch: 1670405
1670405511HOLDER,STARWHEEL ASSY.,SEC
1617388512CARRIAGE,ASSY.,SEC
2162797513SCALE,CR,ASSY.,ASP
1608899515LEVER,BLOCK,COVER,REAR,ASF
1617373516IS PUMP,ASSY.,SEC
1840442516IS PUMP,ASSY.,SEC
1617382517INK SYSTEM,ASSY.,SEC
1678674517INK SYSTEM,ASSY.,SEC
1608790519STOPPER,TENSION,PF
2143464520PHOTO INTERRUPTER
2109393521BOARD ASSY.,DETECTOR,PW,B
1614492524POROUS PAD,CR
1653940525SUPPLY,ROLLER,ASSY.,C,SEC
1608902526LEVER,DETECTOR,PAPER GUIDE,REAR,ASF
1682249526LEVER,DETECTOR,PAPER GUIDE,REAR,ASF
2169130701REAR,ASF,ASSY.,D,ASP
1746762701REAR,ASF,ASSY.,D,ASP
1614447702SHEET,GUIDE,ROOLER,RASF
1617440705LEVER,CLUTCH,ASSY.,SEC
1617439706CLUTCH,LD,ASSY.,SEC
1607033707SEAL,JOINT,HEAD
1766374707SEAL,JOINT,HEAD
2090717708LEAF SENSOR
1617397710HEAD FFC,ASSY.,SEC
2091058711BOARD ASSY.,PE
1619731712USB HOST ASSY,,SEC
2150779713HARNESS
2169508715CASSETTE,ASSY.,D,SEC,ASP
1617459716EDGE GUIDE,REAR,CASSETTE,ASSY.,SEC
2169165718DUP ASSY.,ASP
1705890718DUP ASSY.,ASP
1712233718DUP ASSY.,ASP
1600316719BELT,STOPPER,MSF
1639099720INK SUPPLY,ASSY.CE68,SEC
2154516721SPEAKER
1633298730TUBE ASSY.,SUPPLY,INK,BK
1633295731TUBE ASSY.,SUPPLY,INK,CY
1633296732TUBE ASSY.,SUPPLY,INK,MA
1633297733TUBE ASSY.,SUPPLY,INK,YE
2163420734CABLE,CRCM,BK
2163688735HARNESS
2163774736CABLE,CRCM,CL
1639915737HOLDER,SLIDER,INK PACK,CY,CE25,ASSY,SEC
1847802737HOLDER,SLIDER,INK PACK,CY,CE25,ASSY,SEC
1639917738HOLDER,SLIDER,INK PACK,MA,CE25,ASSY,SEC
1847803738HOLDER,SLIDER,INK PACK,MA,CE25,ASSY,SEC
1639921739HOLDER,SLIDER,INK PACK,,YE,CE25,ASSY,SEC
1847804739HOLDER,SLIDER,INK PACK,,YE,CE25,ASSY,SEC
1639911740Ersetzt durch: 1704129
1704129740HOLDER,SLIDER,INK PACK,BK,CE25,ASSY,SEC
1847801740HOLDER,SLIDER,INK PACK,BK,CE25,ASSY,SEC
1636350741COVER,INNER,IS,CL,B
1639313742NEEDLE,INK ASSY,SEC
1232191743SEAL,SUPPLY HOLE,MM-H
2169507750OPTION CASSETTE,ASSY.,C,ASP
1651944751COVER,REAR ,OPT ASSY.:B,SEC
1610795752BAND,COVER,REAR,OPT
1618402753EDGE GUIDE,REAR,CASSETTE.,ASSY,,SEC
1610805754EDGE GUIDE,RIGHT,OPT
1610901755SPUR GEAR,30,LIFT,OPT
1610850756ROLLER ASSY,VERTICAL,OPT
1618391757FRAME ASSY,RIGHT,OPT.,ASSY,,SEC
1635438758COMPRESSION SPRING,2.47,ELBOW
1610858759LEVER,DETECTOR,PAPER GUIDE,REAR,OPT
1633338760FOOT
2163432761HARNESS,DETECTOR,IS
1653127762CAP,NEEDLE,INK PACK ASSY.,ASP
1614431763LABEL,PAPER SIZE,CASSETTE
1615105764LABEL,PAPER SIZE,OPT
1653941765SUPPLY,ROLLER,ASSY.OPT,SEC
1615764766LABEL,CASSETTE POSITION,OPT
2168584800Ersetzt durch: 2173332
2173332800Ersetzt durch: 2173675
2173675800SCN/ADF ASSY.,C,ASP
2175393800SCN/ADF ASSY.,C,ASP
2179548800SCN/ADF ASSY.,C,ASP
2183968800SCN/ADF ASSY.,C,ASP
2185745800SCN/ADF ASSY.,C,ASP
1766522800SCN/ADF ASSY.,C,ASP
2150780801HARNESS MAIN-MAINB,2150780-01
2193680801HARNESS
2162566901PAPER GUIDE,UPPER,ADF ASSY,ASP
1702911901PAPER GUIDE,UPPER,ADF ASSY,ASP
1702912901PAPER GUIDE,UPPER,ADF ASSY,ASP
1615264902COVER,REAR,ADF
1609401903DECORATION,REAR,ADF
1609393904COVER,FRONT,ADF
1609400905DECORATION,FRONT,ADF
2164096906DOC,SUPPORT,ADF ASSY.,ASP
2156416906Ersetzt durch: 2164096
1609399907DOCUMENT,SUPPORT,LOWER,ADF
2156413908DOCUMENT GUIDE,LOWER,ADF ASSY,,SEC
2156412909PAD,ADF ASSY,,SEC
1616372910HINDGE ASSY.,RIGHT
1675259910HINDGE ASSY.,RIGHT
1609320911HINDGE ASSY.,LEFT
1675258911HINDGE ASSY.,LEFT
1609318912MAT,COVER DOCUMENT
2131049913ENCODER,ADF,B
1615271914COVER,ASF
2156418915LD ASSY,,SEC
1615265916COVER,RIGHT,ADF
1609392917STOPER,DOCUMENT,ADF
1626349918LABEL,BLIND,PANEL,B
1637441919LABEL,FUNCTION

More Information
Manual Name WF-R8590 Parts Manual
Format PDF
PDF Archive 6.48M
Pages 6
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-R8500 Series
