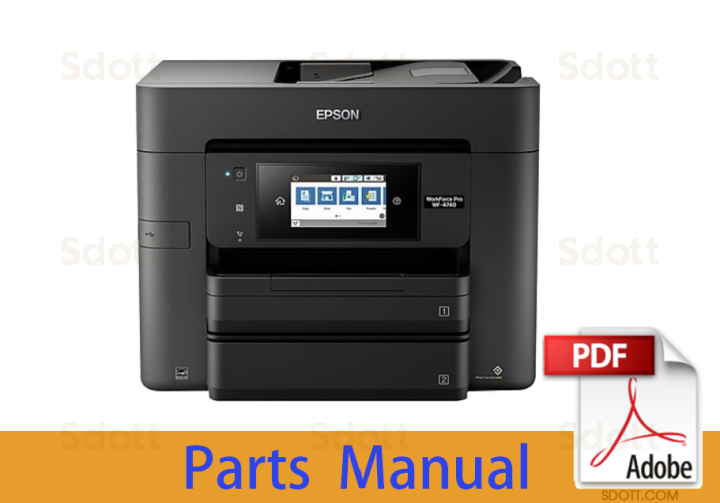

Parts Manual for Epson WorkForce WF-4740 WF-4745
In stock
SKU
EP-WF4740-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
Parts Manual for Epson WorkForce WF-4740 WF-4745
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| 1705563 | 100 | HOUSING,UPPER |
| 1730605 | 101 | PANEL ASSY,IEI,ASP |
| 1824072 | 101 | PANEL ASSY,IEI,ASP |
| 1705564 | 102 | HOUSING,LEFT |
| 1720142 | 103 | HOLDER,COVER,HOST,USB,ASSY.,ASP |
| 1824008 | 103 | HOLDER,COVER,HOST,USB,ASSY.,ASP |
| 1705565 | 104 | HOUSING,RIGHT |
| 1705567 | 105 | COVER,INK EJECT |
| 1709352 | 107 | HINGE ASSY.,IEI |
| 1870232 | 107 | HINGE ASSY.,IEI |
| 1718692 | 108 | LABEL,MODEL NAME |
| 2192662 | 200 | BOARD ASSY.,MAIN |
| 2214335 | 200 | BOARD ASSY.,MAIN |
| 1765471 | 300 | POWER SUPPLY,ASSY,H.,IEI |
| 2192161 | 352 | WIRELESS LAN USB MODULE |
| 1796940 | 353 | FAX ASSY,E.,IEI SDOTT |
| 1872012 | 353 | FAX ASSY,E.,IEI |
| 1720151 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| 1824012 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| 1720135 | 502 | SCALE,PF,ASP |
| 1824006 | 502 | SCALE,PF,ASP |
| 1631076 | 504 | POROUS PAD,PAPER GUIDE,LOWER |
| 1709357 | 505 | SPEAKER ASSY.,IEI |
| 1711555 | 506 | PE ASSY.,IEI |
| 1711566 | 507 | HOLDER CONECTOR,ASSY.,IEI |
| 1709322 | 508 | STACKER ASSY.,IEI |
| 1872019 | 508 | STACKER ASSY.,IEI |
| 2180228 | 509 | DETECTOR,ASSY.,CASSETTE |
| 1709376 | 510 | FFC HEAD,ASSY.,IEI |
| 1720165 | 511 | POROUS PAD,PAPER GUIDE,FRONT,u4,ASP |
| 1824062 | 511 | POROUS PAD,PAPER GUIDE,FRONT,U4,ASP |
| 1888001 | 511 | POROUS PAD,PAPER GUIDE,FRONT,U4,ASP |
| 1740775 | 512 | STACKER,SUPPROT, FRONT ASSY.,ASP |
| 1824022 | 512 | STACKER,SUPPROT, FRONT ASSY.,ASP |
| 1709380 | 515 | HOLDER,STARWHEEL,ASSY.,IEI |
| 1706511 | 516 | POROUS PAD,HOUSING,LOWER |
| 1706725 | 517 | TORTION SPRING,556.76 |
| 1704432 | 518 | LOCK,CASSETTE |
| 1633452 | 519 | PAD,LEVER,PE,ASSY.,SEC |
| FA32021 | 700 | PRINT HEAD,IF475V-2,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1709578 | 701 | HOLDER,BOARD,ASSY.,IEI |
| 1735068 | 702 | PICK UP ASSY,B.,IEI |
| 1721846 | 703 | DUPLEX,ASSY,CF75,IEI,ASP |
| 1824074 | 703 | DUPLEX,ASSY,CF75,IEI,ASP |
| 1604764 | 704 | SCALE,CR |
| 1805916 | 706 | CASSETTE ASSY.,B,ASP |
| 1744571 | 707 | POROUS PAD,CR |
| 1721854 | 713 | CASSETTE 2ND ASSY.,ASP |
| 1706723 | 714 | TORTION SPRING,13.11 |
| 1721847 | 715 | INK SYSTEM,ASSY.,IEI,ASP |
| 1832301 | 715 | INK SYSTEM,ASSY.,IEI,ASP |
| 1824123 | 715 | INK SYSTEM,ASSY.,IEI,ASP |
| 1872895 | 715 | INK SYSTEM,ASSY.,IEI,ASP |
| 1706495 | 716 | POROUS PAD,CAP,LOWER |
| 1545388 | 717 | PAPER GUIDE,STOPPER ASSY.,ASP |
| 1709362 | 718 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| 1729545 | 719 | UPPER GUIDE,RASF,ASSY.,ASP |
| 1824086 | 719 | UPPER GUIDE,RASF,ASSY.,ASP |
| 1522498 | 720 | SHAFT,DRIVE,PICK UP |
| 1722684 | 721 | FRAME BASE 2nd ASSY.,ASP |
| 1709582 | 722 | LABEL,INK POSITION |
| 1538780 | 725 | STOPPER,PAPER ASSY. |
| 1522511 | 726 | PAPER GUIDE,CASSETTE,MOVABLE |
| 1522512 | 727 | COMPRESSION SPRING,0.1599 |
| 1524615 | 728 | PAPER GUIDE,CASSETTE,CENTER |
| 1522485 | 729 | PAPER GUIDE,CASSETTE |
| 2150699 | 730 | LEAF SENSOR,P599 |
| 1763313 | 800 | Replace: 1824068 |
| 1824068 | 800 | SCANNER UNIT,CF75,B,ASP |
| 1770096 | 900 | ADF UNIT,CF75,IEI,ASP |
| 1824070 | 900 | ADF UNIT,CF75,IEI,ASP |
| 1721851 | 901 | DOCUMENT SUPPORT ADF,ASSY.,ASP |
| 1824078 | 901 | DOCUMENT SUPPORT ADF,ASSY.,ASP |
| 1770099 | 902 | COVER ADF,ASSY.,B,ASP |
| 1824076 | 902 | COVER ADF,ASSY.,B,ASP |
| 1782345 | 903 | PAD,ADF ASSY.,SEC SP |
| 1705587 | 904 | COVER,REAR,ADF |
| 1705585 | 906 | COVER,FRONT,ADF |
| 1550947 | 907 | MAT,COVER,DOCUMENT |
| Manual Name | WorkForce WF-4740 WF-4745 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.83M |
| Pages | 4 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-4740 WF-4745 Series |
