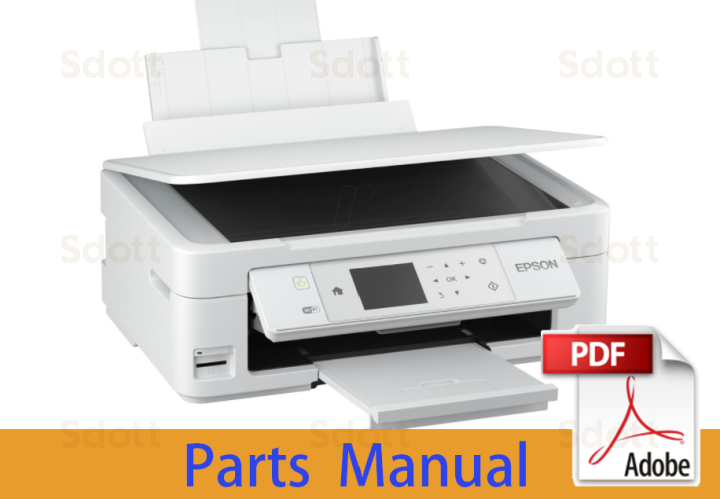

Parts Manual for EPSON XP-442 XP-445

In stock

SKU

EP-XP442-PM

$1.10

***** The following content is not included in the PDF manual *****

***** Please refer to the details ONLINE ******

Article	Reference	Description

1548586	100	HOUSING,RIGHT
1628565	101	HOUSING,LEFT
1628562	102	COVER,REAR
1656751	103	PANEL UNIT
1620221	105	PAPER SUPPORT ASSY.
2189383	200	BOARD ASSY.,MAIN
2192160	202	WIRELESS LAN USB MODULE
2168523	203	BOARD ASSY.,STORAGE
2140467	204	CR CONTACT MODULE
2139742	205	CONNECTOR,CSIC
2179218	300	POWER SUPPLY UNIT
1548493	501	LEVER,DETECTORPE
2158910	505	BOARD ASSY.,ENCORDER,PF,B
1646107	506	POROUS PAD,PAPER GUIDE,LOWER,D
1620238	507	HOLDER RETARD ASSY.
1620230	508	FRAME PUMP ASSY.
1620229	510	SHAFT ROLLER LD ASSY.
1593349	511	SCALE,CR
1620231	513	CAP ASSY.
1620233	514	PAPER GUIDE FRONT ASSY.
2176501	515	MOTOR ASSY,CR
1702935	517	CR ASSY.,CF30,METCO,ASP
2150122	518	CABLE,HEAD,F2,35
2149815	519	CABLE,CSIC,F2
2150124	519	CABLE,CSIC,F2
1548518	521	SCALE,PF
2145562	525	CABLE,PIS
2150454	526	BOARD ASSY.,SUB
1548528	527	CLUTCH
1548529	528	SPUR GEAR,37.2
1548530	529	EXTENSION SPRING,0.137
1548494	531	EXTENSION SPRING,0.067
1548561	533	LEVER,LOCK,SLIDER
1628558	535	LEVER,DETECTOR,AP
1628560	536	EXTENSION SPRING,0.04
1628559	538	ROLLER,LEVER,DETECTOR,AP
2157770	540	BOARD ASSY.,SNS
1628555	543	HOLDER,LEVER,DETECTOR,AP
FA04040	700	Ersetzt durch: FA04060
1567191	701	HOLDER,BOARD
1638405	703	TRAY POROUS PAD ASSY.,CD87
1569226	705	LABEL,INK POSITION
1595846	706	COVER,CABLE,HEAD,F2
2179562	800	SCANNER UNIT,METCO,ASP
1694111	801	COVER DOCUMENT ASSY.
