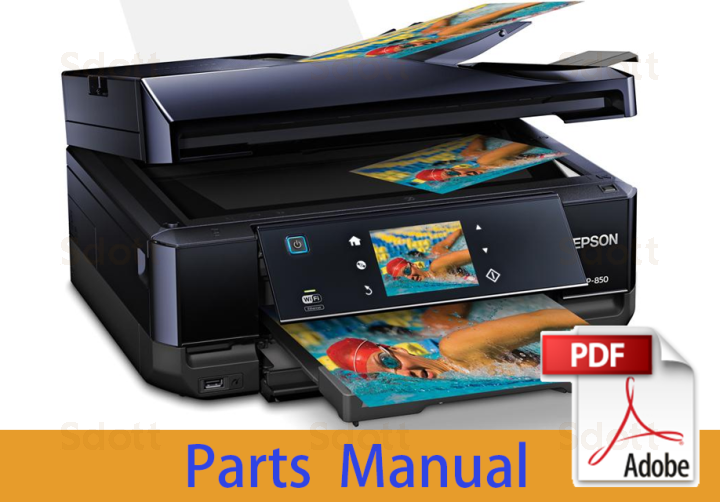

EPSON XP-820/XP-821 Parts Manual
In stock
SKU
EP-XP820-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON XP-820/XP-821 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| EXPRESSION PREMIUM XP-820 | 1633148 | 100 | HOUSING,FRONT,TOP ASSY |
| EXPRESSION PREMIUM XP-820 | 1577783 | 101 | HOUSING,LOWER,LEFT ASSY |
| EXPRESSION PREMIUM XP-820 | 1589862 | 102 | HOUSING,UPPER,EAI,ASSY,ASP |
| EXPRESSION PREMIUM XP-820 | 1629235 | 104 | HOUSING,FRONT,LEFT |
| EXPRESSION PREMIUM XP-820 | 1631648 | 105 | HOUSING,FRONT,LOWER,LEFT,B |
| EXPRESSION PREMIUM XP-820 | 1637506 | 106 | FRAME,BASE,LEFT,ASSY,ASP,F,IEI |
| EXPRESSION PREMIUM XP-820 | 1599819 | 107 | FRAME,BASE,RIGHT,D, ASSY,ASP |
| EXPRESSION PREMIUM XP-820 | 1733187 | 107 | FRAME,BASE,RIGHT,D, ASSY,ASP |
| EXPRESSION PREMIUM XP-820 | 1631679 | 108 | HOUSING,FRONT,RIGHT,G |
| EXPRESSION PREMIUM XP-820 | 1633363 | 109 | PANEL,B,ASSY |
| EXPRESSION PREMIUM XP-820 | 1632275 | 110 | FRAME,PANEL,ASSY |
| EXPRESSION PREMIUM XP-820 | 1645532 | 113 | HOUSING,FRONT,LOWER,RIGHT,B,ASP |
| EXPRESSION PREMIUM XP-820 | 1645640 | 200 | MAIN BOARD ASSY CD99,IEI |
| EXPRESSION PREMIUM XP-820 | 1630282 | 201 | FAX ASSY,B,IEI |
| EXPRESSION PREMIUM XP-820 | 2142550 | 202 | BOARD ASSY.,SUB |
| EXPRESSION PREMIUM XP-820 | 2142557 | 203 | HARNESS |
| EXPRESSION PREMIUM XP-820 | 2142560 | 204 | HARNESS |
| EXPRESSION PREMIUM XP-820 | 2159109 | 205 | HARNESS MAIN-SUBB,2159109-01 |
| EXPRESSION PREMIUM XP-820 | 2159099 | 206 | BOARD ASSY.,SUB |
| EXPRESSION PREMIUM XP-820 | 1632280 | 207 | HOUSING,FRONT,LEFT ASSY |
| EXPRESSION PREMIUM XP-820 | 2159107 | 208 | HARNESS MAIN-SUB,2159107-01 |
| EXPRESSION PREMIUM XP-820 | 2159097 | 209 | BOARD ASSY.,SUB 6843A,CD94/CD95/CD96/CD99/CE00 |
| EXPRESSION PREMIUM XP-820 | 2169341 | 210 | Ersetzt durch: 2171393 |
| EXPRESSION PREMIUM XP-820 | 2171393 | 210 | WIRELESS LAN USB MODULE |
| EXPRESSION PREMIUM XP-820 | 2142556 | 211 | HARNESS SDOTT COM |
| EXPRESSION PREMIUM XP-820 | 2140849 | 212 | CR CONTACT MODULE |
| EXPRESSION PREMIUM XP-820 | 2154774 | 213 | BOARD ASSY.,SENSOR |
| EXPRESSION PREMIUM XP-820 | 2154772 | 214 | BOARD ASSY.,SENSOR |
| EXPRESSION PREMIUM XP-820 | 2109393 | 215 | BOARD ASSY.,DETECTOR,PW,B |
| EXPRESSION PREMIUM XP-820 | 2153642 | 300 | BOARD ASSY.,POWER SUPPLY |
| EXPRESSION PREMIUM XP-820 | 1572503 | 501 | FOOT |
| EXPRESSION PREMIUM XP-820 | 1575721 | 502 | HINGE,ASSY.,ADF |
| EXPRESSION PREMIUM XP-820 | 1632058 | 503 | PAPER GUIDE,FRAME,BANK ASSY |
| EXPRESSION PREMIUM XP-820 | 1645779 | 504 | DUPLEX,UNIT,,H,IEI |
| EXPRESSION PREMIUM XP-820 | 1577864 | 505 | COVER,MSF ASSY |
| EXPRESSION PREMIUM XP-820 | 1611170 | 506 | FRAME,MSF,,D,ASSY |
| EXPRESSION PREMIUM XP-820 | 1611102 | 507 | TRAY,POROUS PAD,INK EJECT,,D,ASSY |
| EXPRESSION PREMIUM XP-820 | 1595474 | 508 | INK,SYSTEM,,B,ASSY |
| EXPRESSION PREMIUM XP-820 | 1436642 | 509 | CLAMP,TUBE |
| EXPRESSION PREMIUM XP-820 | 1573556 | 510 | POROUS PAD,INK EJECT,IS,LOWER |
| EXPRESSION PREMIUM XP-820 | 1632557 | 511 | CASSETTE,PHOTO ASSY |
| EXPRESSION PREMIUM XP-820 | 1638259 | 512 | CASSETTE,C, ASSY |
| EXPRESSION PREMIUM XP-820 | 1629766 | 513 | COVER,CASSETTE |
| EXPRESSION PREMIUM XP-820 | 1639512 | 514 | TRAY,CDR,F |
| EXPRESSION PREMIUM XP-820 | 1735347 | 514 | TRAY,CDR,F |
| EXPRESSION PREMIUM XP-820 | 1629883 | 515 | STACKER,MAIN |
| EXPRESSION PREMIUM XP-820 | 1577837 | 516 | SHAFT,STACKER,DRIVE ASSY |
| EXPRESSION PREMIUM XP-820 | 1571813 | 517 | SLIDER,TRANSMISSION,LEFT |
| EXPRESSION PREMIUM XP-820 | 1585940 | 518 | NUT PLATE,FRAME,MAIN |
| EXPRESSION PREMIUM XP-820 | 1572243 | 519 | TORSION SPRING,25.39,LEFT |
| EXPRESSION PREMIUM XP-820 | 1611301 | 520 | HOLDER,STAR WHEEL,,C,ASSY |
| EXPRESSION PREMIUM XP-820 | 1572244 | 521 | TORSION SPRING,44.24,RIGHT |
| EXPRESSION PREMIUM XP-820 | 1571772 | 522 | TORSION SPRING,5.1 |
| EXPRESSION PREMIUM XP-820 | 1611062 | 523 | PAPER GUIDE,FRONT,,C,ASSY |
| EXPRESSION PREMIUM XP-820 | 1607102 | 524 | COVER,CLIP,B |
| EXPRESSION PREMIUM XP-820 | 1571762 | 525 | POROUS PAD,PAPER GUIDE,LOWER |
| EXPRESSION PREMIUM XP-820 | 1611329 | 526 | SCALE,CR,B |
| EXPRESSION PREMIUM XP-820 | 1572225 | 528 | COVER,CR,FRONT |
| EXPRESSION PREMIUM XP-820 | 1632596 | 529 | CONNECTOR,CSIC,B,ASSY |
| EXPRESSION PREMIUM XP-820 | 1589856 | 530 | CABLE HEAD,ASSY,ASP |
| EXPRESSION PREMIUM XP-820 | 1611533 | 531 | GUIDE,IC,B |
| EXPRESSION PREMIUM XP-820 | 1589857 | 532 | COVER,FFC ASSY,ASP |
| EXPRESSION PREMIUM XP-820 | 1638191 | 533 | ENCODER,PF,E ASSY |
| EXPRESSION PREMIUM XP-820 | 1577835 | 534 | HOLDER,CAM ASSY |
| EXPRESSION PREMIUM XP-820 | 1612525 | 535 | PAPER GUIDE,UPPER,INNER,B,ASSY |
| EXPRESSION PREMIUM XP-820 | 1577851 | 536 | PAPER GUIDE,UPPER,OUTER ASSY |
| EXPRESSION PREMIUM XP-820 | 1577469 | 539 | POROUS PAD,PAPER GUIDE,LOWER,E |
| EXPRESSION PREMIUM XP-820 | 1571763 | 541 | POROUS PAD,PAPER GUIDE,LOWER,B |
| EXPRESSION PREMIUM XP-820 | 1577828 | 542 | FRAME,PICKUP UNIT |
| EXPRESSION PREMIUM XP-820 | 1577369 | 543 | COMPRESSION SPRING,0.084 |
| EXPRESSION PREMIUM XP-820 | 1577824 | 544 | HOLDER,DETECTOR,CASSETTE,PHOTO ASSY |
| EXPRESSION PREMIUM XP-820 | 2143464 | 545 | PHOTO INTERRUPTER |
| EXPRESSION PREMIUM XP-820 | 1607398 | 547 | SPUR GEAR,14.4,B |
| EXPRESSION PREMIUM XP-820 | 1607397 | 548 | SPUR GEAR,17.6,B |
| EXPRESSION PREMIUM XP-820 | 1612529 | 549 | DUAL ONE WAY CLUTCH,B,ASSY |
| EXPRESSION PREMIUM XP-820 | 1607392 | 550 | COMPRESSION SPRING,0.57 |
| EXPRESSION PREMIUM XP-820 | 1572152 | 551 | SHAFT,DRIVE,PICKUP |
| EXPRESSION PREMIUM XP-820 | 2144455 | 552 | CABLE,ENCODER,B |
| EXPRESSION PREMIUM XP-820 | 2165120 | 553 | CABLE,CRCM |
| EXPRESSION PREMIUM XP-820 | 1572125 | 559 | COVER,PE,FRAME,BANK |
| EXPRESSION PREMIUM XP-820 | FA09050 | 700 | PRINT HEAD,ID284V-5 |
| EXPRESSION PREMIUM XP-820 | 5130574 | 701 | PAD,SHEET,CR |
| EXPRESSION PREMIUM XP-820 | 5130846 | 702 | PAD,CR,B |
| EXPRESSION PREMIUM XP-820 | 2157284 | 800 | SCANNER UNIT,CD29,IEI,ASP |
| EXPRESSION PREMIUM XP-820 | 1620188 | 801 | HOUSING,UPPER,SC,B,ASSY,ASP |
| EXPRESSION PREMIUM XP-820 | 1612531 | 802 | CARRIAGE,CIS,SC,B,ASSY |
| EXPRESSION PREMIUM XP-820 | 1575744 | 803 | HOUSING,LOWER,REAR,LEFT,SC |
| EXPRESSION PREMIUM XP-820 | 1575745 | 804 | HOUSING,LOWER,REAR,RIGHT,SC |
| EXPRESSION PREMIUM XP-820 | 1575720 | 807 | COVER,REAR,LEFT,ADF |
| EXPRESSION PREMIUM XP-820 | 1575719 | 808 | COVER,REAR,RIGHT,ADF |
| EXPRESSION PREMIUM XP-820 | 2157285 | 900 | ADF UNIT,CD29,IEI,ASP SDOTT.COM |
| EXPRESSION PREMIUM XP-820 | 1577795 | 901 | COVER,ADF ASSY |
| EXPRESSION PREMIUM XP-820 | 1575713 | 902 | COVER,REAR,ADF |
| EXPRESSION PREMIUM XP-820 | 1589871 | 903 | COVER,DOCUMENT,SUPPORT,ADF,ASSY,ASP |
| EXPRESSION PREMIUM XP-820 | 1575711 | 904 | COVER,STACKER,ADF |
| EXPRESSION PREMIUM XP-820 | 1577803 | 905 | PAD,ADF ASSY |
| EXPRESSION PREMIUM XP-820 | 1577821 | 906 | DOCUMENT,SUPPORT,ADF ASSY |
| EXPRESSION PREMIUM XP-820 | 1575715 | 907 | BASE,ADF |
| EXPRESSION PREMIUM XP-820 | 1575716 | 908 | STACKER,SUB,ADF |
| EXPRESSION PREMIUM XP-820 | 1575714 | 909 | COVER,RIGHT,ADF |
| EXPRESSION PREMIUM XP-820 | 1575718 | 910 | GUIDE,HINGE |
| EXPRESSION PREMIUM XP-820 | 1575709 | 911 | COVER,FRONT,ADF |
| EXPRESSION PREMIUM XP-820 | 1611191 | 912 | MOUNTING PLATE,MAT,B,ASSY |
| EXPRESSION PREMIUM XP-820 | 1033657 | NON FIG | GREASE G-45 |
| EXPRESSION PREMIUM XP-820 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| EXPRESSION PREMIUM XP-820 | 1409257 | NON FIG | GREASE G-74 |
| EXPRESSION PREMIUM XP-820 | 1561125 | NON FIG | GREASE,G-94 |
| EXPRESSION PREMIUM XP-820 | 1590700 | NON FIG | GREASE,G-96 (40g) |
| EXPRESSION PREMIUM XP-820 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| EXPRESSION PREMIUM XP-820 | 1645685 | NON FIG | INK CART.UNBOXED,BK,PIG'T,764CMEC,260,AS P0601, |
| EXPRESSION PREMIUM XP-820 | 1645687 | NON FIG | INK CART.UNBOXED,C,DYE,764CM,EC,261,AS P0601, |
| EXPRESSION PREMIUM XP-820 | 1645688 | NON FIG | INK CART.UNBOXED,M,DYE,764CM,EC,261,AS P0601, |
| EXPRESSION PREMIUM XP-820 | 1645686 | NON FIG | INK CART.UNBOXED,PBK,DYE,764CM,EC,261,AS P0601, |
| EXPRESSION PREMIUM XP-820 | 1645689 | NON FIG | INK CART.UNBOXED,Y,DYE,764CM,EC,261,AS P0601, |
| EXPRESSION PREMIUM XP-820 | 2107708 | NON FIG | POWER CABLE |
| EXPRESSION PREMIUM XP-820 | 6022798 | NON FIG | SHIPPING CLEANING LIQUID,CR02,18KG |
| EXPRESSION PREMIUM XP-820 | 6022805 | NON FIG | SHIPPING CLEANING LIQUID,CR02,1KG |
| EXPRESSION PREMIUM XP-820 | 1032813 | NON FIG | STRONG TAPE NO.388 BLUE |
| Manual Name | EPSON XP-820/XP-821 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 8.15M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON XP-820/XP-821 Series |
