Gates UNITTA U-550 Sonic Belt Tension Meter (Replace U-508) - 1640645

In stock
SKU
UN-U550
$940.00
  • Buy 2 for $925.00 each and save 2%
  • Buy 4 for $906.00 each and save 4%
More Information
Parts Name Gates UNITTA Sonic Belt Tension Meter
Brand UNITTA
Parts Code 1640645 / 1294120
Type TOOLS
Condition Genuine, Original ,100% Brand-new, Unused, Undamaged, Original Packaging

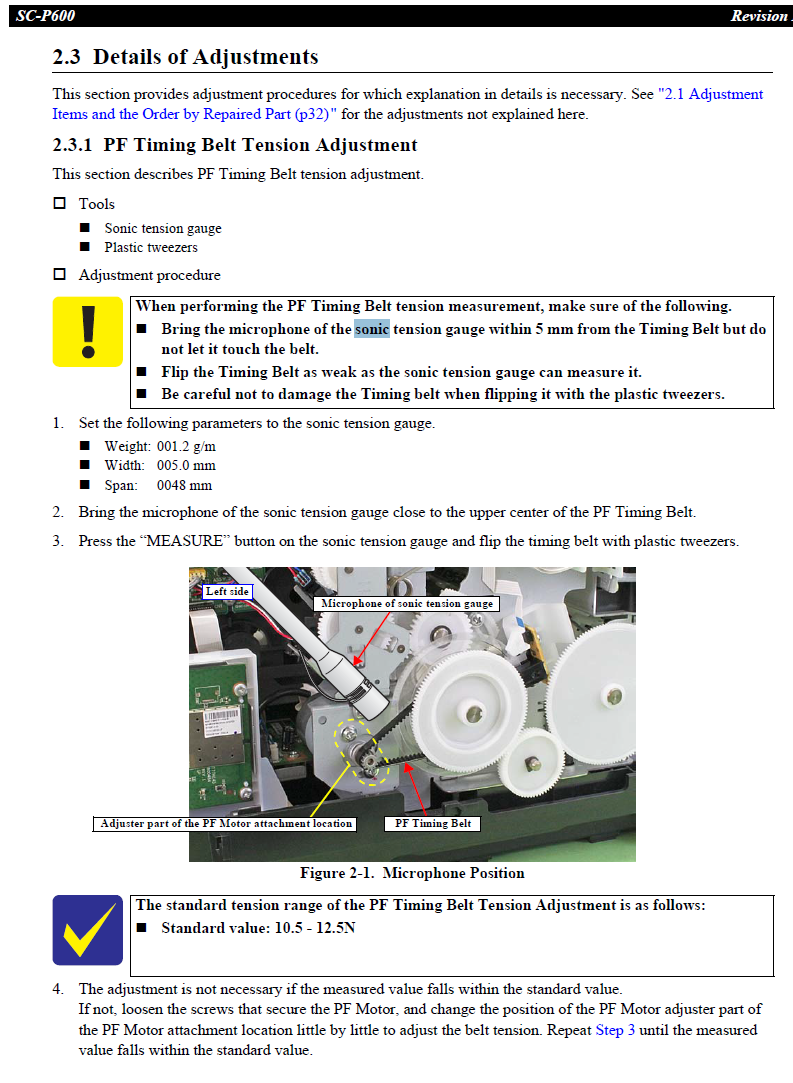

Compatible Model For printer belt tension measurement
Packaged Weight (kg) 0.5
Packaged Size (cm) 25*15*12
Service Manual Gates UNITTA U-550 Operation Manual

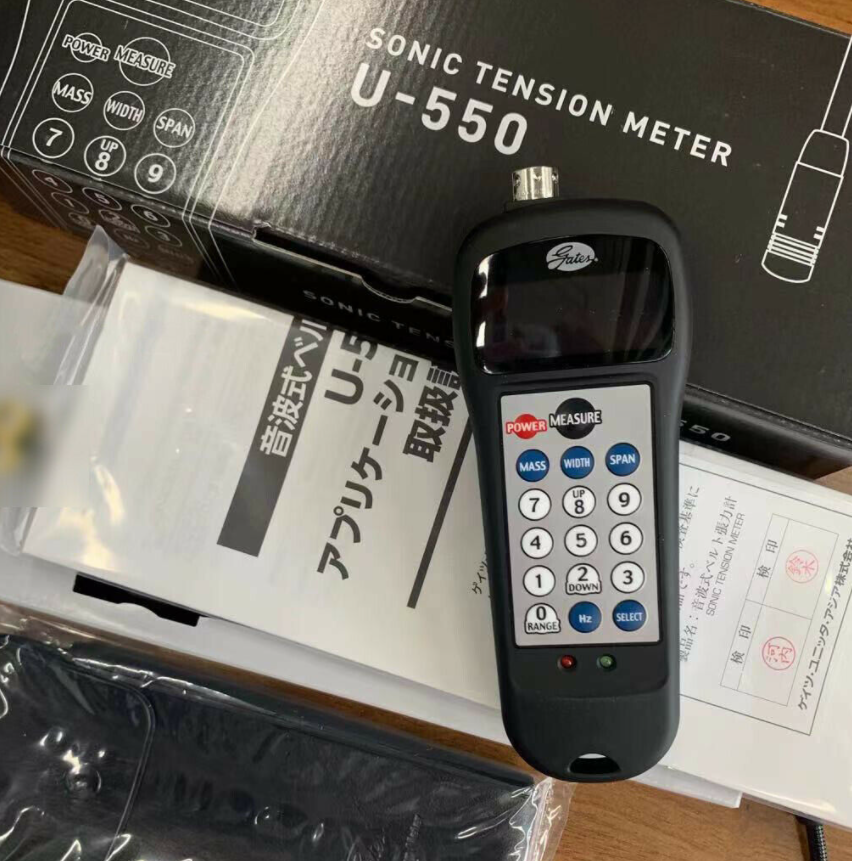

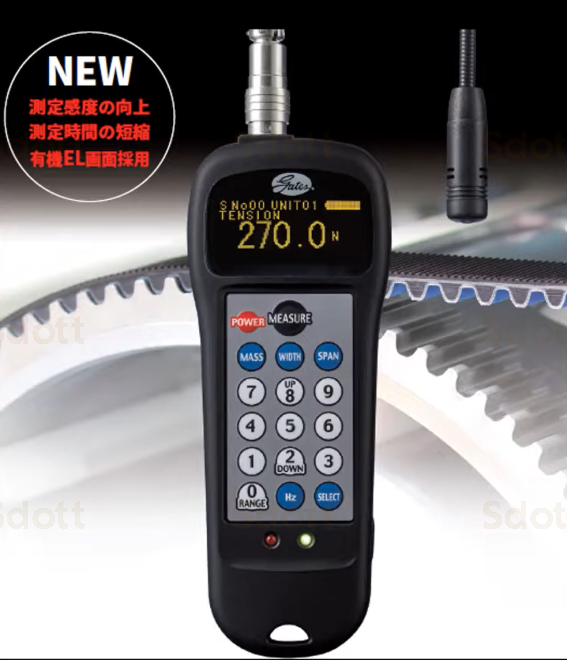

Gates UNITTA U-550 Sonic Belt Tension Meter

(Upgraded product of U-508 model)

Tension value: 0.01-99900N

Frequency range: 10-5000hz

1. The vibration waveform under different conditions can be measured by analog signal processing, and the period of the waveform can be read, and the tension value can be calculated by the processing of the frequency of the weekly wave number
2. Automatic noise removal and noise interference

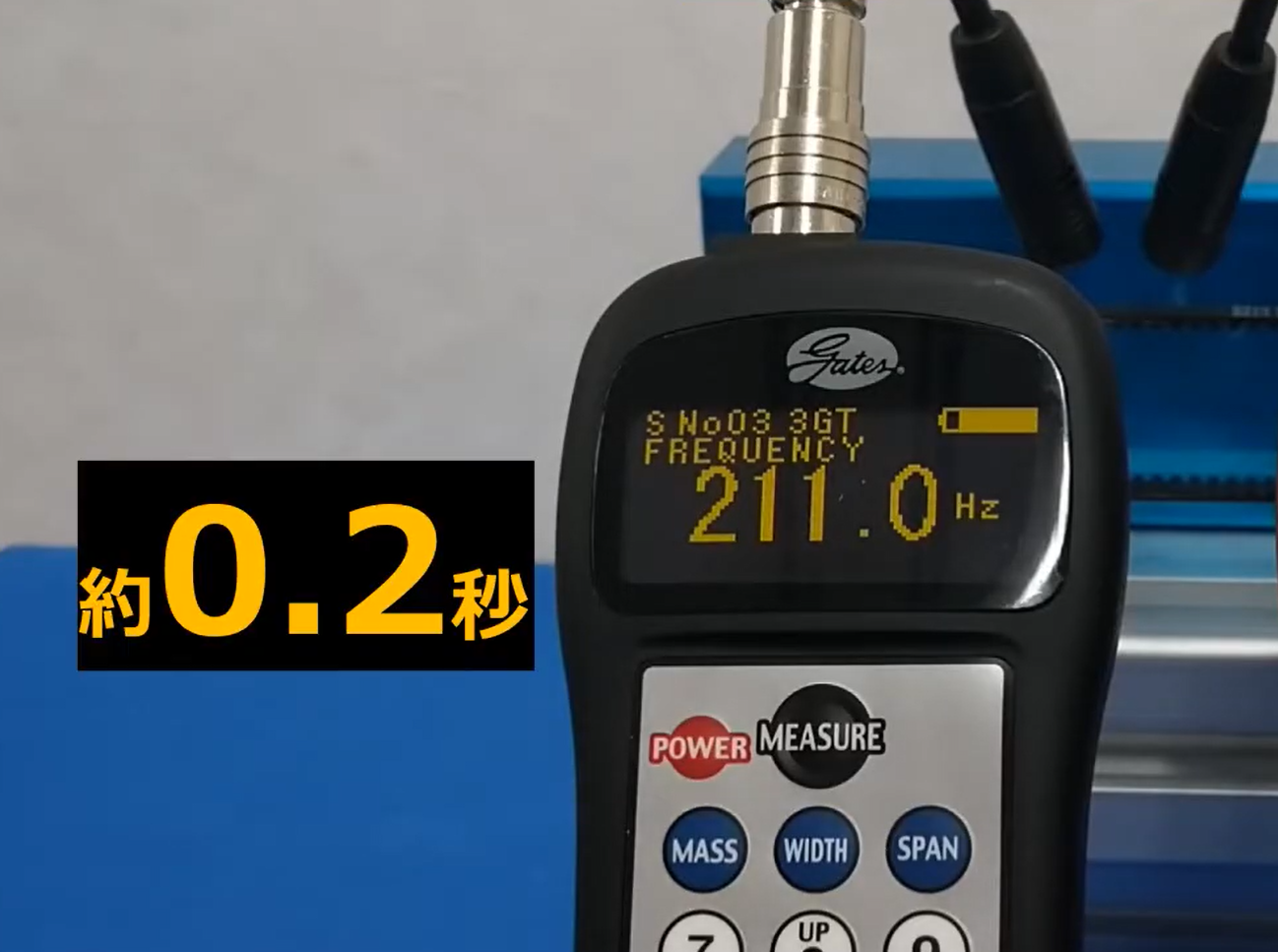

3, large screen display, can display tension value and frequency value at the same time, the unit tension of measured values and standard values, the display unit mass, the conveyor belt width and length of the conveyor belt, three kinds of display mode you can choose any one of them
4. The microphone is more sensitive to low frequency, which can be used for the measurement of large conveyor belts
It's small, light and human



● Power Supply: Two AAA batteries. Alkaline
  battery is recommended.
● Overall Size: 160(H) × 59(W) × 26(T)

● Mass: 120g
● Temperature and humidity range for use and
  storage: -10~50℃, 80%
  (free from condensation)

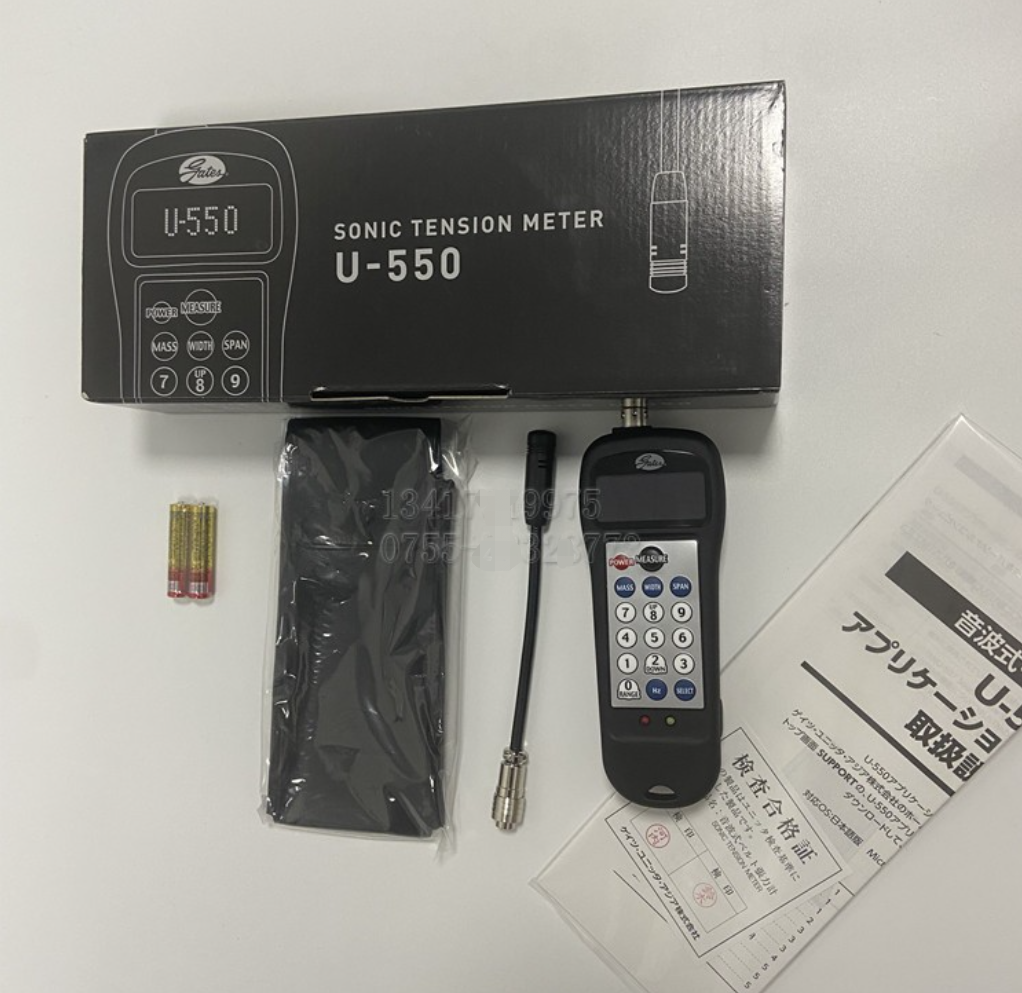

1) Flexible type sensor
   ・ Sensor outer diameter: 12.5mm
   ・ Total length: 170mm
   ・ Measurable frequency band: 10Hz~5000Hz

2) Soft case for carrying
   ・ Capable of containing the body of tension meter,
     flexible type sensor etc.
   ・ Total length: 170mm
   ・ Measurable frequency band: 10Hz~5000Hz

3) Two AAA batteries
4) Operation m anual of U-550
5) Operating procedure sheet for carrying
6) Inspection acceptance certificate
7) Warranty
8) Two USB connecting caps (one is for a spare)
9) Operating m anual of application software for U-550
  *Please use the MINI-B 5 as USB connector
