Parts Manual for EPSON SureColor P7300 P7330 P7340 P7350 P7360 P7370

In stock
SKU
EP-P7300-PM
$8.95
Compare
Email

Share it:

  • Download link sent instantly via email
  • Virus-free & safe files
  • Manual in PDF format
  • Supports high-definition printing

Share it:

Links
$8.95



EPSON SureColor P7300 P7330 P7340 P7350 P7360 P7370 Series

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

SURECOLOR SC-P7300150732301PIPE,BASKET,CENTER,24,ASP
SURECOLOR SC-P7300180241605PAPER GUIDE BOTTOM,A,ASP
SURECOLOR SC-P7300194016507STAND RIGHT UNIT,F,ESL,ASP
SURECOLOR SC-P7300194016308STAND LEFT UNIT,F,ESL,ASP
SURECOLOR SC-P7300182149909STAY STAND ASSY.,24,B,ESL,ASP
SURECOLOR SC-P7300170582410SHAFT,BASKET,ASSY,A ASP.
SURECOLOR SC-P73001479991102STOPPER,COVER,FRONT
SURECOLOR SC-P73001479983103GROUNDING PLATE,ROLL
SURECOLOR SC-P73001774953104COVER,SIDE,RIGHT
SURECOLOR SC-P73001775769105COVER,SIDE,LEFT
SURECOLOR SC-P73001951980107COVER,ROLL,ASSY.,A,24,UNIT,ESL,ASP
SURECOLOR SC-P73001951982108COVER,IH,RIGHT,UNIT SUB,CL82,ESL,ASP
SURECOLOR SC-P73001963965109COVER,IH,LEFT,UNIT SUB,B,CL82,ESL,ASP
SURECOLOR SC-P7300149970511CASTER,P-60-HT
SURECOLOR SC-P73001821497111COVER,FRONT,24,ASSY,ESL,ASP
SURECOLOR SC-P73001480012113CATCH,STRIKER
SURECOLOR SC-P73001821500115COVER,FRONT,RIGHT,UNIT SUB,ESL,ASP
SURECOLOR SC-P73001856824116COVER,FRONT,LEFT,UNIT SUB,A,ESL,ASP
SURECOLOR SC-P73001789873117COVER,REAR,LEFT
SURECOLOR SC-P73001772273118COVER,SIDE,ROLL,LEFT
SURECOLOR SC-P73001774962119HOUSING,PANEL
SURECOLOR SC-P7300149970612CASTER,P-60-HTS
SURECOLOR SC-P73001772282120ROLL GUIDE,RIGHT
SURECOLOR SC-P73001775770121COVER,ROLL,SUPPORT,RIGHT
SURECOLOR SC-P73001775771122COVER,ROLL,SUPPORT,LEFT
SURECOLOR SC-P73001772601123COVER,CR LOCK
SURECOLOR SC-P73001775780124COVER,REAR,LEFT,LOWER
SURECOLOR SC-P73001774964125COVER,REAR,RIGHT,LOWER
SURECOLOR SC-P73001774963126COVER,REAR,RIGHT,UPPER
SURECOLOR SC-P73001835301127COVER,ROLL,LEFT,B
SURECOLOR SC-P73001789863128CAP,GATE
SURECOLOR SC-P7300150730813JOINT,PIPE,BASKET,FRONT,ASP
SURECOLOR SC-P73001796837135COVER,MAINTENANCE,BOX,B
SURECOLOR SC-P73001919166137LABEL,ULTRA CHROME INK,PRO 10
SURECOLOR SC-P73001943573138LABEL,MODEL NAME,P7300
SURECOLOR SC-P73001775512139HANDLE,FRAME,LOWER
SURECOLOR SC-P7300150730914PIPE,BASKET,FRONT,SIDE,ASP
SURECOLOR SC-P73001857187141LABEL,PRECISIONCORE,H
SURECOLOR SC-P73001798566142LABEL,PANTONE,B
SURECOLOR SC-P7300150732215PIPE,BASKET,UPPER,24,ASP
SURECOLOR SC-P73001772278150ROLL GUIDE,LEFT
SURECOLOR SC-P73001772289152COVER,SLOT,24
SURECOLOR SC-P73001821504160COVER,REAR,LEFT,SUPPORT SUB,ESL,ASP
SURECOLOR SC-P73001775778161HOUSING,PANEL,SUPPORT
SURECOLOR SC-P73001943571162LABEL,CR,DECORATION
SURECOLOR SC-P7300148159818HOLDER,PIPE,BASKET,FRONT
SURECOLOR SC-P7300148159919HOLDER,PIPE,BASKET,REAR
SURECOLOR SC-P7300515395220PAD,CR
SURECOLOR SC-P73002234612200BOARD ASSY.,MAIN
SURECOLOR SC-P73002199865201BOARD ASSY.,SUB
SURECOLOR SC-P73002234616205BOARD ASSY.,DRV
SURECOLOR SC-P73002236372206BOARD ASSY.,DRV
SURECOLOR SC-P73002228981207HARNESS,FFC,DRV-H1
SURECOLOR SC-P73002228982208HARNESS,FFC,DRV-H2
SURECOLOR SC-P73002199980209HARNESS,FFC,DRV-M1
SURECOLOR SC-P7300148030621MOUNTING PLATE,PAPER GUIDE,BOTTOM
SURECOLOR SC-P73002199981210HARNESS,FFC,DRV-M2
SURECOLOR SC-P73002199979211HARNESS,P/S,DRV-M
SURECOLOR SC-P73002175354213BOARD ASSY.,SUB
SURECOLOR SC-P73002200023214FAN, COOLING,PS
SURECOLOR SC-P7300151476322SCREW ASSY.,ASP
SURECOLOR SC-P7300195197824STAND,UNIT,24,K,D,ESL,ASP
SURECOLOR SC-P7300148161526HOLDER,ARM,BASKET,LEFT
SURECOLOR SC-P7300148159727HOLDER,ARM,BASKET,RIGHT
SURECOLOR SC-P73002237202300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-P73002199969301HARNESS,P/S,INLET1
SURECOLOR SC-P73002186088302FAN ASSY.,EJ
SURECOLOR SC-P73002200022303FAN, COOLING,HDD
SURECOLOR SC-P73002155241304COOLING FAN,BOX
SURECOLOR SC-P73001716011501GUIDE ROLL PAPER,L,UNIT,D,ESL,ASP
SURECOLOR SC-P73001821513503REWIND,UNIT SUB,ESL,ASP
SURECOLOR SC-P73001480327504RAIL,GUIDE,ROLL PAPER
SURECOLOR SC-P73002143464506PHOTO INTERRUPTER
SURECOLOR SC-P73001821528508DETECTOR,PAPER THICKNESS,UNIT,ESL,ASP
SURECOLOR SC-P73001946327509PANEL ASSY SUB,B,ESL,ASP
SURECOLOR SC-P73001504198511GUIDE,ROLL,PAPER,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P73001776823513SCALE,CR,24
SURECOLOR SC-P73002232561514MOTOR ASSY.,CR
SURECOLOR SC-P73001963070515IH ASSY.,HOME,CL82,B,ESL,ASP
SURECOLOR SC-P73001963071516IH ASSY.,FULL,CL82,B,ESL,ASP
SURECOLOR SC-P73001951988520CR Unit,24,ESL,ASP
SURECOLOR SC-P73001A37367520CR UNIT,24,ESL,ASP
SURECOLOR SC-P73001775535522COVER,CR
SURECOLOR SC-P7300FB22001523PRINT HEAD,ISB,ASP
SURECOLOR SC-P73001843038524HOLDER,MAINTENANCE,ASSY.,A,CH13,ESL,ASP
SURECOLOR SC-P73001951986526ONCR ASSY.,CL82,ESL,ASP
SURECOLOR SC-P73001686219527CLEANER WIPER ASSY.,ASP
SURECOLOR SC-P73002221373528MICRO DOOR SWITCH,D3DC-3N
SURECOLOR SC-P73001951981529BOARD ASSY.,IMS,ESL,ASP
SURECOLOR SC-P73001A37353529BOARD ASSY.,IMS,ESL,ASP
SURECOLOR SC-P73001775570530CLAMP,TUBE
SURECOLOR SC-P73001775567531HOLDER,TUBE
SURECOLOR SC-P73001908200532FFC,HEAD,24,ASSY,A,ESL,ASP
SURECOLOR SC-P73001942569535TUBE,ASSY,HOME,24,B
SURECOLOR SC-P73001942570536TUBE,ASSY,FULL,24,B
SURECOLOR SC-P73001821506538COVER,CUTTER,UNIT SUB,ESL,ASP
SURECOLOR SC-P73001520272539CATCH,B
SURECOLOR SC-P73001821511541FRAME,RAIL,CUTTER SUB 24,CH12,ESL,ASP
SURECOLOR SC-P73001772275543COVER,ROLL,SUPPORT,B
SURECOLOR SC-P73001220013554LEAF SPRING,LOCK
SURECOLOR SC-P73001821490555INK EJECT,GUIDE,UNIT,ESL,ASP
SURECOLOR SC-P73002182572557MOTOR ASSY.,ASF,SUB
SURECOLOR SC-P73001821491560FRAME,APG,UNIT SUB,ESL,ASP
SURECOLOR SC-P73002199331561HARNESS,MOTOR,APG
SURECOLOR SC-P73001963819567PUMP CAP ASSY.,F,CH13[1946814N
SURECOLOR SC-P73001507317574COMBINATION GEAR,26,12.8,ASP
SURECOLOR SC-P73001507819576Ersetzt durch: 1487679
SURECOLOR SC-P73001487679576PROTECTION PLATE FFC,ASP
SURECOLOR SC-P73001507817578PULLEY PF,ASP
SURECOLOR SC-P73002199168579MOTOR ASSY,PF
SURECOLOR SC-P73002210270581BOARD ASSY.,ENCODER
SURECOLOR SC-P73001821521583SCALE,PF,UNIT SUB,ESL,ASP
SURECOLOR SC-P73001657495584TIMING BELT,PF
SURECOLOR SC-P73001075981589EDGE SADDLE(X510250080)
SURECOLOR SC-P73002182574593MOTOR ASSY.,RELEASE
SURECOLOR SC-P73001520273597CATCH,SUPPORT SDOTT
SURECOLOR SC-P73001869535599HINGE,ASSY,COVER,FRONT,B
SURECOLOR SC-P73001718895606POROUS PAD,PAPER GUIDE,FRONT D,ASP
SURECOLOR SC-P73001718896607POROUS PAD,PAPER GUIDE,FRONT,E,ASP
SURECOLOR SC-P73001718897608POROUS PAD,PAPER GUIDE,FRONT,F,ASP
SURECOLOR SC-P73001910547610ATTACHMENT,GUIDE,ROLL PAPER,LEFT,B
SURECOLOR SC-P73002199868613BOARD ASSY.,SUB
SURECOLOR SC-P73002199595614HARNESS,FRONT COVER,LEFT,24
SURECOLOR SC-P73002199602615HARNESS,FRONT COVER,RIGHT
SURECOLOR SC-P73002199315616HARNESS,SENSOR,RELEASE
SURECOLOR SC-P73002200656617HARNESS,SENSOR,ROLL PAPER
SURECOLOR SC-P73002199169619MOTOR ASSY,MID ROLLER
SURECOLOR SC-P73002199864620BOARD ASSY.,SUB
SURECOLOR SC-P73002198449624CABLE,INK EJECT,HOME
SURECOLOR SC-P73002199293625FFC,ENCODER,MID ROLLER
SURECOLOR SC-P73002199604626HARNESS, IS MAINTENANCE COVER
SURECOLOR SC-P73002200002627HARNESS,CE46SUB-C
SURECOLOR SC-P73002199334628HARNESS,DETECTOR,HP,CR
SURECOLOR SC-P73002199320629HARNESS,FAN ASSY.,EJ
SURECOLOR SC-P73001518317631SEAL RUBBER,JOINT,ASP
SURECOLOR SC-P73001795092633BOARD ASSY.,ENCODER,CR
SURECOLOR SC-P73002199322634HARNESS,FAN ASSY.,EJ,B
SURECOLOR SC-P73002228658636FFC,ENCORDER,CR,B
SURECOLOR SC-P73002232338639BOARD ASSY.,SUB
SURECOLOR SC-P73002199327640HARNESS,DETECTOR,PG
SURECOLOR SC-P73001686220641WIPER ASSY.,ASP
SURECOLOR SC-P73002175356642BOARD ASSY.,SUB
SURECOLOR SC-P73002200020643HARNESS,RELAY,LED2,24
SURECOLOR SC-P73001686218644KEEP CAP ASSY.,ASP
SURECOLOR SC-P73002234530649CABLE,BOARD ASSY,CRCM,B
SURECOLOR SC-P73002200897650HARNESS,FFC,SUB-Y,FULL,24
SURECOLOR SC-P73002199977651HARNESS,FFC,SUB-Y,HOME
SURECOLOR SC-P73002199596652HARNESS,HEAD MAINTENANCE COVER,24
SURECOLOR SC-P73002199328653HARNESS,MOTOR,REWIND
SURECOLOR SC-P73002199970654HARNESS,P/S,MAIN
SURECOLOR SC-P73002199971655HARNESS,P/S SIG,MAIN
SURECOLOR SC-P73002200005656HARNESS,RELAY,COOLING,HDD
SURECOLOR SC-P73002200013657HARNESS,RELAY,ENC,CUTTRE,24
SURECOLOR SC-P73002200015658HARNESS,RELAY,ENC,EJRRLS,24
SURECOLOR SC-P73002199994659HARNESS,RELAY,MOTOR,PUMP
SURECOLOR SC-P73002199995660HARNESS,RELAY,ENC,PUMP
SURECOLOR SC-P73002200018661HARNESS,RELAY,ENC,RLS_M,24
SURECOLOR SC-P73002200009662HARNESS,RELAY,ENC,RLS,24
SURECOLOR SC-P73002198446663HARNESS,RELAY,ILS,6C,FULL
SURECOLOR SC-P73002198445664HARNESS,RELAY,ILS,6C,HOME
SURECOLOR SC-P73002198447665HARNESS,RELAY,INK DETECT,IH
SURECOLOR SC-P73002200003666HARNESS,RELAY,LED1
SURECOLOR SC-P73002234517667HARNESS,RELAY,MOTOR,CR,24
SURECOLOR SC-P73002200012668HARNESS,RELAY,MOTOR,CUTTER,24
SURECOLOR SC-P73002199983669HARNESS,RELAY,MOTOR,DEPRS1
SURECOLOR SC-P73002199987670HARNESS,RELAY,MOTOR,DEPRS2
SURECOLOR SC-P73002200010671HARNESS,RELAY,MOTOR,DEPRS3,24
SURECOLOR SC-P73002200011672HARNESS,RELAY,MOTOR,DEPRS4,24
SURECOLOR SC-P73002200014673HARNESS,RELAY,MOTOR,EJRRLS,24
SURECOLOR SC-P73002200007674HARNESS,RELAY,MOTOR,PF,24
SURECOLOR SC-P73002200008676HARNESS,RELAY,MOTOR,RLS,24
SURECOLOR SC-P73002200017677HARNESS,RELAY,MOTOR,RLS_M,24
SURECOLOR SC-P73002200016678HARNESS,RELAY,MOTOR,ROLL_M,24
SURECOLOR SC-P73002199601679HARNESS,ROLL COVER
SURECOLOR SC-P73002199281680HARNESS,SENSOR,RELEASE,MID ROLLER
SURECOLOR SC-P73002199974681HARNESS,PNL-B
SURECOLOR SC-P73002199324682HARNESS,ENCODER,PAPER EJECT
SURECOLOR SC-P73001797317683TUBE,INK EJECT,M
SURECOLOR SC-P73002200001684HARNESS,RELAY,P/S_FAN
SURECOLOR SC-P73002199321685HARNESS,MOTOR,RELEASE
SURECOLOR SC-P73002199280686HARNESS,MOTOR,RELEASE,MID ROLLER
SURECOLOR SC-P73002228995687HARNESS,SENSOR,IMS
SURECOLOR SC-P73002164675688HARNESS,SENSOR,PW
SURECOLOR SC-P73002201582689FFC,ENCODER,PF
SURECOLOR SC-P73002198451690HARNESS,INK DETECT
SURECOLOR SC-P73002198448691HARNESS,SENSOR,CAP,L
SURECOLOR SC-P73002234531695CABLE,BOARD ASSY,CRCM,C
SURECOLOR SC-P73001775374705GUIDE PLATE ASSY,TUBE,24
SURECOLOR SC-P73001895397706DETECTION PLATE,PAPER THICKNESS,ASSY,ASP
SURECOLOR SC-P73001776102711OIL PAD
SURECOLOR SC-P73002228983712HARNESS,FFC,PANEL
SURECOLOR SC-P73002199332713FFC,SENSOR,PE
SURECOLOR SC-P73002109393714BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-P73001775776716REFLECTOR,WARNING LIGHT
SURECOLOR SC-P73001775777717COVER,WARNING LIGHT
SURECOLOR SC-P73001821522720FLANGE,UNIT,L2 SUB,ESL,ASP
SURECOLOR SC-P73001821526724EJ,DRIVEN,MOTOR,UNIT SUB,ESL,ASP
SURECOLOR SC-P73002199599725HARNESS,COVER,IH,RIGHT
SURECOLOR SC-P73002199600726HARNESS,COVER,IH,LEFT
SURECOLOR SC-P73002185996727BOARD ASSY.,PANEL
SURECOLOR SC-P73002199973728SPEAKER,HARNESS,ASSEMBLY
SURECOLOR SC-P73001794444729SENSOR ASSY,COVER,IH
SURECOLOR SC-P73001946632771ROLLER ASSY,DRIVEN,ASSY,ESL,ASP
SURECOLOR SC-P73001507321772BASKET ASSY.,24,ASP
SURECOLOR SC-P73001953158774JOINT L ASSY.,CL82,ESL,ASP

More Information
Manual Name Parts Manual for EPSON SureColor P7300 P7330 P7340 P7350 P7360 P7370
Format PDF
PDF Archive 16.9 MB
Pages 9
Version A
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor P7300 P7330 P7340 P7350 P7360 P7370 Series
Related Products
Check items to add to the cart or

  1. Genuine PUMP CAP ASSY / Cleaning Unit for EPSON SureColor P7300 P7350 P7370 P7500 P7550 P7570 / P9300 P9350 P9370 P9500 P9550 P9570 - 1963819 / 1917861

    Genuine PUMP CAP ASSY / Cleaning Unit for EPSON SureColor P7300 P7350 P7370 P7500 P7550 P7570 / P9300 P9350 P9370 P9500 P9550 P9570 - 1963819 / 1917861
    $244.00
    Compare

  2. Genuine Paper Thickness Sensor for EPSON P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 - 1821528

    Genuine Paper Thickness Sensor for EPSON P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 - 1821528 Genuine Paper Thickness Sensor for EPSON P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 - 1821528
    $28.00
    Compare

  3. Genuine KEEP CAP ASSY for EPSON P7300 P7370 P9300 P9370 / P10000 P10050 P10070 / P20000 P20050 P20070 - 1686218

    Genuine KEEP CAP ASSY for EPSON P7300 P7370 P9300 P9370 / P10000 P10050 P10070 / P20000 P20050 P20070 - 1686218
    $169.00
    Compare

  4. Genuine CR Motor for EPSON F9200 F9270 F9300 F9370 F9400 F9470 / S40600 S60600 S80600 / B9000 P10000 P20000 / T3700 T5700 T7700 / P6500 P7300 P8500 P9300 - 2211420 / 2232561

    Genuine CR Motor for EPSON F9200 F9270 F9300 F9370 F9400 F9470 / S40600 S60600 S80600 / B9000 P10000 P20000 / T3700 T5700 T7700 / P6500 P7300 P8500 P9300 - 2211420 / 2232561
    $182.00
    Compare

Default Category

    All CategoriesClose

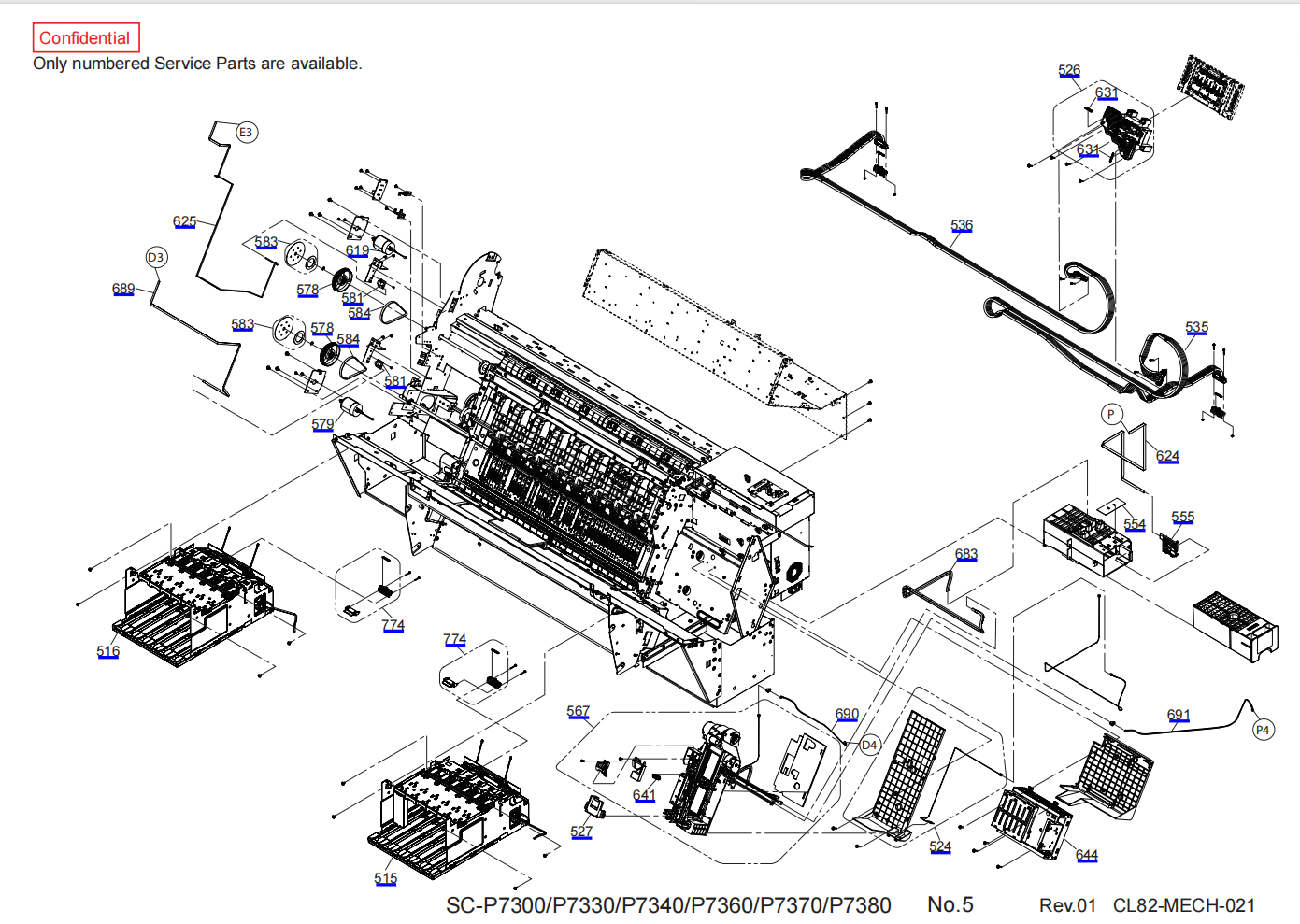

    Parts Manual for EPSON SureColor P7300 P7330 P7340 P7350 P7360 P7370
