Parts Manual for EPSON SureColor P9300 P9330 P9340 P9350 P9360 P9370

In stock
SKU
EP-P9300-PM
$8.95
Compare
Email

Share it:

  • Download link sent instantly via email
  • Virus-free & safe files
  • Manual in PDF format
  • Supports high-definition printing

Share it:

Links
$8.95



EPSON SureColor P9300 P9330 P9340 P9350 P9360 P9370 Series

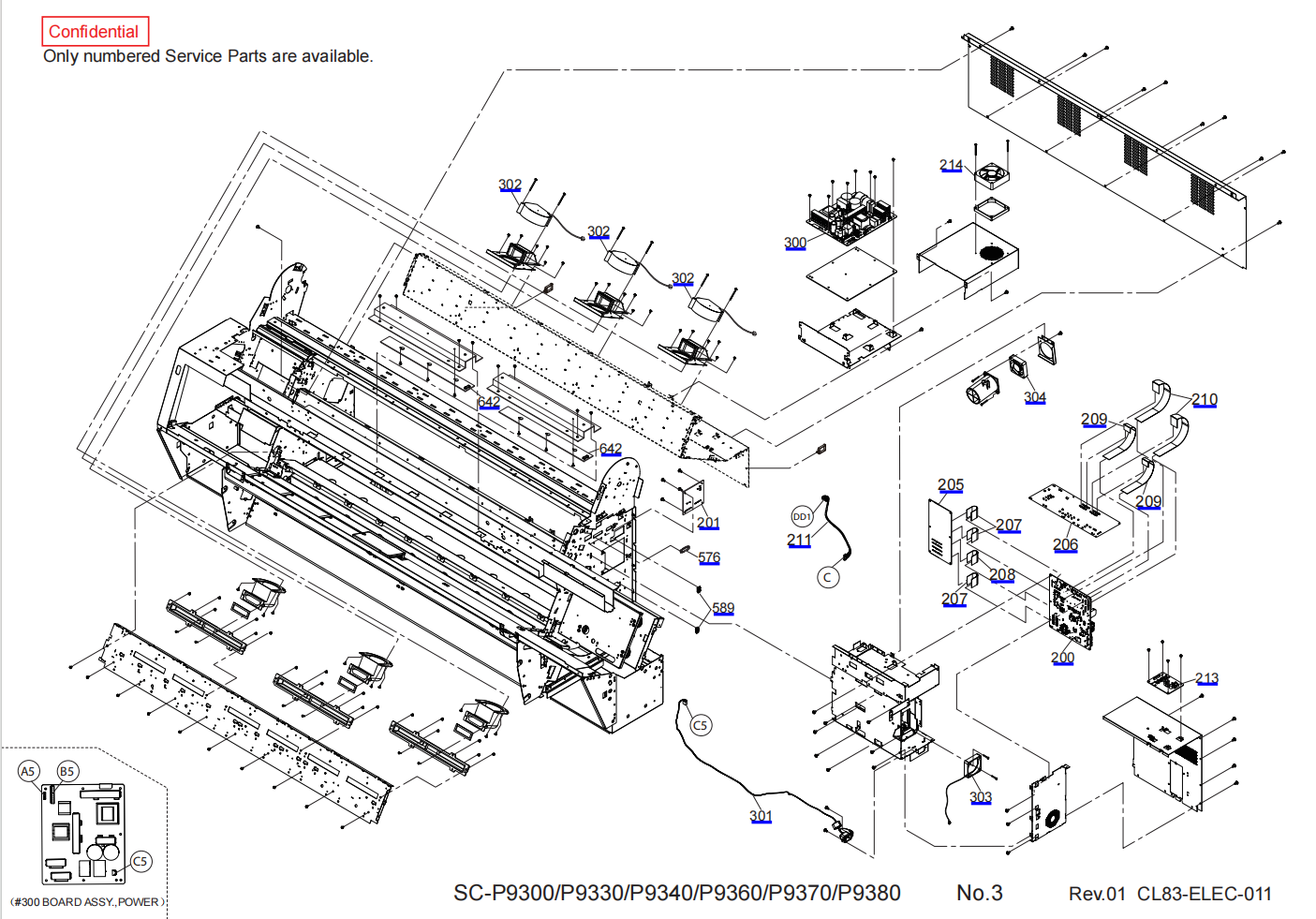

*****   The following content is not included in the PDF manual   *****

**   Please refer to the details ONLINE   ***



SURECOLOR SC-P9300150732901PIPE,BASKET,CENTER,ASP
SURECOLOR SC-P9300180241605PAPER GUIDE BOTTOM,A,ASP
SURECOLOR SC-P9300194016507STAND RIGHT UNIT,F,ESL,ASP
SURECOLOR SC-P9300194016308STAND LEFT UNIT,F,ESL,ASP
SURECOLOR SC-P9300182149809STAY STAND ASSY.,44,B,ESL,ASP
SURECOLOR SC-P9300170582410SHAFT,BASKET,ASSY,A ASP.
SURECOLOR SC-P93001479991102STOPPER,COVER,FRONT
SURECOLOR SC-P93001479983103GROUNDING PLATE,ROLL
SURECOLOR SC-P93001774953104COVER,SIDE,RIGHT
SURECOLOR SC-P93001775769105COVER,SIDE,LEFT
SURECOLOR SC-P93001951979107COVER,ROLL,ASSY.,44,UNIT,ESL,ASP
SURECOLOR SC-P93001951982108COVER,IH,RIGHT,UNIT SUB,CL82,ESL,ASP
SURECOLOR SC-P93001963965109COVER,IH,LEFT,UNIT SUB,B,CL82,ESL,ASP
SURECOLOR SC-P9300149970511CASTER,P-60-HT
SURECOLOR SC-P93001821496111COVER,FRONT,44,ASSY,ESL,ASP
SURECOLOR SC-P93001480012113CATCH,STRIKER
SURECOLOR SC-P93001821500115COVER,FRONT,RIGHT,UNIT SUB,ESL,ASP
SURECOLOR SC-P93001856824116COVER,FRONT,LEFT,UNIT SUB,A,ESL,ASP
SURECOLOR SC-P93001789873117COVER,REAR,LEFT
SURECOLOR SC-P93001772273118COVER,SIDE,ROLL,LEFT
SURECOLOR SC-P93001774962119HOUSING,PANEL
SURECOLOR SC-P9300149970612CASTER,P-60-HTS
SURECOLOR SC-P93001772282120ROLL GUIDE,RIGHT
SURECOLOR SC-P93001775770121COVER,ROLL,SUPPORT,RIGHT
SURECOLOR SC-P93001775771122COVER,ROLL,SUPPORT,LEFT
SURECOLOR SC-P93001772601123COVER,CR LOCK
SURECOLOR SC-P93001775780124COVER,REAR,LEFT,LOWER
SURECOLOR SC-P93001774964125COVER,REAR,RIGHT,LOWER
SURECOLOR SC-P93001774963126COVER,REAR,RIGHT,UPPER
SURECOLOR SC-P93001835301127COVER,ROLL,LEFT,B
SURECOLOR SC-P93001789863128CAP,GATE
SURECOLOR SC-P9300150730813JOINT,PIPE,BASKET,FRONT,ASP
SURECOLOR SC-P93001919166137LABEL,ULTRA CHROME INK,PRO 10
SURECOLOR SC-P93001943579138LABEL,MODEL NAME,P9300
SURECOLOR SC-P93001775512139HANDLE,FRAME,LOWER
SURECOLOR SC-P9300150730914PIPE,BASKET,FRONT,SIDE,ASP
SURECOLOR SC-P93001857187141LABEL,PRECISIONCORE,H
SURECOLOR SC-P93001798566142LABEL,PANTONE,B
SURECOLOR SC-P9300150732815PIPE,BASKET,UPPER,ASP
SURECOLOR SC-P93001772278150ROLL GUIDE,LEFT
SURECOLOR SC-P93001775773152COVER,SLOT,44
SURECOLOR SC-P93001821504160COVER,REAR,LEFT,SUPPORT SUB,ESL,ASP
SURECOLOR SC-P93001775778161HOUSING,PANEL,SUPPORT
SURECOLOR SC-P93001943571162LABEL,CR,DECORATION
SURECOLOR SC-P9300148159818HOLDER,PIPE,BASKET,FRONT
SURECOLOR SC-P9300148159919HOLDER,PIPE,BASKET,REAR
SURECOLOR SC-P9300515395220PAD,CR
SURECOLOR SC-P93002234614200BOARD ASSY.,MAIN
SURECOLOR SC-P93002199865201BOARD ASSY.,SUB
SURECOLOR SC-P93002234616205BOARD ASSY.,DRV
SURECOLOR SC-P93002236372206BOARD ASSY.,DRV
SURECOLOR SC-P93002199976207HARNESS,FFC,DRV-H1
SURECOLOR SC-P93002228982208HARNESS,FFC,DRV-H2
SURECOLOR SC-P93002199980209HARNESS,FFC,DRV-M1
SURECOLOR SC-P9300148030621MOUNTING PLATE,PAPER GUIDE,BOTTOM
SURECOLOR SC-P93002199981210HARNESS,FFC,DRV-M2
SURECOLOR SC-P93002199979211HARNESS,P/S,DRV-M
SURECOLOR SC-P93002175354213BOARD ASSY.,SUB
SURECOLOR SC-P93002200023214FAN, COOLING,PS
SURECOLOR SC-P9300151476322SCREW ASSY.,ASP
SURECOLOR SC-P9300195197724STAND,UNIT,44,L,ESL,ASP
SURECOLOR SC-P9300148161526HOLDER,ARM,BASKET,LEFT
SURECOLOR SC-P9300148159727HOLDER,ARM,BASKET,RIGHT
SURECOLOR SC-P93002237202300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-P93002199969301HARNESS,P/S,INLET1
SURECOLOR SC-P93002186088302FAN ASSY.,EJ
SURECOLOR SC-P93002200022303FAN, COOLING,HDD
SURECOLOR SC-P93002155241304COOLING FAN,BOX
SURECOLOR SC-P93001716011501GUIDE ROLL PAPER,L,UNIT,D,ESL,ASP
SURECOLOR SC-P93001821513503REWIND,UNIT SUB,ESL,ASP
SURECOLOR SC-P93001480327504RAIL,GUIDE,ROLL PAPER
SURECOLOR SC-P93002143464506PHOTO INTERRUPTER
SURECOLOR SC-P93001821528508DETECTOR,PAPER THICKNESS,UNIT,ESL,ASP
SURECOLOR SC-P93001946327509PANEL ASSY SUB,B,ESL,ASP
SURECOLOR SC-P93001504198511GUIDE,ROLL,PAPER,RIGHT,UNIT,ESL,ASP
SURECOLOR SC-P93001776103513SCALE,CR,44
SURECOLOR SC-P93002232561514MOTOR ASSY.,CR
SURECOLOR SC-P93001963070515IH ASSY.,HOME,CL82,B,ESL,ASP
SURECOLOR SC-P93001963071516IH ASSY.,FULL,CL82,B,ESL,ASP
SURECOLOR SC-P93001951987520CR Unit,44,ESL,ASP
SURECOLOR SC-P93001A37368520CR UNIT,44,ESL,ASP
SURECOLOR SC-P93001775535522COVER,CR
SURECOLOR SC-P9300FB22001523PRINT HEAD,ISB,ASP
SURECOLOR SC-P93001843038524HOLDER,MAINTENANCE,ASSY.,A,CH13,ESL,ASP
SURECOLOR SC-P93001951986526ONCR ASSY.,CL82,ESL,ASP
SURECOLOR SC-P93001686219527CLEANER WIPER ASSY.,ASP
SURECOLOR SC-P93002221373528MICRO DOOR SWITCH,D3DC-3N
SURECOLOR SC-P93001951981529BOARD ASSY.,IMS,ESL,ASP
SURECOLOR SC-P93001A37353529BOARD ASSY.,IMS,ESL,ASP
SURECOLOR SC-P93001775570530CLAMP,TUBE
SURECOLOR SC-P93001775567531HOLDER,TUBE
SURECOLOR SC-P93001908199532FFC,HEAD,44,ASSY,A,ESL,ASP
SURECOLOR SC-P93001942578535TUBE ASSY.,HOME,44,B
SURECOLOR SC-P93001942579536TUBE,ASSY,FULL,44,B
SURECOLOR SC-P93001821506538COVER,CUTTER,UNIT SUB,ESL,ASP
SURECOLOR SC-P93001520272539CATCH,B
SURECOLOR SC-P93001821512541FRAME,RAIL,CUTTER SUB 44,CH13,ESL,ASP
SURECOLOR SC-P93001772275543COVER,ROLL,SUPPORT,B
SURECOLOR SC-P93001220013554LEAF SPRING,LOCK
SURECOLOR SC-P93001821490555INK EJECT,GUIDE,UNIT,ESL,ASP
SURECOLOR SC-P93002182572557MOTOR ASSY.,ASF,SUB
SURECOLOR SC-P93001821491560FRAME,APG,UNIT SUB,ESL,ASP
SURECOLOR SC-P93002199331561HARNESS,MOTOR,APG
SURECOLOR SC-P93001963819567PUMP CAP ASSY.,F,CH13,ASP
SURECOLOR SC-P93001507317574COMBINATION GEAR,26,12.8,ASP
SURECOLOR SC-P93001507819576Ersetzt durch: 1487679
SURECOLOR SC-P93001487679576PROTECTION PLATE FFC,ASP
SURECOLOR SC-P93001507817578PULLEY PF,ASP
SURECOLOR SC-P93002199168579MOTOR ASSY,PF
SURECOLOR SC-P93002210270581BOARD ASSY.,ENCODER
SURECOLOR SC-P93001821521583SCALE,PF,UNIT SUB,ESL,ASP
SURECOLOR SC-P93001657495584TIMING BELT,PF
SURECOLOR SC-P93001075981589EDGE SADDLE(X510250080)
SURECOLOR SC-P93002182574593MOTOR ASSY.,RELEASE
SURECOLOR SC-P93001520273597CATCH,SUPPORT SDOTT
SURECOLOR SC-P93001869535599HINGE,ASSY,COVER,FRONT,B
SURECOLOR SC-P93001718895606POROUS PAD,PAPER GUIDE,FRONT D,ASP
SURECOLOR SC-P93001718896607POROUS PAD,PAPER GUIDE,FRONT,E,ASP
SURECOLOR SC-P93001718897608POROUS PAD,PAPER GUIDE,FRONT,F,ASP
SURECOLOR SC-P93001910547610ATTACHMENT,GUIDE,ROLL PAPER,LEFT,B
SURECOLOR SC-P93002199868613BOARD ASSY.,SUB
SURECOLOR SC-P93002199603614HARNESS,FRONT COVER,LEFT
SURECOLOR SC-P93002199602615HARNESS,FRONT COVER,RIGHT
SURECOLOR SC-P93002199315616HARNESS,SENSOR,RELEASE
SURECOLOR SC-P93002200656617HARNESS,SENSOR,ROLL PAPER
SURECOLOR SC-P93002199169619MOTOR ASSY,MID ROLLER
SURECOLOR SC-P93002199864620BOARD ASSY.,SUB
SURECOLOR SC-P93002198450623CABLE,INK EJECT,FULL
SURECOLOR SC-P93002198449624CABLE,INK EJECT,HOME
SURECOLOR SC-P93002199293625FFC,ENCODER,MID ROLLER
SURECOLOR SC-P93002199604626HARNESS, IS MAINTENANCE COVER
SURECOLOR SC-P93002200002627HARNESS,CE46SUB-C
SURECOLOR SC-P93002199334628HARNESS,DETECTOR,HP,CR
SURECOLOR SC-P93002199320629HARNESS,FAN ASSY.,EJ
SURECOLOR SC-P93001518317631SEAL RUBBER,JOINT,ASP
SURECOLOR SC-P93001795092633BOARD ASSY.,ENCODER,CR
SURECOLOR SC-P93002199322634HARNESS,FAN ASSY.,EJ,B
SURECOLOR SC-P93002228658636FFC,ENCORDER,CR,B
SURECOLOR SC-P93002199323637HARNESS,FAN ASSY,EJ,C
SURECOLOR SC-P93002232338639BOARD ASSY.,SUB
SURECOLOR SC-P93002199327640HARNESS,DETECTOR,PG
SURECOLOR SC-P93001686220641WIPER ASSY.,ASP
SURECOLOR SC-P93002175356642BOARD ASSY.,SUB
SURECOLOR SC-P93002200004643HARNESS,RELAY,LED2
SURECOLOR SC-P93001686218644KEEP CAP ASSY.,ASP
SURECOLOR SC-P93002234530649CABLE,BOARD ASSY,CRCM,B
SURECOLOR SC-P93002199978650HARNESS,FFC,SUB-Y,FULL
SURECOLOR SC-P93002199977651HARNESS,FFC,SUB-Y,HOME
SURECOLOR SC-P93002199605652HARNESS,HEAD MAINTENANCE COVER
SURECOLOR SC-P93002199328653HARNESS,MOTOR,REWIND
SURECOLOR SC-P93002199970654HARNESS,P/S,MAIN
SURECOLOR SC-P93002199971655HARNESS,P/S SIG,MAIN
SURECOLOR SC-P93002200005656HARNESS,RELAY,COOLING,HDD
SURECOLOR SC-P93002199991657HARNESS,RELAY,ENC,CUTTRE
SURECOLOR SC-P93002199993658HARNESS,RELAY,ENC,EJRRLS
SURECOLOR SC-P93002199994659HARNESS,RELAY,MOTOR,PUMP
SURECOLOR SC-P93002199995660HARNESS,RELAY,ENC,PUMP
SURECOLOR SC-P93002199998661HARNESS,RELAY,ENC,RLS_M
SURECOLOR SC-P93002199986662HARNESS,RELAY,ENC,RLS
SURECOLOR SC-P93002198446663HARNESS,RELAY,ILS,6C,FULL
SURECOLOR SC-P93002198445664HARNESS,RELAY,ILS,6C,HOME
SURECOLOR SC-P93002198447665HARNESS,RELAY,INK DETECT,IH
SURECOLOR SC-P93002200003666HARNESS,RELAY,LED1
SURECOLOR SC-P93002234516667HARNESS,RELAY,MOTOR,CR,44
SURECOLOR SC-P93002199990668HARNESS,RELAY,MOTOR,CUTTER
SURECOLOR SC-P93002199983669HARNESS,RELAY,MOTOR,DEPRS1
SURECOLOR SC-P93002199987670HARNESS,RELAY,MOTOR,DEPRS2
SURECOLOR SC-P93002199988671HARNESS,RELAY,MOTOR,DEPRS3
SURECOLOR SC-P93002199989672HARNESS,RELAY,MOTOR,DEPRS4
SURECOLOR SC-P93002199992673HARNESS,RELAY,MOTOR,EJRRLS
SURECOLOR SC-P93002199984674HARNESS,RELAY,MOTOR,PF
SURECOLOR SC-P93002199985676HARNESS,RELAY,MOTOR,RLS
SURECOLOR SC-P93002199997677HARNESS,RELAY,MOTOR,RLS_M
SURECOLOR SC-P93002199996678HARNESS,RELAY,MOTOR,ROLL_M
SURECOLOR SC-P93002199601679HARNESS,ROLL COVER
SURECOLOR SC-P93002199281680HARNESS,SENSOR,RELEASE,MID ROLLER
SURECOLOR SC-P93002199974681HARNESS,PNL-B
SURECOLOR SC-P93002199324682HARNESS,ENCODER,PAPER EJECT
SURECOLOR SC-P93001797317683TUBE,INK EJECT,M
SURECOLOR SC-P93002200001684HARNESS,RELAY,P/S_FAN
SURECOLOR SC-P93002199321685HARNESS,MOTOR,RELEASE
SURECOLOR SC-P93002199280686HARNESS,MOTOR,RELEASE,MID ROLLER
SURECOLOR SC-P93002228995687HARNESS,SENSOR,IMS
SURECOLOR SC-P93002164675688HARNESS,SENSOR,PW
SURECOLOR SC-P93002201582689FFC,ENCODER,PF
SURECOLOR SC-P93002198451690HARNESS,INK DETECT
SURECOLOR SC-P93002198448691HARNESS,SENSOR,CAP,L
SURECOLOR SC-P93002234532696CABLE,BOARD ASSY,CRCM,D
SURECOLOR SC-P93001775569705GUIDE PLATE ASSY,TUBE,44
SURECOLOR SC-P93001895397706DETECTION PLATE,PAPER THICKNESS,ASSY,ASP
SURECOLOR SC-P93001776102711OIL PAD
SURECOLOR SC-P93002228983712HARNESS,FFC,PANEL
SURECOLOR SC-P93002199332713FFC,SENSOR,PE
SURECOLOR SC-P93002109393714BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-P93001775776716REFLECTOR,WARNING LIGHT
SURECOLOR SC-P93001775777717COVER,WARNING LIGHT
SURECOLOR SC-P93001821522720FLANGE,UNIT,L2 SUB,ESL,ASP
SURECOLOR SC-P93001821525724EJ,DRIVEN,MOTOR,UNIT SUB,ESL,ASP
SURECOLOR SC-P93002199599725HARNESS,COVER,IH,RIGHT
SURECOLOR SC-P93002199600726HARNESS,COVER,IH,LEFT
SURECOLOR SC-P93002185996727BOARD ASSY.,PANEL
SURECOLOR SC-P93002199973728SPEAKER,HARNESS,ASSEMBLY
SURECOLOR SC-P93001794444729SENSOR ASSY,COVER,IH
SURECOLOR SC-P93001946632771ROLLER ASSY,DRIVEN,ASSY,ESL,ASP
SURECOLOR SC-P93001951989772BASKET ASSY ,ESL,ASP
SURECOLOR SC-P93001953158774JOINT L ASSY.,CL82,ESL,ASP

More Information
Manual Name Parts Manual for EPSON SureColor P9300 P9330 P9340 P9350 P9360 P9370
Format PDF
PDF Archive 20.8 MB
Pages 9
Version A
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor P9300 P9330 P9340 P9350 P9360 P9370 Series
Related Products
Check items to add to the cart or

  1. Genuine Panel ASSY for EPSON SureColor P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 - 1821505 / 1946327

    Genuine Panel ASSY for EPSON SureColor P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 - 1821505 / 1946327
    $152.00
    Compare

  2. Genuine POWER BOARD for EPSON SureColor P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 / F6400 F6400H F6470 F6470H - 2206141 / 2221784 / 2237202

    Genuine POWER BOARD for EPSON SureColor P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 / F6400 F6400H F6470 F6470H - 2206141 / 2221784 / 2237202 Genuine POWER BOARD for EPSON SureColor P7300 P7370 P7500 P7550 P7570 / P9300 P9370 P9500 P9550 P9570 / F6400 F6400H F6470 F6470H - 2206141 / 2221784 / 2237202
    $235.00
    Compare

  3. Genuine PUMP CAP ASSY / Cleaning Unit for EPSON SureColor P7300 P7350 P7370 P7500 P7550 P7570 / P9300 P9350 P9370 P9500 P9550 P9570 - 1963819 / 1917861

    Genuine PUMP CAP ASSY / Cleaning Unit for EPSON SureColor P7300 P7350 P7370 P7500 P7550 P7570 / P9300 P9350 P9370 P9500 P9550 P9570 - 1963819 / 1917861
    $244.00
    Compare

Default Category

    All CategoriesClose
    Parts Manual for EPSON SureColor P9300 P9330 P9340 P9350 P9360 P9370
