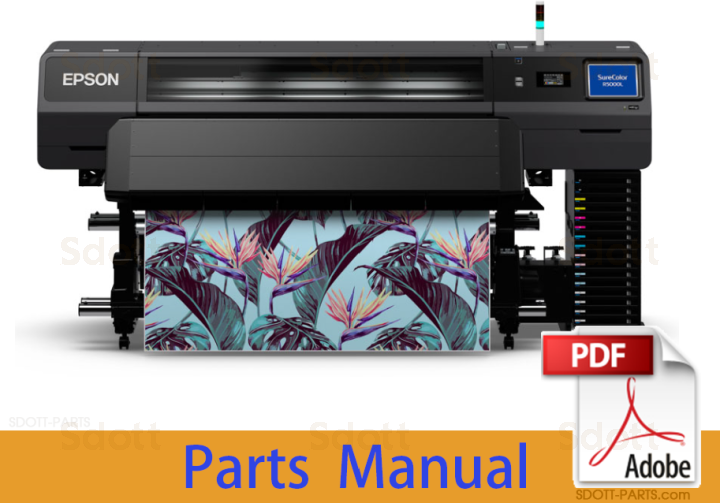

main product photo

Parts Manual for EPSON SureColor R5000L B5010L R5030L R5040L R5050L R5070L

In stock
SKU
EP-R5000L-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20



*****   The following content is not included in the PDF manual   *****

   Please refer to the details ONLINE   *

www.sdott-parts.com

SURECOLOR SC-R5000L184916503CASTER,GX60PS
SURECOLOR SC-R5000L184916604CASTER,GX60P
SURECOLOR SC-R5000L220788205HARNESS,JUMPER,CABLE,Euro
SURECOLOR SC-R5000L220898106HARNESS,USB,RIPS2
SURECOLOR SC-R5000L185123408STAND LEFT ASSY ESL ,ASP
SURECOLOR SC-R5000L185123509STAND RIGHT ASSY ESL,ASP
SURECOLOR SC-R5000L165482010ADJUSTER,D-B3 10X75FR
SURECOLOR SC-R5000L173195911STAY STAND SUB ASSY,ASP
SURECOLOR SC-R5000L171950112Ersetzt durch: 1962142
SURECOLOR SC-R5000L183070420HOLDER,TUBE,INK EJECT
SURECOLOR SC-R5000L187655021WASTE TANK ASSY ESL,ASP
SURECOLOR SC-R5000L156065722H.S.C.BOLT.(S-P4)SCREW,6X20,F/ZB-3C
SURECOLOR SC-R5000L181060123H.S.C.BOLT.(S-P1)SCREW,6X12,F/ZB-3C
SURECOLOR SC-R5000L166484324P.W.,6.4X1.6X18,F/ZN-3C
SURECOLOR SC-R5000L179803825LOCKING WIRE SADDLE LWS-2218Z
SURECOLOR SC-R5000L168369926HEXAGON SOCKET SCREW KEY,5,140,71
SURECOLOR SC-R5000L167947727PLATE SPANNER,17 3BC
SURECOLOR SC-R5000L183154528PIPE,LIFT,60.5
SURECOLOR SC-R5000L184060129REPEAT TIE,SG-R250W
SURECOLOR SC-R5000L220714030PLUG CONNECTOR AC CABLE (Korea) L
SURECOLOR SC-R5000L220486331INDICATOR LIGHT, ASSY
SURECOLOR SC-R5000L166291333SHEET,TENSION BAR
SURECOLOR SC-R5000L166288434FRAME,ADJUST,ROLL PAPER
SURECOLOR SC-R5000L187655135GUIDE PLATE,SHAFT,TENSION BAR ASSY.,ASP
SURECOLOR SC-R5000L187655536MOUNT.PLATE,SHAFT,LOCATE,FLAG,ASSY,ASP
SURECOLOR SC-R5000L1851223101COVER INLET ASSY ESL,ASP
SURECOLOR SC-R5000L1946246102COVER TOP RIGHT ASSY,C,ESL,ASP
SURECOLOR SC-R5000L1851232103PRINTER COVER ASSY ESL, ASP
SURECOLOR SC-R5000L1851227104DAMPER,MAINTENANCE,RIGHT,ASSY, ESL,ASP
SURECOLOR SC-R5000L1851228105DAMPER,MAINTENANCE,LEFT,ASSY,ESL,ASP
SURECOLOR SC-R5000L1850702106COVER LEFT LOWER ASSY ESL,ASP
SURECOLOR SC-R5000L1851233107COVER TOP LEFT ASSY ESL, ASP
SURECOLOR SC-R5000L1851229108DAMPER,PRINTER COVER,ASSY,ESL,ASP
SURECOLOR SC-R5000L1814168109COVER,CORNER,LEFT,LOWER
SURECOLOR SC-R5000L1814171110COVER,CORNER,LEFT,UPPER
SURECOLOR SC-R5000L1814154111COVER,CORNER,RIGHT,LOWER
SURECOLOR SC-R5000L1814150112COVER,CORNER,RIGHT,UPPER
SURECOLOR SC-R5000L1814185113KNOB,RELEASE
SURECOLOR SC-R5000L1808365115LABEL,CAUTION,HOT,B
SURECOLOR SC-R5000L1832658118LABEL,CAUTION,HOT
SURECOLOR SC-R5000L1851236119COVER RIGHT LOWER ASSY ESL,ASP
SURECOLOR SC-R5000L1851239120MICRO DOOR SWITCH ASSY ESL, ASP
SURECOLOR SC-R5000L1837978121LABEL,MODEL NAME,R5000L
SURECOLOR SC-R5000L1622968126LABEL,CAUTION,FINGER
SURECOLOR SC-R5000L1814121127PAPER GUIDE,AFTER ROUTE,MIDDLE
SURECOLOR SC-R5000L1893653141LABEL,PASSWORD
SURECOLOR SC-R5000L2207233201BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207686202HARNESS,PSL1,MAIN,H10
SURECOLOR SC-R5000L2207687203HARNESS,PSL1,MAIN,H11
SURECOLOR SC-R5000L2207681204HARNESS,SUB-AC,PSL1,H2
SURECOLOR SC-R5000L2200022205FAN, COOLING,HDD
SURECOLOR SC-R5000L2237199206BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-R5000L2207683207HARNESS,SUB-FL1,PSL2,H7
SURECOLOR SC-R5000L2207699208HARNESS,RELAY,SUB-Z,H12
SURECOLOR SC-R5000L2207700209HARNESS,RELAY,SUB-Z,H13
SURECOLOR SC-R5000L2220550210BOARD ASSY.,MAIN
SURECOLOR SC-R5000L2207247211BOARD ASSY.,DRV
SURECOLOR SC-R5000L2192188212MEMORY CARD  SDOTT
SURECOLOR SC-R5000L2175354233BOARD ASSY.,SUB
SURECOLOR SC-R5000L1680677501SCALE,PF ASSY ESL,ASP
SURECOLOR SC-R5000L1943824502Tube Assy ESL ,B,ASP
SURECOLOR SC-R5000L1953166503DUCT,ONCR,ASSY,CH28,A,ESL,ASP
SURECOLOR SC-R5000L2207166504THERMISTOR,PAPER GUIDE
SURECOLOR SC-R5000L1968580505PUMP CAP,ASSY,CH28,C ESL,ASP
SURECOLOR SC-R5000L1863061506PLATEN ASSY.A, ESL, ASP
SURECOLOR SC-R5000L2214339507MOTOR ASSY.,CR,B
SURECOLOR SC-R5000L1850703508SENSOR PE ASSY ESL,ASP
SURECOLOR SC-R5000L1887963509KEEP CAP,ASSY,B,CH28, ESL,ASP
SURECOLOR SC-R5000L2143464510PHOTO INTERRUPTER
SURECOLOR SC-R5000L1850694511KEEP CAP,HEAD,ASSY,CH28, ESL,ASP
SURECOLOR SC-R5000L1850695512CONNECT UNIT,MAIN SIDE,CH28, ESL,ASP
SURECOLOR SC-R5000L2109393513BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-R5000L1850696514PRESSURE PUMP,UNIT,CH28, ESL,ASP
SURECOLOR SC-R5000L1850697515FLASHING BOX,UNIT,CH28, ESL,ASP
SURECOLOR SC-R5000L1876959516CLOTH WIPER CARRIAGE,UNIT,B,CH28,ESL,ASP
SURECOLOR SC-R5000L1861351517INK EJECT SELECTOR,UNIT,CH28,B ESL,ASP
SURECOLOR SC-R5000L1953167518WATER SELECTOR,UNIT,CH28,A,ESL,ASP
SURECOLOR SC-R5000L1946815519PANEL ASSY ESL,B,ASP
SURECOLOR SC-R5000L1942372520CR ASSY ESL,C,ASP
SURECOLOR SC-R5000L1824806521TIMING BELT,CR
SURECOLOR SC-R5000L2205253522FFC,IMS
SURECOLOR SC-R5000L2205254523FFC,PW
SURECOLOR SC-R5000L2228869524FFC,CR,ENCODER,B
SURECOLOR SC-R5000L2205256525CABLE,DETECTOR,PG
SURECOLOR SC-R5000L2205257526CABLE,DETECTOR,COVER,CR
SURECOLOR SC-R5000L2228868527FFC,NP TEMPERATURE SENSOR,B
SURECOLOR SC-R5000L2206390528CABLE,DETECT,DISPLACEMENT,SENSOR
SURECOLOR SC-R5000L2207235529BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207237530BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207239531BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207690532HARNESS,SUB,SUB-U,H19
SURECOLOR SC-R5000L1851222533APG MOTOR ASSY ESL,ASP
SURECOLOR SC-R5000L2207739534HARNESS,RELAY,SUB-X7 FAN,H184
SURECOLOR SC-R5000L1850704535TRAY LEAKAGE FRONT ASSY ESL,ASP
SURECOLOR SC-R5000L2207689536HARNESS,PNL,Speaker,H14
SURECOLOR SC-R5000L1850705537TRAY LEAKAGE SIDE ASSY ESL,ASP
SURECOLOR SC-R5000L2139052538FAN ASSY.,ABSORPTION
SURECOLOR SC-R5000L1851224539COVER HEATER TOP REAR ASSY ESL,ASP
SURECOLOR SC-R5000L1850706540DETECTOR RIGHT ASSY ESL,ASP
SURECOLOR SC-R5000L2139305541CABLE,THERMISTOR
SURECOLOR SC-R5000L2233562542MOTOR ASSY.,PF,C
SURECOLOR SC-R5000L2170578543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-R5000L1850707544MOUNTING PLATE SENSOR ASSY ESL,ASP
SURECOLOR SC-R5000L1954144545POWER BOX HOME ASSY A, ESL,ASP
SURECOLOR SC-R5000L1851237546DRY FAN ASSY,6pcs Set,ESL, ASP
SURECOLOR SC-R5000L2207703547HARNESS,REALY,THERMISTOR,H200
SURECOLOR SC-R5000L2182572548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-R5000L1851238549LED ASSY ESL,ASP
SURECOLOR SC-R5000L2207740550HARNESS,MAIN,PNL,FFC,F1
SURECOLOR SC-R5000L1851231551HOLDER SUPPLY ASSY ESL,ASP
SURECOLOR SC-R5000L2205268552CABLE,DETECTOR,MANUAL RELEASE
SURECOLOR SC-R5000L2205272553CABLE,MOTOR,NIP
SURECOLOR SC-R5000L1851240554UNDER SUB X FULL BOX ASSY ESL,ASP
SURECOLOR SC-R5000L1664858555TIMING BELT,PF
SURECOLOR SC-R5000L2206630556BOARD ASSY.,SUB
SURECOLOR SC-R5000L2205273557HARNESS,DETECTOR,PE
SURECOLOR SC-R5000L2207763560BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207684562HARNESS,RELAY,SUB-AC,H311
SURECOLOR SC-R5000L2207720563HARNESS,RELAY,SUB-X,H312
SURECOLOR SC-R5000L2207715564HARNESS,SUB-FL2,SUB-X2,H309
SURECOLOR SC-R5000L2207717565HARNESS,RELAY,PLATEN HEATER HS,H304
SURECOLOR SC-R5000L2207719566HARNESS,RELAY,SUB-X2 FAN,H169
SURECOLOR SC-R5000L2207716567HARNESS,RELAY,SUB-X1,H314
SURECOLOR SC-R5000L2207680568HARNESS,SUB-AC,INLET,H1
SURECOLOR SC-R5000L2207682569HARNESS,SUB-FL1,INLET,H6
SURECOLOR SC-R5000L2207685570HARNESS,SUB-AC,OUTLET,H5
SURECOLOR SC-R5000L2207251571BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207802572HARNESS ASSY.,LEAK
SURECOLOR SC-R5000L2207707573HARNESS,REALY,STIFFEN FAN,H337
SURECOLOR SC-R5000L2207704574HARNESS,REALY,STIFFEN THERMISTOR,H318
SURECOLOR SC-R5000L1954145575POWER BOX FULL ASSY A, ESL,ASP
SURECOLOR SC-R5000L2205275577HARNESS,INTERMIT,DRYINGFAN,L
SURECOLOR SC-R5000L2205274578HARNESS,INTERMIT,DRYINGFAN,S
SURECOLOR SC-R5000L2205276579HARNESS,INTERMIT,HUMIDITY-SENSOR
SURECOLOR SC-R5000L2207693580HARNESS,SUB-C,SUB-R,H43
SURECOLOR SC-R5000L1851242581UNDER SUB X HOME BOX ASSY ESL,ASP
SURECOLOR SC-R5000L2205266582HARNESS,MOTOR,APG
SURECOLOR SC-R5000L1709542584JOINT,INK EJ,FLASHING BOX
SURECOLOR SC-R5000L1854834585TUBE,INK EJECT,OP, ASP
SURECOLOR SC-R5000L1860791586TORSION SPRING,CLAMP,4.4
SURECOLOR SC-R5000L2207706589HARNESS,REALY,STIFFEN FAN,H119
SURECOLOR SC-R5000L2207722592HARNESS,RELAY,SUB-FL2,H332
SURECOLOR SC-R5000L2207726593HARNESS,RELAY,SUB-X3,H330
SURECOLOR SC-R5000L2207727594HARNESS,RELAY,PLATEN HEATER FC,H336
SURECOLOR SC-R5000L2207729595HARNESS,RELAY,SUB-X4 FAN,H324
SURECOLOR SC-R5000L2207765596BOARD ASSY.,SUB
SURECOLOR SC-R5000L1814022597SCALE,CR
SURECOLOR SC-R5000L1813980598COVER,CR
SURECOLOR SC-R5000L2207724599HARNESS,RELAY,SUB-X3 FAN,H322
SURECOLOR SC-R5000L2205270600HARNESS,ENCORDER,PF
SURECOLOR SC-R5000L2176012601SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F
SURECOLOR SC-R5000L2207718602HARNESS,RELAY,PLATEN HEATER HS,H301
SURECOLOR SC-R5000L2207723603HARNESS,RELAY,PLATEN HEATER HC,H302
SURECOLOR SC-R5000L2207752604HARNESS,DRV-M,SUB-K,FFC,F28
SURECOLOR SC-R5000L2207728605HARNESS,RELAY,PLATEN HEATER FC,H303
SURECOLOR SC-R5000L2207730606HARNESS,RELAY,PLATEN HEATER FS,H305
SURECOLOR SC-R5000L2205265607HARNESS,DETECTOR,HP,CR
SURECOLOR SC-R5000L1814033610SHEET,GUIDE RAIL,TUBE,FRONT
SURECOLOR SC-R5000L1814034611SHEET,GUIDE RAIL,TUBE,REAR
SURECOLOR SC-R5000L2207768612BOARD ASSY.,DRV
SURECOLOR SC-R5000L2199868613BOARD ASSY.,SUB
SURECOLOR SC-R5000L2228978615HARNESS,MAIN,DRV-H,FFC,F3
SURECOLOR SC-R5000L2203867616FAN,COOLING,06025SS-24Q-AL-DE
SURECOLOR SC-R5000L2203868617FAN,COOLING,08025SS-24Q-AL-D5
SURECOLOR SC-R5000L2228977618HARNESS,MAIN,DRV-H,FFC,F4
SURECOLOR SC-R5000L2228976619HARNESS,MAIN,DRV-H,FFC,F5
SURECOLOR SC-R5000L2207744620HARNESS,MAIN,DRV-H,FFC,F6
SURECOLOR SC-R5000L2228975621HARNESS,MAIN,SUB-Y,FFC,F15
SURECOLOR SC-R5000L2207678622HARNESS,POWER,ASSY
SURECOLOR SC-R5000L2207676623HARNESS,SIGNAL,ASSY, DRV-M
SURECOLOR SC-R5000L2207696624HARNESS SIGNAL ASSY NIP
SURECOLOR SC-R5000L2207677625HARNESS,SIGNAL,ASSY,SUB-Z
SURECOLOR SC-R5000L2207679626HARNESS,AC,ASSY
SURECOLOR SC-R5000L2207674627HARNESS,MOTOR,ASSY
SURECOLOR SC-R5000L2170927628CABLE,SENSOR,TENSION
SURECOLOR SC-R5000L2207675629HARNESS,ENCODER,ASSY
SURECOLOR SC-R5000L2207673630HARNESS,SIGNAL,ASSY,SUB-Y
SURECOLOR SC-R5000L2150441631MOTOR ASSY.,WIPER
SURECOLOR SC-R5000L2207735632HARNESS,RELAY,SUB-X6 FAN,H179
SURECOLOR SC-R5000L2175356633BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207736634HARNESS,SUB-X6,SUB-X7,H180
SURECOLOR SC-R5000L2207732635HARNESS,SUB-X5,SUB-X6,H320
SURECOLOR SC-R5000L2207731636HARNESS,RELAY,SUB-X5 FAN,H326
SURECOLOR SC-R5000L2206671637BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207725638HARNESS,RELAY,SUB-X4,SUB-X5,H333
SURECOLOR SC-R5000L2207721639HARNESS,RELAY,SUB-FL2,H313
SURECOLOR SC-R5000L2207712640HARNESS,RELAY,PRE HEATER,H189
SURECOLOR SC-R5000L2207714641HARNESS,RELAY,SUB-X2,SUB-X3,H166
SURECOLOR SC-R5000L2209000642BOARD ASSY.,SUB
SURECOLOR SC-R5000L2207713643HARNESS,RELAY,SUB-X1 FAN,H160
SURECOLOR SC-R5000L2207702644HARNESS,SUB-Z,SUB-X,H117
SURECOLOR SC-R5000L2207710645HARNESS,REALY,REEL,H136
SURECOLOR SC-R5000L2207709646HARNESS,SUB-Z,SUB-F ROLL,H135
SURECOLOR SC-R5000L2207701647HARNESS,RELAY,PSL2,H328
SURECOLOR SC-R5000L2207745648HARNESS,MAIN,SUB-Z,FFC,F13
SURECOLOR SC-R5000L1670304649ROLLER,DRIVEN,B  SDOTT-PARTS.COM
SURECOLOR SC-R5000L2207746650HARNESS,MAIN,SUB-Z,FFC,F14
SURECOLOR SC-R5000L2207691651HARNESS,MAIN,DRV-M,H15
SURECOLOR SC-R5000L2207748652HARNESS,MAIN,DRV-M,FFC,F24,F26
SURECOLOR SC-R5000L2207749653HARNESS,MAIN,DRV-M,FFC,F25,F27
SURECOLOR SC-R5000L2206314654HARNESS,MAINTENANCE,SENSOR,LEFT
SURECOLOR SC-R5000L2206313655HARNESS,MAINTENANCE,SENSOR,RIGHT
SURECOLOR SC-R5000L2207695656HARNESS,RELAY,INTERLOCK,H,H198
SURECOLOR SC-R5000LFA51003657PRINT HEAD,TUN,ASP-S
SURECOLOR SC-R5000L2207692658HARNESS,DRV-M,SUB-C,H42
SURECOLOR SC-R5000L1813991660COVER,P.C.B.,LAF2
SURECOLOR SC-R5000L2205259661HEAD,FFC
SURECOLOR SC-R5000L2205260662HEAD,FFC,B
SURECOLOR SC-R5000L2205261663HEAD,FFC,C
SURECOLOR SC-R5000L2205262664HEAD,FFC,D
SURECOLOR SC-R5000L2205263665P.C.B.,FFC
SURECOLOR SC-R5000L2205264666P.C.B.,FFC,B
SURECOLOR SC-R5000L2209684667HARNESS,RELAY,WASTE LIQUID, SENS, H93
SURECOLOR SC-R5000L2209548668HARNESS,INTERMIT,AFTER ROUTE
SURECOLOR SC-R5000L2084550670Ersetzt durch: 2171913
SURECOLOR SC-R5000L1795092671BOARD ASSY.,ENCODER,CR
SURECOLOR SC-R5000L2207801672DISPLACEMENT SENSOR,KE401-M120-R1
SURECOLOR SC-R5000L2237170673SOLENOID VALVE,V06A-778,B
SURECOLOR SC-R5000L1836933674CLOTH CATCHER ASSY ESL,ASP
SURECOLOR SC-R5000L1944223675INK PATH ASSY ASP
SURECOLOR SC-R5000L1813981681COVER,P.C.B.,SUB


More Information
Manual Name SureColor R5000L B5010L R5030L R5040L R5050L R5070L Parts Manual
Format PDF
PDF Archive 30.1 MB
Pages 16
Version 1
Parts Code CH29
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor R5000L B5010L R5030L R5040L R5050L R5070L

Default Category

    All CategoriesClose
    Parts Manual for EPSON SureColor R5000L B5010L R5030L R5040L R5050L R5070L
