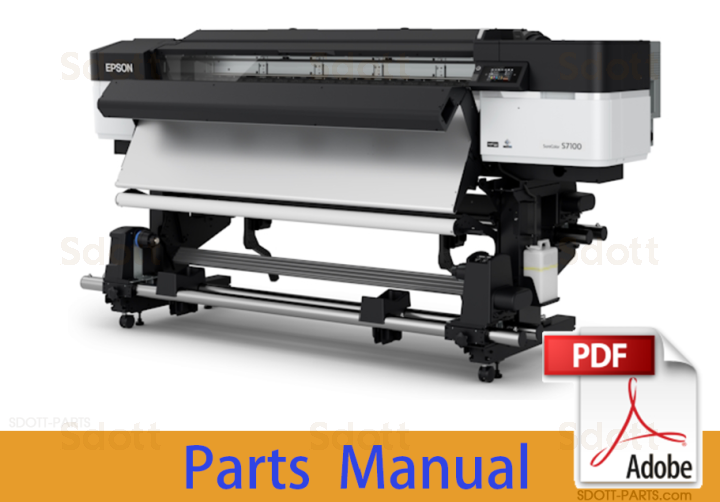

main product photo

Parts Manual for EPSON SureColor S7100 S7130 S7140 S7150 S7160 S7170

In stock
SKU
EP-S7100-PM
$2.80
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$2.80



*****   The following content is not included in the PDF manual   *****

   Please refer to the details ONLINE   *

www.sdott-parts.com

SURECOLOR SC-S7100173237301SCREW KIT A,ASSY,ASP
SURECOLOR SC-S7100175165002ADJUSTER ASSY.,STAND
SURECOLOR SC-S7100184916603CASTER,GX60P
SURECOLOR SC-S7100184916504CASTER,GX60PS
SURECOLOR SC-S7100179707108STAND LEFT ASSY AD.C,ASP
SURECOLOR SC-S7100179707209STAND RIGHT ASSY AD.D,ASP
SURECOLOR SC-S7100165482010ADJUSTER,D-B3 10X75FR
SURECOLOR SC-S7100173195911STAY STAND SUB ASSY,ASP
SURECOLOR SC-S7100196214212STAY,STAND,FRONT,B
SURECOLOR SC-S7100171524615ACCESSORY KIT.A,ASP
SURECOLOR SC-S7100167300218LUBRICATION KIT CE30 ASP
SURECOLOR SC-S7100174866619LABEL,CAUTION,EMERGENCY MESSAGE,H
SURECOLOR SC-S7100175373921TRAY AND TWEEZERS KIT ASP
SURECOLOR SC-S71001955781100COVER TOP LEFT ASSY,CL67 ESL,ASP
SURECOLOR SC-S71001942774101COVER,TOP,PANEL
SURECOLOR SC-S71001955822102COVER TOP,MAINTE.RIGHT ASSY.CL67 ESL,ASP
SURECOLOR SC-S71001955825103COVER,FRONT,RIPS,R.64 ASSY.CL67 ESL,ASP
SURECOLOR SC-S71001955783106COVER,SIDE,RIGHT,LOWER ASSY,CL67 ESL,ASP
SURECOLOR SC-S71001955782107COVER,SIDE,LEFT,LOWER ASSY,CL67 ESL,ASP
SURECOLOR SC-S71001955784108COVER,FRONT,LEFT,64 ASSY,CL67 ESL,ASP
SURECOLOR SC-S71001955780109COVER,TOP,PANEL ASSY,CL67,ESL,ASP
SURECOLOR SC-S71001552191115HOUSING,BASE,SUPPORT,RIGHT
SURECOLOR SC-S71001552194116HOUSING,BASE,SUPPORT,LEFT
SURECOLOR SC-S71001794451117CAP,COVER,TUBE,2L
SURECOLOR SC-S71001943829119KNOB,LEVER,B
SURECOLOR SC-S71001943947120LABEL,MODEL NAME,S7100
SURECOLOR SC-S71001857187128LABEL,PRECISIONCORE,H
SURECOLOR SC-S71001794476131COVER,PRINTER,PROTECT,RIGHT,2L
SURECOLOR SC-S71001794474132COVER,PRINTER,PROTECT,LEFT,2L
SURECOLOR SC-S71001817448133COVER PRINTER ASSY,2L ESL,ASP
SURECOLOR SC-S71001794479134COVER,SUB,RIGHT,2L
SURECOLOR SC-S71001794470135COVER,SUB,LEFT,2L
SURECOLOR SC-S71001794478136COVER,RIGHT,MIST,2L
SURECOLOR SC-S71002233289200BOARD ASSY.,MAIN
SURECOLOR SC-S71002219480201HARNESS
SURECOLOR SC-S71002233295202BOARD ASSY.,SUB
SURECOLOR SC-S71002233304203HARNESS,RELAY,SUB-FL,W-7-2
SURECOLOR SC-S71002233305204HARNESS,SUB-FL,SUB-XH,W-8
SURECOLOR SC-S71002233306205HARNESS,RELAY,SUB-XH FAN,W-9
SURECOLOR SC-S71002233308206HARNESS,SUB-XH,SUB-SP,W-13
SURECOLOR SC-S71002228652207BOARD ASSY.,SUB
SURECOLOR SC-S71002203868208FAN,COOLING,08025SS-24Q-AL-D5
SURECOLOR SC-S71002233309209HARNESS,SUB-XH,SUB-SP,W-14
SURECOLOR SC-S71002233310210HARNESS,RELAY,SUB-SP,HEATER,W-17
SURECOLOR SC-S71002233312211HARNESS,RELAY,MAIN,SUB-XH,W-34
SURECOLOR SC-S71002234963212BOARD ASSY.,SUB
SURECOLOR SC-S71002233536213HARNESS AC INLET,W-1-2
SURECOLOR SC-S71002138618214HARNESS
SURECOLOR SC-S71002233300216HARNESS,SUB-AC,PSL,W-2
SURECOLOR SC-S71002233303217HARNESS,RELAY,SUB-AC,W-7
SURECOLOR SC-S71002207233218BOARD ASSY.,SUB
SURECOLOR SC-S71002233301219HARNESS,RELAY,PSL,MAIN,W-3
SURECOLOR SC-S71002233302220HARNESS,RELAY,PSL,MAIN,W-5
SURECOLOR SC-S71002233327221HARNESS,RELAY,MAIN,SUB-I,W-90
SURECOLOR SC-S71002237202300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S71001680677501SCALE,PF ASSY ESL,ASP
SURECOLOR SC-S71002171014502CABLE,FRONT,COVER,LEFT
SURECOLOR SC-S71001673176503FULL,MAINTENANCE OPEN ASSY.CF06,ESL,ASP
SURECOLOR SC-S71001955770504ONCR,ASSY.,CL67,ESL,ASP
SURECOLOR SC-S71001955819505DUCT,SUPPLY TUBE,ASSY.,B,CL67,ESL,ASP
SURECOLOR SC-S71001955824506CARRIGE ASSY,CL67 ESL,ASP
SURECOLOR SC-S71001480133507PULLEY,DRIVEN
SURECOLOR SC-S71001955820508DUCT,SUPPLY TUBE,ASSY.,A,CL67,ESL,ASP
SURECOLOR SC-S71001662705509BELT,CR
SURECOLOR SC-S71002143464510PHOTO INTERRUPTER
SURECOLOR SC-S7100FB18002511PRINT HEAD,FCU,ASP
SURECOLOR SC-S71002209884512BOARD ASSY.,SENSOR
SURECOLOR SC-S71002234588514CABLE,ENCORDER,CR
SURECOLOR SC-S71002234586515CABLE,IMS
SURECOLOR SC-S71002234587516CABLE,PW
SURECOLOR SC-S71002234581517CABLE,CR,RELAY
SURECOLOR SC-S71001955773518SLOT ASSY.,R,FUCH WW,CL67,ESL,ASP
SURECOLOR SC-S71001680697519OIL PAD ASSY ESL.,ASP
SURECOLOR SC-S71001710362520FRAME APG ASSY .A,ESL,ASP
SURECOLOR SC-S71001897884521COVER,HEATER,TOP,REAR ASSY B ESL,ASP
SURECOLOR SC-S71001723327522LABEL,SET,PRE HEATER,B
SURECOLOR SC-S71001955823523AFTER HEATER ASSY.CL67,ESL,ASP
SURECOLOR SC-S71001723326524LABEL,SET,AFTER HEATER,B
SURECOLOR SC-S71001955779525PANEL ASSY.CL67,ESL,ASP
SURECOLOR SC-S71001684361526POROUS PAD,FLASHING BOX.,ASSY ESL,ASP
SURECOLOR SC-S71001694912527FLASHING BOX.,Assy.A,CE44 ESL,ASP
SURECOLOR SC-S71002233316528HARNESS,PNL-B,W-47
SURECOLOR SC-S71001955775529SLOT ASSY.,L,FUCH WW,CL67,ESL,ASP
SURECOLOR SC-S71001955777530CLOTH WIPER,CARRIAGE,ASSY.CL67,ESL,ASP
SURECOLOR SC-S71002109393531BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-S71001955776532PUMP CAP, ASSY.,CL67,ESL,ASP
SURECOLOR SC-S71001936002533TRAY,INK PACK
SURECOLOR SC-S71001955821534CABLE,HEAD ASSY.CL67,ESL,ASP
SURECOLOR SC-S71001955785535HEAD FFC ASSY,CL67 ESL,ASP
SURECOLOR SC-S71001955778536HOME MAINTENANCE OPEN ASSY.CL67,ESL,ASP
SURECOLOR SC-S71001908997537SCALE,CR
SURECOLOR SC-S71001680708538FAN ASSY ESL,ASP
SURECOLOR SC-S71001574122539HEATER,PAPER GUIDE,FRONT,ASP
SURECOLOR SC-S71001559726540SEAL,IMS
SURECOLOR SC-S71002139305541CABLE,THERMISTOR
SURECOLOR SC-S71002233562542MOTOR ASSY.,PF,C
SURECOLOR SC-S71002170578543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-S71002234659544BOARD ASSY.,PNL
SURECOLOR SC-S71002234591545HARNESS,COVER,RIPS
SURECOLOR SC-S71002234590546CABLE,SENSOR,PE
SURECOLOR SC-S71002232561547MOTOR ASSY.,CR
SURECOLOR SC-S71002182572548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-S71002139286549CABLE,MOTOR,APG
SURECOLOR SC-S71002233292550BOARD ASSY.,SUB
SURECOLOR SC-S71002233314551HARNESS,SPEAKER,W-45
SURECOLOR SC-S71001952453552COVER,CR,C
SURECOLOR SC-S71001559650553SPACER,CR,B
SURECOLOR SC-S71001944512554SHEET,GUIDE RAIL,TUBE,LOWER,B
SURECOLOR SC-S71001664858555TIMING BELT,PF
SURECOLOR SC-S71001680709556MEDIA EDGE PLATE ASSY ESL,ASP
SURECOLOR SC-S71002233311557HARNESS,RELAY,MAIN,SUB-XH,W-33
SURECOLOR SC-S71002221044558BOARD ASSY.,INTERFACE
SURECOLOR SC-S71002233313562HARNESS,RELAY,MAIN,FAN,W-35
SURECOLOR SC-S71002139289564CABLE,SENSOR,CR
SURECOLOR SC-S71002233326565HARNESS,RELAY,MAIN,FAN,W-87
SURECOLOR SC-S71002171010567CABLE,SENSOR,MANUAL RELEASE
SURECOLOR SC-S71002234293568HARNESS,RELAY,W-85
SURECOLOR SC-S71002234573569CABLE,CRCM,1
SURECOLOR SC-S71002234574570CABLE,CRCM,2
SURECOLOR SC-S71002233317571HARNESS,RELAY,INK LEAK,W-48
SURECOLOR SC-S71002233318572HARNESS,RELAY,INK END,W-50
SURECOLOR SC-S71002233319573HARNESS,RELAY,MAIN,MOTOR,W-53
SURECOLOR SC-S71002233320574HARNESS,RELAY,MAIN,SENSOR,W-54
SURECOLOR SC-S71002233325575HARNESS,RELAY,CR MOTOR,W-83
SURECOLOR SC-S71002234589576CABLE,ENCODER,PF
SURECOLOR SC-S71002233323577HARNESS,RELAY,SENSOR,W-70
SURECOLOR SC-S71002233324578HARNESS,SENSOR,W-79
SURECOLOR SC-S71001956036579HARNESS,BUZZER,W-2,ASSY, ESL, ASP
SURECOLOR SC-S71002233322580HARNESS,RELAY,SENSOR,W-65
SURECOLOR SC-S71002234592581HARNESS,PG
SURECOLOR SC-S71002233328582FFC,MAIN,PNL,F-1 4651-F001
SURECOLOR SC-S71001664850583TAPE,HEATER WIRE,FASTEN
SURECOLOR SC-S71001956055584COVER,HEAD,CR,B, ASSY Full, ESL,ASP
SURECOLOR SC-S71001956056585COVER,HEAD,CR, ASSY Home, ESL,ASP
SURECOLOR SC-S71001680676604PULLEY,ROLLER,PF ASSY ESL,ASP
SURECOLOR SC-S71001685414615SUB SHAFT,SLIDER ASSY ,ASP
SURECOLOR SC-S71002169089617FAN ASSY.,CR
SURECOLOR SC-S71002233321623HARNESS,RELAY,CR MOTOR,W-63
SURECOLOR SC-S71002170925624THERMISTOR,CR
SURECOLOR SC-S71001662690625DETECTOR PLATE,THERMISTOR
SURECOLOR SC-S71001955771627FILTER ASSY.,CL67,ESL,ASP
SURECOLOR SC-S71002170927628CABLE,SENSOR,TENSION
SURECOLOR SC-S71001662819629ANTISTATIC CLOTH,EJ
SURECOLOR SC-S71002170923630CABLE,SENSOR,NIP
SURECOLOR SC-S71002150441631MOTOR ASSY.,WIPER
SURECOLOR SC-S71002170924632CABLE,MOTOR,NIP
SURECOLOR SC-S71002175356633BOARD ASSY.,SUB
SURECOLOR SC-S71002170604634HARNESS,RELAY,2
SURECOLOR SC-S71002232292635FAN ASSY.,DRYING,B
SURECOLOR SC-S71002170606636HARNESS,RELAY,FAN2
SURECOLOR SC-S71001729535639HARNESS,RELAY,HEATER,1 KIT ESL ASP
SURECOLOR SC-S71001662767642FASTEN PLATE,ROLLER,DRIVEN
SURECOLOR SC-S71001670304649ROLLER,DRIVEN,B
SURECOLOR SC-S71001690512652COIL SPRING ASSY ESL,ASP
SURECOLOR SC-S71001843036654SHEET,PROTECTION,IMS,C
SURECOLOR SC-S71001662773655HOLDER,PAPER GUIDE,FRONT
SURECOLOR SC-S71001662783656FASTEN PLATE,PAPER GUIDE,FRONT
SURECOLOR SC-S71002150699658LEAF SENSOR,P599
SURECOLOR SC-S71001750841659PULLEY,DRIVEN ASSY ESL,ASP
SURECOLOR SC-S71001765615660DAMPER,HINGE,KIT,ASP
SURECOLOR SC-S71001765616661HOLDER,BRAKE,ASSY,ASP
SURECOLOR SC-S71001560623664SHEET,GUIDE RAIL,TUBE,FRONT
SURECOLOR SC-S71001662736666SHAFT,ROLLER,DRIVEN
SURECOLOR SC-S71001794482667COVER,FAN,2L
SURECOLOR SC-S71002139274668FAN ASSY.,DRYING
SURECOLOR SC-S71002139312669CABLE,DRIER,FAN
SURECOLOR SC-S71002138597670HARNESS
SURECOLOR SC-S71002138599671HARNESS
SURECOLOR SC-S71002180269672HARNESS
SURECOLOR SC-S71002142884673BOARD ASSY.,SUB
SURECOLOR SC-S71002188977674BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S71001714694675LOUVER,DRYING FAN,B
SURECOLOR SC-S71002177061709BOARD ASSY.,ENCODER
SURECOLOR SC-S71002223470754BOARD ASSY.,IMS,SG1A015



More Information
Manual Name Parts Manual for EPSON SureColor S7100 S7130 S7140 S7150 S7160 S7170
Format PDF
PDF Archive 17.3 MB
Pages 12
Version 01
Parts Code CL67
Type SERVICE or PARTS MANUAL
Compatible Model EPSON Surecolor S7100 S7130 S7140 S7150 S7160 S7170
