Parts Manual for EPSON WorkForce WF-C5890 WF-C5810
In stock
SKU
EP-WFC5890-PM
$2.90
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
Parts Manual for EPSON WorkForce WF-C5890 WF-C5810
***** The following content is not included in the PDF manual *****
***** The list is only available for online viewing. ******

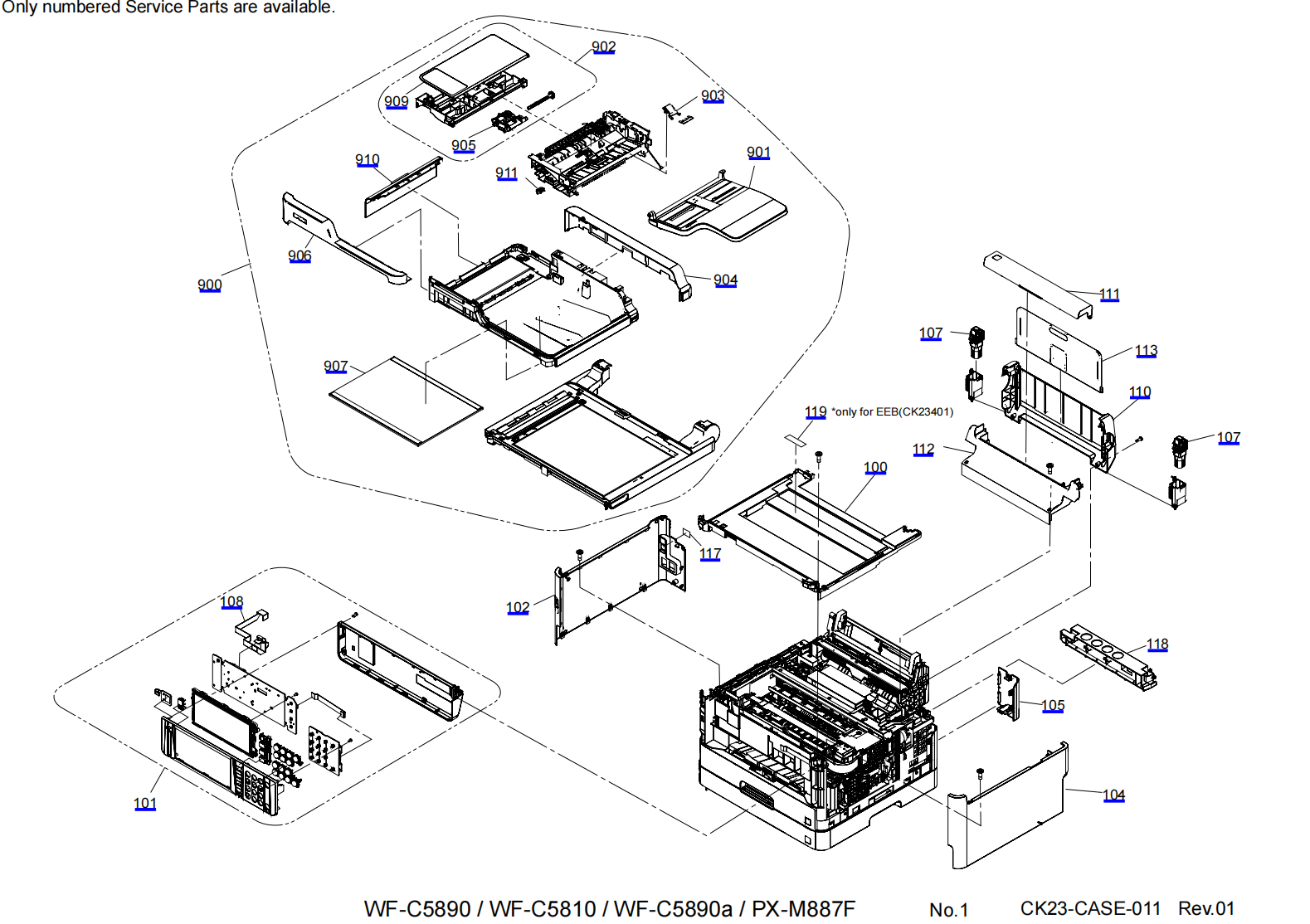

| WORKFORCE WF-C5890 | 1729293 | 100 | HOUSING,UPPER |
| WORKFORCE WF-C5890 | 1901597 | 101 | PANEL ASSY., CK23,ASP,IEI |
| WORKFORCE WF-C5890 | 1762712 | 102 | HOUSING,LEFT,E |
| WORKFORCE WF-C5890 | 1762713 | 104 | HOUSING,RIGHT,C |
| WORKFORCE WF-C5890 | 1917845 | 104 | HOUSING,RIGHT,C |
| WORKFORCE WF-C5890 | 1821730 | 105 | COVER,INK EJECT,ASP,IEI |
| WORKFORCE WF-C5890 | 1732762 | 107 | HINGE,ASSY.,SC |
| WORKFORCE WF-C5890 | 2184131 | 108 | HARNESS |
| WORKFORCE WF-C5890 | 1762714 | 110 | HOUSING,REAR,C |
| WORKFORCE WF-C5890 | 1901609 | 111 | COVER,ASF,CK23,B,ASP,IEI |
| WORKFORCE WF-C5890 | 1762718 | 112 | COVER,ASF,FRONT,E |
| WORKFORCE WF-C5890 | 1729262 | 113 | PAPER SUPPORT |
| WORKFORCE WF-C5890 | 1858996 | 113 | PAPER SUPPORT |
| WORKFORCE WF-C5890 | 1716035 | 117 | LABEL,BLIND,CN |
| WORKFORCE WF-C5890 | 1892056 | 118 | COVER REAR OPT ASSY,CK23.,IEI |
| WORKFORCE WF-C5890 | 1893653 | 119 | LABEL,PASSWORD |
| WORKFORCE WF-C5890 | 1967297 | 119 | LABEL,PASSWORD |
| WORKFORCE WF-C5890 | 2217314 | 200 | BOARD ASSY.,MAIN |
| WORKFORCE WF-C5890 | 2243758 | 200 | BOARD ASSY.,MAIN |
| WORKFORCE WF-C5890 | 1901612 | 300 | POWER SUPPLY,E.ASSY,IEI,ASP |
| WORKFORCE WF-C5890 | 2207227 | 352 | WIRELESS LAN USB MODULE |
| WORKFORCE WF-C5890 | 2226042 | 352 | WIRELESS LAN USB MODULE |
| WORKFORCE WF-C5890 | 1891971 | 353 | FAX ASSY,CK23.,IEI |
| WORKFORCE WF-C5890 | 2217323 | 354 | BOARD ASSY.,MAIN |
| WORKFORCE WF-C5890 | 2219993 | 355 | BOARD ASSY.,SUB |
| WORKFORCE WF-C5890 | 2193668 | 357 | HARNESS |
| WORKFORCE WF-C5890 | 2199254 | 359 | HARNESS |
| WORKFORCE WF-C5890 | 2147998 | 501 | BOARD ASSY.,SUB |
| WORKFORCE WF-C5890 | 1824006 | 502 | SCALE,PF,IEI,ASP |
| WORKFORCE WF-C5890 | 1901593 | 506 | PE ASSY.,IEI,ASP |
| WORKFORCE WF-C5890 | 1901615 | 507 | CARRIAGE ASSY.,IEI,ASP |
| WORKFORCE WF-C5890 | 1901616 | 508 | INK SYSTEM, ASSY.C,ASP,IEI |
| WORKFORCE WF-C5890 | 1706495 | 509 | POROUS PAD,CAP,LOWER |
| WORKFORCE WF-C5890 | 1736293 | 510 | FFC HEAD,ASSY.,IEI |
| WORKFORCE WF-C5890 | 1733463 | 511 | C.B.(S-P1)SCREW,2.5X18,F/ZN-3C |
| WORKFORCE WF-C5890 | 2189741 | 513 | MOTOR,ASSY.,CR |
| WORKFORCE WF-C5890 | 1736295 | 514 | HOLDER LEVER PE ASSY |
| WORKFORCE WF-C5890 | 1755290 | 515 | HOLDER,STAR,WHEEL,ASSY,CG77.,IEI |
| WORKFORCE WF-C5890 | 1736294 | 516 | PAPER,GUIDE,UPPER,ASSY.,IEI |
| WORKFORCE WF-C5890 | 1522628 | 517 | EXTENSION SPRING,11.11 |
| WORKFORCE WF-C5890 | 1761385 | 518 | HOLDER CONECTOR,ASSY.B,IEI |
| WORKFORCE WF-C5890 | 1821742 | 520 | TUBE,ASSY., SUPPLY,B,ASP,IEI |
| WORKFORCE WF-C5890 | 1766374 | 521 | SEAL,JOINT,HEAD,WASH |
| WORKFORCE WF-C5890 | 1706511 | 522 | POROUS PAD,HOUSING,LOWER |
| WORKFORCE WF-C5890 | 1892036 | 524 | HOUSING,ASF,ASSY.CK23,IEI |
| WORKFORCE WF-C5890 | 2190102 | 529 | MOTOR,ASSY.,PF,B |
| WORKFORCE WF-C5890 | 1436642 | 531 | CLAMP,TUBE |
| WORKFORCE WF-C5890 | 1522664 | 532 | EXTENSION SPRING,27.7 |
| WORKFORCE WF-C5890 | 1704809 | 533 | COVER,ENCODER |
| WORKFORCE WF-C5890 | 2180067 | 534 | CABLE,ENCODER,PF |
| WORKFORCE WF-C5890 | 1600224 | 535 | PULLEY,DRIVEN |
| WORKFORCE WF-C5890 | 1262438 | 536 | SHAFT,PULLEY,DRIVEN |
| WORKFORCE WF-C5890 | FB00001 | 700 | PRINT HEAD,CDYT,ASP |
| WORKFORCE WF-C5890 | FB00003 | 700 | PRINT HEAD,CDYT,ASP |
| WORKFORCE WF-C5890 | 1854634 | 701 | STACKER ASSY,B |
| WORKFORCE WF-C5890 | 1901594 | 702 | SOLENOID,RASF,ASSY,ASP |
| WORKFORCE WF-C5890 | 1860147 | 703 | DUPLEX, ASSY.,C,ASP,IEI |
| WORKFORCE WF-C5890 | 1751477 | 704 | SCALE,CR |
| WORKFORCE WF-C5890 | 1901595 | 705 | SPEAKER ASSY.,IEI,ASP |
| WORKFORCE WF-C5890 | 1736241 | 707 | SCREW HEAD ASSY |
| WORKFORCE WF-C5890 | 1821754 | 708 | RASF,ASSY.,ASP,IEI |
| WORKFORCE WF-C5890 | 1937211 | 708 | RASF,ASSY.,ASP,IEI |
| WORKFORCE WF-C5890 | 2184133 | 709 | HARNESS |
| WORKFORCE WF-C5890 | 2150699 | 710 | LEAF SENSOR,P599 |
| WORKFORCE WF-C5890 | 1755182 | 712 | C.B.EP-TITE (S)SCREW,2.6X17(b14),F/ZN-3C |
| WORKFORCE WF-C5890 | 1706723 | 714 | TORTION SPRING,13.11 |
| WORKFORCE WF-C5890 | 1860901 | 719 | CASSETTE,1st BIN,ASSY,B.,ASP,IEI |
| WORKFORCE WF-C5890 | 1943705 | 719 | CASSETTE,1ST BIN,ASSY,B.,ASP,IEI |
| WORKFORCE WF-C5890 | 1748879 | 720 | POROUS PAD,CR,B |
| WORKFORCE WF-C5890 | 1901617 | 721 | ROLLER RETARD RASF ASSY, IEI,ASP |
| WORKFORCE WF-C5890 | 1892215 | 722 | HOUSING,FRONT,B |
| WORKFORCE WF-C5890 | 1921044 | 722 | HOUSING,FRONT,B |
| WORKFORCE WF-C5890 | 1772125 | 723 | HOLDER,VERTICAL,TUBE,B |
| WORKFORCE WF-C5890 | 1901618 | 724 | 2ND NIP ASSY, ASP |
| WORKFORCE WF-C5890 | 1550410 | 725 | COMPRESSION SPRING,3.62 |
| WORKFORCE WF-C5890 | 2109393 | 726 | BOARD ASSY.,DETECTOR,PW,B |
| WORKFORCE WF-C5890 | 2179514 | 727 | BOARD ASSY.,ENCODER |
| WORKFORCE WF-C5890 | 1729372 | 729 | COVER,CR,REAR |
| WORKFORCE WF-C5890 | 1729369 | 731 | COVER,CR,FRONT |
| WORKFORCE WF-C5890 | 2191230 | 732 | HARNESS,DETECTOR,PE |
| WORKFORCE WF-C5890 | 2180063 | 732 | HARNESS,DETECTOR,PE |
| WORKFORCE WF-C5890 | 1817272 | 742 | POROUS PAD,HEAD,u4,B |
| WORKFORCE WF-C5890 | 1901619 | 750 | RIPS UNIT ASSY,CK23.,IEI,ASP |
| WORKFORCE WF-C5890 | 1909868 | 750 | RIPS UNIT ASSY,CK23.,IEI,ASP |
| WORKFORCE WF-C5890 | 1930669 | 750 | RIPS UNIT ASSY,CK23.,IEI,ASP |
| WORKFORCE WF-C5890 | 1937763 | 750 | RIPS UNIT ASSY,CK23.,IEI,ASP |
| WORKFORCE WF-C5890 | 1939652 | 750 | RIPS UNIT ASSY,CK23.,IEI,ASP |
| WORKFORCE WF-C5890 | 1736249 | 751 | IS DECOMP PUMP,ASSY.,IEI |
| WORKFORCE WF-C5890 | 1945067 | 751 | IS DECOMP PUMP,ASSY.,IEI |
| WORKFORCE WF-C5890 | 1901621 | 752 | HOUSING,RIPS ASSY.,ASP,IEI |
| WORKFORCE WF-C5890 | 1937765 | 752 | HOUSING,RIPS ASSY.,ASP,IEI |
| WORKFORCE WF-C5890 | 1901622 | 753 | COVER,FRONT, RIPS,ASP,IEI |
| WORKFORCE WF-C5890 | 1913582 | 753 | COVER,FRONT, RIPS,ASP,IEI |
| WORKFORCE WF-C5890 | 1821741 | 754 | TRAY,INK PACK,CL,B,ASP,IEI |
| WORKFORCE WF-C5890 | 1821740 | 755 | TRAY,INK PACK,BK,B,ASP,IEI |
| WORKFORCE WF-C5890 | 1732472 | 756 | POROUS PAD,INK,DETECTION,E |
| WORKFORCE WF-C5890 | 2194002 | 757 | CABLE,CSIC,BK,C |
| WORKFORCE WF-C5890 | 2194003 | 758 | CABLE,CSIC,Y,C |
| WORKFORCE WF-C5890 | 2194004 | 759 | CABLE,CSIC,M,C |
| WORKFORCE WF-C5890 | 2194005 | 760 | CABLE,CSIC,C,C |
| WORKFORCE WF-C5890 | 1792908 | 762 | GUIDE,TUBE,INK HOLDER,UPPER,B |
| WORKFORCE WF-C5890 | 1762700 | 763 | LOCK,LEVER,RIPS,C |
| WORKFORCE WF-C5890 | 2176012 | 764 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| WORKFORCE WF-C5890 | 1575274 | 765 | FOOT SDOTT |
| WORKFORCE WF-C5890 | 2193969 | 766 | CABLE,CRCM,B |
| WORKFORCE WF-C5890 | 1731428 | 767 | POROUS PAD,INK,DETECTION,D |
| WORKFORCE WF-C5890 | 2176802 | 768 | BOARD ASSY.,SNS |
| WORKFORCE WF-C5890 | 2219956 | 769 | CR CONTACT MODULE |
| WORKFORCE WF-C5890 | 2185511 | 770 | DETECTOR ASSY.,COVER,FRONT,RIPS |
| WORKFORCE WF-C5890 | 1735783 | 771 | POROUS PAD,INK,DETECTION,F |
| WORKFORCE WF-C5890 | 1890252 | 772 | LABEL,Tray,K |
| WORKFORCE WF-C5890 | 1916370 | 772 | LABEL,TRAY,K |
| WORKFORCE WF-C5890 | 1890255 | 773 | LABEL,Tray,Y |
| WORKFORCE WF-C5890 | 1916373 | 773 | LABEL,TRAY,Y |
| WORKFORCE WF-C5890 | 1890254 | 774 | LABEL,Tray,M |
| WORKFORCE WF-C5890 | 1916372 | 774 | LABEL,TRAY,M |
| WORKFORCE WF-C5890 | 1890253 | 775 | LABEL,Tray,C |
| WORKFORCE WF-C5890 | 1916371 | 775 | LABEL,TRAY,C |
| WORKFORCE WF-C5890 | 1764265 | 776 | LOCK,TRAY |
| WORKFORCE WF-C5890 | 1935991 | 776 | LOCK,TRAY |
| WORKFORCE WF-C5890 | 1901596 | 777 | CAP NEEDLE INK PACK ASSY,B,IEI,ASP |
| WORKFORCE WF-C5890 | 2154529 | 778 | DRAWER CONECTOR 1-1612257-4 |
| WORKFORCE WF-C5890 | 1731425 | 779 | POROUS PAD,INK,DETECTION |
| WORKFORCE WF-C5890 | 1731426 | 780 | POROUS PAD,INK,DETECTION,B |
| WORKFORCE WF-C5890 | 1731427 | 781 | POROUS PAD,INK,DETECTION,C |
| WORKFORCE WF-C5890 | 1949909 | 781 | POROUS PAD,INK,DETECTION,C |
| WORKFORCE WF-C5890 | 1845726 | 782 | LABEL,PrecisionCore,F2 |
| WORKFORCE WF-C5890 | 1731429 | 784 | PROTECTION SHEET,POROUS PAD |
| WORKFORCE WF-C5890 | 1949910 | 784 | PROTECTION SHEET,POROUS PAD |
| WORKFORCE WF-C5890 | 1731430 | 785 | PROTECTION SHEET,POROUS PAD,B |
| WORKFORCE WF-C5890 | 1949911 | 785 | PROTECTION SHEET,POROUS PAD,B |
| WORKFORCE WF-C5890 | 1731431 | 786 | PROTECTION SHEET,POROUS PAD,C |
| WORKFORCE WF-C5890 | 1949912 | 786 | PROTECTION SHEET,POROUS PAD,C |
| WORKFORCE WF-C5890 | 1731432 | 787 | PROTECTION SHEET,POROUS PAD,D |
| WORKFORCE WF-C5890 | 1949913 | 787 | PROTECTION SHEET,POROUS PAD,D |
| WORKFORCE WF-C5890 | 2185512 | 789 | HARNESS,DRAWER CONNECTOR,ASF |
| WORKFORCE WF-C5890 | 1901623 | 900 | ADF SCANNER UNIT,CK23,IEI,ASP |
| WORKFORCE WF-C5890 | 1930668 | 900 | ADF SCANNER UNIT,CK23,IEI,ASP |
| WORKFORCE WF-C5890 | 1944048 | 900 | ADF SCANNER UNIT,CK23,IEI,ASP |
| WORKFORCE WF-C5890 | 1966885 | 900 | ADF SCANNER UNIT,CK23,IEI,ASP |
| WORKFORCE WF-C5890 | 1A37348 | 900 | ADF SCANNER UNIT,CK23,IEI,ASP |
| WORKFORCE WF-C5890 | 1892009 | 901 | DOCUMENT SUPPORT ADF ASSY,CK23,IEI |
| WORKFORCE WF-C5890 | 1736282 | 905 | FRAME LD ASSY SDOTT |
| WORKFORCE WF-C5890 | 1550947 | 907 | MAT,COVER,DOCUMENT |
| WORKFORCE WF-C5890 | 2143464 | 911 | PHOTO INTERRUPTER |
| Manual Name | Parts Manual for EPSON WorkForce WF-C5890 WF-C5810 |
|---|---|
| Format | |
| PDF Archive | 7.82M |
| Pages | 5 |
| Version | A |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON WorkForce WF-C5800 Series C5890 C5890a C5810 |
