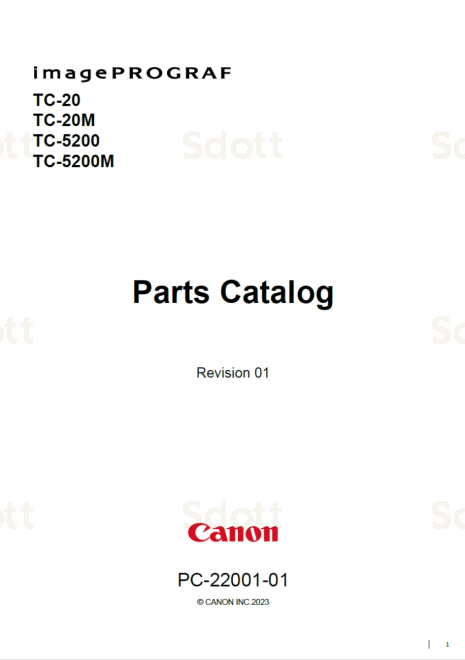

Canon imagePROGRAF TC-20 TC-20M TC-5200 TC-5200M Parts Manual
In stock
SKU
CA-TC20-PM
$1.00
- Download immediately after payment
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | Canon imagePROGRAF TC-20 TC-20M TC-5200 TC-5200M Parts Manual |
|---|---|
| Format | |
| PDF Archive | 15.5M |
| Pages | 34 |
| Version | 01 |
| Brand | CANON |
| Parts Code | PC-22001-01 |
| Reference | 2022.11 ~ 2023.2 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | . |
Canon imagePROGRAF TC-20 TC-20M TC-5200 TC-5200M
Parts Manual
CONTENTS
FIGURE1-1 External Covers (TC-20, TC-5200)………………………………………………………………………………………… 8
FIGURE1-2 External Covers (TC-20M, TC-5200M)… ……………………………………………………………………………… 10
FIGURE2 Scanner Unit, Power Supply Unit, Main PCB Unit, Operation Panel Unit… …………………………… 12
FIGURE3 Main Tank Unit……………………………………………………………………………………………………………………… 14
FIGURE4 Carriage Unit, Tube Guide Plate Unit… ………………………………………………………………………………… 16
FIGURE5 Auto Sheet Feeder Unit, Rear Relay PCB Ass'y… …………………………………………………………………… 18
FIGURE6 Carriage Motor Unit, Pinch Roller Unit… ……………………………………………………………………………… 20
FIGURE7 Cutter Unit… ………………………………………………………………………………………………………………………… 22
FIGURE8 Paper Feed Encoder Unit, Paper Feed Motor Unit, MTC Guide Unit… …………………………………… 24
FIGURE9 Right Plate Unit… ………………………………………………………………………………………………………………… 26
FIGURE10 Accessories… ……………………………………………………………………………………………………………………… 28
FIGURE11 Desktop Basket BU-06………………………………………………………………………………………………………… 30
FIGURE12 Printer Stand SD-24… ………………………………………………………………………………………………………… 32
