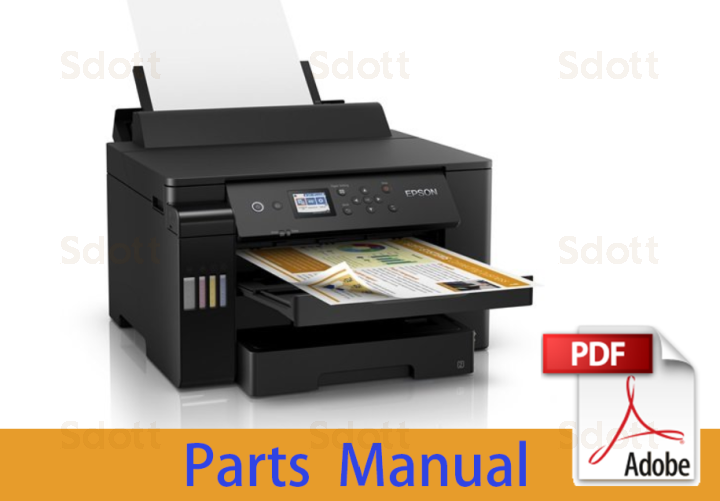

Parts Manual for EPSON L11160 ET-16150 PX-S6710T
In stock
SKU
EP-L11160-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
Epson ET-16100 Series L11100 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Article | Reference | Description |
| 1800888 | 100 | HOUSING,LEFT |
| 1848887 | 101 | HOUSING,RIGHT,C |
| 1851896 | 102 | PANEL UNIT,CJ04,IEI,ASP |
| 1833495 | 103 | DECORATION PLATE,CISS |
| 1800892 | 104 | COVER,TANK,B |
| 1800424 | 105 | DECORATION PLATE,COVER,TANK |
| 1827732 | 106 | COVER,PAPER SUPPORT,RASF,IEI,ASP |
| 1851898 | 107 | COVER,PRINTER ASSY,CJ04,ASP |
| 1768029 | 108 | TORSION SPRING,33.41 |
| 1845726 | 109 | LABEL,PrecisionCore,F2 |
| 1803703 | 110 | LABEL,TRANSFER,BK |
| 1746899 | 111 | LABEL,Caution,Right,EEB WE |
| 1817259 | 112 | POROUS PAD,HOUSING,RIGHT |
| 1833501 | 113 | COVER,TOP |
| 1815806 | 114 | LABEL,TRANSPORTATION LOCK |
| 1851900 | 115 | LABEL,INK,CONDENSE,EEB WE,ASP |
| 1835650 | 116 | LABEL,BLIND,FAX,B |
| 1837349 | 117 | LABEL,eco tank |
| 2208100 | 200 | BOARD ASSY.,MAIN |
| 1802750 | 300 | POWER SUPPLY,ASSY,CH67,C.,IEI |
| 2196054 | 351 | BOARD ASSY.,SUB |
| 2207228 | 352 | WIRELESS LAN USB MODULE |
| 2198233 | 357 | FFC,MAIN-SUB,29 Pin |
| 2176012 | 358 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| 1768577 | 501 | SCALE,CR |
| 1768579 | 502 | TORSION SPRING,15.66 |
| 2198121 | 503 | MOTOR ASSY.,CR |
| 1808391 | 504 | CARRIAGE,ASSY,CH71,IEI |
| 1857579 | 504 | CARRIAGE,ASSY,CH71,IEI |
| 2109393 | 505 | BOARD ASSY.,DETECTOR,PW,B |
| 1768590 | 507 | TORSION SPRING,142.52 |
| 1768592 | 508 | COMPRESSION SPRING,9.83 |
| 1845645 | 509 | HOUSING,FRONT,C |
| 1802309 | 511 | GUIDE,RASF,UPPER,ASSY,IEI |
| 1824006 | 512 | SCALE,PF,IEI,ASP |
| 1768589 | 514 | TORSION SPRING,154.73 |
| 2198112 | 516 | CABLE,ENCODER,PF |
| 1768538 | 518 | POROUS PAD,PAPER GUIDE,LOWER |
| 1834810 | 519 | POROUS PAD,PAPER GUIDE,LOWER,B2 |
| 1768562 | 520 | POROUS PAD,PAPER GUIDE,LOWER:C |
| 1808392 | 521 | PAPER GUIDE,FRONT,ASSY,CH71,IEI |
| 1808191 | 522 | HOLDER,STAR WHEEL,EJ1,CH71,ASSY.,IEI |
| 1810103 | 523 | HOLDER,STAR WHEEL,EJ2,CH71,ASSY.,IEI |
| 1768567 | 524 | TORSION SPRING,8.81 |
| 2205102 | 525 | MOTOR ASSY.,PF,B |
| 1522628 | 526 | EXTENSION SPRING,11.11 |
| 1768542 | 527 | EXTENSION SPRING,6.25 |
| 1829640 | 528 | LEVER PE,ASSY,CH71.,IEI |
| 1829639 | 529 | PAPER GUIDE UPPER ASSY, SIDE,CH71.,IEI |
| 1829638 | 530 | PAPER GUIDE UPPER ASSY, CENTER,CH71.,IEI |
| 1802407 | 532 | FRAME,SEPARATE,ASSY,IEI |
| 2205104 | 533 | MOTOR ASSY.,ASF,B |
| 2147998 | 534 | BOARD ASSY.,SUB |
| 2198048 | 535 | CABLE,ENCODER,ASF |
| 1768052 | 536 | COMPRESSION SPRING,41.6 |
| 1108107 | 539 | FOOT |
| 1802308 | 540 | FRAME,BASE,2nd,ASSY,IEI |
| 1856143 | 540 | FRAME,BASE,2ND,ASSY,IEI |
| 1821090 | 541 | ONEWAY CLUTCH ASSY,2ND.,IEI |
| 1768576 | 542 | TIMING BELT,CR |
| 1802310 | 543 | APG,ASSY,IEI |
| 1881756 | 543 | APG,ASSY,IEI |
| 1813534 | 544 | POROUS PAD,PAPER GUIDE,LOWER,D |
| 1814233 | 545 | POROUS PAD,PAPER GUIDE,LOWER,E |
| 1829636 | 547 | STOPPER,PAPER,CASSETTE,ASSY,CH71,IEI |
| 1709362 | 548 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| 1829634 | 549 | HOLDER,CAM,ASSY,CH71.,IEI |
| 1834813 | 550 | SHEET,20x18 |
| 1834812 | 552 | DOUBLE SIDED TAPE,15x65 |
| 2198108 | 553 | MOTOR ASSY.,EJ |
| FA32031 | 700 | PRINT HEAD,IF475V-3,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| FA32041 | 700 | PRINT HEAD,IF475V-3,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1801903 | 701 | STACKER ASSY (BK),IEI |
| 1827728 | 702 | CASSETTE ASSY 1ST BIN (BK),IEI,ASP |
| 1768048 | 703 | COVER,CASSETTE |
| 1827730 | 704 | CASSETTE ASSY 2ND BIN (BK),IEI,ASP |
| 1783865 | 705 | COVER,LD,SUB |
| 1829666 | 706 | PAPER SUPPORT,RASF,ASSY,CH71.,IEI |
| 1801905 | 707 | DUPLEX UNIT (ASF) (BK),IEI |
| 1841340 | 708 | RASF,ASSY,C.,IEI,ASP |
| 1768007 | 709 | EXTENSION SPRING,5.529 |
| 1827713 | 710 | KEY SLOT,C,ASSY,IEI,ASP |
| 1824313 | 711 | POROUS PAD,TANK,UPPER |
| 1827733 | 712 | I/S TANK UNIT,CH71,IEI,ASP |
| 1858183 | 712 | I/S TANK UNIT,CH71,IEI,ASP |
| 2199020 | 713 | CABLE,CSIC |
| 2197925 | 714 | CONECTOR,CSIC |
| 1772632 | 715 | JOINT,MAINTENANCE BOX |
| 1800889 | 717 | HOUSING,CISS,B |
| 1860200 | 717 | HOUSING,CISS,B |
| 1851893 | 718 | CABLE,HEAD,ASSY,CH71,ASP |
| 1854107 | 719 | VALVE ASSY,CH71.B,IE(1808240) |
| 1748879 | 720 | POROUS PAD,CR,B |
| 1768569 | 721 | HOLDER,ADAPTER |
| 1805439 | 722 | LABEL,INSTRUCTION,VALVE |
| 1768571 | 723 | COVER,CR |
| 1802408 | 724 | STACKER,DRIVE,ASSY,CH67,IEI |
| 1436642 | 725 | CLAMP,TUBE |
| 1827711 | 726 | I/S MAINTENANCE UNIT,CH71,IEI,ASP |
| 1872663 | 726 | I/S MAINTENANCE UNIT,CH71,IEI,ASP |
| 1808238 | 727 | ADAPTOR,ASSY,BK,CH71.,IEI |
| 2150699 | 729 | LEAF SENSOR,P599 |
| 1803722 | 730 | COVER,INK EJECT,C |
| 1775081 | 731 | POROUS PAD,CAP,LOWER |
| 1710162 | 732 | CAP,TANK |
| 1775092 | 733 | HINGE,CAP,TANK |
| 1814497 | 734 | LABEL,INK POSITION,KMYC,EEB WE |
| 1796247 | 735 | SHEET,GUIDE,TUBE |
| 1775164 | 736 | SHEET,COVER,TUBE |
| 1827720 | 737 | TUBE,SUPPLY,INK,u4,ASSY,IEI,ASP |
| 1817260 | 738 | POROUS PAD,IS,REAR |
| 1817266 | 739 | GUIDE,POROUS PAD,FRAME,IS |
| 1817272 | 742 | POROUS PAD,HEAD,u4,B |
| 1853308 | 743 | SHEET,PROTECTION,TUBE VALVE |
| Manual Name | L11160 ET-16150 PX-S6710T Parts Manual |
|---|---|
| Format | |
| PDF Archive | 7.75M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L11100 Series Epson ET-16100 Series |
