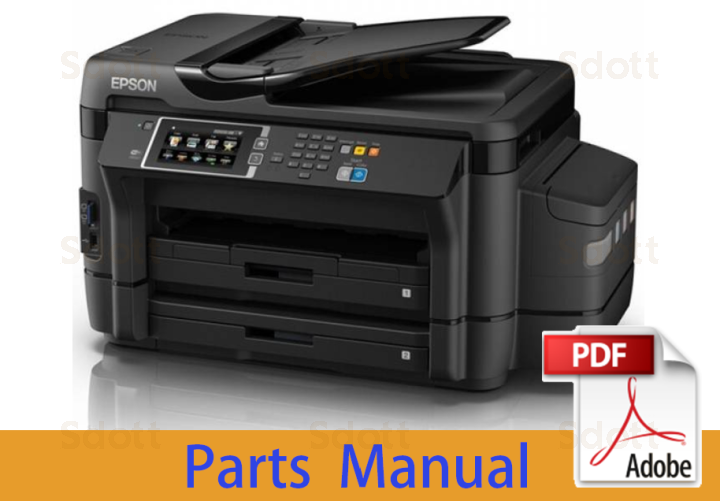

EPSON L1455 ET-16500 EW-M5071FT Parts Manual
In stock
SKU
EP-L1455-PM
$1.10
- Download immediately after payment
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | EPSON L1455 ET-16500 EW-M5071FT Parts Manual |
|---|---|
| Format | |
| PDF Archive | 12.0M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L1455 Series Epson ET-16500 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1690991 | 100 | HOUSING,UPPER |
| 1695545 | 102 | HOUSING FRONT ASSY,IEI |
| 1600459 | 105 | COVER,USB |
| 1695547 | 110 | PANEL UNIT,IEI |
| 1600317 | 111 | COVER,MSF |
| 2188558 | 200 | BOARD ASSY.,MAIN |
| 2150773 | 201 | BOARD ASSY.,INTERFACE |
| 2171673 | 203 | WIRELESS LAN USB MODULE |
| 2151035 | 204 | CABLE,BOARD ASSY.,IC |
| 2121674 | 205 | HARNESS |
| 2150811 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2193359 | 500 | Ersetzt durch: 1822713 |
| 1822713 | 500 | PRINTER MECHANISM,CF49,D,ASP |
| 1600298 | 502 | POROUS PAD,PAPER GUIDE,LOWER |
| 2136669 | 504 | BOARD ASSY.,ENCORDER,PF |
| 1607368 | 505 | PAPER STOPPER ASSY.,SEC |
| 1797735 | 505 | PAPER STOPPER ASSY.,SEC |
| 1607363 | 506 | SHAFT ROLLER PICK UP ASSY.,SEC |
| 1797734 | 506 | SHAFT ROLLER PICK UP ASSY.,SEC |
| 1702736 | 507 | FRAME BASE 2ND BIN ASSY.,ASP |
| 1822712 | 507 | FRAME BASE 2ND BIN ASSY.,ASP |
| 1438988 | 508 | TIMING BELT,PF |
| 1549917 | 510 | LEVER,ESCAPE,PICK UP |
| 1562736 | 511 | TORSION SPRING,142.6 |
| 1606813 | 512 | TORSION SPRING,241.9,RIGHT |
| 1606814 | 513 | TORSION SPRING,241.9,LEFT |
| 1549786 | 514 | FRAME,BOTTOM |
| 1607434 | 515 | HOLDER PULLY DRIVEN ASSY,IEI |
| 2143464 | 516 | PHOTO INTERRUPTER |
| 1607422 | 517 | HOLDER LEVER PE ASSY,IEI |
| 1538561 | 518 | SPUR GEAR,16 |
| 1607414 | 519 | 2ND BIN MOTOR PICK UP ASSY,IEI |
| 1805421 | 522 | POROUS PAD,CR,LEFT |
| 1805420 | 523 | POROUS PAD,CR,RIGHT |
| 1695544 | 524 | CARRIAGE UNIT,IEI |
| 1607417 | 601 | 2ND BIN PICK UP ASSY,SEC |
| 1797738 | 601 | 2ND BIN PICK UP ASSY,SEC |
| 1575268 | 704 | HOLDER,BOARD ASSY.,IC |
| 1607425 | 706 | HOLDER CAM ASSY,SEC |
| 1797744 | 706 | HOLDER CAM ASSY,SEC |
| 1673869 | 707 | INK SYSTEM ASSY.,E,SEC |
| 1797755 | 707 | INK SYSTEM ASSY.,E,SEC |
| 1600222 | 708 | SCALE,CR |
| 1606558 | 709 | TORSION SPRING,7.13 |
| 2194011 | 711 | CABLE,ENCODER,PF,B |
| 1549935 | 712 | COVER,CASSETTE |
| 1753551 | 713 | DUPLEX ASSY.,SEC,ASP |
| 1823242 | 713 | DUPLEX ASSY.,SEC,ASP |
| 1607357 | 714 | STACKER ASSY,SEC |
| 1797772 | 714 | STACKER ASSY,SEC |
| 1607350 | 715 | CASSETTE 1ST BIN ASSY,SEC |
| 1607354 | 716 | CASSETTE 2ND BIN ,ASSY,SEC |
| 2152743 | 720 | MOTOR ASSY.,CR |
| 1607370 | 724 | ROLLER ASSIST 2ND ASSY.,IEI |
| 1607639 | 733 | REAR ASSY.,CC98,SEC |
| 1607641 | 734 | MSF ASSY.,CC98,SEC |
| 1695543 | 740 | HOLDER STARWHEEL ASSY,IEI |
| 1436642 | 741 | CLAMP,TUBE |
| 1652370 | 742 | PAPER GUIDE UPPER ASSY.,B,SEC |
| 1797767 | 742 | PAPER GUIDE UPPER ASSY.,B,SEC |
| 1711980 | 743 | FFC HEAD ASSY,B,IEI |
| 2154516 | 744 | SPEAKER |
| 2198271 | 745 | CABLE,DETECTOR,PW,B |
| 2108133 | 746 | BOARD ASSY.,PW |
| 2193693 | 747 | HARNESS |
| 2193672 | 749 | HARNESS |
| 2151044 | 750 | CABLE,ENCORDER,2ND |
| 1108107 | 752 | FOOT |
| 1645895 | 754 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| 1822708 | 754 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| 1549954 | 755 | TIMING BELT,CR |
| 1753021 | 756 | CLAMP,TUBE,B |
| 1797900 | 761 | ADAPTER,ASSY.,CC83,IEI |
| 1620879 | 762 | ADAPTER,ASSY,B |
| 1766998 | 763 | GUIDE, TUBE ASSY,C,IEI[ 1756936] |
| 1741224 | 764 | SHEET,GUIDE,TUBE ASSY.,ASP |
| 1753912 | 764 | SHEET,GUIDE,TUBE,B |
| 1690985 | 765 | JOINT,TUBE,TANK |
| 1693616 | 766 | TUBE,TANK,EXTRUSION |
| 1654691 | 767 | HOUSING,TANK,UPPER |
| 1654676 | 768 | HOLDER,BOARD,INK END |
| 1654694 | 769 | COVER,TANK |
| 1691092 | 770 | TANK,BK,ASSY,D,IEI |
| 1691089 | 771 | TANK,COLOR,ASSY,D,IEI |
| 1690993 | 772 | HOUSING,TANK,LOWER |
| 1703732 | 773 | CAP,TANK,C |
| 2176606 | 774 | CABLE,INK END |
| 2194026 | 774 | CABLE,INK END |
| 1690982 | 775 | CLAMP,TUBE |
| 1690983 | 776 | LOCK,TUBE |
| 1703733 | 777 | CAP,TANK,D |
| 1692221 | 778 | TUBE,ADAPTER,BK |
| 1692222 | 779 | TUBE,ADAPTER,CL,EXTRUSION |
| 1654699 | 780 | POROUS PAD,TANK,UPPER |
| 1709883 | 782 | TANK,ASSY,B,IEI |
| 2175307 | 783 | BOARD ASSY.,SENSOR |
| 1654671 | 784 | HOLDER,ADAPTER |
| 1690989 | 785 | COVER,CARRIAGE |
| 1738815 | 787 | LABEL,GENUINE,INK,EUR |
| 2176916 | 788 | BOARD ASSY.,SUB |
| 2176919 | 789 | HARNESS |
| 2143968 | 790 | BOARD ASSY.,SUB |
| 2060220 | 791 | CONNECTOR,CARTRIDGE,A |
| 1663078 | 792 | SHEET,COVER,FFC |
| 1692009 | 793 | TUBE,BK |
| 1757268 | 800 | SCANNER UNIT,CF49,B,ASP |
| 1822711 | 800 | SCANNER UNIT,CF49,B,ASP |
| 1769951 | 900 | ADF UNIT,J,ASP |
| 1822706 | 900 | ADF UNIT,J,ASP |
| 1847356 | 900 | ADF UNIT,J,ASP |
| 1600419 | 901 | COVER,FRONT,ADF |
| 1834331 | 901 | COVER,FRONT,ADF |
| 1600421 | 902 | COVER,RIGHT,ADF |
| 1649051 | 903 | DOC SUPPORT ADF ASSY.,C,SEC |
| 1600422 | 904 | COVER,BASE,ADF |
| 1834330 | 904 | COVER,BASE,ADF |
| 1600420 | 905 | COVER,REAR,ADF |
| 1600426 | 906 | COVER,FRONT,ADF,SUB |
| 1600423 | 907 | COVER,REAR,ADF,SUB |
| 1769949 | 910 | PAPER GUIDE ADF ASSY.,C,SEC |
| 1577910 | 911 | ADF LD ASSY.,B,SEC |
| 1805318 | 911 | ADF LD ASSY.,B,SEC |
| 1557363 | 912 | HOLDER PAD ADF ASSY.,SEC |
| 1805319 | 912 | HOLDER PAD ADF ASSY.,SEC |
| 1550607 | 913 | HINGE ASSY.,SC |
| 1654727 | 914 | MAT DOC ADF ASSY.,ASP |
| 1822710 | 914 | MAT DOC ADF ASSY.,ASP |
| 1654726 | 915 | MAT,COVER DOCUMENT ASSY.,ASP |
| 1822709 | 915 | MAT,COVER DOCUMENT ASSY.,ASP |
