Parts Manual for EPSON L3150 L3151 L3152 L3158 ET-2710 ET-2711
In stock
SKU
EP-L3150-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
Epson ET-2700 Series L3100 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Article | Reference | Description |
| 1746171 | 100 | HOUSING,LEFT |
| 1746175 | 101 | COVER,INK EJECT |
| 1746170 | 102 | HOUSING,RIGHT |
| 1746184 | 103 | COVER,ASF |
| 1746172 | 104 | HOUSING,FRONT,RIGHT |
| 1746174 | 105 | COVER,TANK |
| 1756598 | 106 | HOPPER ASSY.,CG86,EPPI,ASP |
| 1746165 | 107 | PARER SUPPORT |
| 1749776 | 108 | STACKER ASSY.,CG86,EPPI |
| 1756592 | 109 | COVER FRONT ASSY.,CG87,EPPI,ASP |
| 1752174 | 110 | LABEL,Model Name,ET-2710 |
| 2195954 | 200 | BOARD ASSY.,MAIN |
| 2195631 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2194159 | 350 | WIRELESS LAN USB MODULE |
| 2207229 | 350 | WIRELESS LAN USB MODULE |
| 1756593 | 501 | INK SYSTEM ASSY.,CG86,EPPI,ASP |
| 1749775 | 502 | SHAFT LD ASSY.,CG86,EPPI |
| 1813628 | 502 | SHAFT LD ASSY.,CG86,EPPI |
| 1756597 | 503 | LEVER,DETECTOR,PE,CG86,EPPI,ASP |
| 1763608 | 504 | PAPER GUIDE UPPER CENTER ASSY.,CG89,EPPI |
| 1865783 | 504 | PAPER GUIDE UPPER CENTER ASSY.,CG89,EPPI |
| 1763610 | 505 | PAPER GUIDE UPPER RIGHT ASSY.,CG89,EPPI |
| 1763609 | 506 | PAPER GUIDE UPPER LEFT ASSY.,CG89,EPPI |
| 2189475 | 507 | MOTOR,ASSY,CR |
| 1756596 | 508 | CARRIAGE ASSY.,CG86,EPPI,ASP |
| 2189473 | 509 | CABLE,ENCODER,CR |
| 2189474 | 510 | CABLE,HEAD,CR |
| 2189470 | 511 | MOTOR,ASSY,PF |
| 1741749 | 512 | CLUTCH |
| 1718070 | 513 | HOLDER,CLUTCH |
| 1718063 | 514 | EXTENSION SPRING,0.137 |
| 1718065 | 521 | SPUR GEAR,CLUTCH,45.6 |
| 1835996 | 521 | SPUR GEAR,CLUTCH,45.6 |
| 1749771 | 543 | LEVER CHANGE ASSY.,CG86,EPPI |

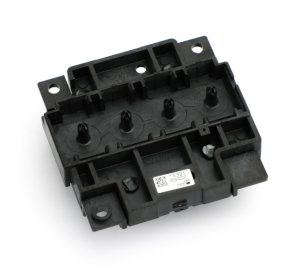

| FA04040 | 700 | Ersetzt durch: FA04060 |
| 1749772 | 701 | MAINTENANCE BOX ASSY.,CG86,EPPI |
| 1830528 | 701 | MAINTENANCE BOX ASSY.,CG86,EPPI |
| 1748804 | 702 | TANK SUPPLY INK ASSY.,CG86,EPPI |
| 1746677 | 703 | POROUS PAD,TANK,UPPER |
| 1746151 | 704 | PIN,POROUS PAD |
| 1746666 | 705 | POROUS PAD,PAPERGUIDE,FRONT |
| 1710162 | 706 | CAP,TANK |
| 1746005 | 707 | HINGE,CAP,TANK |
| 1758384 | 708 | ADAPTER BK ASSY.,CG89,EPPI |
| 1758383 | 709 | ADAPTER ASSY CL,CG89,EPPI |
| 1746667 | 710 | SHEET,GUIDE,TUBE |
| 1746669 | 711 | SCALE,CR,180 |
| 2181518 | 712 | BOARD ASSY.,ENCODER |
| 1571785 | 713 | SCALE,PF,B |
| 1548480 | 714 | EXTENSION SPRING,1.41 |
| 1767062 | 715 | HOLDER RETARD ASSY.,CG89,EPPI |
| 1746681 | 716 | TUBE,SUPPLY,INK |
| 1746668 | 717 | SHEET,GUIDE,TUBE,SUPPORT |
| 2193171 | 800 | SCANNER UNIT.,ASP, CG86,EPPI |
| 2212649 | 800 | SCANNER UNIT.,ASP, CG86,EPPI |
| 2218425 | 800 | SCANNER UNIT.,ASP, CG86,EPPI |
| 1795968 | 801 | COVER,DOCUMENT,ASSY,ASP |
| 2188777 | 802 | BOARD ASSY.,PANEL |
| 1746658 | 803 | SHEET,PANEL |
| 1746910 | 804 | LABEL,INK,Position,EEB WE |
| Manual Name | L3150 L3151 L3152 L3158 ET-2710 ET-2711 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.50M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L3100 Series Epson ET-2700 Series |
