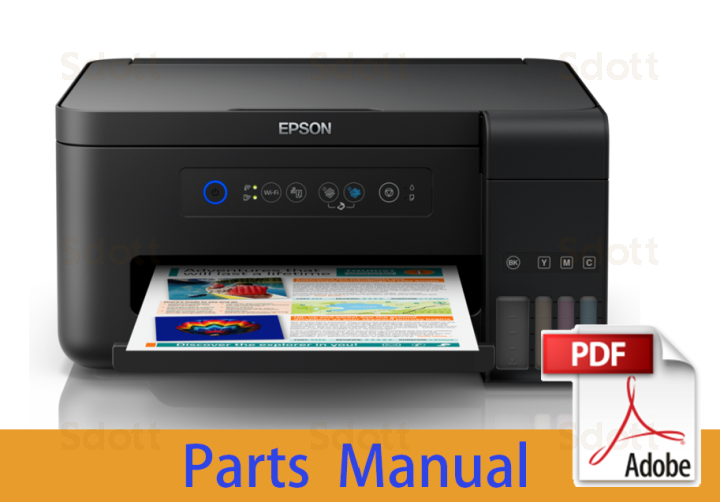

Parts Manual for EPSON L4150 L4160 / ET-2750 2756 2760
In stock
SKU
EP-L4150-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
EPSON L4100 L4200 ET-2750 ET-2760 Series
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| 1718097 | 100 | STACKER,MAIN,RASF |
| 1859476 | 100 | STACKER,MAIN,RASF |
| 1718363 | 101 | HOUSING,LEFT |
| 1735791 | 102 | HOUSING FRONT ASSY,CG22,EPPI,ASP |
| 1719332 | 103 | COVER,HINDGE,SC |
| 1717944 | 104 | HOUSING,RIGHT |
| 1760198 | 105 | PANEL ASSY.,CG23,EPPI |
| 1732848 | 108 | Cover,Ink,Eject |
| 2188789 | 200 | BOARD ASSY.,MAIN |
| 2207066 | 200 | BOARD ASSY.,MAIN |
| 1820710 | 300 | BOARD ASSY.,POWER SUPPLY 7077C,STANDARD_PIMES |
| 2197843 | 300 | Ersetzt durch: 1820710 |
| 2192161 | 350 | WIRELESS LAN USB MODULE |
| 1735793 | 352 | CARD SLOT ASSY,CG22,EPPI,ASP |
| 1717908 | 507 | POROUS PAD,PAPER GUIDE,LOWER |
| 1724119 | 508 | PGF F2 ASSY,CG22,EPPI |
| 1826759 | 508 | PGF F2 ASSY,CG22,EPPI |
| 2182527 | 509 | MOTOR ASSY.,CR |
| 1735788 | 510 | CARRIAGE F2 ASSY,CG22,EPPI,ASP |
| 2181521 | 511 | BOARD ASSY.,SNS |
| 2182523 | 512 | CABLE,ENCORDER,CR |
| 2182554 | 513 | CABLE,HEAD,CR,F2 |
| 1759427 | 514 | DETECTOR PE ASSY,CG22,EPPI |
| 1921129 | 514 | DETECTOR PE ASSY,CG22,EPPI |
| 1724136 | 515 | PGU RIGHT ASSY,CG19,EPPI |
| 1864167 | 515 | PGU RIGHT ASSY,CG19,EPPI |
| 1724137 | 516 | PGU LEFT ASSY,CG19,EPPI |
| 1864168 | 516 | PGU LEFT ASSY,CG19,EPPI |
| 1548480 | 517 | EXTENSION SPRING,1.41 |
| 1718093 | 518 | SCALE,PF |
| 1746669 | 519 | SCALE,CR,180 |
| 1741749 | 520 | CLUTCH |
| 1718065 | 521 | SPUR GEAR,CLUTCH,45.6 |
| 1835996 | 521 | SPUR GEAR,CLUTCH,45.6 |
| 1718063 | 522 | EXTENSION SPRING,0.137 |
| 2181518 | 525 | BOARD ASSY.,ENCODER |
| 1718099 | 526 | GROUNDING PLATE,HEAD,F2 |
| 1767048 | 527 | SHAFT LD ASSY.,CG23,EPPI |
| 1815189 | 527 | SHAFT LD ASSY.,CG23,EPPI |
| 1718070 | 528 | HOLDER,CLUTCH |
| 1717901 | 534 | ROLLER,EJ |
| 1832107 | 534 | ROLLER,EJ |
| 1775256 | 536 | FRAME ASF REAR ASSY D.,CG22, ASP,EPPI |
| 1848272 | 536 | FRAME ASF REAR ASSY D.,CG22, ASP,EPPI |
| 2186983 | 541 | MOTOR,ASSY,PF,B |
| 1717883 | 542 | ROLLER,PF |
| 1724118 | 543 | LEVER CHANGE ASSY,CG22,EPPI |
| 1835359 | 543 | LEVER CHANGE ASSY,CG22,EPPI |
| 1948430 | 543 | LEVER CHANGE ASSY,CG22,EPPI |
| FA04040 | 700 | Ersetzt durch: FA04060 |
| 1767047 | 701 | HOLDER DAMPER ASSY.,CG23,EPPI |
| 1717987 | 702 | RACK,DUMPER,SC |
| 1717922 | 704 | COVER,CABLE,HEAD |
| 1717929 | 705 | SHEET,GUIDE,TUBE |
| 1717930 | 706 | GUIDE,TUBE,SUPPLY,INK,2nd |
| 1717948 | 707 | COVER,TANK |
| 1859467 | 707 | COVER,TANK |
| 1720077 | 708 | SHEET,GUIDE,TUBE,SUPPORT |
| 1720078 | 709 | POROUS PAD,TANK,UPPER |
| 1735794 | 710 | IS F2 ASSY,CG22,EPPI,ASP |
| 1883150 | 710 | IS F2 ASSY,CG22,EPPI,ASP |
| 1772634 | 712 | DUPLEX ASSY., CG23,EPPI,ASP |
| 1892622 | 712 | DUPLEX ASSY., CG23,EPPI,ASP |
| 1724140 | 713 | TANK ASSY BK,CG19,EPPI |
| 1724141 | 714 | TANK ASSY CL,CG19,EPPI |
| 1724142 | 715 | TUBE SUPPLY INK ASSY,CG19,EPPI |
| 1724143 | 716 | ADAPTER ASSY BK,CG19,EPPI |
| 1724144 | 717 | ADAPTER ASSY CL,CG19,EPPI |
| 1754477 | 718 | KEY SLOT F2 ASSY FL,CG22,EPPI, ASP |
| 1767049 | 719 | MAINTENANCE BOX F2 ASSY,CG22, EPPI |
| 1899245 | 719 | MAINTENANCE BOX F2 ASSY,CG22, EPPI |
| 2181523 | 720 | BOARD ASSY.,SNS |
| 2182552 | 722 | CABLE,DETECTOR,RASF |
| 1717927 | 727 | PRESSING PLATE,TUBE |
| 1282372 | 728 | C.B.S-TITE SCREW,3X10,F/ZN-3C |
| 1760358 | 729 | POROUS PAD,CR,F2 |
| 1694173 | 730 | SHEET,PAPER GUIDE,ASF |
| 2191295 | 800 | SCANNER UNIT,CG22,EPPI,ASP |
| 2225253 | 800 | SCANNER UNIT,CG22,EPPI,ASP |
| 2231580 | 800 | SCANNER UNIT,CG22,EPPI,ASP |
| 1735632 | 801 | COVER DOCUMENT ASSY.,CG22,EPPI,ASP |
| 1718119 | 802 | COVER,ASF |
| 1876516 | 802 | COVER,ASF |
| 1720965 | 803 | LABEL,EPSON |
| Manual Name | L4150 L4160 / ET-2750 2756 2760 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.54M |
| Pages | 4 |
| Version | G 2020.01 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L4100 L4200 ET-2750 ET-2760 Series |
