Parts Manual for EPSON XP-2100 XP-2101 XP-2105 XP-2150 XP-2155 EW-052A

In stock

SKU

EP-XP2100-PM

$1.20

***** The following content is not included in the PDF manual *****

***** Please refer to the details ONLINE ******

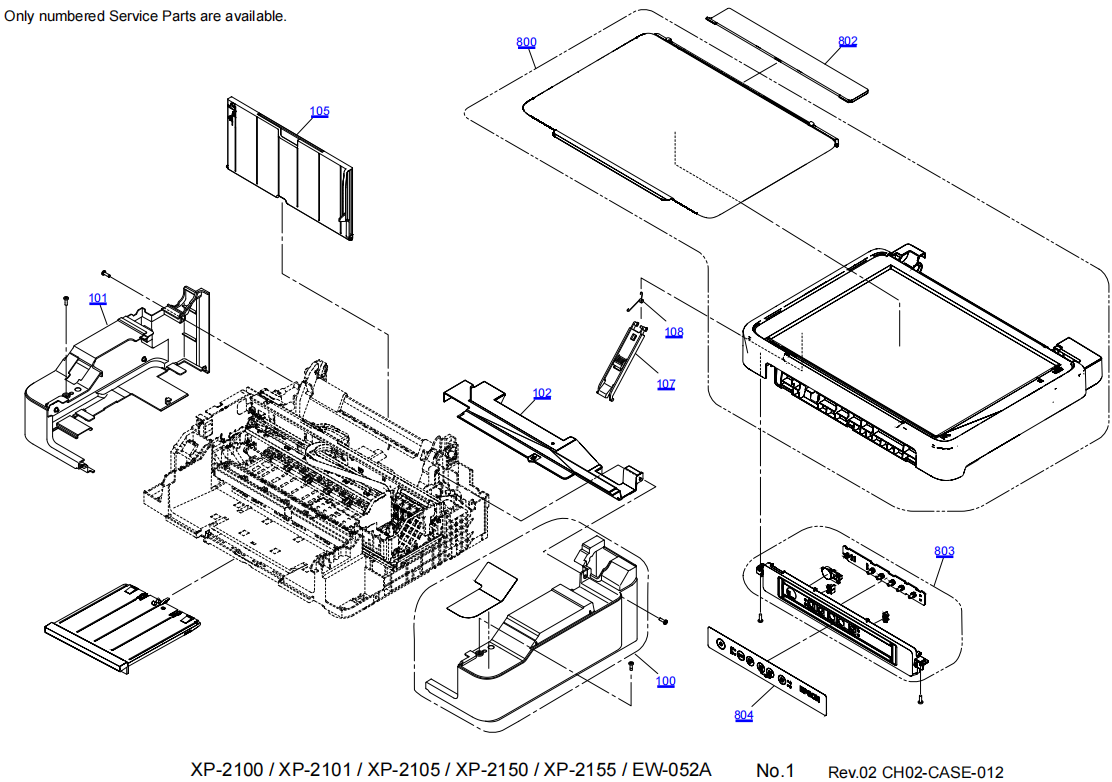

Article	Reference	Description

1797026	100	HOUSING,RIGHT,CH02,ASP
1568270	101	HOUSING,LEFT
1577162	102	COVER,REAR,ICON
1767700	105	PAPER SUPPORT ASSY.
1765867	107	STAND,SC,C
1576993	108	TORSION SPRING,25.37
2193467	200	BOARD ASSY.MAIN
2217618	200	BOARD ASSY.MAIN
2194158	202	WIRELESS LAN USB MODULE
2168785	204	CR CONTACT MODULE E6815CR, Cu
2164984	204	CR CONTACT MODULE
2139742	205	CONNECTOR,CSIC
2179218	300	POWER SUPPLY UNIT
1548493	501	LEVER,DETECTORPE
2158910	505	BOARD ASSY.,ENCORDER,PF,B
1646107	506	POROUS PAD,PAPER GUIDE,LOWER,D
1620238	507	HOLDER RETARD ASSY.
1620230	508	FRAME PUMP ASSY.
1620229	510	SHAFT ROLLER LD ASSY.
1593349	511	SCALE,CR
1610666	513	CAP ASSY.,CC86,EPPI,ASP
1620233	514	PAPER GUIDE FRONT ASSY.
2175802	515	MOTOR,ASSY.,CR
1797032	517	CR ASSY.,ASP
2150122	518	CABLE,HEAD,F2,35
2149815	519	CABLE,CSIC,F2
2150124	519	CABLE,CSIC,F2
1548518	521	SCALE,PF
2145562	525	CABLE,PIS
2150454	526	BOARD ASSY.,SUB
1548528	527	CLUTCH
1548529	528	SPUR GEAR,37.2
1548530	529	EXTENSION SPRING,0.137
1548494	531	EXTENSION SPRING,0.067
1548561	533	LEVER,LOCK,SLIDER
2136230	539	CABLE,ENCORDER,PF
FA04040	700	Ersetzt durch: FA04060
1567191	701	HOLDER,BOARD
1767701	702	HOPPER ASSY.,CH02
1638405	703	TRAY POROUS PAD ASSY.,CD87
1569226	705	LABEL,INK POSITION
1595846	706	COVER,CABLE,HEAD,F2
2201996	800	SCANNER UNIT,B,ASP
2218138	800	SCANNER UNIT,B,ASP
1586011	802	COVER,ASF,G
1797027	803	PANEL ASSY,B,ASP
1797030	804	SHEET,PANEL,B,ASP
