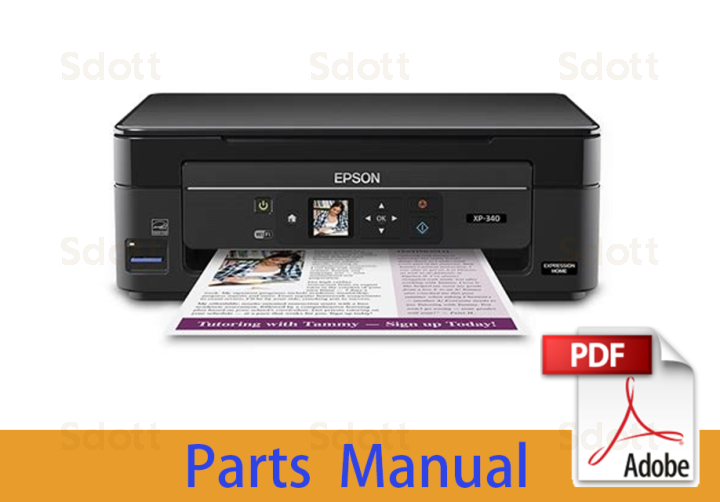

EPSON XP-342/343/345 Parts Manual

In stock
SKU
EP-XP342-PM
$1.50
Compare
Email

Share it:

  • Download link sent instantly via email
  • Virus-free & safe files
  • Manual in PDF format
  • Supports high-definition printing

Share it:

Links
$1.50

EPSON XP-342/343/345 Parts Manual

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

ModelArticleReferenceDescription
EXPRESSION HOME xp-3421548586100HOUSING,RIGHT
EXPRESSION HOME xp-3421628565101HOUSING,LEFT
EXPRESSION HOME xp-3421628562102COVER,REAR
EXPRESSION HOME xp-3421675612103PANEL UNIT,C
EXPRESSION HOME xp-3421550815105PAPER SUPPORT ASSY
EXPRESSION HOME xp-3422175270200BOARD ASSY.,MAIN
EXPRESSION HOME xp-3422189385200BOARD ASSY.,MAIN
EXPRESSION HOME xp-3422181974202WIRELESS LAN USB MODULE
EXPRESSION HOME xp-3422168523203BOARD ASSY.,STORAGE
EXPRESSION HOME xp-3422140467204CR CONTACT MODULE
EXPRESSION HOME xp-3422139742205CONNECTOR,CSIC
EXPRESSION HOME xp-3422179218300POWER SUPPLY UNIT
EXPRESSION HOME xp-3421548493501LEVER,DETECTORPE
EXPRESSION HOME xp-3422158910505BOARD ASSY.,ENCORDER,PF,B
EXPRESSION HOME xp-3421646107506POROUS PAD,PAPER GUIDE,LOWER,D
EXPRESSION HOME xp-3421550797507HOLDER RETURD ASSY
EXPRESSION HOME xp-3421586471508FRAME PUMP ASSY.,B,IEI
EXPRESSION HOME xp-3421573559510SHAFT,ROLLER,LD,ASSY,IEI
EXPRESSION HOME xp-3421593349511SCALE,CR
EXPRESSION HOME xp-3421577546513CAP ASSY.,IEI
EXPRESSION HOME xp-3421569499514PGF ASSY
EXPRESSION HOME xp-3422176501515MOTOR ASSY,CR
EXPRESSION HOME xp-3421702981517CR ASSY.,B,METCO,ASP
EXPRESSION HOME xp-3422150122518CABLE,HEAD,F2,35
EXPRESSION HOME xp-3422149815519CABLE,CSIC,F2
EXPRESSION HOME xp-3421548518521SCALE,PF
EXPRESSION HOME xp-3422141062525CABLE,PIS
EXPRESSION HOME xp-3422150454526BOARD ASSY.,SUB
EXPRESSION HOME xp-3421548528527CLUTCH
EXPRESSION HOME xp-3421548529528SPUR GEAR,37.2
EXPRESSION HOME xp-3421548530529EXTENSION SPRING,0.137
EXPRESSION HOME xp-3421548494531EXTENSION SPRING,0.067
EXPRESSION HOME xp-3421628558535LEVER,DETECTOR,AP
EXPRESSION HOME xp-3421628560536EXTENSION SPRING,0.04
EXPRESSION HOME xp-3421628559538ROLLER,LEVER,DETECTOR,AP
EXPRESSION HOME xp-3422157770540BOARD ASSY.,SNS
EXPRESSION HOME xp-3421628555543HOLDER,LEVER,DETECTOR,AP
EXPRESSION HOME xp-342FA04000700PRINT HEAD,ID1510
EXPRESSION HOME xp-3421567191701HOLDER,BOARD
EXPRESSION HOME xp-3421638405703TRAY POROUS PAD ASSY.,CD87
EXPRESSION HOME xp-3421569226705LABEL,INK POSITION
EXPRESSION HOME xp-3421595846706COVER,CABLE,HEAD,F2
EXPRESSION HOME xp-3422179604800SCANNER UNIT,METCO,ASP
EXPRESSION HOME xp-3421694621801COVER DOCUMEN ASSY.
EXPRESSION HOME xp-3426022795NON FIGCleaning Liquid,A29,18kg
EXPRESSION HOME xp-3426022803NON FIGCleaning Liquid,A29,1kg
EXPRESSION HOME xp-3421033657NON FIGGREASE G-45
EXPRESSION HOME xp-3421480655NON FIGGREASE G-71(BLUE)
EXPRESSION HOME xp-3421409257NON FIGGREASE G-74 SDOTT.com
EXPRESSION HOME xp-3421590700NON FIGGREASE,G-96 (40g)
EXPRESSION HOME xp-3421462531NON FIGI/P,DPIC009BSP,110,PRINTING
EXPRESSION HOME xp-3421686913NON FIGINK CART.UNBOXED,BK,PIG'T,2710NEEC299AS
EXPRESSION HOME xp-3421686914NON FIGINK CART.UNBOXED,C,PIG'T,2710NEEC299AS
EXPRESSION HOME xp-3421686915NON FIGINK CART.UNBOXED,M,PIG'T,2710NEEC299AS
EXPRESSION HOME xp-3421686916NON FIGINK CART.UNBOXED,Y,PIG'T,2710NEEC299AS SDOTT.COM
EXPRESSION HOME xp-3422150401NON FIGPOWER CABLE
EXPRESSION HOME xp-3426104714NON FIGSHIPPING CLEANING LIQUID,CR06A,18kg
EXPRESSION HOME xp-3426104713NON FIGSHIPPING CLEANING LIQUID,CR06A,1kg
EXPRESSION HOME xp-3421640645NON FIGSONIC TENSION METER U508


More Information
Manual Name EPSON XP-342/343/345 Parts Manual
Format PDF
PDF Archive 3.97M
Pages 3
Type SERVICE or PARTS MANUAL
Compatible Model EPSON XP-342/343/345 Series
