EPSON XP-412/XP-413/XP-415 Parts Manual
In stock
SKU
EP-XO412-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON XP-412/XP-413/XP-415 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

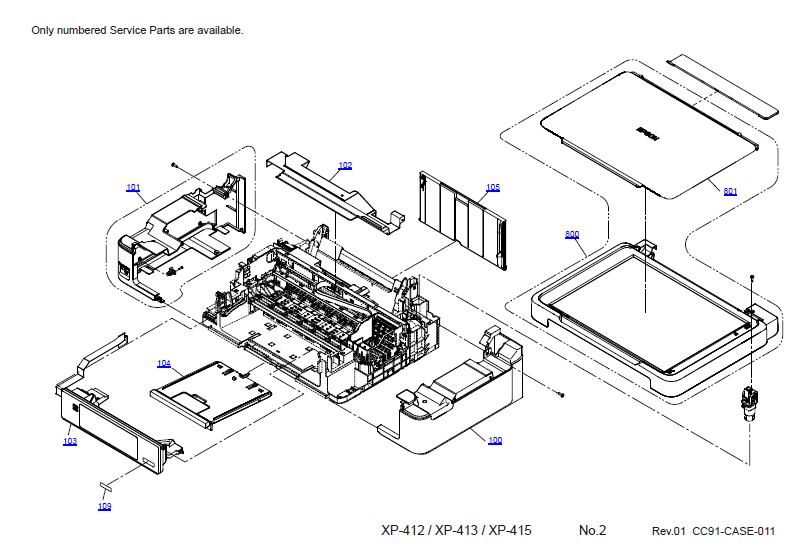

| Model | Article | Reference | Description |
| EXPRESSION HOME xp-412 | 1548586 | 100 | HOUSING,RIGHT |
| EXPRESSION HOME xp-412 | 1620223 | 101 | HOUSING LEFT ASSY. |
| EXPRESSION HOME xp-412 | 1548609 | 102 | COVER,REAR |
| EXPRESSION HOME xp-412 | 1620367 | 103 | PANEL ASSY.,CC87,EPPI |
| EXPRESSION HOME xp-412 | 1620237 | 104 | STACKER ASSY. |
| EXPRESSION HOME xp-412 | 1620221 | 105 | PAPER SUPPORT ASSY. |
| EXPRESSION HOME xp-412 | 1599242 | 109 | LABEL,MODEL NAME,xp-412 |
| EXPRESSION HOME xp-412 | 2158975 | 200 | BOARD ASSY.,MAIN |
| EXPRESSION HOME xp-412 | 2152527 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME xp-412 | 2167573 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME xp-412 | 2155476 | 203 | BOARD ASSY.,STORAGE |
| EXPRESSION HOME xp-412 | 2140467 | 204 | CR CONTACT MODULE |
| EXPRESSION HOME xp-412 | 2139742 | 205 | CONNECTOR,CSIC |
| EXPRESSION HOME xp-412 | 2153843 | 300 | Ersetzt durch: 2155567 |
| EXPRESSION HOME xp-412 | 2155567 | 300 | POWER SUPPLY UNIT |
| EXPRESSION HOME xp-412 | 2121764 | 400 | POWER CABLE |
| EXPRESSION HOME xp-412 | 1548493 | 501 | LEVER,DETECTORPE |
| EXPRESSION HOME xp-412 | 1548500 | 502 | ROLLER,EJ |
| EXPRESSION HOME xp-412 | 1548502 | 504 | MOTOR ASSY.,PF |
| EXPRESSION HOME xp-412 | 1548519 | 505 | BOARD ASSY.,ENCORDER,PF |
| EXPRESSION HOME xp-412 | 1597491 | 506 | POROUS PAD,PAPER GUIDE,FRONT,LOWER,C |
| EXPRESSION HOME xp-412 | 1646107 | 506 | POROUS PAD,PAPER GUIDE,FRONT,LOWER,C |
| EXPRESSION HOME xp-412 | 1620238 | 507 | HOLDER RETARD ASSY. |
| EXPRESSION HOME xp-412 | 1620230 | 508 | FRAME PUMP ASSY. |
| EXPRESSION HOME xp-412 | 1620243 | 509 | HOLDER STARWHEEL ASSY. |
| EXPRESSION HOME xp-412 | 1620229 | 510 | SHAFT ROLLER LD ASSY. |
| EXPRESSION HOME xp-412 | 1593349 | 511 | SCALE,CR |
| EXPRESSION HOME xp-412 | 1620231 | 513 | CAP ASSY. |
| EXPRESSION HOME xp-412 | 1620233 | 514 | PAPER GUIDE FRONT ASSY. |
| EXPRESSION HOME xp-412 | 1548481 | 515 | MOTOR ASSY,CR |
| EXPRESSION HOME xp-412 | 1620224 | 516 | PAPER GUIDE UPPER ASSY. |
| EXPRESSION HOME xp-412 | 1622473 | 517 | CR ASSY.,CC87,METCO,ASP |
| EXPRESSION HOME xp-412 | 2150122 | 518 | CABLE,HEAD,F2,35 |
| EXPRESSION HOME xp-412 | 2149815 | 519 | CABLE,CSIC,F2 |
| EXPRESSION HOME xp-412 | 1549887 | 520 | LEVER,PAPER BACK |
| EXPRESSION HOME xp-412 | 1548518 | 521 | SCALE,PF |
| EXPRESSION HOME xp-412 | 1608553 | 522 | ROLLER PF ASSY. |
| EXPRESSION HOME xp-412 | 1577172 | 523 | TIMING BELT,CR |
| EXPRESSION HOME xp-412 | 2141062 | 525 | CABLE,PIS |
| EXPRESSION HOME xp-412 | 2150454 | 526 | BOARD ASSY.,SUB |
| EXPRESSION HOME xp-412 | 1548528 | 527 | CLUTCH SDOTT |
| EXPRESSION HOME xp-412 | 1548529 | 528 | SPUR GEAR,37.2 |
| EXPRESSION HOME xp-412 | 1548530 | 529 | EXTENSION SPRING,0.137 |
| EXPRESSION HOME xp-412 | FA04000 | 700 | PRINT HEAD,ID1510 |
| EXPRESSION HOME xp-412 | 1567191 | 701 | HOLDER,BOARD |
| EXPRESSION HOME xp-412 | 1620222 | 702 | HOPPER ASSY. |
| EXPRESSION HOME xp-412 | 1569428 | 703 | Ersetzt durch: 1643986 |
| EXPRESSION HOME xp-412 | 1638405 | 703 | TRAY POROUSPAD,ASSY |
| EXPRESSION HOME xp-412 | 1643986 | 703 | TRAY POROUSPAD,ASSY |
| EXPRESSION HOME xp-412 | 1571705 | 704 | COMPRESSION SPRING,4.36 |
| EXPRESSION HOME xp-412 | 1569226 | 705 | LABEL,INK POSITION |
| EXPRESSION HOME xp-412 | 2157674 | 800 | SCANNER UNIT,B,CC91,METCO,ASP |
| EXPRESSION HOME xp-412 | 2175698 | 800 | SCANNER UNIT,B,CC91,METCO,ASP |
| EXPRESSION HOME xp-412 | 1620372 | 801 | COVER DOCUMENT,B ASSY. |
| EXPRESSION HOME xp-412 | 1033657 | NON FIG | GREASE G-45 |
| EXPRESSION HOME xp-412 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| EXPRESSION HOME xp-412 | 1409257 | NON FIG | GREASE G-74 |
| EXPRESSION HOME xp-412 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| EXPRESSION HOME xp-412 | 1578752 | NON FIG | INK CART.UNBOXED,BK,PIG'T,2710MEC,180,AS |
| EXPRESSION HOME xp-412 | 1578753 | NON FIG | INK CART.UNBOXED,C,DYE,2710M,EC,180,AS SDOTT-PARTS.COM |
| EXPRESSION HOME xp-412 | 1578754 | NON FIG | INK CART.UNBOXED,M,DYE,2710M,EC,180,AS |
| EXPRESSION HOME xp-412 | 1578755 | NON FIG | INK CART.UNBOXED,Y,DYE,2710M,EC,180,AS |
| EXPRESSION HOME xp-412 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| EXPRESSION HOME xp-412 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| EXPRESSION HOME xp-412 | 1294120 | NON FIG | SONIC TENSION METER U507 |
| Manual Name | EPSON XP-412/XP-413/XP-415 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.59M |
| Pages | 4 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON XP-412/XP-413/XP-415 Series |
