EPSON XP-700/XP-701/XP-702 Parts Manual
In stock
SKU
EP-XP700-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON XP-700/XP-701/XP-702 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

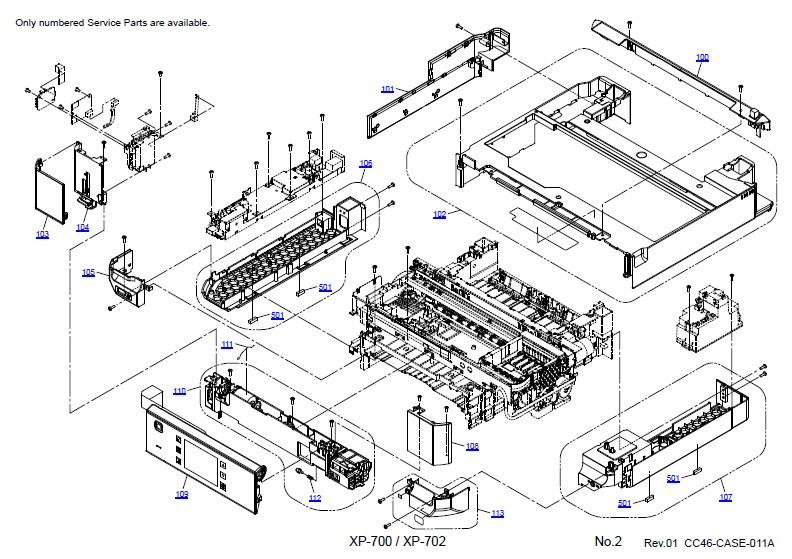

| Model | Article | Reference | Description |
| EXPRESSION PREMIUM xp-700 | 1577880 | 100 | HOUSING,FRONT,TOP ASSY |
| EXPRESSION PREMIUM xp-700 | 1577879 | 101 | HOUSING,LOWER,LEFT ASSY |
| EXPRESSION PREMIUM xp-700 | 1589862 | 102 | HOUSING,UPPER,EAI,ASSY,ASP |
| EXPRESSION PREMIUM xp-700 | 1577781 | 103 | COVER,CARD SLOT ASSY |
| EXPRESSION PREMIUM xp-700 | 1574076 | 104 | HOUSING,FRONT,LEFT |
| EXPRESSION PREMIUM xp-700 | 1574066 | 105 | HOUSING,FRONT,LOWER,LEFT |
| EXPRESSION PREMIUM xp-700 | 1589861 | 106 | FRAME,BASE,LEFT ASSY,ASP |
| EXPRESSION PREMIUM xp-700 | 1637506 | 106 | FRAME,BASE,LEFT ASSY,ASP |
| EXPRESSION PREMIUM xp-700 | 1589859 | 107 | FRAME,BASE,RIGHT ASSY,ASP |
| EXPRESSION PREMIUM xp-700 | 1579971 | 108 | HOUSING,FRONT,RIGHT ASSY |
| EXPRESSION PREMIUM xp-700 | 1577744 | 109 | Ersetzt durch: 1638273 |
| EXPRESSION PREMIUM xp-700 | 1638273 | 109 | PANEL,ASSY 3.5 INCH |
| EXPRESSION PREMIUM xp-700 | 1577746 | 110 | Ersetzt durch: 1618162 |
| EXPRESSION PREMIUM xp-700 | 1618162 | 110 | FRAME,PANEL ASSY |
| EXPRESSION PREMIUM xp-700 | 1575820 | 111 | GROUNDING SPRING,MOTOR,PANEL |
| EXPRESSION PREMIUM xp-700 | 1575821 | 112 | COMPRESSION SPRING,LOCK,PANEL,2.49 |
| EXPRESSION PREMIUM xp-700 | 1589869 | 113 | HOUSING,FRONT,LOWER,RIGHT,ASSY,ASP |
| EXPRESSION PREMIUM xp-700 | 1579983 | 200 | Ersetzt durch: 1625027 |
| EXPRESSION PREMIUM xp-700 | 1625027 | 200 | MAIN BOARD UNIT,CC46,IEI |
| EXPRESSION PREMIUM xp-700 | 2142559 | 205 | HARNESS |
| EXPRESSION PREMIUM xp-700 | 2142546 | 206 | BOARD ASSY.,SUB |
| EXPRESSION PREMIUM xp-700 | 1577777 | 207 | HOUSING,FRONT,LEFT ASSY |
| EXPRESSION PREMIUM xp-700 | 2142558 | 208 | HARNESS |
| EXPRESSION PREMIUM xp-700 | 2142543 | 209 | BOARD ASSY.,SUB |
| EXPRESSION PREMIUM xp-700 | 2143334 | 210 | Ersetzt durch: 2152527 |
| EXPRESSION PREMIUM xp-700 | 2142556 | 211 | HARNESS |
| EXPRESSION PREMIUM xp-700 | 2140849 | 212 | CR CONTACT MODULE |
| EXPRESSION PREMIUM xp-700 | 2154774 | 213 | BOARD ASSY.,DETECTOR,PW |
| EXPRESSION PREMIUM xp-700 | 2142432 | 213 | Ersetzt durch: 2154774 |
| EXPRESSION PREMIUM xp-700 | 2142420 | 214 | BOARD ASSY.,DETECTOR,PE,FRONT |
| EXPRESSION PREMIUM xp-700 | 2142529 | 300 | BOARD ASSY.,POWER SUPPLY |
| EXPRESSION PREMIUM xp-700 | 2121764 | 400 | POWER CABLE |
| EXPRESSION PREMIUM xp-700 | 1572503 | 501 | FOOT |
| EXPRESSION PREMIUM xp-700 | 1589400 | 502 | HINGE,ASSY,SC,B |
| EXPRESSION PREMIUM xp-700 | 1577825 | 503 | PAPER GUIDE,FRAME,BANK ASSY |
| EXPRESSION PREMIUM xp-700 | 1619943 | 504 | DUPLEX UNIT |
| EXPRESSION PREMIUM xp-700 | 1577861 | 504 | Ersetzt durch: 1619943 |
| EXPRESSION PREMIUM xp-700 | 1577864 | 505 | COVER,MSF ASSY |
| EXPRESSION PREMIUM xp-700 | 1577863 | 506 | FRAME,MSF ASSY |
| EXPRESSION PREMIUM xp-700 | 1577779 | 507 | Ersetzt durch: 1611102 |
| EXPRESSION PREMIUM xp-700 | 1611102 | 507 | TRAY,POROUS PAD,INK EJECT ASSY |
| EXPRESSION PREMIUM xp-700 | 1577762 | 508 | INK,SYSTEM ASSY |
| EXPRESSION PREMIUM xp-700 | 1436642 | 509 | CLAMP,TUBE |
| EXPRESSION PREMIUM xp-700 | 1573556 | 510 | POROUS PAD,INK EJECT,IS,LOWER |
| EXPRESSION PREMIUM xp-700 | 1581610 | 511 | CASSETTE,PHOTO,,C,ASSY |
| EXPRESSION PREMIUM xp-700 | 1581608 | 512 | CASSETTE,REAR,MAIN,,C,ASSY |
| EXPRESSION PREMIUM xp-700 | 1646851 | 512 | CASSETTE,REAR,MAIN,,C,ASSY |
| EXPRESSION PREMIUM xp-700 | 1572170 | 513 | COVER,CASSETTE |
| EXPRESSION PREMIUM xp-700 | 1572245 | 514 | TRAY,CDR SDOTT.COM |
| EXPRESSION PREMIUM xp-700 | 1577827 | 515 | STACKER,MAIN ASSY |
| EXPRESSION PREMIUM xp-700 | 1577837 | 516 | SHAFT,STACKER,DRIVE ASSY |
| EXPRESSION PREMIUM xp-700 | 1571813 | 517 | SLIDER,TRANSMISSION,LEFT |
| EXPRESSION PREMIUM xp-700 | 1585940 | 518 | NUT PLATE,FRAME,MAIN |
| EXPRESSION PREMIUM xp-700 | 1572243 | 519 | TORSION SPRING,25.39,LEFT |
| EXPRESSION PREMIUM xp-700 | 1577845 | 520 | HOLDER,STAR WHEEL ASSY |
| EXPRESSION PREMIUM xp-700 | 1572244 | 521 | TORSION SPRING,44.24,RIGHT |
| EXPRESSION PREMIUM xp-700 | 1571772 | 522 | TORSION SPRING,5.1 |
| EXPRESSION PREMIUM xp-700 | 1577841 | 523 | PAPER GUIDE,FRONT ASSY |
| EXPRESSION PREMIUM xp-700 | 1572509 | 524 | COVER,CLIP |
| EXPRESSION PREMIUM xp-700 | 1571762 | 525 | POROUS PAD,PAPER GUIDE,LOWER |
| EXPRESSION PREMIUM xp-700 | 1572237 | 526 | SCALE,CR |
| EXPRESSION PREMIUM xp-700 | 1572225 | 528 | COVER,CR,FRONT |
| EXPRESSION PREMIUM xp-700 | 1577854 | 529 | CONNECTOR,CSIC ASSY |
| EXPRESSION PREMIUM xp-700 | 1589856 | 530 | CABLE HEAD,ASSY,ASP |
| EXPRESSION PREMIUM xp-700 | 1575903 | 531 | GUIDE,IC |
| EXPRESSION PREMIUM xp-700 | 1589857 | 532 | COVER,FFC ASSY,ASP |
| EXPRESSION PREMIUM xp-700 | 1577832 | 533 | ENCODER,PF,C ASSY |
| EXPRESSION PREMIUM xp-700 | 1577835 | 534 | HOLDER,CAM ASSY |
| EXPRESSION PREMIUM xp-700 | 1577850 | 535 | PAPER GUIDE,UPPER,INNER ASSY |
| EXPRESSION PREMIUM xp-700 | 1577851 | 536 | PAPER GUIDE,UPPER,OUTER ASSY |
| EXPRESSION PREMIUM xp-700 | 1571769 | 537 | POROUS PAD,PAPER GUIDE,LOWER,D |
| EXPRESSION PREMIUM xp-700 | 1571764 | 538 | POROUS PAD,PAPER GUIDE,LOWER,C |
| EXPRESSION PREMIUM xp-700 | 1577469 | 539 | POROUS PAD,PAPER GUIDE,LOWER,E |
| EXPRESSION PREMIUM xp-700 | 1571773 | 540 | STOPPER,POROUS PAD |
| EXPRESSION PREMIUM xp-700 | 1571763 | 541 | POROUS PAD,PAPER GUIDE,LOWER,B |
| EXPRESSION PREMIUM xp-700 | 1577828 | 542 | FRAME,PICKUP UNIT |
| EXPRESSION PREMIUM xp-700 | 1577824 | 544 | HOLDER,DETECTOR,CASSETTE,PHOTO ASSY |
| EXPRESSION PREMIUM xp-700 | 2143464 | 545 | PHOTO INTERRUPTER |
| EXPRESSION PREMIUM xp-700 | 1588563 | 546 | SHEET,CABLE |
| EXPRESSION PREMIUM xp-700 | FA09000 | 700 | Ersetzt durch: FA09030 |
| EXPRESSION PREMIUM xp-700 | FA09030 | 700 | PRINT HEAD,ID284V 1080 |
| EXPRESSION PREMIUM xp-700 | 5130574 | 701 | PAD,SHEET,CR |
| EXPRESSION PREMIUM xp-700 | 5130846 | 702 | PAD,CR,B |
| EXPRESSION PREMIUM xp-700 | 2149175 | 800 | SCANNER UNIT,,B,CC46,IEI,ASP |
| EXPRESSION PREMIUM xp-700 | 1575744 | 803 | HOUSING,LOWER,REAR,LEFT,SC |
| EXPRESSION PREMIUM xp-700 | 1575745 | 804 | HOUSING,LOWER,REAR,RIGHT,SC |
| EXPRESSION PREMIUM xp-700 | 1593370 | 805 | COVER,DOCUMENT,,D,ASSY |
| EXPRESSION PREMIUM xp-700 | 1589095 | 806 | COVER,HOUSING,UPPER,SC,CA |
| EXPRESSION PREMIUM xp-700 | 1049533 | NON FIG | FLAX DISPENSER #F723 |
| EXPRESSION PREMIUM xp-700 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| EXPRESSION PREMIUM xp-700 | 1409258 | NON FIG | GREASE G-72 |
| EXPRESSION PREMIUM xp-700 | 1561125 | NON FIG | GREASE,G-94 |
| EXPRESSION PREMIUM xp-700 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| EXPRESSION PREMIUM xp-700 | 1587950 | NON FIG | INK CART.UNBOXED,BK,PIG'T,764CMEC,260,AS |
| EXPRESSION PREMIUM xp-700 | 1587952 | NON FIG | INK CART.UNBOXED,C,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM xp-700 | 1587953 | NON FIG | INK CART.UNBOXED,M,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM xp-700 | 1587951 | NON FIG | INK CART.UNBOXED,PBK,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM xp-700 | 1587954 | NON FIG | INK CART.UNBOXED,Y,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM xp-700 | 1280612 | NON FIG | INK HOLDER |
| EXPRESSION PREMIUM xp-700 | 1453980 | NON FIG | PFP BASE SCALE |
| EXPRESSION PREMIUM xp-700 | 1455600 | NON FIG | SHEET ,CD,DUMMY, TEST |
| EXPRESSION PREMIUM xp-700 | 6022798 | NON FIG | SHIPPING CLEANING LIQUID,CR02,18KG |
| EXPRESSION PREMIUM xp-700 | 6022805 | NON FIG | SHIPPING CLEANING LIQUID,CR02,1KG |
| EXPRESSION PREMIUM xp-700 | 1032813 | NON FIG | STRONG TAPE NO.388 BLUE SDOTT.COM |
| Manual Name | EPSON XP-700/XP-701/XP-702 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.01M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON XP-700/XP-701/XP-702 Series |
