EPSON XP-710 Parts Manual
In stock
SKU
EP-XP710-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON XP-710 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

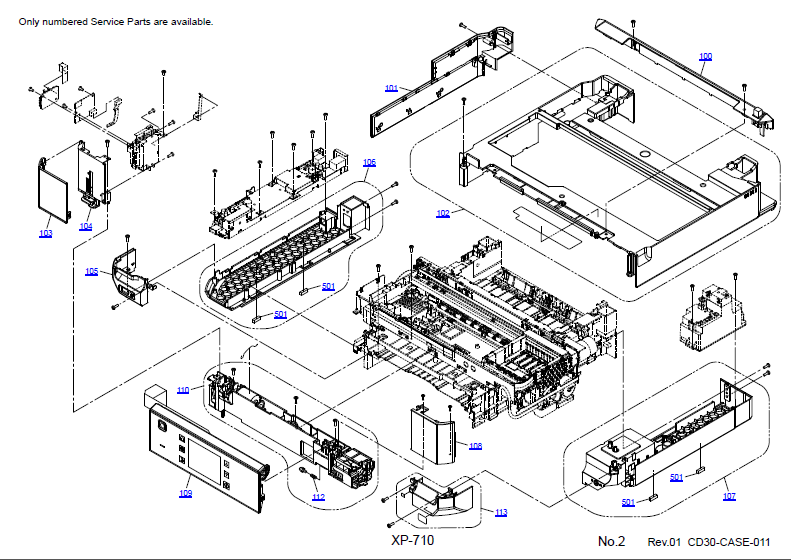

| Model | Article | Reference | Description |
| EXPRESSION PREMIUM XP-710 | 1577880 | 100 | HOUSING,FRONT,TOP ASSY |
| EXPRESSION PREMIUM XP-710 | 1577879 | 101 | HOUSING,LOWER,LEFT ASSY |
| EXPRESSION PREMIUM XP-710 | 1589862 | 102 | HOUSING,UPPER,EAI,ASSY,ASP |
| EXPRESSION PREMIUM XP-710 | 1611123 | 103 | COVER,CARD SLOT,,D,ASSY |
| EXPRESSION PREMIUM XP-710 | 1604191 | 104 | HOUSING,FRONT,LEFT |
| EXPRESSION PREMIUM XP-710 | 1574066 | 105 | HOUSING,FRONT,LOWER,LEFT |
| EXPRESSION PREMIUM XP-710 | 1590214 | 106 | Ersetzt durch: 1637509 |
| EXPRESSION PREMIUM XP-710 | 1599819 | 107 | FRAME,BASE,RIGHT,D, ASSY,ASP |
| EXPRESSION PREMIUM XP-710 | 1733187 | 107 | FRAME,BASE,RIGHT,D, ASSY,ASP |
| EXPRESSION PREMIUM XP-710 | 1611232 | 108 | HOUSING,FRONT,RIGHT,D,ASSY |
| EXPRESSION PREMIUM XP-710 | 1614825 | 109 | PANEL,,E,ASSY 3.5 INCH |
| EXPRESSION PREMIUM XP-710 | 1612616 | 110 | FRAME,PANEL,ASSY |
| EXPRESSION PREMIUM XP-710 | 1575821 | 112 | COMPRESSION SPRING,LOCK,PANEL,2.49 |
| EXPRESSION PREMIUM XP-710 | 1589870 | 113 | HOUSING,FRONT,LOWER,RIGHT,B,ASSY,ASP |
| EXPRESSION PREMIUM XP-710 | 1619134 | 200 | MAIN BOARD ASSY,CD30,B,IEI |
| EXPRESSION PREMIUM XP-710 | 2142559 | 205 | HARNESS |
| EXPRESSION PREMIUM XP-710 | 2153437 | 206 | BOARD ASSY.,SUB |
| EXPRESSION PREMIUM XP-710 | 1614878 | 207 | HOUSING,FRONT,LEFT,C,ASSY |
| EXPRESSION PREMIUM XP-710 | 2142558 | 208 | HARNESS |
| EXPRESSION PREMIUM XP-710 | 2152621 | 209 | BOARD ASSY.,SUB |
| EXPRESSION PREMIUM XP-710 | 2152527 | 210 | WIRELESS LAN USB MODULE |
| EXPRESSION PREMIUM XP-710 | 2167573 | 210 | WIRELESS LAN USB MODULE |
| EXPRESSION PREMIUM XP-710 | 2142556 | 211 | HARNESS |
| EXPRESSION PREMIUM XP-710 | 2140849 | 212 | CR CONTACT MODULE |
| EXPRESSION PREMIUM XP-710 | 2154774 | 213 | BOARD ASSY.,DETECTOR,PW |
| EXPRESSION PREMIUM XP-710 | 2142432 | 213 | Ersetzt durch: 2154774 |
| EXPRESSION PREMIUM XP-710 | 2142420 | 214 | BOARD ASSY.,DETECTOR,PE,FRONT |
| EXPRESSION PREMIUM XP-710 | 2153642 | 300 | BOARD ASSY.,POWER SUPPLY |
| EXPRESSION PREMIUM XP-710 | 1572503 | 501 | FOOT |
| EXPRESSION PREMIUM XP-710 | 1603890 | 502 | HINGE,ASSEMBLY,SC |
| EXPRESSION PREMIUM XP-710 | 1577825 | 503 | PAPER GUIDE,FRAME,BANK ASSY |
| EXPRESSION PREMIUM XP-710 | 1611103 | 504 | Ersetzt durch: 1645779 |
| EXPRESSION PREMIUM XP-710 | 1577864 | 505 | COVER,MSF ASSY |
| EXPRESSION PREMIUM XP-710 | 1611170 | 506 | FRAME,MSF,,D,ASSY |
| EXPRESSION PREMIUM XP-710 | 1611102 | 507 | TRAY,POROUS PAD,INK EJECT,,D,ASSY |
| EXPRESSION PREMIUM XP-710 | 1595474 | 508 | INK,SYSTEM,,B,ASSY |
| EXPRESSION PREMIUM XP-710 | 1436642 | 509 | CLAMP,TUBE |
| EXPRESSION PREMIUM XP-710 | 1573556 | 510 | POROUS PAD,INK EJECT,IS,LOWER |
| EXPRESSION PREMIUM XP-710 | 1612915 | 511 | Ersetzt durch: 1632557 |
| EXPRESSION PREMIUM XP-710 | 1637515 | 512 | CASSETTE ASSY |
| EXPRESSION PREMIUM XP-710 | 1613994 | 512 | Ersetzt durch: 1637515 |
| EXPRESSION PREMIUM XP-710 | 1572170 | 513 | COVER,CASSETTE |
| EXPRESSION PREMIUM XP-710 | 1572245 | 514 | TRAY,CDR |
| EXPRESSION PREMIUM XP-710 | 1608754 | 515 | STACKER,MAIN |
| EXPRESSION PREMIUM XP-710 | 1577837 | 516 | SHAFT,STACKER,DRIVE ASSY |
| EXPRESSION PREMIUM XP-710 | 1571813 | 517 | SLIDER,TRANSMISSION,LEFT |
| EXPRESSION PREMIUM XP-710 | 1585940 | 518 | NUT PLATE,FRAME,MAIN |
| EXPRESSION PREMIUM XP-710 | 1572243 | 519 | TORSION SPRING,25.39,LEFT |
| EXPRESSION PREMIUM XP-710 | 1611301 | 520 | HOLDER,STAR WHEEL,,C,ASSY |
| EXPRESSION PREMIUM XP-710 | 1572244 | 521 | TORSION SPRING,44.24,RIGHT |
| EXPRESSION PREMIUM XP-710 | 1571772 | 522 | TORSION SPRING,5.1 |
| EXPRESSION PREMIUM XP-710 | 1611062 | 523 | PAPER GUIDE,FRONT,,C,ASSY |
| EXPRESSION PREMIUM XP-710 | 1607102 | 524 | COVER,CLIP,B |
| EXPRESSION PREMIUM XP-710 | 1571762 | 525 | POROUS PAD,PAPER GUIDE,LOWER |
| EXPRESSION PREMIUM XP-710 | 1572237 | 526 | SCALE,CR |
| EXPRESSION PREMIUM XP-710 | 1572225 | 528 | COVER,CR,FRONT |
| EXPRESSION PREMIUM XP-710 | 1614566 | 529 | CONNECTOR,CSIC,D,ASSY |
| EXPRESSION PREMIUM XP-710 | 1589856 | 530 | CABLE HEAD,ASSY,ASP |
| EXPRESSION PREMIUM XP-710 | 1611533 | 531 | GUIDE,IC,B |
| EXPRESSION PREMIUM XP-710 | 1589857 | 532 | COVER,FFC ASSY,ASP |
| EXPRESSION PREMIUM XP-710 | 1614585 | 533 | ENCODER,PF,D ASSY |
| EXPRESSION PREMIUM XP-710 | 1577835 | 534 | HOLDER,CAM ASSY |
| EXPRESSION PREMIUM XP-710 | 1612525 | 535 | PAPER GUIDE,UPPER,INNER,B,ASSY |
| EXPRESSION PREMIUM XP-710 | 1577851 | 536 | PAPER GUIDE,UPPER,OUTER ASSY |
| EXPRESSION PREMIUM XP-710 | 1577469 | 539 | POROUS PAD,PAPER GUIDE,LOWER,E |
| EXPRESSION PREMIUM XP-710 | 1571763 | 541 | POROUS PAD,PAPER GUIDE,LOWER,B |
| EXPRESSION PREMIUM XP-710 | 1577828 | 542 | FRAME,PICKUP UNIT |
| EXPRESSION PREMIUM XP-710 | 1577824 | 544 | HOLDER,DETECTOR,CASSETTE,PHOTO ASSY |
| EXPRESSION PREMIUM XP-710 | 2143464 | 545 | PHOTO INTERRUPTER |
| EXPRESSION PREMIUM XP-710 | 1607398 | 547 | SPUR GEAR,14.4,B |
| EXPRESSION PREMIUM XP-710 | 1607397 | 548 | SPUR GEAR,17.6,B |
| EXPRESSION PREMIUM XP-710 | FA09050 | 700 | PRINT HEAD,ID284V-5 |
| EXPRESSION PREMIUM XP-710 | 5130574 | 701 | PAD,SHEET,CR |
| EXPRESSION PREMIUM XP-710 | 5130846 | 702 | PAD,CR,B |
| EXPRESSION PREMIUM XP-710 | 2157269 | 800 | SCANNER UNIT,CD33,,IEI,ASP |
| EXPRESSION PREMIUM XP-710 | 1575744 | 803 | HOUSING,LOWER,REAR,LEFT,SC SDOTT.com |
| EXPRESSION PREMIUM XP-710 | 1575745 | 804 | HOUSING,LOWER,REAR,RIGHT,SC |
| EXPRESSION PREMIUM XP-710 | 1593370 | 805 | COVER,DOCUMENT,,D,ASSY |
| EXPRESSION PREMIUM XP-710 | 1589095 | 806 | COVER,HOUSING,UPPER,SC,CA |
| EXPRESSION PREMIUM XP-710 | 1033657 | NON FIG | GREASE G-45 |
| EXPRESSION PREMIUM XP-710 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| EXPRESSION PREMIUM XP-710 | 1409258 | NON FIG | GREASE G-72 |
| EXPRESSION PREMIUM XP-710 | 1409257 | NON FIG | GREASE G-74 |
| EXPRESSION PREMIUM XP-710 | 1561125 | NON FIG | GREASE,G-94 |
| EXPRESSION PREMIUM XP-710 | 1590700 | NON FIG | GREASE,G-96 (40g) |
| EXPRESSION PREMIUM XP-710 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| EXPRESSION PREMIUM XP-710 | 1587950 | NON FIG | INK CART.UNBOXED,BK,PIG'T,764CMEC,260,AS |
| EXPRESSION PREMIUM XP-710 | 1587952 | NON FIG | INK CART.UNBOXED,C,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM XP-710 | 1587953 | NON FIG | INK CART.UNBOXED,M,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM XP-710 | 1587951 | NON FIG | INK CART.UNBOXED,PBK,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM XP-710 | 1587954 | NON FIG | INK CART.UNBOXED,Y,DYE,764CM,EC,261,AS |
| EXPRESSION PREMIUM XP-710 | 1280612 | NON FIG | INK HOLDER |
| EXPRESSION PREMIUM XP-710 | 1453980 | NON FIG | PFP BASE SCALE |
| EXPRESSION PREMIUM XP-710 | 2107708 | NON FIG | POWER CABLE |
| EXPRESSION PREMIUM XP-710 | 1455600 | NON FIG | SHEET ,CD,DUMMY, TEST |
| EXPRESSION PREMIUM XP-710 | 6022798 | NON FIG | SHIPPING CLEANING LIQUID,CR02,18KG |
| EXPRESSION PREMIUM XP-710 | 6022805 | NON FIG | SHIPPING CLEANING LIQUID,CR02,1KG |
| EXPRESSION PREMIUM XP-710 | 1032813 | NON FIG | STRONG TAPE NO.388 BLUE |
| Manual Name | EPSON XP-710 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.16M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON XP-710 Series |
