EPSON XP-800/XP-801/XP-802 Parts Manual
In stock
SKU
EP-XP800-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON XP-800/XP-801/XP-802 Parts Manual

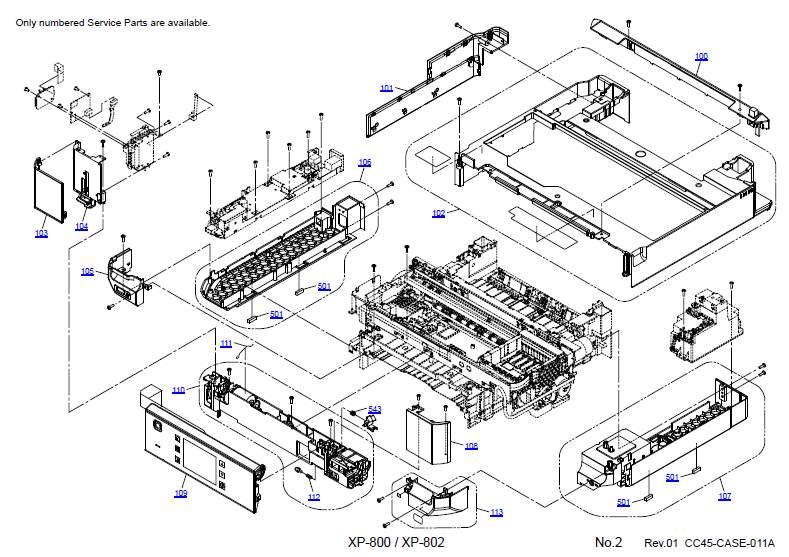

***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description | ||||
| EXPRESSION PREMIUM XP-800 | 1577783 | 101 | HOUSING,LOWER,LEFT ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1589862 | 102 | HOUSING,UPPER,EAI,ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1577781 | 103 | COVER,CARD SLOT ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1574076 | 104 | HOUSING,FRONT,LEFT | ||||
| EXPRESSION PREMIUM XP-800 | 1574066 | 105 | HOUSING,FRONT,LOWER,LEFT | ||||
| EXPRESSION PREMIUM XP-800 | 1589861 | 106 | FRAME,BASE,LEFT ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1637506 | 106 | FRAME,BASE,LEFT ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1589859 | 107 | FRAME,BASE,RIGHT ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1577780 | 108 | HOUSING,FRONT,RIGHT ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1638273 | 109 | PANEL,ASSY 3.5 INCH | ||||
| EXPRESSION PREMIUM XP-800 | 1618162 | 110 | FRAME,PANEL ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1575820 | 111 | GROUNDING SPRING,MOTOR,PANEL | ||||
| EXPRESSION PREMIUM XP-800 | 1575821 | 112 | COMPRESSION SPRING,LOCK,PANEL,2.49 | ||||
| EXPRESSION PREMIUM XP-800 | 1589869 | 113 | HOUSING,FRONT,LOWER,RIGHT,ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1575720 | 114 | COVER,REAR,LEFT,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1575719 | 115 | COVER,REAR,RIGHT,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1625026 | 200 | MAIN BOARD UNIT,CC45,IEI | ||||
| EXPRESSION PREMIUM XP-800 | 1630282 | 201 | FAX ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 2142550 | 202 | BOARD ASSY.,SUB | ||||
| EXPRESSION PREMIUM XP-800 | 2142557 | 203 | HARNESS | ||||
| EXPRESSION PREMIUM XP-800 | 2142560 | 204 | HARNESS | ||||
| EXPRESSION PREMIUM XP-800 | 2142559 | 205 | HARNESS | ||||
| EXPRESSION PREMIUM XP-800 | 2142546 | 206 | BOARD ASSY.,SUB | ||||
| EXPRESSION PREMIUM XP-800 | 1577777 | 207 | HOUSING,FRONT,LEFT ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 2142558 | 208 | HARNESS | ||||
| EXPRESSION PREMIUM XP-800 | 2142543 | 209 | BOARD ASSY.,SUB | ||||
| EXPRESSION PREMIUM XP-800 | 2142556 | 211 | HARNESS | ||||
| EXPRESSION PREMIUM XP-800 | 2140849 | 212 | CR CONTACT MODULE | ||||
| EXPRESSION PREMIUM XP-800 | 2154774 | 213 | BOARD ASSY.,DETECTOR,PW | ||||
| EXPRESSION PREMIUM XP-800 | 2142420 | 214 | BOARD ASSY.,DETECTOR,PE,FRONT | ||||
| EXPRESSION PREMIUM XP-800 | 2142529 | 300 | BOARD ASSY.,POWER SUPPLY | ||||
| EXPRESSION PREMIUM XP-800 | 2121764 | 400 | POWER CABLE | ||||
| EXPRESSION PREMIUM XP-800 | 1572503 | 501 | FOOT | ||||
| EXPRESSION PREMIUM XP-800 | 1575721 | 502 | HINGE,ASSY.,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1577825 | 503 | PAPER GUIDE,FRAME,BANK ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1619943 | 504 | DUPLEX UNIT | ||||
| EXPRESSION PREMIUM XP-800 | 1577861 | 504 | Ersetzt durch: 1619943 | ||||
| EXPRESSION PREMIUM XP-800 | 1577864 | 505 | COVER,MSF ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1577863 | 506 | FRAME,MSF ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1611102 | 507 | TRAY,POROUS PAD,INK EJECT ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1577762 | 508 | INK,SYSTEM ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1436642 | 509 | CLAMP,TUBE | ||||
| EXPRESSION PREMIUM XP-800 | 1573556 | 510 | POROUS PAD,INK EJECT,IS,LOWER | ||||
| EXPRESSION PREMIUM XP-800 | 1581610 | 511 | CASSETTE,PHOTO,,C,ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1581608 | 512 | CASSETTE,REAR,MAIN,,C,ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1646851 | 512 | CASSETTE,REAR,MAIN,,C,ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1572170 | 513 | COVER,CASSETTE | ||||
| EXPRESSION PREMIUM XP-800 | 1572245 | 514 | TRAY,CDR | ||||
| EXPRESSION PREMIUM XP-800 | 1577827 | 515 | STACKER,MAIN ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1577837 | 516 | SHAFT,STACKER,DRIVE ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1571813 | 517 | SLIDER,TRANSMISSION,LEFT | ||||
| EXPRESSION PREMIUM XP-800 | 1585940 | 518 | NUT PLATE,FRAME,MAIN | ||||
| EXPRESSION PREMIUM XP-800 | 1572243 | 519 | TORSION SPRING,25.39,LEFT | ||||
| EXPRESSION PREMIUM XP-800 | 1577845 | 520 | HOLDER,STAR WHEEL ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1572244 | 521 | TORSION SPRING,44.24,RIGHT | ||||
| EXPRESSION PREMIUM XP-800 | 1571772 | 522 | TORSION SPRING,5.1 | ||||
| EXPRESSION PREMIUM XP-800 | 1577841 | 523 | PAPER GUIDE,FRONT ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1572509 | 524 | COVER,CLIP | ||||
| EXPRESSION PREMIUM XP-800 | 1571762 | 525 | POROUS PAD,PAPER GUIDE,LOWER | ||||
| EXPRESSION PREMIUM XP-800 | 1572237 | 526 | SCALE,CR | ||||
| EXPRESSION PREMIUM XP-800 | 1572225 | 528 | COVER,CR,FRONT | ||||
| EXPRESSION PREMIUM XP-800 | 1577854 | 529 | CONNECTOR,CSIC ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1589856 | 530 | CABLE HEAD,ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1575903 | 531 | GUIDE,IC | ||||
| EXPRESSION PREMIUM XP-800 | 1589857 | 532 | COVER,FFC ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1577832 | 533 | ENCODER,PF,C ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1577835 | 534 | HOLDER,CAM ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1577850 | 535 | PAPER GUIDE,UPPER,INNER ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1577851 | 536 | PAPER GUIDE,UPPER,OUTER ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1571769 | 537 | POROUS PAD,PAPER GUIDE,LOWER,D | ||||
| EXPRESSION PREMIUM XP-800 | 1571764 | 538 | POROUS PAD,PAPER GUIDE,LOWER,C | ||||
| EXPRESSION PREMIUM XP-800 | 1577469 | 539 | POROUS PAD,PAPER GUIDE,LOWER,E | ||||
| EXPRESSION PREMIUM XP-800 | 1571773 | 540 | STOPPER,POROUS PAD | ||||
| EXPRESSION PREMIUM XP-800 | 1571763 | 541 | POROUS PAD,PAPER GUIDE,LOWER,B | ||||
| EXPRESSION PREMIUM XP-800 | 1577828 | 542 | FRAME,PICKUP UNIT | ||||
| EXPRESSION PREMIUM XP-800 | 1577369 | 543 | COMPRESSION SPRING,0.084 | ||||
| EXPRESSION PREMIUM XP-800 | 1577824 | 544 | HOLDER,DETECTOR,CASSETTE,PHOTO ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 2143464 | 545 | PHOTO INTERRUPTER | ||||
| EXPRESSION PREMIUM XP-800 | 1588563 | 546 | SHEET,CABLE | ||||
| EXPRESSION PREMIUM XP-800 | FA09000 | 700 | Ersetzt durch: FA09030 | ||||
| EXPRESSION PREMIUM XP-800 | FA09030 | 700 | PRINT HEAD,ID284V 1080 | ||||
| EXPRESSION PREMIUM XP-800 | 5130574 | 701 | PAD,SHEET,CR | ||||
| EXPRESSION PREMIUM XP-800 | 5130846 | 702 | PAD,CR,B | ||||
| EXPRESSION PREMIUM XP-800 | 2148213 | 800 | SCANNER UNIT,CC45,IEI,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1575744 | 803 | HOUSING,LOWER,REAR,LEFT,SC | ||||
| EXPRESSION PREMIUM XP-800 | 1575745 | 804 | HOUSING,LOWER,REAR,RIGHT,SC | ||||
| EXPRESSION PREMIUM XP-800 | 2148211 | 900 | ADF UNIT,CC45,IEI,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1577795 | 901 | COVER,ADF ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1575713 | 902 | COVER,REAR,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1589871 | 903 | COVER,DOCUMENT,SUPPORT,ADF,ASSY,ASP | ||||
| EXPRESSION PREMIUM XP-800 | 1575711 | 904 | COVER,STACKER,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1577803 | 905 | PAD,ADF ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1577821 | 906 | DOCUMENT,SUPPORT,ADF ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1575715 | 907 | BASE,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1575716 | 908 | STACKER,SUB,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1575714 | 909 | COVER,RIGHT,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1575718 | 910 | GUIDE,HINGE | ||||
| EXPRESSION PREMIUM XP-800 | 1575709 | 911 | COVER,FRONT,ADF | ||||
| EXPRESSION PREMIUM XP-800 | 1577794 | 912 | Ersetzt durch: 1611191 | ||||
| EXPRESSION PREMIUM XP-800 | 1611191 | 912 | MOUNTING PLATE,MAT ASSY | ||||
| EXPRESSION PREMIUM XP-800 | 1049533 | NON FIG | FLAX DISPENSER #F723 | ||||
| EXPRESSION PREMIUM XP-800 | 1480655 | NON FIG | GREASE G-71(BLUE) | ||||
| EXPRESSION PREMIUM XP-800 | 1409258 | NON FIG | GREASE G-72 SDOTT.COM | ||||
| EXPRESSION PREMIUM XP-800 | 1561125 | NON FIG | GREASE,G-94 | ||||
| EXPRESSION PREMIUM XP-800 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING | ||||
| EXPRESSION PREMIUM XP-800 | 1587950 | NON FIG | INK CART.UNBOXED,BK,PIG'T,764CMEC,260,AS | ||||
| EXPRESSION PREMIUM XP-800 | 1587952 | NON FIG | INK CART.UNBOXED,C,DYE,764CM,EC,261,AS | ||||
| EXPRESSION PREMIUM XP-800 | 1587953 | NON FIG | INK CART.UNBOXED,M,DYE,764CM,EC,261,AS | ||||
| EXPRESSION PREMIUM XP-800 | 1587951 | NON FIG | INK CART.UNBOXED,PBK,DYE,764CM,EC,261,AS | ||||
| EXPRESSION PREMIUM XP-800 | 1587954 | NON FIG | INK CART.UNBOXED,Y,DYE,764CM,EC,261,AS | ||||
| EXPRESSION PREMIUM XP-800 | 1280612 | NON FIG | INK HOLDER | ||||
| EXPRESSION PREMIUM XP-800 | 1453980 | NON FIG | PFP BASE SCALE | ||||
| EXPRESSION PREMIUM XP-800 | 1455600 | NON FIG | SHEET ,CD,DUMMY, TEST | ||||
| EXPRESSION PREMIUM XP-800 | 6022798 | NON FIG | SHIPPING CLEANING LIQUID,CR02,18KG | ||||
| EXPRESSION PREMIUM XP-800 | 6022805 | NON FIG | SHIPPING CLEANING LIQUID,CR02,1KG | ||||
| EXPRESSION PREMIUM XP-800 | 1032813 | NON FIG | STRONG TAPE NO.388 BLUE | ||||
| Manual Name | EPSON XP-800/XP-801/XP-802 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.86M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON XP-800/XP-801/XP-802 Series |
