Parts Manual for EPSON L6490 L6498 ET-5170
In stock
SKU
EP-L6490-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
Parts Manual for EPSON L6490 L6498 ET-5170
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

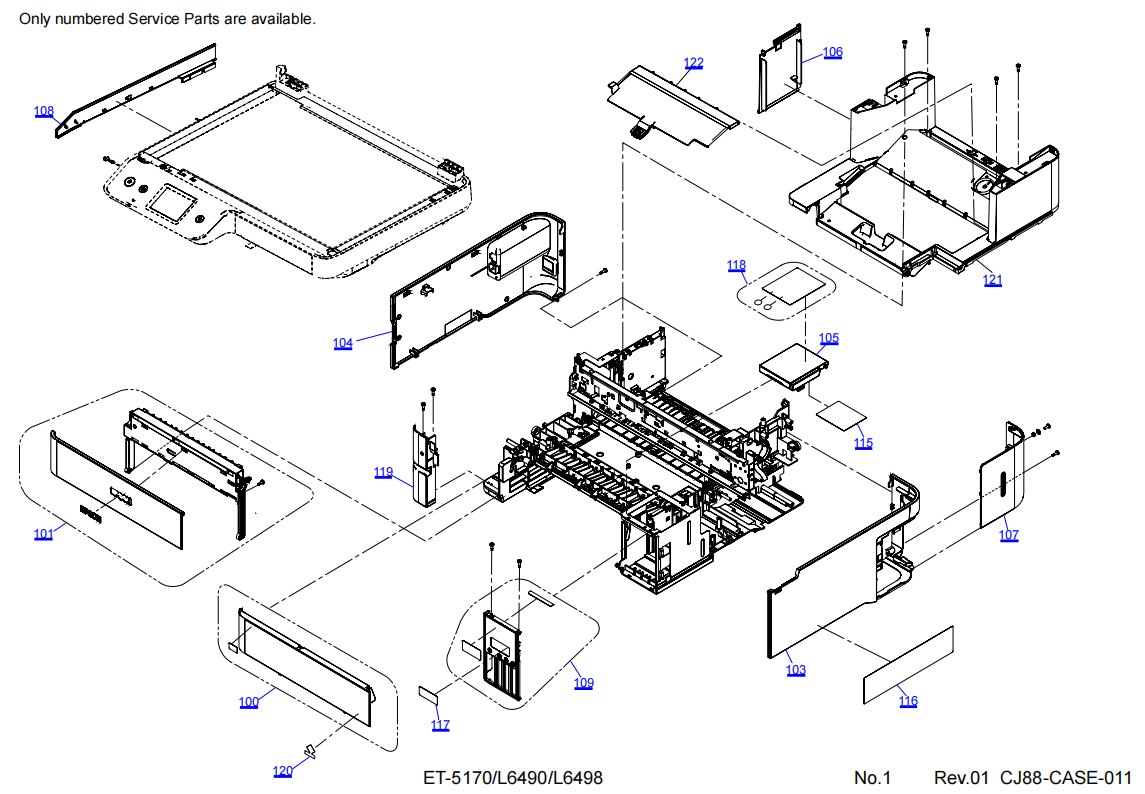

| Article | Reference | Description |
| 1851097 | 100 | COVER,CASSETTE ASSY.,CJ88,EPPI,ASP |
| 1851085 | 101 | OUTER GUIDE ASSY.,CJ88,EPPI,ASP |
| 1842666 | 103 | HOUSING,RIGHT |
| 1757230 | 104 | HOUSING,LEFT |
| 1851086 | 105 | COVER,TANK, ASSY.,CJ88,EPPI,ASP |
| 1750280 | 106 | COVER,STAND |
| 1751638 | 107 | COVER,INK EJECT |
| 1750350 | 108 | COVER,SIDE,SC |
| 1851087 | 109 | HOUSING FRONT RIGHT ASSY.,CJ88,EPPI,ASP |
| 1844772 | 115 | LABEL,Model,Ink,EEB WE |
| 1844766 | 116 | LABEL,CAUTION,EUR |
| 1844760 | 117 | LABEL,Model Name,ET-5170 |
| 1851090 | 118 | LABEL,INK,CONDENSE,EUR,EPPI,ASP |
| 1750275 | 119 | HOUSING,FRONT,LEFT |
| 1845725 | 120 | LABEL,PrecisionCore,F1 |
| 1842665 | 121 | HOUSING,TOP |
| 1848970 | 122 | STACKER FD ASSY.,CJ88,EPPI |
| 2210727 | 200 | BOARD ASSY.,MAIN |
| 2214840 | 200 | BOARD ASSY.,MAIN |
| 2215424 | 200 | BOARD ASSY.,MAIN 7176J,CJ88 STANDARD |
| 2216873 | 200 | BOARD ASSY.,MAIN 7176J,CJ88 STANDARD |
| 2217438 | 200 | BOARD ASSY.,MAIN |
| 1821595 | 300 | BOARD ASSY,POWERSUPPLY CJ18,PSH,EPPI,ASP |
| 2207229 | 350 | WIRELESS LAN USB MODULE |
| 1839997 | 351 | FAX ASSY,CJ60,EPPI |
| 2190501 | 352 | BOARD ASSY.,SUB |
| 1767046 | 501 | PICK UP ASSY.,CG20,EPPI |
| 1801803 | 502 | ASF BANK ASSY.,CG27,EPPI |
| 1855675 | 503 | HOLDER STARWHEEL M1 MONO ASSY,CJ88,EPPI |
| 1761881 | 504 | CASSETTE ASSY.,CG27,EPPI,ASP |
| 1861358 | 504 | CASSETTE ASSY.,CG27,EPPI,ASP |
| 1762184 | 505 | PAPER EJECT ROLLERGUIDE ASSYCG27,EPPIASP |
| 2182527 | 506 | MOTOR ASSY.,CR |
| 1851082 | 507 | CARRIAGE,M1 PG ASSY.,CJ88,EPPI,ASP |
| 2181521 | 508 | BOARD ASSY.,SNS |
| 2182523 | 509 | CABLE,ENCORDER,CR |
| 2186560 | 510 | CABLE,HEAD |
| 1759427 | 511 | DETECTOR PE ASSY,CG22,EPPI |
| 1755461 | 512 | PGU CENTER ASSY.,CG27,EPPI |
| 1865779 | 512 | PGU CENTER ASSY.,CG27,EPPI |
| 1755454 | 513 | PGU LEFT ASSY.,CG27,EPPI |
| 1755453 | 514 | PGU RIGHT ASSY.,CG27,EPPI |
| 1548480 | 515 | EXTENSION SPRING,1.41 |
| 1755464 | 516 | HOLDER EDGE GUIDE,MSF ASSY.,CG27,EPPI |
| 1810238 | 517 | ADAPTER ASSY BK,CH96,EPPI |
| 1848969 | 518 | INNER GUIDE ASSY.,CJ88,EPPI |
| 2181519 | 519 | BOARD ASSY.,ENCODER |
| 1717912 | 520 | GORUNDING PLATE,HEAD,CR |
| 1810239 | 522 | ADAPTER ASSY CL,CH96,EPPI |
| 2190861 | 531 | CABLE,ENCODER,PF |
| 1832107 | 534 | ROLLER,EJ ASSY,EPPI,ASP |
| 1750286 | 552 | COVER,CABLE,HEAD |
| 1750304 | 701 | SCALE,PF |
| 1851098 | 702 | DUPLEX ASSY.,CJ88,EPPI,ASP |
| 1750924 | 703 | SCALE,CR |
| 1755468 | 706 | AP SENSOR ASSY.,CG27,EPPI |
| 1849167 | 709 | TUBE SUPPLY INK ASSY.,CJ88,EPPI |
| 1761878 | 710 | IS M1 MONO ASSY.,CG27,EPPI,ASP |
| 1810196 | 711 | TANK ASSY BK,CH96,EPPI |
| 1842674 | 712 | GUIDE,TUBE,SUPPLY,INK |
| 1540008 | 713 | DOUBLE SIDE TAPE,D21,B |
| 1843667 | 714 | SHEET,GUIDE,TUBE |
| 1843668 | 715 | SHEET,GUIDE,TUBE,SUPPORT |
| 2192472 | 716 | HARNESS |
| 1851100 | 718 | KEYSLOT,PA ASSY.,CJ88,EPPI,ASP |
| 1851099 | 720 | HOLDER,SENSOR ASSY.,CJ88,EPPI,ASP |
| 2190872 | 721 | CABLE,CSIC,ENK EJECT |
| 1741765 | 723 | HOLDER,CONNECTOR,CSIC,IS |
| 2184967 | 726 | CONNECTOR,CSIC |
| 1842663 | 727 | PRESSING PLATE,TUBE |
| 1760357 | 729 | POROUS PAD,CR,u1 |
| 1810197 | 732 | TANK ASSY CL,CH96,EPPI |
| 1720078 | 733 | POROUS PAD,TANK,UPPER |
| 2190505 | 734 | HARNESS |
| 2211806 | 800 | SCANNER ADF UNIT .,CJ88,EPPI,ASP |
| 2214582 | 800 | SCANNER ADF UNIT .,CJ88,EPPI,ASP |
| 1694135 | 801 | MAT,COVER,DOCUMENT |
| 1791108 | 900 | ADF ASSY.,CG93,EPPI,ASP |
| 1757249 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| 1757245 | 902 | DOCUMENT SUPPORT,ADF |
| 1762146 | 903 | COVER ADF ASSY,CG93,EPPI |
| 1724257 | 907 | PAD ADF ASSY.,CG19,EPPI |
| 1740240 | 908 | COMPRESSION SPRING,1.45 |
| Manual Name | L6490 L6498 ET-5170 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.47M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L6490 Epson ET-5170 |
