EPSON L100/L101 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |
| 1695873 | CUSHION,W4-H4-L100,H679 | ||
| 1739596 | CUSHION,W4-H4-L100,H679 | ||
| 1736529 | MODEL NAME PLATE,EB-L1000U | ||

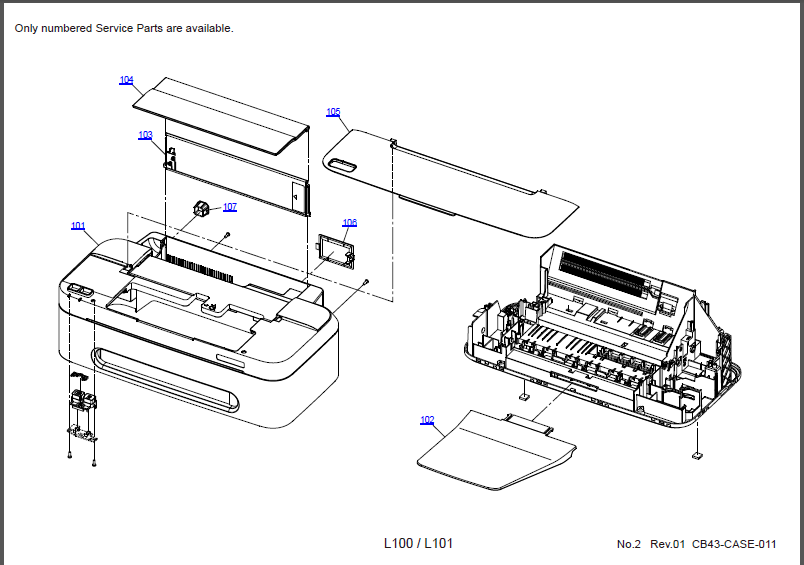

| L100 | 1542784 | 101 | CASE MIDDLE C |
| L100 | 1526941 | 102 | TRAY EXIT (B) |
| L100 | 1526943 | 103 | TRAY SUPPORT PAPER (B) |
| L100 | 1526945 | 104 | TRAY SUPPORT PAPER 2 (B) |
| L100 | 1526905 | 105 | COVER TOP (B) |
| L100 | 1513152 | 106 | COVER INK TUBE2(B) |
| L100 | 1529026 | 107 | COVER USB (B) |
| L100 | 2130512 | 200 | PCB OP |
| L100 | 2130509 | 201 | PCB ENCODER |
| L100 | 2147947 | 202 | MAIN PCB ASSY SFP |
| L100 | 2130510 | 203 | PCB FEED ENCODER |
| L100 | 2130514 | 300 | POWER UNIT 220V |
| L100 | 2121764 | 400 | POWER CABLE |
| L100 | 1582708 | 501 | Ersetzt durch: 1592362 |
| L100 | 1592362 | 501 | Ersetzt durch: 1617006 |
| L100 | 1617006 | 501 | PICK ASSY |
| L100 | 1555018 | 503 | CARRIER |
| L100 | 1497098 | 504 | HOLDER CONTACT |
| L100 | 1517060 | 505 | CAP ASSY.,CA46,B |
| L100 | 1547068 | 506 | TIRE PICK |
| L100 | 1526919 | 509 | FELT MIDDLE UPPER |
| L100 | 1526918 | 510 | FELT MIDDLE LOWER |
| L100 | 1563604 | 511 | FOAM BOTTOM CARRIAGE ASSY |
| L100 | 1526913 | 512 | FELT RIGHT |
| L100 | 1526916 | 513 | FELT LEFT LOWER |
| L100 | 1526917 | 514 | FELT LEFT UPPER |
| L100 | 1563605 | 515 | FELT BOTTOM CARRIAGE C |
| L100 | 1526926 | 516 | FORM TUBE END |
| L100 | F181010 | 517 | PRINT HEAD |
| L100 | 2137824 | 518 | FFC (CARRIER-MAIN) 17PIN |
| L100 | 2137826 | 519 | FFC (CARRIER-MAIN) 21PIN |
| L100 | 1527788 | 520 | HOUSING BUCKLER |
| L100 | 1529029 | 521 | HOUSING PUMP |
| L100 | 1497054 | 522 | ROLLER PUMP |
| L100 | 1497055 | 523 | BRACKET PUMP |
| L100 | 1529028 | 524 | GEAR PUMP IDLE |
| L100 | 1497053 | 525 | GEAR PUMP |
| L100 | 1548716 | 526 | TUBE,PUMP,B |
| L100 | 1527939 | 527 | BUCKLER FRICTION |
| L100 | 1527790 | 528 | BUCKLER FRICTION R |
| L100 | 1527791 | 529 | GEAR EXIT 93T |
| L100 | 1497105 | 530 | ROLLER FEED PINCH |
| L100 | 1554197 | 531 | ENCODER CARRIER M |
| L100 | 1554198 | 532 | BELT CARRIAGE |
| L100 | 1537611 | 533 | SPRING ENCORDER |
| L100 | 1564919 | 700 | TANK,SUPPLY,INK,MAGENTA,ASSY,B |
| L100 | 1564921 | 701 | TANK,SUPPLY,INK,YELLOW,ASSY,D[1551972] |
| L100 | 1615833 | 701 | TANK,SUPPLY,INK,YELLOW,ASSY,D[1551972] |
| L100 | 1564922 | 702 | TANK,SUPPLY,INK,CYAN,ASSY,B |
| L100 | 1620878 | 702 | TANK,SUPPLY,INK,CYAN,ASSY,B |
| L100 | 1615834 | 702 | TANK,SUPPLY,INK,CYAN,ASSY,B |
| L100 | 1564920 | 703 | TANK,SUPPLY,INK,BLACK,ASSY,B |
| L100 | 1615832 | 703 | TANK,SUPPLY,INK,BLACK,ASSY,B |
| L100 | 1597513 | 704 | CAP,TANK |
| L100 | 1538416 | 704 | Ersetzt durch: 1597513 |
| L100 | 1551076 | 705 | COVER,LEFT,B |
| L100 | 1551077 | 706 | COVER,RIGHT,B |
| L100 | 1551571 | 707 | COVER,TOP,B |
| L100 | 1551075 | 708 | COVER,BOTTOM,B |
| L100 | 1582238 | 709 | VALVE, ASSY., Sub,CB43,ASP |
| L100 | 1564366 | 710 | LEVER VALVE,B[ 1538427] |
| L100 | 1583606 | 711 | TUBE,ADAPTER,ASSY.,Sub1,CB42,ASP |
| L100 | 1624320 | 712 | ADAPTER,ASSY,B |
| L100 | 1548351 | 712 | Ersetzt durch: 1624320 |
| L100 | 1551570 | 713 | HOLDER,SUPPLY,ASSY,D |
| L100 | 1563741 | 714 | GUIDE,TUBE,SUPPLY INK,1ST,B |
| L100 | 1551575 | 715 | GUIDE,TUBE,SUPPLY,INK,2nd,B |
| L100 | 1538442 | 716 | JOINT,TUBE |
| L100 | 1538444 | 717 | GUIDE PLATE,TUBE |
| L100 | 1542327 | 718 | C.B.P-TITE SCREW,2.6X16,F/ZN-3C |
| L100 | 1559384 | 719 | LABEL,INITIAL SETUP,C |
| L100 | 1559378 | 720 | LABEL,VALVE POSITION,C |
| L100 | 1543355 | 721 | GUIDE PLATE,TUBE,SUPPORT |
| L100 | 1551074 | 722 | COVER,JOINT,4C |
| L100 | 1563755 | 723 | HOLDER,TUBE,VALVE,FRONT,D[1560772] |
| L100 | 1563749 | 724 | HOLDER,TUBE,VALVE,REAR,D[1560773] |
| L100 | 1563742 | 725 | PRESSING PLATE,TUBE,C |
| L100 | 1556135 | 727 | CAP,AIR RELEASE HOLE |
| L100 | 2147876 | D1 | SCHOTTKY BARRIER DIODE |
| L100 | 2082066 | F1 | FUSE |
| L100 | 2116554 | F2 | FUSE |
| ACULASER C2000 | 2026974 | IC10 | NETWORK CONTRORE DL10019C |
| ACULASER C8500 | 2026974 | IC10 | NETWORK CONTRORE DL10019C |
| EPL-N2050 | 2026974 | IC401 | NETWORK CONTRORE DL10019C |
| EPL-N2050+ | 2026974 | IC401 | NETWORK CONTRORE DL10019C |
| EPL-N2700 | 2026974 | IC401 | NETWORK CONTRORE DL10019C |
| EPL-N2750 | 2026974 | IC401 | NETWORK CONTRORE DL10019C |
| EPL-N4000 | 2026974 | IC401 | NETWORK CONTRORE DL10019C |
| EPL-N4000+ | 2026974 | IC401 | NETWORK CONTRORE DL10019C |
| EPL-C8200 | 2026974 | IC500 | NETWORK CONTRORE DL10019C |
| L100 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| L100 | 1409257 | NON FIG | GREASE G-74 |
| L100 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| L100 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| L100 | 1032813 | NON FIG | STRONG TAPE NO.388 BLUE |
| L100 | 4121219 | NON-FIG | SETTING UP MANUAL |
| L100 | 3107062 | NON-FIG | SOFTWARE CD,EURO |
| L100 | 4121057 | NON-FIG | SUPPLEMENT |
| Manual Name | EPSON L100/L101 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.41M |
| Pages | 5 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L100/L101 Series |
