Parts Manual for EPSON L18050 ET-18100

In stock
SKU
EP-L18050-PM
$1.10
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.10

L18050 ET-18100 Parts Manual





EPSON L18050 ET-18100

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

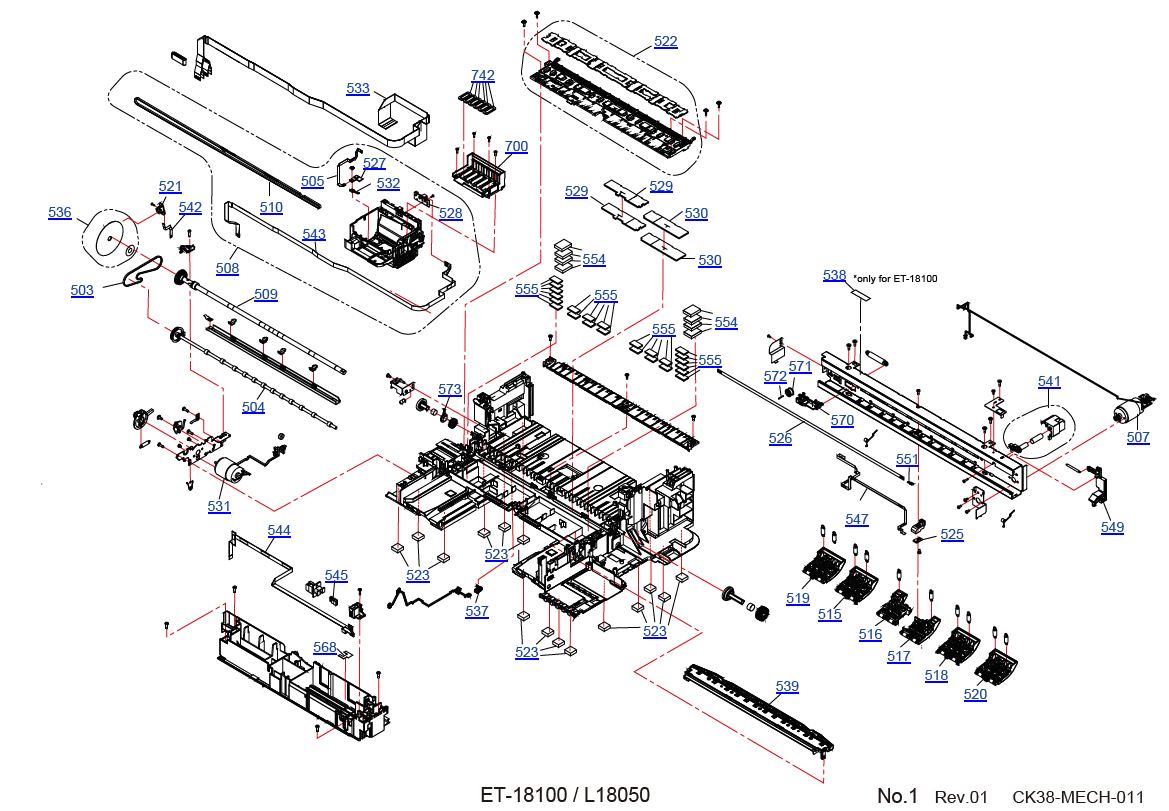

1888919101HOUSING,LEFT
1905583102HOUSING,RIGHT ASSY,IEI,ASP
1894389103PAPER SUPPORT ASSY,IEI
1888916104HOUSING,FRONT,LEFT
1892699105PANEL ASSY,IEI
1899762106HOUSING,FRONT,RIGHT,B
1837349108LABEL,eco tank
1888914109HOUSING,BACK
1888952111CDR,ID CARD,TRAY
1894374112STACKER ASSY,IEI
1888913115COVER,ASF
1888912116COVER,TOP
1888929117FRAME,ASF,UPPER
1894390118COVER,PRINTER,ASSY,IEI
1891098119LABEL,LD ROLLER
1895503120LABEL,EPSON,SN,ET-18100
1891101121LABEL,TRANSPORTATION,LOCK,NSD
2219255122HARNESS MAIN-PNL,2219255-01
1729568123DAMPER,COVER,PRINTER
2219246200BOARD ASSY.,MAIN
2219250300BOARD ASSY.,POWER SUPPLY
2207228351WIRELESS LAN USB MODULE
2208199360HARNESS
1522680503TIMMING BELT,PF
1839479504ROLLER EJ ASSY,IEI
2208001505CABLE,DETECTOR,PW
2207984507MOTOR,ASSY,CR
1839484508CARRIAGE ASSY,IEI,CJ21.,ASP
1883287509ROLLER PF ASSY,B,IEI
1829777510TIMING BELT,CR
1904678515PGU OUTER LEFT 1,ASSY,IEI
1892669516PGU CENTER LEFT ASSY,IEI
1892668517PGU ASSY CENTER RIGHT,IEI
1904679518PGU OUTER RIGHT 1,ASSY,IEI
1904680519PGU OUTER LEFT 2, ASSY,IEI
1904681520PGU OUTER RIGHT 2, ASSY,IEI
2170099521BOARD ASSY.,ENC
1894529522PAPER GUIDE FRONT ASSY,IEI
1835507523FOOT,15x15x6
2203201525BOARD ASSY.,SENSOR
1829778526SCALE,CR
2203202527BOARD ASSY.,SENSOR
2175809528BOARD ASSY.,ENCODER
1829758529POROUS PAD, PAPER GUIDE,LOWER,LEFT,1
1829757530POROUS PAD,PAPER GUIDE,FRONT,RIGHT,1
2207994531MOTER,ASSY,PF
1572229532GROUNDING PLATE,HEAD
1858443533CABLE,HEAD,CJ21.,ASSY,ASP
1858444536SCALE,PF,ASSY,CJ21,ASP
2150699537LEAF SENSOR,P599
1893653538LABEL,PASSWORD
1910996539HOLDER START WHEEL ASSY,CK38,IEI
1855259541HOLDER,CAM,ASSY,ASP,IEI
2207996542CABLE,ENCODER,PF
2207976543CABLE,ENCODER
2221581544CABLE,CSIC
2197925545CONECTOR,CSIC
2221507547FFC,DETECTOR,PE
1829556549SLIDER,TRANSMISSION
1548480551EXTENSION SPRING,1.41
2197079553PHOTO INTERRUPTER,ASF
1829769554POROUS PAD,PAPER GUIDE,FRONT,LEFT,2
1829762555POROUS PAD,FRAME,COVER,LOWER,2
1792106568POROUS PAD,HOUSING,LOWER
1829902570HOLDER,PULLEY,DRIVEN
1410000571PULLEY,DRIVEN
1262438572SHAFT,PULLEY,DRIVEN
1795403573SLIDER,TRANSMISSION,LEFT
2147998574BOARD ASSY.,SUB
2221503575CABLE,ENCODER,ASF
1905587576FRAME.MOTOR,ASF,ASSY,IEI,ASP
1888936577LEVER,PAPER,BACK
1905586578HOLDER,RETARD,ASSY,IEI,ASP
FA96001700PRINT HEAD,NUS,ASP
1714003703ADAPTER,CHIMNEY,ASSY,IEI
1829988704HINGE,CAP,TANK
1710162705CAP,TANK
1880515706INK SYSTEM ASSY,IEI,ASP,B,IEI
1841230707TANK ASSY,IEI
1824313708POROUS PAD,TANK,UPPER
1803579713EXTENSION SPRING,17.54
1802380714SLIDER,VALVE
1829986715CAM,LEVER,VALVE
1829987716COVER,VALVE
1889048717KEY SLOT, L
1829982718COVER,TANK
1893242719LABEL,MODEL,INK,EEB(EUR)
1829985720CASE,VALVE
1829780721SHEET,GUIDE,TUBE
1710050722LOCK,TUBE
1833260723TUBE,ADPTER,L
1833259724TUBE,ADPTER,S
1829989726COVER,INK EJECT
1834377727HOUSING,UPPER,FRONT,SUB
1888917728HOUSING,UPPER,FRONT
1894382730HOPPER ASSY,IEI
1910461731COMPRESSION SPRING,HOPPER,1.49
1829901738COVER,CARRIAGE
1893244740LABEL,CAUTION,INJECTION,EEB(EUR)
1839347741LABEL,CAUTION,EUR
1710172742SEAL,ADAPTER
1795553743POROUS PAD,INK EJECT,IS,LOWER,1
1795554744POROUS PAD,INK EJECT,IS,LOWER,2
1895931745LABEL,CAUTION,TRANSPORTATION LOCK,NDPP
1829916746SHEET,GUIDE,TUBE,SUPPORT





More Information
Manual Name L18050 ET-18100 Parts Manual
Format PDF
PDF Archive 4.92M
Pages 4
Type SERVICE or PARTS MANUAL
Compatible Model EPSON L18050
EPSON ET-18100
