EPSON L200/L201 Parts Manual
In stock
SKU
EP-L200-PM
$1.50
- Download link sent instantly via email
- Virus-free & safe files
- Manual in PDF format
- Supports high-definition printing
EPSON L200/L201 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Model | Article | Reference | Description |

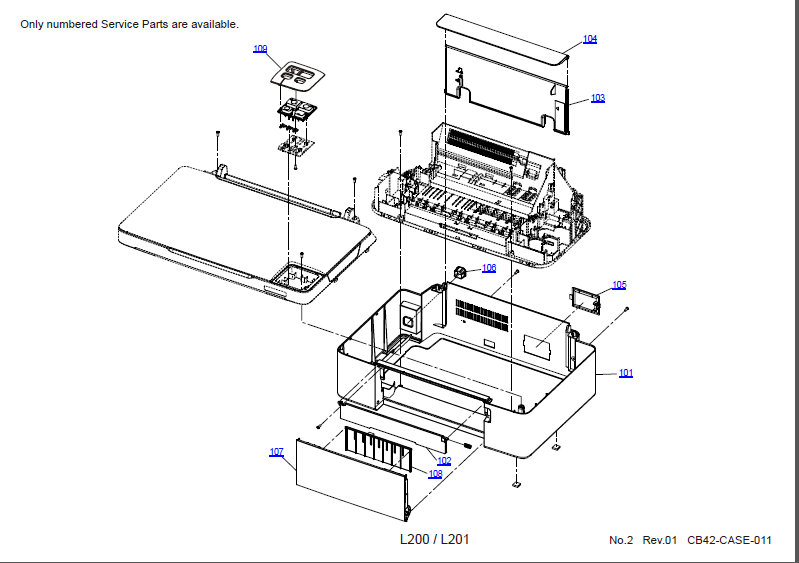

| L200 | 1542785 | 101 | CASE MIDDLE C |
| L200 | 1529304 | 102 | COVER JAM (B) |
| L200 | 1529296 | 103 | TRAY SUPPORT PAPER (B) |
| L200 | 1529298 | 104 | TRAY SUPPORT PAPER 2 (B) |
| L200 | 1513152 | 105 | COVER INK TUBE2(B) |
| L200 | 1529026 | 106 | COVER USB (B) |
| L200 | 1529292 | 107 | TRAY EXIT OUTER (B) |
| L200 | 1529294 | 108 | Ersetzt durch: 1529295 |
| L200 | 1529295 | 108 | TRAY EXIT INNER (B) |
| L200 | 1529300 | 109 | COVER PANEL (B) |
| L200 | 2131268 | 200 | PCB OP |
| L200 | 2132561 | 201 | PCB ENCODER |
| L200 | 2147944 | 202 | MAIN PCB ASSY MFP |
| L200 | 2132562 | 203 | PCB FEED ENCODER |
| L200 | 2130514 | 300 | POWER UNIT 220V |
| L200 | 2121764 | 400 | POWER CABLE |
| L200 | 1582708 | 501 | Ersetzt durch: 1592362 |
| L200 | 1592362 | 501 | Ersetzt durch: 1617006 |
| L200 | 1617006 | 501 | PICK ASSY |
| L200 | 1555018 | 503 | CARRIER |
| L200 | 1497098 | 504 | HOLDER CONTACT |
| L200 | 1517060 | 505 | CAP ASSY.,CA46,B |
| L200 | 1547068 | 506 | TIRE PICK |
| L200 | 1526919 | 509 | FELT MIDDLE UPPER |
| L200 | 1526918 | 510 | FELT MIDDLE LOWER |
| L200 | 1563604 | 511 | FOAM BOTTOM CARRIAGE ASSY |
| L200 | 1526913 | 512 | FELT RIGHT |
| L200 | 1526916 | 513 | FELT LEFT LOWER |
| L200 | 1526917 | 514 | FELT LEFT UPPER |
| L200 | 1563605 | 515 | FELT BOTTOM CARRIAGE C |
| L200 | 1526926 | 516 | FORM TUBE END |
| L200 | F181010 | 517 | PRINT HEAD |
| L200 | 2137824 | 518 | FFC (CARRIER-MAIN) 17PIN |
| L200 | 2137826 | 519 | FFC (CARRIER-MAIN) 21PIN |
| L200 | 1527788 | 520 | HOUSING BUCKLER |
| L200 | 1529029 | 521 | HOUSING PUMP |
| L200 | 1497054 | 522 | ROLLER PUMP |
| L200 | 1497055 | 523 | BRACKET PUMP |
| L200 | 1529028 | 524 | GEAR PUMP IDLE |
| L200 | 1497053 | 525 | GEAR PUMP |
| L200 | 1548716 | 526 | TUBE,PUMP,B |
| L200 | 1527939 | 527 | BUCKLER FRICTION |
| L200 | 1527790 | 528 | BUCKLER FRICTION R |
| L200 | 1527791 | 529 | GEAR EXIT 93T |
| L200 | 1497105 | 530 | ROLLER FEED PINCH |
| L200 | 1554197 | 531 | ENCODER CARRIER M |
| L200 | 1554198 | 532 | BELT CARRIAGE |
| L200 | 1537611 | 533 | SPRING ENCORDER |
| L200 | 1564919 | 700 | TANK,SUPPLY,INK,MAGENTA,ASSY,D |
| L200 | 1564921 | 701 | TANK,SUPPLY,INK,YELLOW,ASSY,D |
| L200 | 1615833 | 701 | TANK,SUPPLY,INK,YELLOW,ASSY,D |
| L200 | 1564922 | 702 | TANK,SUPPLY,INK,CYAN,ASSY,D |
| L200 | 1620878 | 702 | TANK,SUPPLY,INK,CYAN,ASSY,D |
| L200 | 1615834 | 702 | TANK,SUPPLY,INK,CYAN,ASSY,D |
| L200 | 1564920 | 703 | TANK,SUPPLY,INK,BLACK,ASSY,D |
| L200 | 1615832 | 703 | TANK,SUPPLY,INK,BLACK,ASSY,D |
| L200 | 1597513 | 704 | CAP,TANK |
| L200 | 1538416 | 704 | Ersetzt durch: 1597513 |
| L200 | 1551076 | 705 | COVER,LEFT,B |
| L200 | 1551077 | 706 | COVER,RIGHT,B |
| L200 | 1551571 | 707 | COVER,TOP,B |
| L200 | 1551075 | 708 | COVER,BOTTOM,B |
| L200 | 1581747 | 709 | VALVE, ASSY., Sub,CB42,ASP |
| L200 | 1564366 | 710 | LEVER VALVE,B |
| L200 | 1583606 | 711 | TUBE,ADAPTER,ASSY.,Sub1,CB42,ASP |
| L200 | 1624320 | 712 | ADAPTER,ASSY,B |
| L200 | 1548351 | 712 | Ersetzt durch: 1624320 |
| L200 | 1551569 | 713 | HOLDER,SUPPLY,ASSY,C |
| L200 | 1563741 | 714 | GUIDE,TUBE,SUPPLY INK,1ST,B |
| L200 | 1551575 | 715 | GUIDE,TUBE,SUPPLY,INK,2nd,B |
| L200 | 1538442 | 716 | JOINT,TUBE |
| L200 | 1538444 | 717 | GUIDE PLATE,TUBE |
| L200 | 1542327 | 718 | C.B.P-TITE SCREW,2.6X16,F/ZN-3C |
| L200 | 1559384 | 719 | LABEL,INITIAL SETUP,C |
| L200 | 1559378 | 720 | LABEL,VALVE POSITION,C |
| L200 | 1543355 | 721 | GUIDE PLATE,TUBE,SUPPORT |
| L200 | 1551074 | 722 | COVER,JOINT,4C |
| L200 | 1563755 | 723 | HOLDER,TUBE,VALVE,FRONT,D |
| L200 | 1563749 | 724 | HOLDER,TUBE,VALVE,REAR,D |
| L200 | 1563742 | 725 | PRESSING PLATE,TUBE,C |
| L200 | 1556135 | 727 | CAP,AIR RELEASE HOLE |
| L200 | 1555010 | 800 | SCANNER UNIT (B) |
| L200 | 1529310 | 801 | COVER INK (B) 1PM224298 |
| L200 | 2136873 | 802 | CIS |
| L200 | 1529316 | 803 | COVER DOCUMENT (B) 1PM021467 |
| L200 | 1529318 | 804 | PAD DOCUMENT 1PM328926 |
| L200 | 1529303 | 805 | COVER ASF 1PM224275 |
| L200 | 2142896 | 806 | FFC(CIS-MAIN) 12PIN |
| L200 | 2144719 | D1 | SCHOTTKY BARRIER DIODE |
| L200 | 2147876 | D2 | SCHOTTKY BARRIER DIODE |
| L200 | 2082066 | F1 | FUSE |
| L200 | 2116554 | F2 | FUSE |
| TM-J2000 | 2031645 | L200 | BEADS CORE CONTROL CIRCUIT BOAR |
| TM-J2000(011) | 2031645 | L200 | BEADS CORE |
| TM-J2000P | 2031645 | L200 | BEADS CORE CONTROL CIRCUIT BOAR |
| TM-J2000P(011) | 2031645 | L200 | BEADS CORE |
| TM-J2100(011) | 2031645 | L200 | BEADS CORE |
| TM-J2100(012) | 2031645 | L200 | BEADS CORE |
| TM-J2100(013) | 2031645 | L200 | BEADS CORE |
| TM-J21001 | 2031645 | L200 | BEADS CORE CONTROL CIRCUIT BOAR |
| TM-J2100P | 2031645 | L200 | BEADS CORE CONTROL CIRCUIT BOAR |
| TM-J2100P(011) | 2031645 | L200 | BEADS CORE |
| L200 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) |
| L200 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| L200 | 1409257 | NON FIG | GREASE G-74 |
| L200 | 1561125 | NON FIG | GREASE,G-94 |
| L200 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| L200 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| L200 | 1032813 | NON FIG | STRONG TAPE NO.388 BLUE |
| L200 | 4121790 | NON-FIG | SETTING UP MANUAL |
| L200 | 3106933 | NON-FIG | SOFTWARE CD,EURO |
| L200 | 4121057 | NON-FIG | SUPPLEMENT |
| L200 | 4121791 | NON-FIG | USER'S GUIDE |
| Manual Name | EPSON L200/L201 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.73M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L200/L201 Series |
