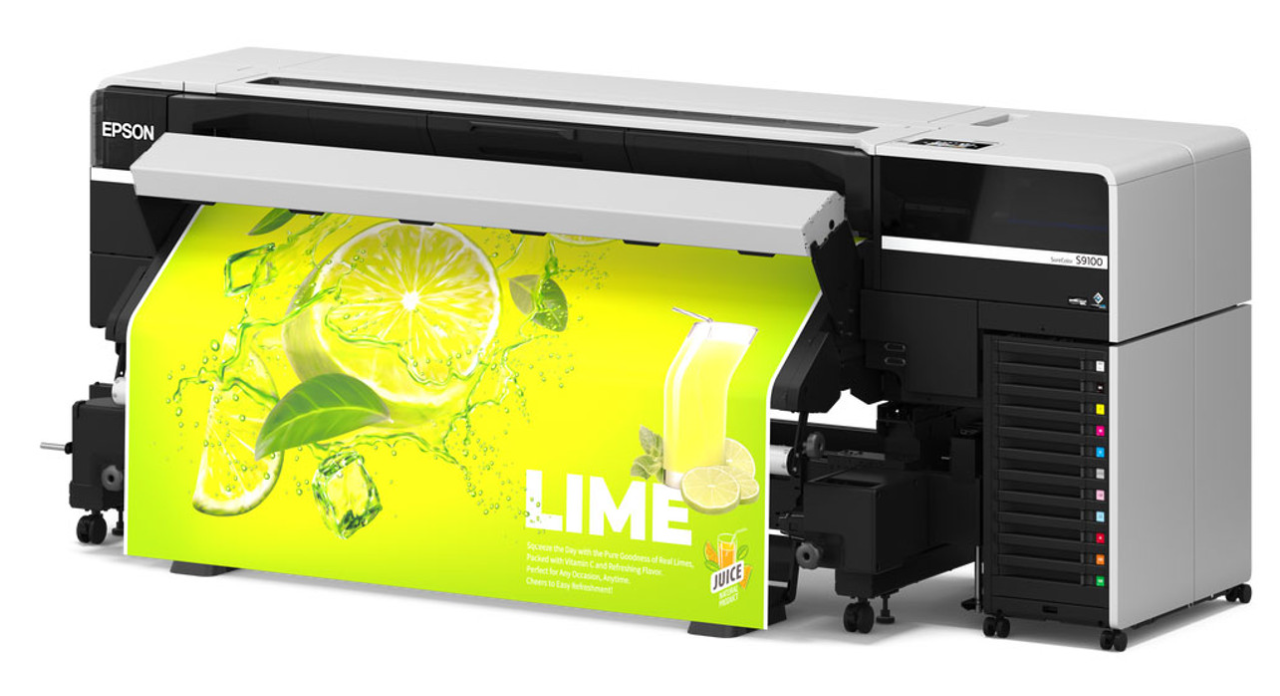

Parts Manual for EPSON SureColor S9100 S9130 S9140 S9150 S9160 S9170
In stock
SKU
EP-S9100-PM
$2.80
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
***** The following content is not included in the PDF manual *****
Please refer to the details ONLINE *

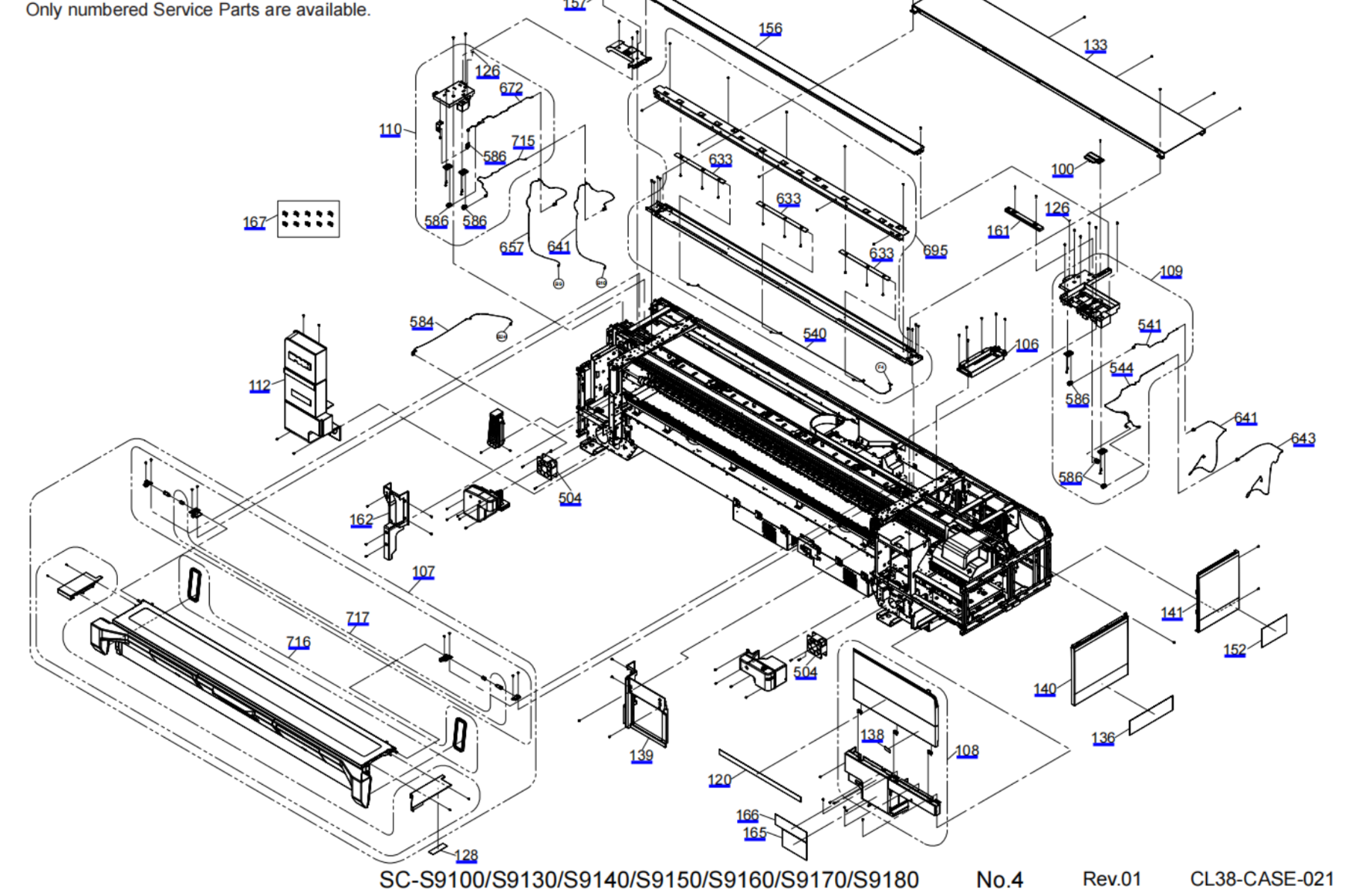

| SURECOLOR SC-S9100 | 1943560 | 01 | SCREW KIT ASSY,ASP |
| SURECOLOR SC-S9100 | 1751650 | 02 | ADJUSTER ASSY.,STAND |
| SURECOLOR SC-S9100 | 1849166 | 03 | CASTER,GX60P |
| SURECOLOR SC-S9100 | 1849165 | 04 | CASTER,GX60PS |
| SURECOLOR SC-S9100 | 1943559 | 05 | HOLDER,ROLL PAPER ASSY, ASP |
| SURECOLOR SC-S9100 | 1950925 | 06 | ROLL HOME ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1A37740 | 06 | ROLL HOME ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950924 | 08 | ROLL FULL ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1A37739 | 08 | ROLL FULL ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950926 | 09 | REEL HOME ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1A37738 | 09 | REEL HOME ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1654820 | 10 | ADJUSTER,D-B3 10X75FR |
| SURECOLOR SC-S9100 | 1950927 | 11 | REEL FULL ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1A37737 | 11 | REEL FULL ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1943562 | 12 | STAND HOME ASSY, ASP |
| SURECOLOR SC-S9100 | 1962013 | 12 | STAND HOME ASSY, ASP |
| SURECOLOR SC-S9100 | 1943563 | 13 | STAND FULL ASSY,ASP |
| SURECOLOR SC-S9100 | 1962014 | 13 | STAND FULL ASSY,ASP |
| SURECOLOR SC-S9100 | 1943543 | 14 | STAY,STAND,FRONT ASSY ESL, ASP |
| SURECOLOR SC-S9100 | 1943533 | 16 | REEL STAND ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1943534 | 17 | ROLL STAND ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 2225942 | 18 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2228647 | 19 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 1748666 | 21 | LABEL,CAUTION,EMERGENCY MESSAGE,H |
| SURECOLOR SC-S9100 | 1936646 | 100 | COVER,TOP,FRONT,RIGHT |
| SURECOLOR SC-S9100 | 1562877 | 101 | LABEL,CAUTION,HOT,B |
| SURECOLOR SC-S9100 | 1943520 | 102 | HOUSING RIGHT ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1943521 | 103 | HOUSING REAR A ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1943522 | 104 | HOUSING REAR B ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1943523 | 105 | CLOTH CATCHER ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1943525 | 106 | RELEASE TOP ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1959088 | 107 | P-COVER ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1950620 | 108 | COVER RIGHT FRONT ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950664 | 109 | HOUSING DAMPER ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950621 | 110 | TOP LEFT INNER ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1955282 | 111 | COVER SIDE LEFT ASSY ESL,CL38,ASP |
| SURECOLOR SC-S9100 | 1950643 | 112 | COVER LOGO PLATE ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1966152 | 112 | COVER LOGO PLATE ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950645 | 113 | COVER REAR RIGHT ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1964320 | 113 | COVER REAR RIGHT ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1922774 | 114 | LABEL,INK,Y |
| SURECOLOR SC-S9100 | 1908885 | 115 | COVER,IR,TOP |
| SURECOLOR SC-S9100 | 1908886 | 116 | COVER,IR,SIDE,UPPER |
| SURECOLOR SC-S9100 | 1908887 | 117 | COVER,IR,SIDE,LOWER |
| SURECOLOR SC-S9100 | 1832658 | 118 | LABEL,CAUTION,HOT |
| SURECOLOR SC-S9100 | 1908891 | 119 | COVER,IR,REAR,MIDDLE |
| SURECOLOR SC-S9100 | 1939240 | 120 | LABEL,MODEL NAME,S9100 |
| SURECOLOR SC-S9100 | 1908892 | 121 | COVER,IR,REAR,LOWER |
| SURECOLOR SC-S9100 | 1950642 | 122 | COVER,IR,FRONT,LOWER ASSY CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1916362 | 124 | COVER,TOP,IR,REAR |
| SURECOLOR SC-S9100 | 1917440 | 125 | LABEL,INK COLOR,M |
| SURECOLOR SC-S9100 | 1622968 | 126 | LABEL,CAUTION,FINGER |
| SURECOLOR SC-S9100 | 1917443 | 127 | LABEL,INK COLOR,BK |
| SURECOLOR SC-S9100 | 1939251 | 128 | LABEL,CAUTION,COVER |
| SURECOLOR SC-S9100 | 1922776 | 129 | LABEL,INK,C |
| SURECOLOR SC-S9100 | 1922939 | 130 | COVER,IR,REAR,UPPER |
| SURECOLOR SC-S9100 | 1923674 | 131 | COVER,SIDE,FULL,FRONT,B |
| SURECOLOR SC-S9100 | 1923675 | 132 | COVER,SIDE,FULL,REAR,B |
| SURECOLOR SC-S9100 | 1936133 | 133 | COVER,TOP,REAR |
| SURECOLOR SC-S9100 | 1962356 | 133 | COVER,TOP,REAR |
| SURECOLOR SC-S9100 | 1913642 | 134 | COVER,REAR,CENTER,SIDE |
| SURECOLOR SC-S9100 | 1913650 | 135 | COVER,REAR,RIGHT,C |
| SURECOLOR SC-S9100 | 1709780 | 136 | LABEL,WARNING,CHILD GUARD |
| SURECOLOR SC-S9100 | 1949261 | 137 | COVER LOUVER REAR ASSY,ESL ASP |
| SURECOLOR SC-S9100 | 1940207 | 138 | LABEL,ULTRA CHROME INK,GS3,B |
| SURECOLOR SC-S9100 | 1936132 | 139 | COVER,CORNER,RIGHT,FRONT |
| SURECOLOR SC-S9100 | 1956058 | 140 | COVER SIDE RIGHT ASSY,ESL ASP |
| SURECOLOR SC-S9100 | 1993244 | 140 | COVER SIDE RIGHT ASSY,ESL ASP |
| SURECOLOR SC-S9100 | 1949263 | 141 | COVER SIDE RIGHT,B ASSY,ESL ASP |
| SURECOLOR SC-S9100 | 1955143 | 142 | COVER,TOP,RIGHT,REAR,C |
| SURECOLOR SC-S9100 | 1936131 | 143 | HOUSING,COVER,RIGHT,TOP,FRONT |
| SURECOLOR SC-S9100 | 1949262 | 144 | COVER REAR LEFT ASSY,ESL ASP |
| SURECOLOR SC-S9100 | 1913646 | 145 | COVER,REAR,LEFT,B |
| SURECOLOR SC-S9100 | 1913647 | 146 | COVER,REAR,LEFT,C |
| SURECOLOR SC-S9100 | 1913657 | 147 | COVER,TOP,LEFT,REAR |
| SURECOLOR SC-S9100 | 1936154 | 148 | COVER,TOP,LEFT,INNER,B |
| SURECOLOR SC-S9100 | 1936136 | 149 | COVER,TOP,LEFT,FRONT |
| SURECOLOR SC-S9100 | 1922779 | 150 | LABEL,INK,LC |
| SURECOLOR SC-S9100 | 1917445 | 151 | LABEL,INK COLOR,LM |
| SURECOLOR SC-S9100 | 1939248 | 152 | LABEL,CAUTION,RIPS,B |
| SURECOLOR SC-S9100 | 1939236 | 153 | LABEL,INK COLOR,LK/GY |
| SURECOLOR SC-S9100 | 1939237 | 154 | LABEL,INK COLOR,RED |
| SURECOLOR SC-S9100 | 1939238 | 155 | LABEL,INK COLOR,WH/CL |
| SURECOLOR SC-S9100 | 1936134 | 156 | COVER,TOP,FRONT |
| SURECOLOR SC-S9100 | 1936135 | 157 | COVER,TOP,FRONT,LEFT |
| SURECOLOR SC-S9100 | 1922781 | 158 | LABEL,INK,OR |
| SURECOLOR SC-S9100 | 1939247 | 159 | LABEL,CAUTION,RIPS,A |
| SURECOLOR SC-S9100 | 1939250 | 160 | LABEL,CAUTION,RIPS,D |
| SURECOLOR SC-S9100 | 1955278 | 161 | HOLDER,PANEL,FULCRUM,C |
| SURECOLOR SC-S9100 | 1936139 | 162 | CONER,STRUT,LEFT,FRONT |
| SURECOLOR SC-S9100 | 1261387 | 163 | LABEL,CUT POSITION |
| SURECOLOR SC-S9100 | 1809585 | 164 | LABEL,SET,AFTER HEATER,2L |
| SURECOLOR SC-S9100 | 1939239 | 165 | LABEL,PERIODIC,STIRRING |
| SURECOLOR SC-S9100 | 1796627 | 166 | LABEL,PERIODIC MAINTENANCE |
| SURECOLOR SC-S9100 | 1950646 | 167 | HINGE,COVER ROLL ESL,ASP(10pcs) |
| SURECOLOR SC-S9100 | 1950623 | 168 | HOUSING COVER REAR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1964319 | 168 | HOUSING COVER REAR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1922782 | 169 | LABEL,INK,GR |
| SURECOLOR SC-S9100 | 2225932 | 201 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2228655 | 202 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2232633 | 203 | CR CONTACT MODULE |
| SURECOLOR SC-S9100 | 2232506 | 204 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2228281 | 205 | HARNESS,RELAY,FAN HEATER,W-119-2 |
| SURECOLOR SC-S9100 | 2228282 | 206 | HARNESS,RELAY,FAN HEATER,W-120-2 |
| SURECOLOR SC-S9100 | 2228652 | 207 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2232203 | 208 | HARNESS,RELAY,SUB-XH(A),W-322 |
| SURECOLOR SC-S9100 | 2232202 | 209 | HARNESS,RELAY,SUB-XH(P),W-321 |
| SURECOLOR SC-S9100 | 2232494 | 210 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2230245 | 211 | HARNESS,RELAY,HEATER,W-702 |
| SURECOLOR SC-S9100 | 2192188 | 212 | MEMORY CARD |
| SURECOLOR SC-S9100 | 2232967 | 213 | HARNESS,RELAY,SUB-Z,W-217 |
| SURECOLOR SC-S9100 | 2232496 | 214 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2227736 | 215 | HARNESS,RELAY,MOT CR,W-172 |
| SURECOLOR SC-S9100 | 2227737 | 216 | HARNESS,RELAY,ENC CR,W-174 |
| SURECOLOR SC-S9100 | 2227738 | 217 | HARNESS,RELAY,MAIN-B,W-176 |
| SURECOLOR SC-S9100 | 2227740 | 218 | HARNESS,RELAY,SUB-Z,SUB-B,W-178 |
| SURECOLOR SC-S9100 | 2228311 | 219 | HARNESS,RELAY,SUB-B,W-971 |
| SURECOLOR SC-S9100 | 2232487 | 220 | BOARD ASSY.,MAIN |
| SURECOLOR SC-S9100 | 2232194 | 221 | HARNESS,RELAY,SUB-Z,W-220 |
| SURECOLOR SC-S9100 | 2232492 | 222 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2227714 | 223 | HARNESS,RELAY,PSL2,SUB-Z,W-94 |
| SURECOLOR SC-S9100 | 2227719 | 224 | HARNESS,RELAY,MAIN-B,W-101 |
| SURECOLOR SC-S9100 | 2227721 | 225 | HARNESS,RELAY,MAIN-B,W-103 |
| SURECOLOR SC-S9100 | 2232965 | 226 | HARNESS,RELAY,SUB-XH(A),W-215 |
| SURECOLOR SC-S9100 | 2232191 | 227 | HARNESS,RELAY,FAN MIST2,W-208 |
| SURECOLOR SC-S9100 | 2227730 | 228 | HARNESS,RELAY,FAN DRY,W-123 |
| SURECOLOR SC-S9100 | 2227753 | 229 | HARNESS,RELAY,SUB-Z,SUB-B,W-970 |
| SURECOLOR SC-S9100 | 2232192 | 230 | HARNESS,RELAY,SUB-XH,W-218 |
| SURECOLOR SC-S9100 | 2227695 | 231 | HARNESS,RELAY,FAN PS2,W-19 |
| SURECOLOR SC-S9100 | 2227706 | 232 | HARNESS,RELAY,PSL1,W-83 |
| SURECOLOR SC-S9100 | 2175354 | 233 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2232182 | 234 | HARNESS,RELAY,AC INLET,W-61 |
| SURECOLOR SC-S9100 | 2227710 | 235 | HARNESS,RELAY,SUB-C,W-88 |
| SURECOLOR SC-S9100 | 2227712 | 236 | HARNESS,RELAY,SUB-C,W-92 |
| SURECOLOR SC-S9100 | 2227715 | 237 | HARNESS,RELAY,PSL2,SUB-Z,W-96 |
| SURECOLOR SC-S9100 | 2227717 | 238 | HARNESS,RELAY,MAIN-B,W-99 |
| SURECOLOR SC-S9100 | 2232195 | 239 | HARNESS,RELAY,SUB-Z,W-221 |
| SURECOLOR SC-S9100 | 2229312 | 240 | HARNESS,RELAY,MAIN,W-47 |
| SURECOLOR SC-S9100 | 2232485 | 241 | BOARD ASSY.,MAIN |
| SURECOLOR SC-S9100 | 2232498 | 242 | BOARD ASSY.,DRV |
| SURECOLOR SC-S9100 | 2232204 | 243 | HARNESS,SUB-FL1,SUB-XH(P),W-323 |
| SURECOLOR SC-S9100 | 2232201 | 244 | HARNESS,SUB-XH,SUB-FL2,W-319 |
| SURECOLOR SC-S9100 | 2232211 | 245 | HARNESS,RELAY,FAN FL,W-365 |
| SURECOLOR SC-S9100 | 2232209 | 246 | HARNESS,RELAY,HEATER PRI,W-350 |
| SURECOLOR SC-S9100 | 2232210 | 247 | HARNESS,RELAY,HEATER PLA,W-351 |
| SURECOLOR SC-S9100 | 2232190 | 248 | HARNESS,RELAY,H TH,W-204 |
| SURECOLOR SC-S9100 | 2237205 | 301 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-S9100 | 1943553 | 501 | SCALE,PF ASSY,ASP |
| SURECOLOR SC-S9100 | 1950637 | 502 | SLOT ASSY. UPPER HIRA6W,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950639 | 503 | SLOT ASSY. LOWER HIRA5W,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 2152327 | 504 | FAN ASSY.,DRYING |
| SURECOLOR SC-S9100 | 2232292 | 504 | FAN ASSY.,DRYING |
| SURECOLOR SC-S9100 | 1950617 | 505 | PUMP CAP ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1959977 | 505 | PUMP CAP ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1963823 | 505 | PUMP CAP ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950614 | 506 | CR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1969392 | 506 | CR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1969393 | 506 | CR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950616 | 507 | INK DETECTOR ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1961999 | 507 | INK DETECTOR ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950640 | 508 | DUCT DECOMPRES. PUMP ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 2143464 | 510 | PHOTO INTERRUPTER |
| SURECOLOR SC-S9100 | 1925854 | 511 | HOLDER,FFC,CONNECTER |
| SURECOLOR SC-S9100 | 1949659 | 512 | HOLDER,MAINTENANCE, ASSY,B,ASP |
| SURECOLOR SC-S9100 | 2233075 | 513 | HARNESS,SENSOR,COVER,CR |
| SURECOLOR SC-S9100 | 2232198 | 514 | HARNESS,SUB,SNS APG,W-310 |
| SURECOLOR SC-S9100 | 1933215 | 515 | SUPPORT PLATE,ARM,TENSION BAR |
| SURECOLOR SC-S9100 | 1950624 | 516 | TRAY CR GUIDE RIGHT ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950662 | 517 | KEEP CAP ASSY.,CL38 ESL, ASP |
| SURECOLOR SC-S9100 | 1969115 | 517 | KEEP CAP ASSY.,CL38 ESL, ASP |
| SURECOLOR SC-S9100 | 1950630 | 518 | ON CR ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1969114 | 518 | ON CR ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 2232950 | 519 | HARNESS,RELAY,SNS TB,W-66 |
| SURECOLOR SC-S9100 | 1943547 | 520 | APG MOTOR ASSY,ASP |
| SURECOLOR SC-S9100 | 1950618 | 521 | CLOTH WIPER CARRIAGE ASSY.,CL38 ESL, ASP |
| SURECOLOR SC-S9100 | 1961916 | 521 | CLOTH WIPER CARRIAGE ASSY.,CL38 ESL, ASP |
| SURECOLOR SC-S9100 | 2209884 | 522 | BOARD ASSY.,SENSOR |
| SURECOLOR SC-S9100 | 2232797 | 523 | FFC,PW |
| SURECOLOR SC-S9100 | 2232799 | 525 | FFC,IMS |
| SURECOLOR SC-S9100 | 1950931 | 526 | FFC,ENCODER,CR ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1967940 | 526 | FFC,ENCODER,CR ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1933221 | 527 | COVER,TENSION BAR,INNER,RIGHT |
| SURECOLOR SC-S9100 | 2232955 | 528 | HARNESS,RELAY,FL FAN,W-367 |
| SURECOLOR SC-S9100 | 2231266 | 529 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2232957 | 530 | HARNESS,RELAY,MOT RYURO,W-510 |
| SURECOLOR SC-S9100 | 1943518 | 531 | HEATER CABLE ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1950635 | 532 | AFTER HEATER ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 2232212 | 533 | HARNESS,RELAY,SNS TRY,W-506 |
| SURECOLOR SC-S9100 | 2232213 | 534 | HARNESS,RELAY,SNS IE,W-508 |
| SURECOLOR SC-S9100 | 1950615 | 535 | COVER HEATER TOP REAR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950928 | 536 | PAPER HOLD ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1962721 | 536 | PAPER HOLD ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1908997 | 537 | SCALE,CR |
| SURECOLOR SC-S9100 | 2139052 | 538 | FAN ASSY.,ABSORPTION |
| SURECOLOR SC-S9100 | 2209149 | 539 | BOARD ASSY.,SENSOR |
| SURECOLOR SC-S9100 | 2227691 | 540 | HARNESS,RELAY,SUB-R,W-6 |
| SURECOLOR SC-S9100 | 2232947 | 541 | HARNESS,RELAY,SNS P COVER (H),W-65 |
| SURECOLOR SC-S9100 | 2233562 | 542 | MOTOR ASSY.,PF,C |
| SURECOLOR SC-S9100 | 2170578 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-S9100 | 2232949 | 544 | HARNESS,RELAY,SNS HEAD MNT(H),W-20 |
| SURECOLOR SC-S9100 | 1950226 | 545 | PANEL ASSY ESL,B,ASP |
| SURECOLOR SC-S9100 | 2221514 | 546 | HARNESS,RELAY,SPEAKER,PNL |
| SURECOLOR SC-S9100 | 2200023 | 547 | FAN, COOLING,PS |
| SURECOLOR SC-S9100 | 2182572 | 548 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-S9100 | 2228458 | 549 | CABLE,MOTOR,APG |
| SURECOLOR SC-S9100 | 2227688 | 550 | HARNESS,RELAY,PNL-B,W-3 |
| SURECOLOR SC-S9100 | 2233078 | 551 | HARNESS,RELAY,SWITCH,W-509 |
| SURECOLOR SC-S9100 | 2232196 | 552 | HARNESS,RELAY,TH A,W-241 |
| SURECOLOR SC-S9100 | 1950663 | 553 | RIPS CL38 W/W ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1916324 | 554 | CASTER,TY-40SB |
| SURECOLOR SC-S9100 | 1664858 | 555 | TIMING BELT,PF |
| SURECOLOR SC-S9100 | 1916325 | 556 | CASTER,TY-40B |
| SURECOLOR SC-S9100 | 2232490 | 557 | BOARD ASSY.,MAIN |
| SURECOLOR SC-S9100 | 1950930 | 558 | HOLDER,TUBE,CR,ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 2227746 | 559 | HARNESS,RELAY,MOT PUMP,W-214 |
| SURECOLOR SC-S9100 | 1283811 | 560 | C.B.(O)SCREW,4X6,F/ZG-3C |
| SURECOLOR SC-S9100 | 2227759 | 561 | HARNESS,RELAY,MAIN,W-203 |
| SURECOLOR SC-S9100 | 2227767 | 562 | HARNESS,RELAY,MAIN,W-204 |
| SURECOLOR SC-S9100 | 2232990 | 563 | HARNESS,INK DETECT,IH,L2 |
| SURECOLOR SC-S9100 | 2232991 | 564 | HARNESS,INK DETECT,IH,L3 |
| SURECOLOR SC-S9100 | 1951076 | 565 | TENSION BAR GEAR ASSY,RIGHT,ESL,ASP |
| SURECOLOR SC-S9100 | 2228240 | 566 | CABLE,SENSOR COVER |
| SURECOLOR SC-S9100 | 2232962 | 567 | FFC,CRCM1,F-501 |
| SURECOLOR SC-S9100 | 2232963 | 568 | FFC,CRCM2,F-502 |
| SURECOLOR SC-S9100 | 1951077 | 569 | TENSION BAR GEAR ASSY,LEFT,ESL,ASP |
| SURECOLOR SC-S9100 | 2227742 | 570 | HARNESS,RELAY,IES,W-207 |
| SURECOLOR SC-S9100 | 1951078 | 571 | TENSION BAR SENSOR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 2228293 | 572 | HARNESS,RELAY,MOT ENC SWITCH,W-607 |
| SURECOLOR SC-S9100 | 1951079 | 573 | TENSIONADJUST ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1963967 | 573 | TENSIONADJUST ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1481278 | 574 | COMBINATION GEAR,26,12.8 |
| SURECOLOR SC-S9100 | 1943555 | 575 | TRAY,INK PACK,ASSY,ASP |
| SURECOLOR SC-S9100 | 1950641 | 576 | COVER,LEVER,IR ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1950632 | 577 | PAN,INK,RIPS ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1950633 | 578 | PAN,INK,RIPS,B ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 1956036 | 579 | HARNESS,BUZZER,W-2,ASSY, ESL, ASP |
| SURECOLOR SC-S9100 | 1950622 | 580 | COVER FFC CR ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1933222 | 581 | COVER,TENSION BAR,INNER,LEFT |
| SURECOLOR SC-S9100 | 2232952 | 582 | HARNESS,RELAY,MAIN-B,W-132 |
| SURECOLOR SC-S9100 | 2232199 | 583 | HARNESS,RELAY,FAN HEAD1,W-311 |
| SURECOLOR SC-S9100 | 2232186 | 584 | HARNESS,RELAY,FAN MIST1,W-107 |
| SURECOLOR SC-S9100 | 2232945 | 585 | HARNESS,AC INLET,W-47,16A |
| SURECOLOR SC-S9100 | 2221373 | 586 | MICRO DOOR SWITCH,D3DC-3N |
| SURECOLOR SC-S9100 | 2232946 | 587 | HARNESS,AC INLET, W-341,16A |
| SURECOLOR SC-S9100 | 2232206 | 588 | HARNESS,RELAY,HEATER PRI,W-333 |
| SURECOLOR SC-S9100 | 2232796 | 589 | FFC,Board,CR |
| SURECOLOR SC-S9100 | 2228466 | 590 | FFC,DETECTOR,RELEASE |
| SURECOLOR SC-S9100 | 2226399 | 591 | BRUSHLESS MOTOR ASSY,CR,JK57BLF02 |
| SURECOLOR SC-S9100 | 2232184 | 592 | HARNESS,MAIN-B,SNS PE,W-102 |
| SURECOLOR SC-S9100 | 2227762 | 593 | HARNESS,RELAY,ROLL,W-141 |
| SURECOLOR SC-S9100 | 2227760 | 594 | HARNESS,RELAY,FAN DRY,W-124 |
| SURECOLOR SC-S9100 | 2227764 | 595 | HARNESS,RELAY,REEL,W-145 |
| SURECOLOR SC-S9100 | 1923689 | 596 | POROUS PAD,TRAY |
| SURECOLOR SC-S9100 | 2232792 | 597 | FFC,HEAD |
| SURECOLOR SC-S9100 | 2232793 | 598 | FFC,HEAD,B |
| SURECOLOR SC-S9100 | 2232794 | 599 | FFC,HEAD,C |
| SURECOLOR SC-S9100 | 2232795 | 600 | FFC,HEAD,D |
| SURECOLOR SC-S9100 | 2176012 | 601 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| SURECOLOR SC-S9100 | 2228649 | 602 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2228573 | 603 | CABLE,RELAY,THERMISTOR |
| SURECOLOR SC-S9100 | 1943552 | 604 | PULLEY,ROLLER,PF ASSY,ASP |
| SURECOLOR SC-S9100 | 2227731 | 605 | HARNESS,RELAY,FAN DRY,W-126 |
| SURECOLOR SC-S9100 | 2227732 | 606 | HARNESS,RELAY,FAN DRY,W-127 |
| SURECOLOR SC-S9100 | 2227761 | 607 | HARNESS,RELAY,FAN DRY,W-125 |
| SURECOLOR SC-S9100 | 2228973 | 608 | FAN,11938KA-N |
| SURECOLOR SC-S9100 | 2227943 | 609 | FFC,MAIN,SUB-R,F-16 |
| SURECOLOR SC-S9100 | 2233079 | 610 | FFC,MAIN-B,SUB-R,F-3 |
| SURECOLOR SC-S9100 | 2227698 | 611 | HARNESS,SUB-R,MAIN-B,W-43 |
| SURECOLOR SC-S9100 | 2232189 | 612 | HARNESS,RELAY,SUB-C,W-126 |
| SURECOLOR SC-S9100 | 2227709 | 613 | HARNESS,RELAY,PSL1,W-87 |
| SURECOLOR SC-S9100 | 2227711 | 614 | HARNESS,RELAY,PSL2,W-91 |
| SURECOLOR SC-S9100 | 2232177 | 615 | HARNESS,RELAY,MOT CIR,W-40 |
| SURECOLOR SC-S9100 | 2203867 | 616 | FAN,COOLING,06025SS-24Q-AL-DE |
| SURECOLOR SC-S9100 | 2203868 | 617 | FAN,COOLING,08025SS-24Q-AL-D5 |
| SURECOLOR SC-S9100 | 2228283 | 618 | FFC,MAIN,PNL,F-1 |
| SURECOLOR SC-S9100 | 2227735 | 619 | HARNESS,RELAY,FAN CR,W-171 |
| SURECOLOR SC-S9100 | 1814064 | 620 | SEAL,PAPER GUIDE,FRONT |
| SURECOLOR SC-S9100 | 2227693 | 621 | HARNESS,RELAY,FAN PLATEN2,W-9 |
| SURECOLOR SC-S9100 | 2227692 | 622 | HARNESS,RELAY,FAN PLATEN1,W-7 |
| SURECOLOR SC-S9100 | 2227697 | 623 | HARNESS,MAIN,MAIN-B,W-42 |
| SURECOLOR SC-S9100 | 2227716 | 624 | HARNESS,RELAY,PSL2,W-98 |
| SURECOLOR SC-S9100 | 2227718 | 625 | HARNESS,ASSY,SUB-Z,WA01 |
| SURECOLOR SC-S9100 | 2227739 | 626 | HARNESS,RELAY,SUB-Z,SUB-B,W-177 |
| SURECOLOR SC-S9100 | 2232181 | 627 | HARNESS,RELAY,SENSOR,INK DETECT,W-59 |
| SURECOLOR SC-S9100 | 2238761 | 627 | HARNESS,RELAY,SENSOR,INK DETECT,W-59 |
| SURECOLOR SC-S9100 | 2232176 | 628 | HARNESS,RELAY,SNS CR LEAK1,W-35 |
| SURECOLOR SC-S9100 | 2227696 | 629 | HARNESS,MAIN,MAIN-B,W-41 |
| SURECOLOR SC-S9100 | 2227704 | 630 | HARNESS,RELAY,PSL1,W-81 |
| SURECOLOR SC-S9100 | 2239896 | 630 | HARNESS,RELAY,PSL1,W-81 |
| SURECOLOR SC-S9100 | 2150441 | 631 | MOTOR ASSY.,WIPER |
| SURECOLOR SC-S9100 | 2228467 | 632 | FFC,MOTOR,NIP |
| SURECOLOR SC-S9100 | 2175356 | 633 | BOARD ASSY.,SUB |
| SURECOLOR SC-S9100 | 2232173 | 634 | HARNESS,RELAY,SENSOR,W-24 |
| SURECOLOR SC-S9100 | 2227701 | 635 | HARNESS,RELAY,MOT ENC MNU,W-73 |
| SURECOLOR SC-S9100 | 2232964 | 636 | HARNESS,RELAY,MOT APG,W-37 |
| SURECOLOR SC-S9100 | 2232188 | 637 | HARNESS,RELAY,SNS CR LEAK2,W-125 |
| SURECOLOR SC-S9100 | 2227700 | 638 | HARNESS,RELAY,MOT ENC WIPER,W-71 |
| SURECOLOR SC-S9100 | 2227703 | 639 | HARNESS,RELAY,ENC BOARD,W-77 |
| SURECOLOR SC-S9100 | 2232183 | 640 | HARNESS,RELAY,SNS T,W-64 |
| SURECOLOR SC-S9100 | 2230246 | 641 | HARNESS,RELAY,P.H-COVER,W-23-2 |
| SURECOLOR SC-S9100 | 1662767 | 642 | FASTEN PLATE,ROLLER,DRIVEN |
| SURECOLOR SC-S9100 | 2230247 | 643 | HARNESS,RELAY,H-COVER,W-505-2 |
| SURECOLOR SC-S9100 | 2227734 | 644 | HARNESS,RELAY,MOT PF,W-164 |
| SURECOLOR SC-S9100 | 2228280 | 645 | HARNESS,RELAY,PSL2,SUB-Z,W-972 |
| SURECOLOR SC-S9100 | 2239897 | 645 | HARNESS,RELAY,PSL2,SUB-Z,W-972 |
| SURECOLOR SC-S9100 | 1933180 | 646 | SHEET,GUIDE RAIL,TUBE,LOWER |
| SURECOLOR SC-S9100 | 1941719 | 647 | SHEET,GUIDE RAIL,TUBE,FRONT |
| SURECOLOR SC-S9100 | 1909307 | 648 | SHEET,GUIDE RAIL,TUBE,REAR |
| SURECOLOR SC-S9100 | 1950634 | 649 | ROLLER,DRIVEN ASSY ESL,ASP |
| SURECOLOR SC-S9100 | 2228456 | 650 | CABLE,DETECTOR,CRHP |
| SURECOLOR SC-S9100 | 2227689 | 652 | HARNESS,RELAY,SUB-C,W-4 |
| SURECOLOR SC-S9100 | 2228463 | 653 | CABLE,DETECTOR,COVER,IR |
| SURECOLOR SC-S9100 | 2234315 | 654 | HARNESS,RELAY,MAIN-D,W-201 |
| SURECOLOR SC-S9100 | 2234316 | 655 | HARNESS,RELAY,MAIN-D,W-202 |
| SURECOLOR SC-S9100 | 2227690 | 656 | HARNESS,RELAY,SUB-R,W-5 |
| SURECOLOR SC-S9100 | 2230249 | 657 | HARNESS,RELAY,H-COVER(FULL) ,W-506-2 |
| SURECOLOR SC-S9100 | 2150699 | 658 | LEAF SENSOR,P599 |
| SURECOLOR SC-S9100 | 2232175 | 659 | HARNESS,RELAY,SNS INK EJECT,W-28 |
| SURECOLOR SC-S9100 | 2232174 | 660 | HARNESS,RELAY,SNS INK EJECT,W-58 |
| SURECOLOR SC-S9100 | 2238479 | 660 | HARNESS,RELAY,SNS INK EJECT,W-58 |
| SURECOLOR SC-S9100 | 1950647 | 661 | COVER,CR,ASSY ESL,ASP |
| SURECOLOR SC-S9100 | FA77001 | 662 | PRINT HEAD,HTK,ASP |
| SURECOLOR SC-S9100 | FA77011 | 662 | PRINT HEAD,HTK,ASP |
| SURECOLOR SC-S9100 | 1950625 | 663 | TRAY CR GUIDE LEFT ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950613 | 664 | THERMISTOR CABLE ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 2228465 | 665 | FFC,SENSOR,NIP |
| SURECOLOR SC-S9100 | 2233220 | 666 | CABLE,ENCORDER,PF |
| SURECOLOR SC-S9100 | 1909138 | 668 | HOLDER,KEEP CAP |
| SURECOLOR SC-S9100 | 2232170 | 669 | HARNESS,RELAY,SNS RYURO LEAK,W-21 |
| SURECOLOR SC-S9100 | 1950660 | 670 | FFC ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1961425 | 670 | FFC ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 2232168 | 671 | HARNESS,RELAY,SNS T,W-15 |
| SURECOLOR SC-S9100 | 2232951 | 672 | HARNESS,RELAY,SNS HEAD MNT(F),W-104 |
| SURECOLOR SC-S9100 | 2232179 | 673 | HARNESS,RELAY,SNS TB,W-52 |
| SURECOLOR SC-S9100 | 1487528 | 674 | EXTENSION SPRING,3.0,B |
| SURECOLOR SC-S9100 | 1916357 | 676 | LEVER,LOCK |
| SURECOLOR SC-S9100 | 2232187 | 677 | HARNESS,RELAY,SNS CR LEAK2,W-124 |
| SURECOLOR SC-S9100 | 2232953 | 678 | HARNESS,RELAY,SUB-XH(A),W-249 |
| SURECOLOR SC-S9100 | 2232966 | 679 | HARNESS,RELAY,SUB-XH(A),W-216 |
| SURECOLOR SC-S9100 | 2232954 | 680 | HARNESS,RELAY,SUB-XH,W-250 |
| SURECOLOR SC-S9100 | 2232956 | 681 | HARNESS,RELAY,SUB-XH,W-368 |
| SURECOLOR SC-S9100 | 2232193 | 682 | HARNESS,RELAY,SUB-Z,W-219 |
| SURECOLOR SC-S9100 | 2232197 | 683 | HARNESS,RELAY,TH H,W-240 |
| SURECOLOR SC-S9100 | 2233219 | 684 | HARNESS,TENSION BAR |
| SURECOLOR SC-S9100 | 1950626 | 685 | JOINT LOWER ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1951080 | 686 | TENSION BAR ASSY,ESL, ASP |
| SURECOLOR SC-S9100 | 1965006 | 686 | TENSION BAR ASSY,ESL, ASP |
| SURECOLOR SC-S9100 | 1950627 | 689 | CIRCULATION PUMP ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950628 | 690 | FILTER ASSY.LOWER,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950629 | 691 | FILTER ASSY.UPPER,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950609 | 692 | FL BOX TUBE ASSY.,CL38 ESL, ASP |
| SURECOLOR SC-S9100 | 1950610 | 693 | FL BOX TUBE ASSY.MIDDLE,CL38 ESL, ASP |
| SURECOLOR SC-S9100 | 1950659 | 694 | FLASHING BOX ASSY.,CL38 ESL, ASP |
| SURECOLOR SC-S9100 | 1950612 | 695 | LED ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1962722 | 695 | LED ASSY,ESL,ASP |
| SURECOLOR SC-S9100 | 1950611 | 696 | PIPING ASSY.,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950661 | 697 | TUBE ASSY.A,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950631 | 698 | TUBE ASSY.BC,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 1950929 | 709 | FFC B TO B ASSY,CL38 ESL,ASP |
| SURECOLOR SC-S9100 | 2228574 | 711 | CABLE,RELAY,HEATER |
| SURECOLOR SC-S9100 | 2232207 | 712 | HARNESS,RELAY,HEATER PLA,W-336 |
| SURECOLOR SC-S9100 | 2232948 | 715 | HARNESS,RELAY,SNS P COVER (F),W-131 |
| SURECOLOR SC-S9100 | 1952365 | 716 | SEAL,P COVER ASSY CL38 ESL ASP(2pcs) |
| SURECOLOR SC-S9100 | 1952366 | 717 | DAMPER,UDH ASSY CL38,ESL ASP |
| SURECOLOR SC-S9100 | 2223470 | 754 | BOARD ASSY.,IMS,SG1A015 |
| Manual Name | Parts Manual for EPSON SureColor S9100 S9130 S9140 S9150 S9160 S9170 |
|---|---|
| Format | |
| PDF Archive | 39.8 MB |
| Pages | 13 |
| Version | 01 |
| Parts Code | CL38 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON Surecolor S9100 S9130 S9140 S9150 S9160 S9170 |
